Stock WT32C3 S5 4MB Wireless Network Control MCU WIFI Blue tooth ESP32 C3 IC Module Compatible with ESP 12F ESP C3 12F ESP C3 13
- Category: >>>
- Supplier: Wireless-Tag Technology Co. Limited
Share on (1600350475016):
Product Overview
Description
Product Description
Stock WT32C3 S5 4MB Wireless Network Control MCU WIFI Blue-tooth
ESP32-C3 IC Module Compatible with ESP-12F ESP-C3-12F ESP-C3-13
WT32C3-S5 WiFi module is an embedded wireless network control module with low power consumption and high cost performance. It can meet the requirements of smart grid, building automation, security, smart home, tele medicine and other Internet of things applications.
ESP32-C3, the core processor of the module, integrates the industry-leading risc-v 32-bit single core processor in smaller
package, the main frequency supports up to 160 MHz and PCB on-board antenna.
The module supports the standard IEEE802.11 B / g / N protocol and low-power Blue-tooth 5.0 (Blue-tooth LE): Blue-tooth 5 and Blue-tooth mesh. Users can use this module to add Blue-tooth distribution and networking functions to existing devices, or build an independent network controller.
ESP32-C3, the core processor of the module, integrates the industry-leading risc-v 32-bit single core processor in smaller
package, the main frequency supports up to 160 MHz and PCB on-board antenna.
The module supports the standard IEEE802.11 B / g / N protocol and low-power Blue-tooth 5.0 (Blue-tooth LE): Blue-tooth 5 and Blue-tooth mesh. Users can use this module to add Blue-tooth distribution and networking functions to existing devices, or build an independent network controller.
Remarks:
IC adopted: ESP32-C3FN4 and ESP32-C3FH4.
ESP32-C3FN4 Working temperature of -20 to 85℃
ESP32-C3FH4 Working temperature of -20 to 105℃
We will ship with 85℃ version module if no special request from your side.
Specification
Item | Value |
Model Number | WT32C3-S5 |
Type | Network control module (compatible with ESP-12F/ ESP-C3-12F/ ESP-C3-13) |
Place of Origin | Shenzhen, China |
Brand Name | Wireless-Tag |
Chipset | ESP32-C3 |
Supplier Type | Original Factory |
Application | Smart home, Health Care, Audio Device |
MCU | ESP32-C3, 32-bit RISC-V single-core microprocessor |
WIFI | IEEE 802.11b/g/n protocol |
Bluetoooth LE | Blue-tooth5, Blue-tooth Mesh |
BLE Speed | 125Kbps, 500Kbps, 1Mbps, 2Mbps |
Interfaces | GPIO, SPI, UART, I2C, I2S |
Flash | 4 MB SPI flash |
Operating voltage | 3.0~3.6 V |
Operating ambient temperature | -40~85℃ |
Dimensions | 15mm*16mm |
Package | Adopts SMD-22 package |

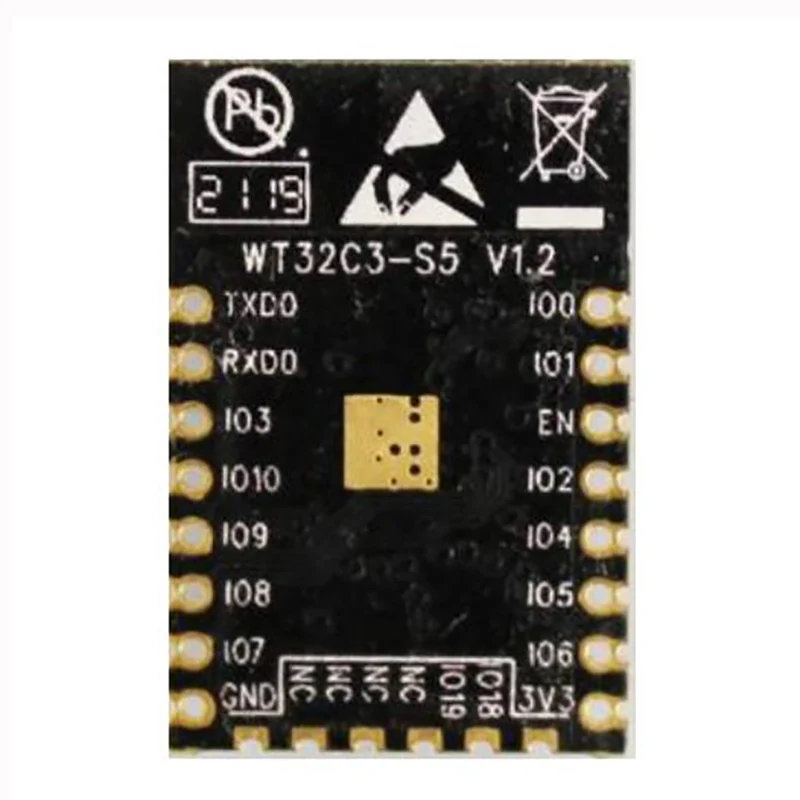

Pin Layout

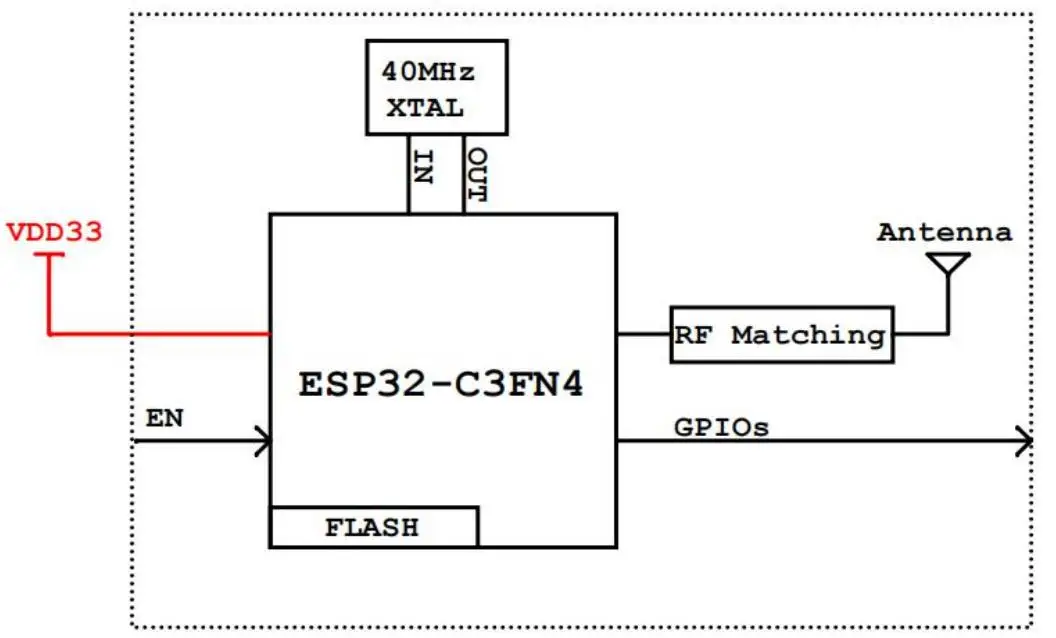

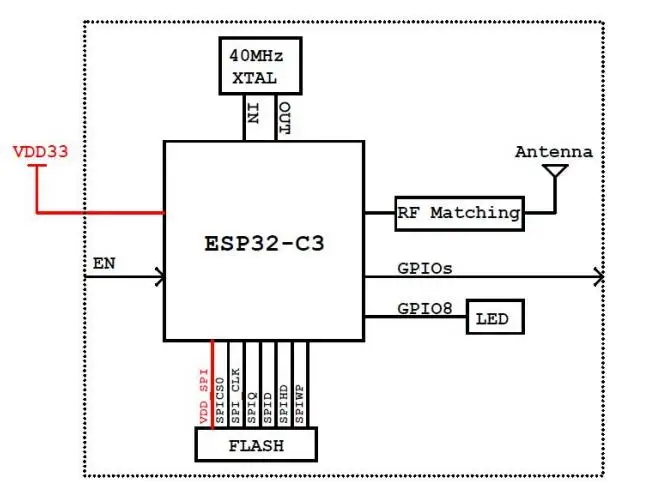

Block Diagram

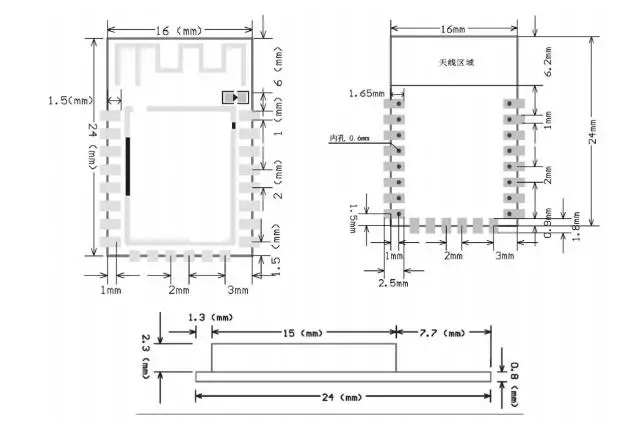

Module Dimension
Product Application
