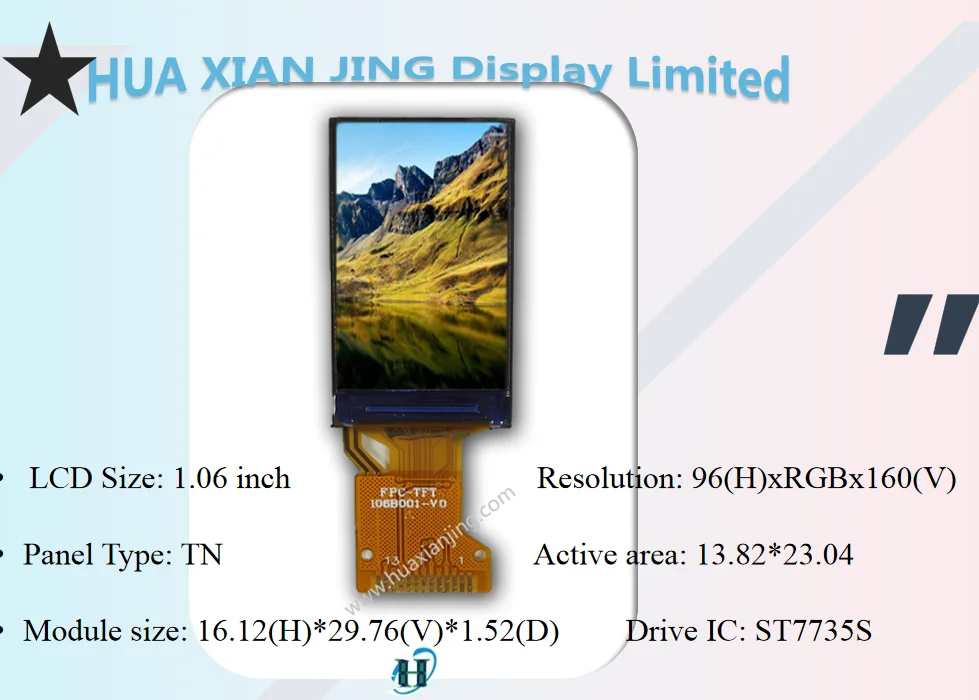

1.06' Tft Original Manufacturer Supply 1.06 Inch High Quality Color Tft Lcd for monitor
- Category: >>>
- Supplier: Hua Xian Jing Display Limited
Share on (1600350763685):
Product Overview
Description
Specification
Item | Specification | Unit |
LCD Size | 1.06 | inch |
Panel Type | TN | - |
Resolution | 96(H)xRGBx160(V) | Pixel |
Display Mode 显 | Normally White | - |
Number of Colors | 262K | - |
Viewing Direction | 45/45/50/20 (Typ.) 35/35/35/15 (Min.) | - |
NTSC | 65% | - |
Contrast Ratio | 500 | - |
Luminance | 250 | cd/m2 |
Module Size | 16.12(H)*29.76(V)*1.52(D) | mm |
Panel Active Area | 13.82*23.04 | mm |
Pixel Pitch | 48(H)×3×144(V) | mm |
Pixel Arrangement | RGB Vertical Stripe | |
Driver IC | ST7735S | - |
Driver IC RAM Size | 1 white LEDs | bit |
Interface | 4 SPI | - |

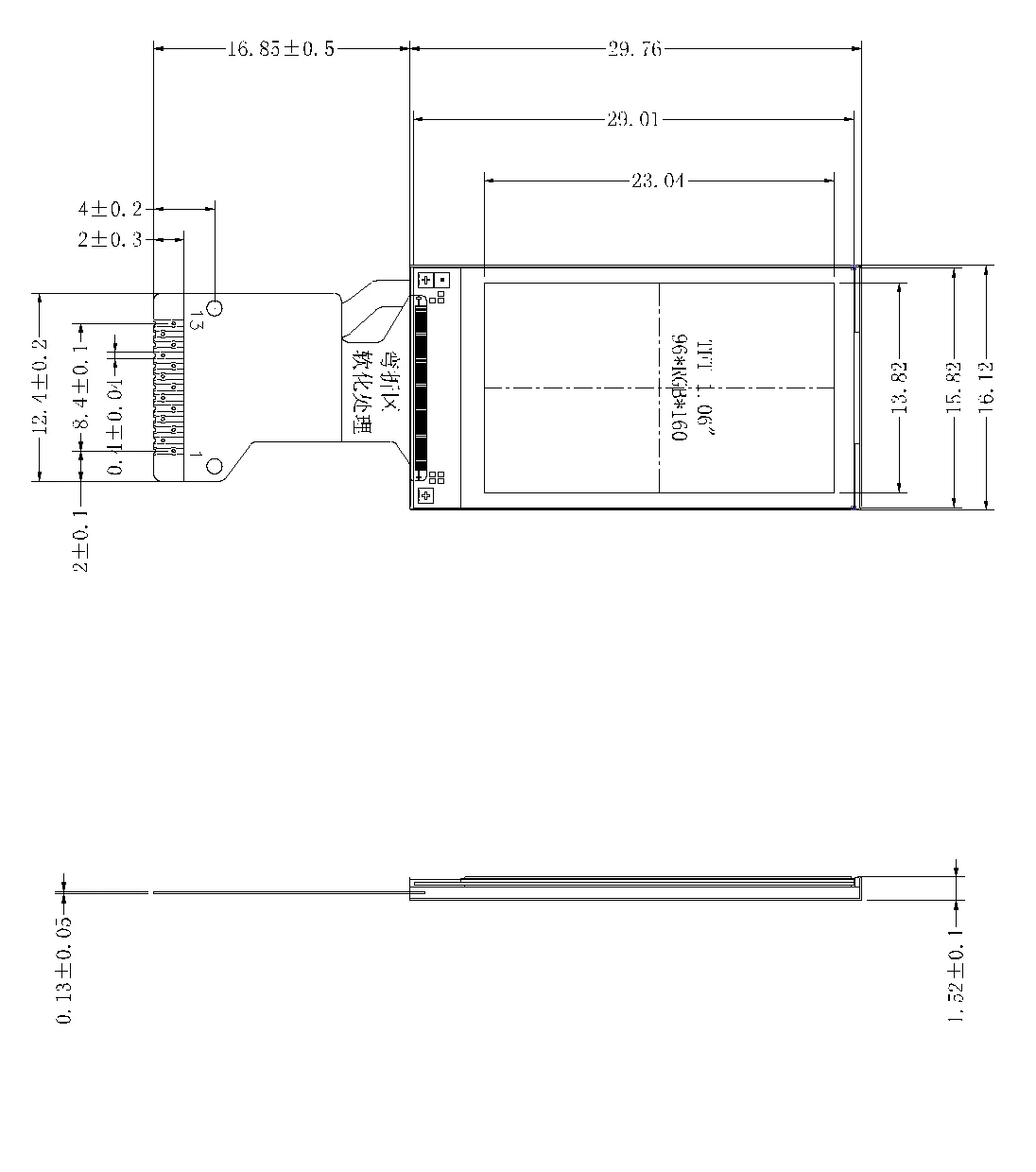

Mechanical Diagram
Company Profile
HUA XIAN JING Display Limited is a high-tech enterprise, established in 2011, specializing in the production of high-quality liquid crystal display TN, HTN, STN, FSTN, TFT, OLED, as well as backlight and LCD module manufacturers.
Our company has a complete set of international advanced production equipment and ultra clean plant and supporting auxiliary facilities, covers an area of 50 hectare.
At present, the LCD high-tech achievements produced by the company can be widely used in household appliances, automobile instruments, wearable devices, communication equipment, medical equipment, financial POS machines, ETC electronic tags and other fields.
Why Choose Us
Certifications
Application

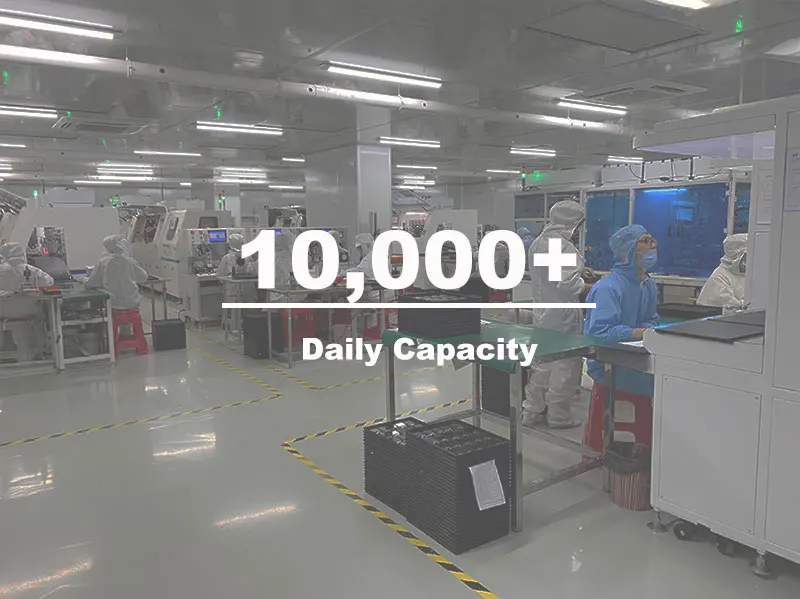

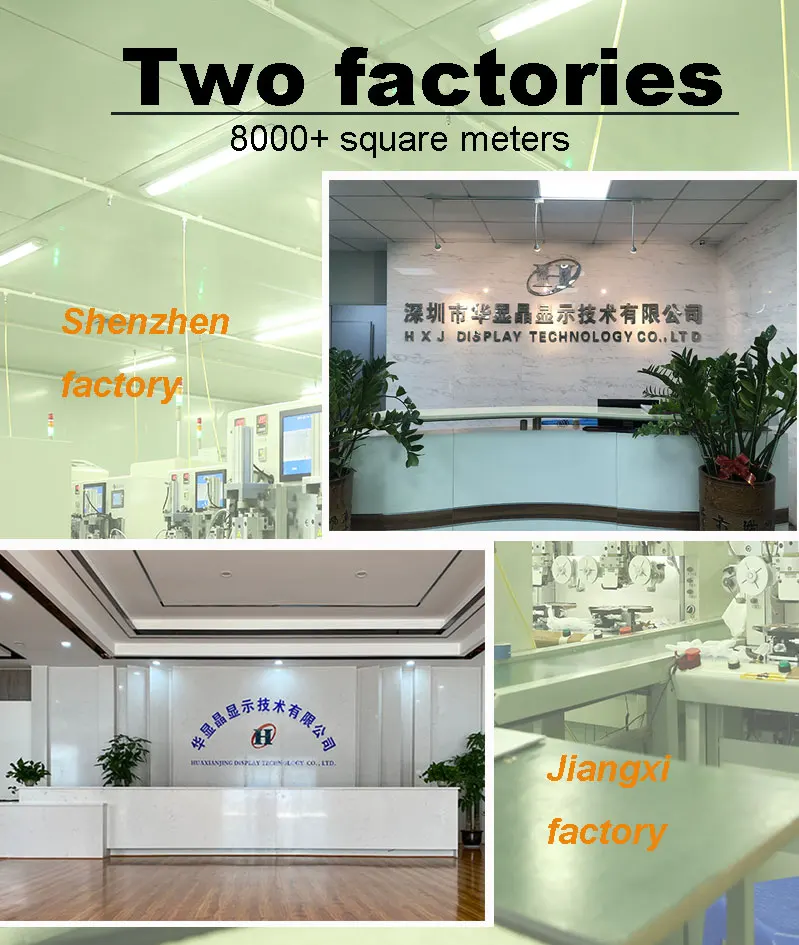

Factory Show

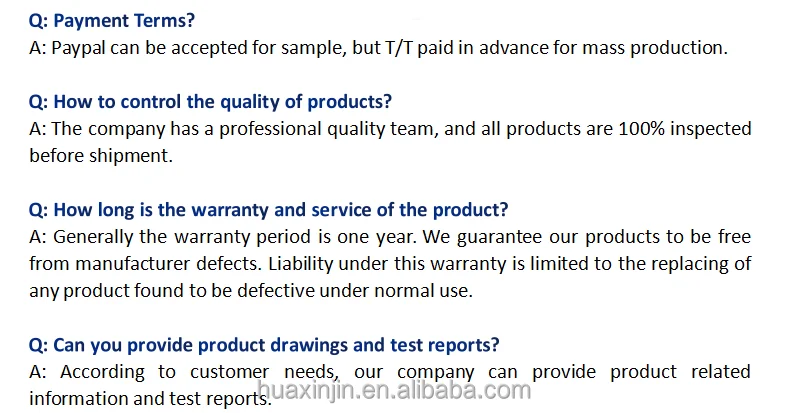

FAQ
