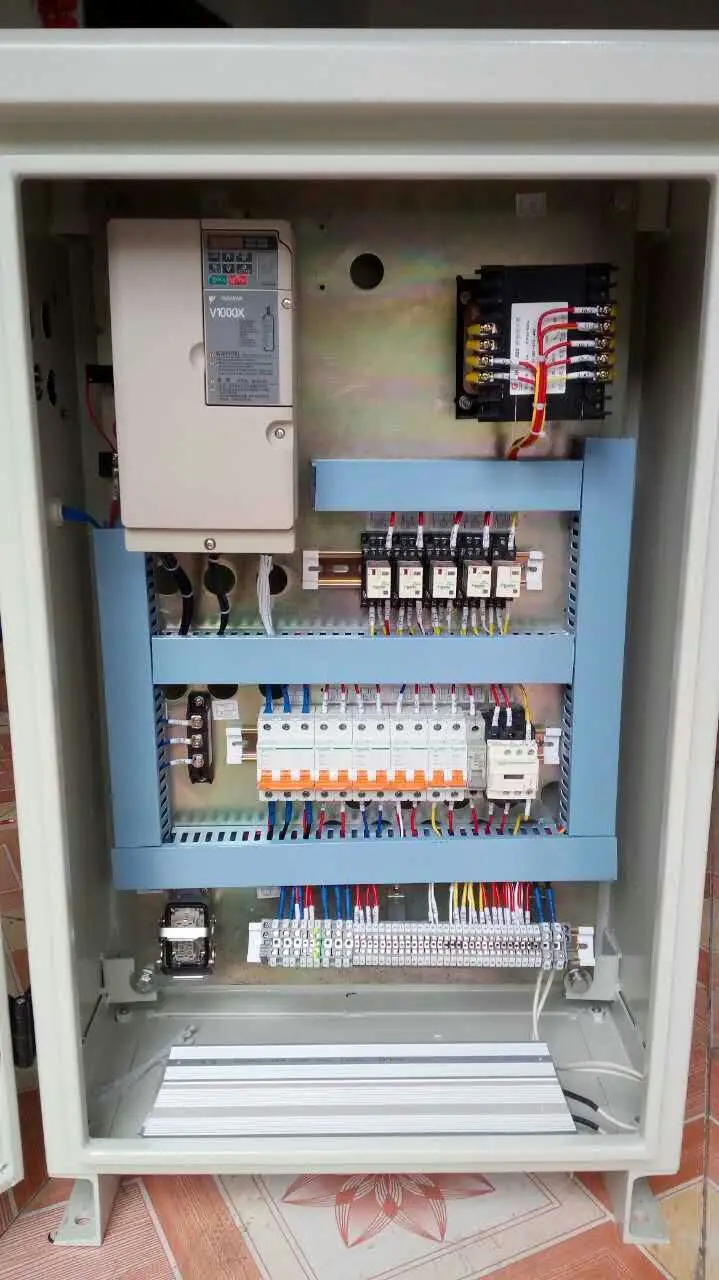

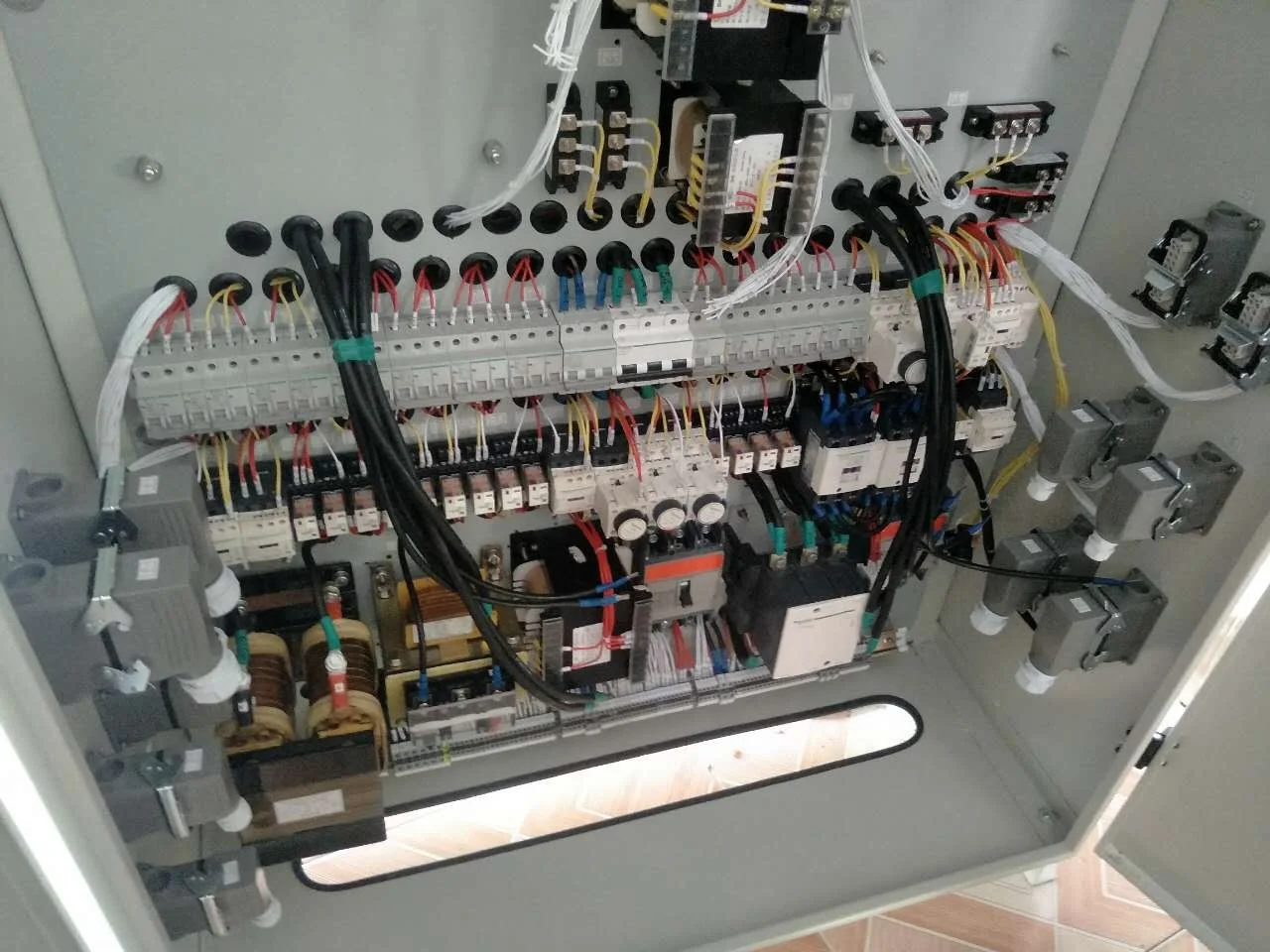

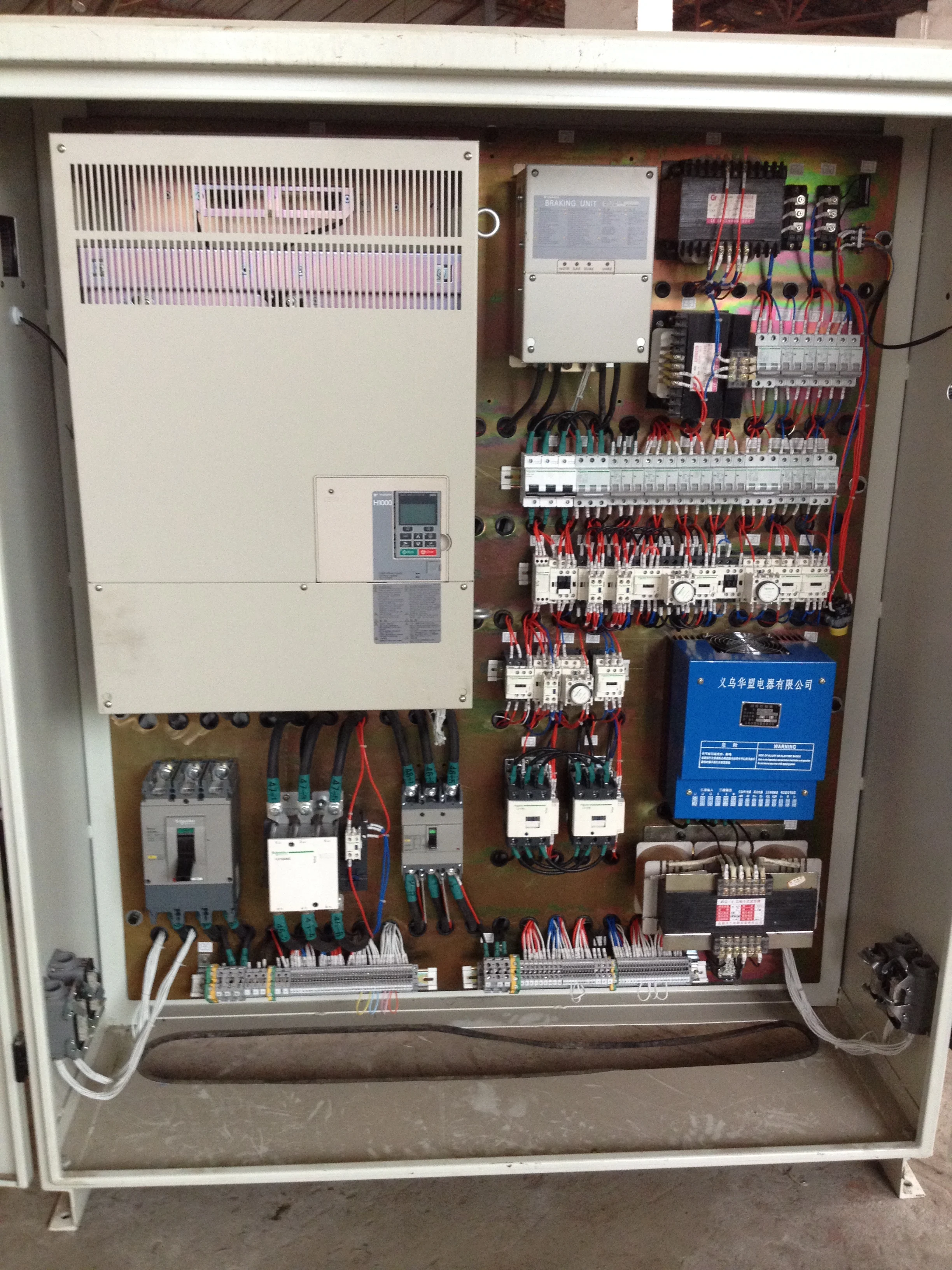

tower crane spare parts electric panel connection H24B BK 2L/PSE
- Category: >>>
- Supplier: LYFC Machinery Equipment (Shenyang) Limited
Share on (1600350835091):
Product Overview
Description
Product Overview
PRODUCT SPECIFICATIONS
LYFC Tower Crane Heavy Duty Power Connectors
Heavy Duty Power Connectors are ideal for industrial applications with harsh requirements. It can help provide a solution to the wide range of needs in industrial connectors in mechanical and plant engineering. Working together with cable entry connector, convenient to use to provide a easy use and safeguard to the machinery equipment when transportation, installation, maintain or repairing.

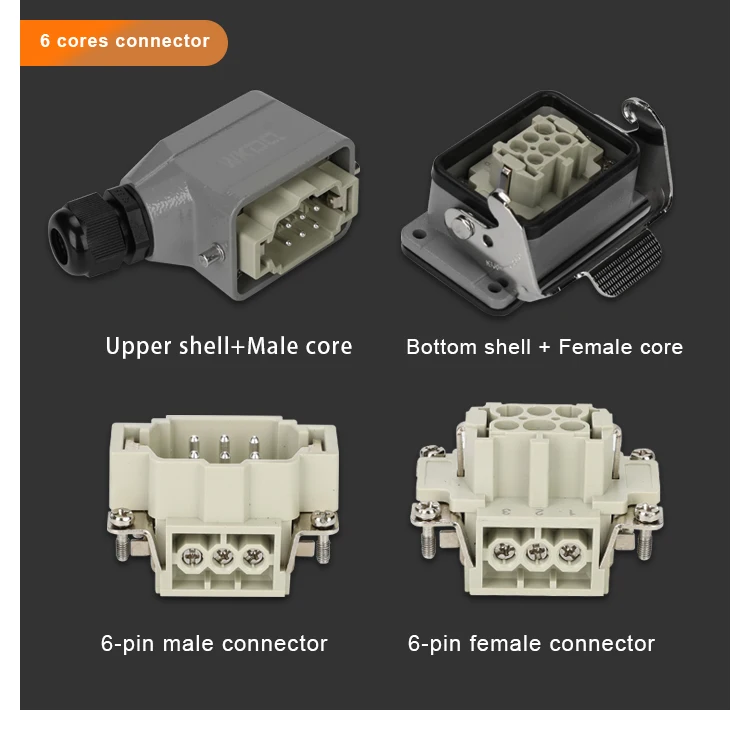

Each Heavy Duty Power Connector includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.
Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Available in side or top cable entry.

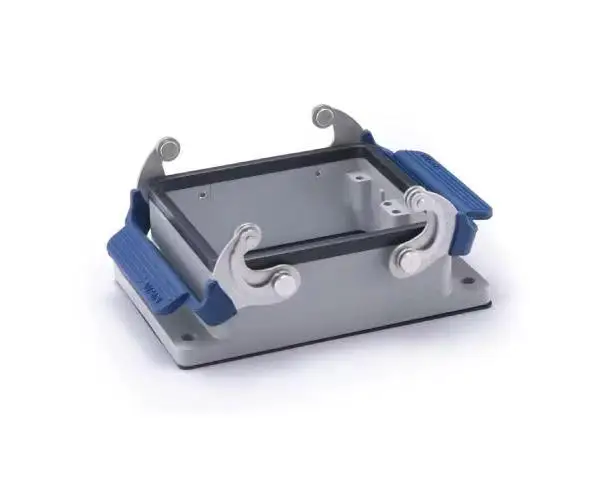

Bulkhead mounting housings with water-proof performance.
Cable gland provide entry protection.
No special tools required (Field Termination), high number of cycles, low actuation force, Robust/Durable heavy duty protection.
Each Heavy Duty Power Connector includes male and female inserts, screw terminated contacts, side or top entry hood, bulkhead mounted housing, and cable gland.
Wiring possible with screw terminal, crimp terminal (order contacts separately) or cage-clamp terminal.
Available in side or top cable entry.
Bulkhead mounting housings with water-proof performance.
Cable gland provide entry protection.
No special tools required (Field Termination), high number of cycles, low actuation force, Robust/Durable heavy duty protection.

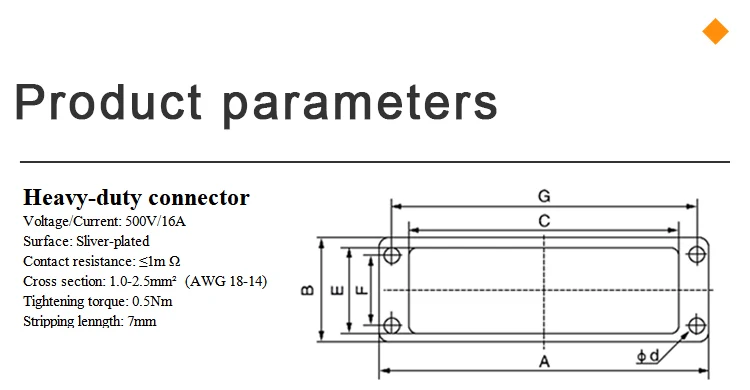

No. | PART NO. | Entry Side | Number of contact | A(mm) | B(mm) | C(mm) | E(mm) | F(mm) | G(mm) |
1 | LYFC06C | Side entry | 6 | 80 | 43 | 52.2 | 35 | 32 | 70 |
2 | LYFC06D | Top entry | 6 | 80 | 43 | 52.2 | 35 | 32 | 70 |
3 | LYFC10C | Side entry | 10 | 93 | 43 | 65.2 | 35 | 32 | 83 |
4 | LYFC10D | Top entry | 10 | 93 | 43 | 65.2 | 35 | 32 | 83 |
5 | LYFC16C | Side entry | 16 | 113 | 43 | 85.5 | 35 | 32 | 103 |
6 | LYFC16D | Top entry | 16 | 113 | 43 | 85.5 | 35 | 32 | 103 |
7 | LYFC24C | Side entry | 24 | 140 | 43 | 112.2 | 35 | 32 | 130 |
8 | LYFC24D | Top entry | 24 | 140 | 43 | 112.2 | 35 | 32 | 130 |
9 | LYFC32C | Side entry | 32 | 113 | 80.5 | 86 | 73 | 60 | 103 |
10 | LYFC32D | Top entry | 32 | 113 | 80.5 | 86 | 73 | 60 | 103 |
11 | LYFC48C | Side entry | 48 | 140 | 80.5 | 113 | 73 | 60 | 130 |
12 | LYFC48D | Top entry | 48 | 140 | 80.5 | 113 | 73 | 60 | 130 |
