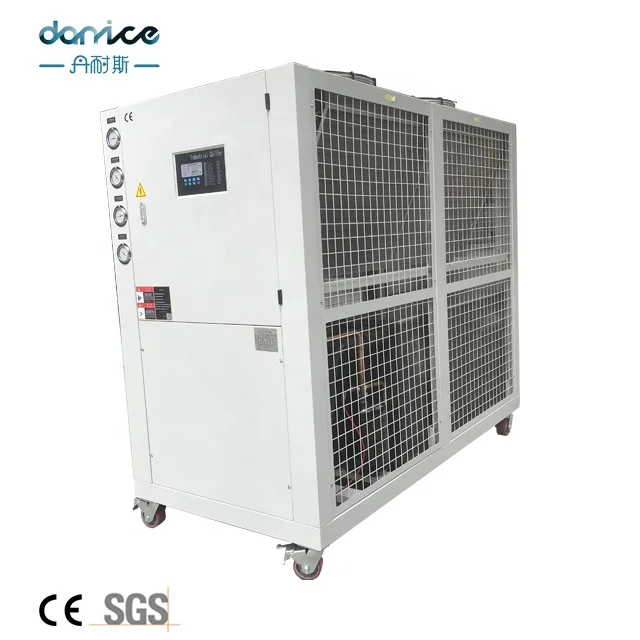

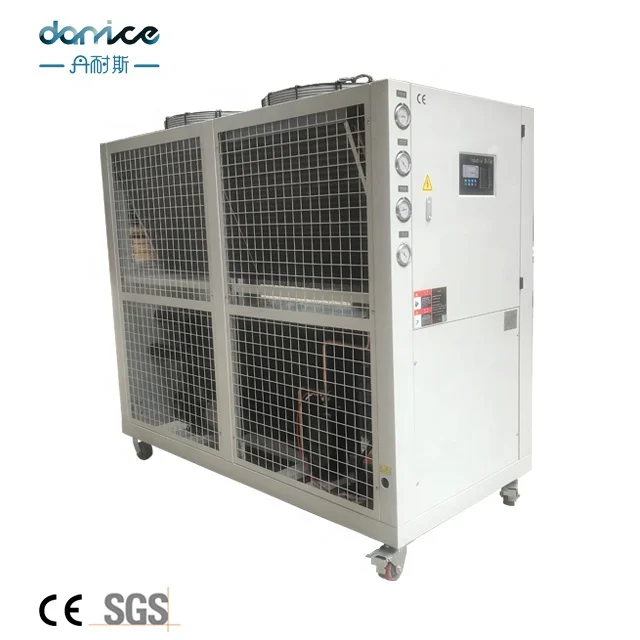

25Ton Immersion Water Cooling Chiller Machine Industrial Aquarium Chilling Equipment Water Chiller for Injection Molding Machine

Share on (1600350835770):


Price:$8,860.00 - $9,060.00

Quantity:


Product Overview

Description


4-1



Product Description

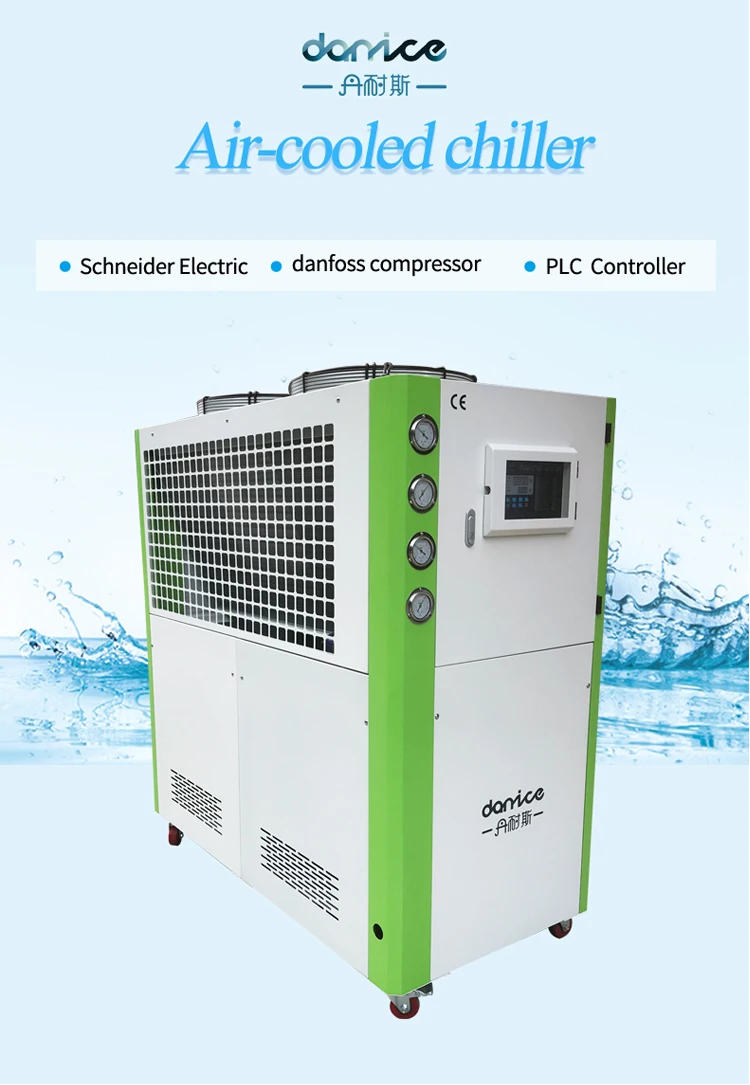

1 750.jpg

















































































































































ModelUnit of measureDNC-30AD
Nominal Cooling CapacityKcal/h 50HZ74734
Kcal/h 60HZ89681
KW 50HZ86.9
KW 60HZ104.28
Input PowerKW33.72
CurrentA63.4
Power 3PH~380V/415V~50HZ/60HZ(3PH~200V/220V~50HZ/60HZ)
RefrigerantName R22/R407C/R134A/R404A/R410A
Control Capillary/External-balanced Thermostatic Expansion Valve
CompressorType Hermetic Rotary/Pison/Scroll
PowerKW13.6*2

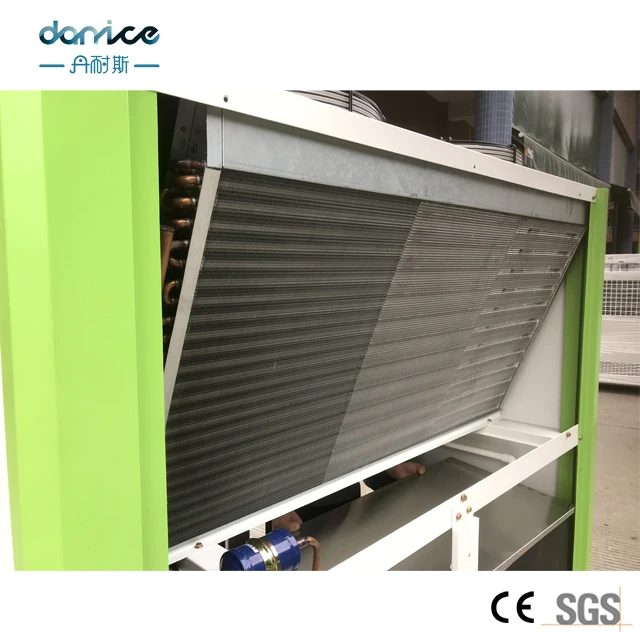

CondenserType Efficient Aluminum Finned Copper Sleeve+low Noise External Rotor Fan
Air Volumem³/h30000
Fan Motor PowerKW0.42*6
EvaporatorType Water Tank Coil Type / Dry Shell And Tube Type / Stainless Steel Plate Type
Chilled Water Flowm³/h 50HZ14.94
m³/h 60HZ17.93
Water Tank CapacityL420
Inlet And Outlet Pipe DiameterInch2-1/2''

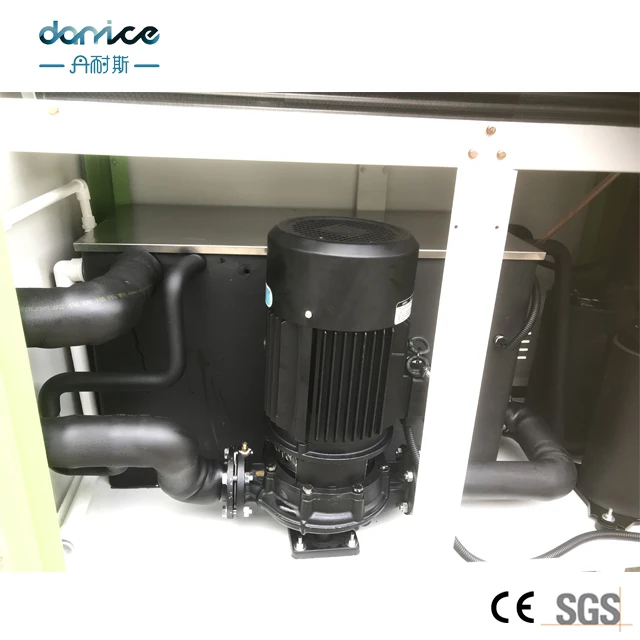

PumpPowerKW4
Max-liftM22
Safety ProtectionCompressor Overheat Protection, Overcurrent Protection, High And Low Pressure Protection, Over Temperature Protection, Flow Protection, Phase Sequence/phase Loss Protection, Low Liquid Level Protection, Antifreeze Protection
Mechanical DimensionsLengthmm2300
Widthmm1200
Heightmm2020
WeightMachine WeightKg890

Notes:1.Cooling capacity is based on:chiller water inlet and outlet water temperature 12℃/7℃,


the cooling air inlet and outlet water temperature 30℃/35℃.


2.Scope of work:chilled water temperature range:5℃to35℃;chilled water inlet and outlet


temperature difference:3℃to8℃.


Use in the condensing environment temperature not higher than 35℃.


The above can be customized according to customer requirements to produce.


The above specifications are subject to change without notice.


Model description: A: represents air-cooled, D: represents two compressors, T: represents


three compressors, F: represents four compressors

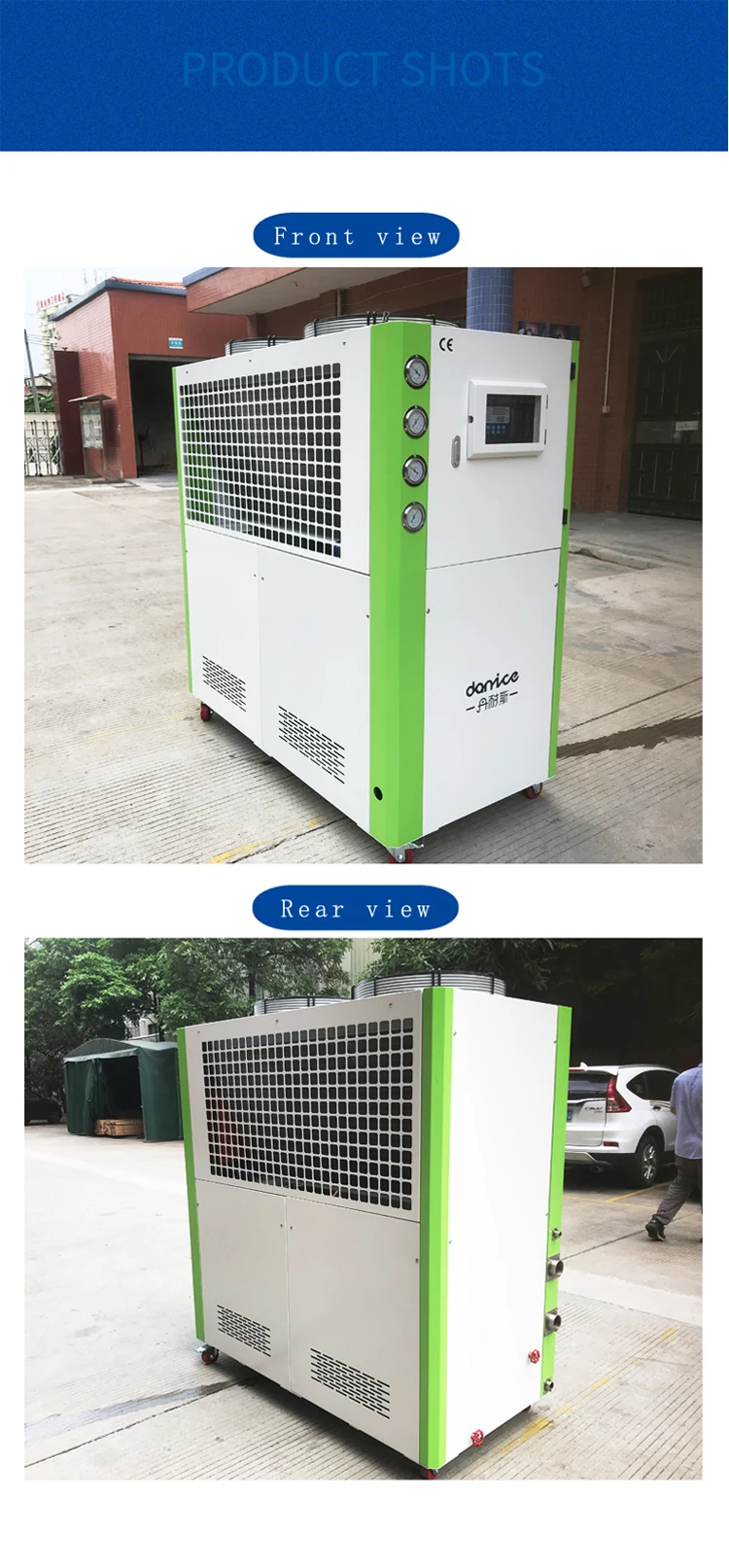

3 750.jpg

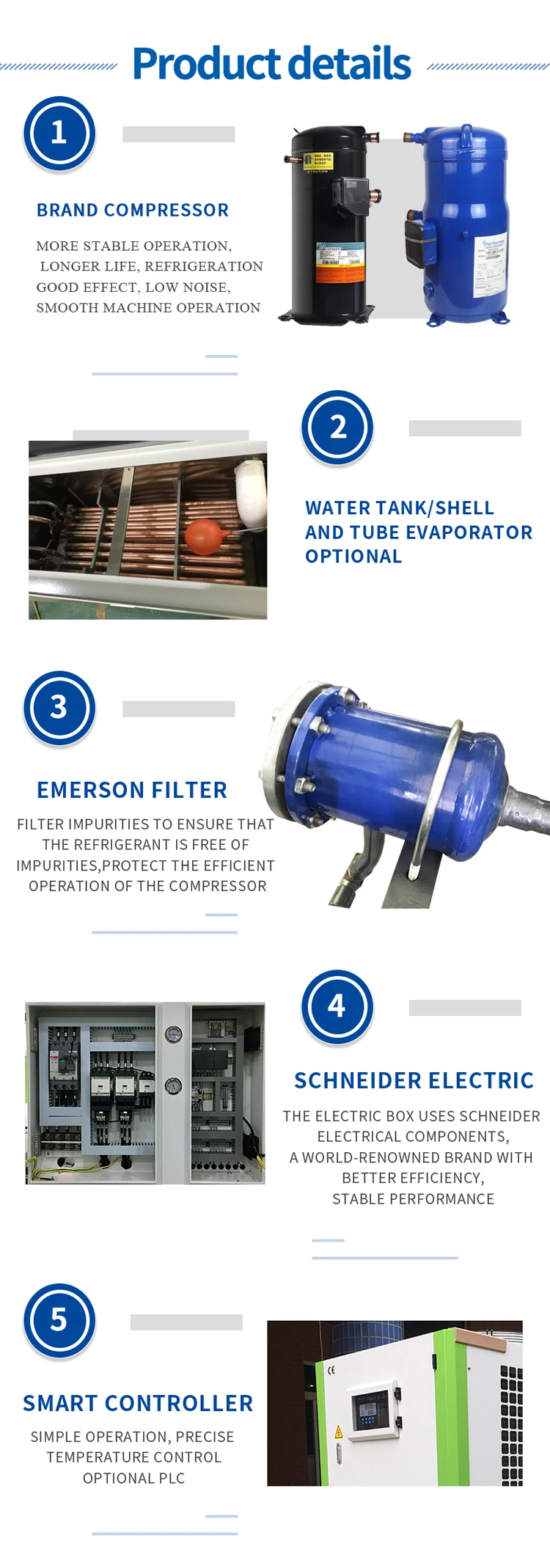

4 750.jpg










Engineering Case







Our Services


.jpg








Packaging & Shipping


.jpg







Company Information



Shenzhen Dannice Machinery Co., Ltd. was established in Shenzhen in 2012. The manufacturing


plant is located in Dongguan, Guangdong. It produces energy-saving solutions for IC system


refrigeration equipment, including: centralized water supply system, industrial chiller, screw chiller,


mold temperature Machines, oil coolers, air coolers, counter-flow cooling towers, cross-flow


cooling towers, closed cooling towers, etc.
The factory covers an area of 13,500 square meters and has obtained 21 Chinese national patents, the


annual sales of Dannice exceed 10 million US dollars. With 20 years of senior experience and a strong


technical team in the chiller industry, it truly enables manufacturers to double their production capacity


and double their profits. Dannice is committed to solving various technical problems, customizing


various non-standard equipment products, and striving to build the company's brand image.


The industries involved in the product series are: plastics, chemicals, machine tools, electronics, military,


aerospace, automotive, communications, new energy, medical, pharmaceutical, food, dairy, breeding and


other industries. Our chillers have successfully helped more than 800 listed companies, and our products


have been sold to North America, Europe, Southeast Asia, the Middle East and other regions around the


world,such as: the United States, Canada, Germany, the United Kingdom, the Philippines, Malaysia,


Saudi Arabia, the United Arab Emirates an so on.
Purpose: Integrity management, serving customers wholeheartedly!









FAQ


Frequently asked questions when buying products


Q: How many years have your factory been established?
A:Our factory has been established since 2012, but most of our engineers have been working in this industry for over 20 years.


Q: How long is your delivery time ?
A:Most models of standard machines are in stock, please consult for details.


If there is no inventory, the delivery time for standard machines is 5-10 working days, and for non-standard machines, the engineer should give the specific time according to the specific situation. Please forgive me for the inconvenience.


Q:how long is the warranty?


A:Within 1 year from date of the factory, if parts failure or damage(because of the quality problem ,except wearing parts), our company provide these parts for free.


Q:What is your payment term ?
A:Full payment T/T or D/D in davance, D/P sight, L/C at sight, Trade Assurance order is recommended,other payment term please consult with us.
