Price:341,10 $ - 448,20 $

Quantity:


Product Overview

Description



Products Description


BWT AC-E22 wall-mounted AC charger is composed of main control unit, human-computer interaction interface, charging interface, metering and charging unit.It’s resistant to vibration and has complete protection functions,the protection class is IP54, which covers a small area, meets the installation and use of indoor and outdoor environments, and provides AC power for electric vehicles with on-board charger.


Product Name
Ac 7kw 11kw 22kw Type 2 Ev Charger Wallbox Station Wall-Mounted Ev Charging Station
Brand Name
BWT-charge
Model Number
BWT-AC-E22- 7/11/22KW
Warranty
1Years
Installation
fall to the ground
Input frequency
50Hz
Networking way
Ethernet








Product Parameter


Technical Parameter: Support OEM custom power


Model
XY AC-E22-7KW
XY AC-E22-11KW
XY AC-E22-22KW
Electrical index
Power connection
1P+N+PE
3P+N+PE
3P+N+PE
Input/output voltage
230VAC±10%
400VAC±10%
400VAC±10%
Frequency
50HZ±10%
Rated power
7KW
11KW
22KW
Rated current
32A
16A
32A
General Specifications
Charging mode
IEC 61851-1， IEC 61851-22 Charging model-3

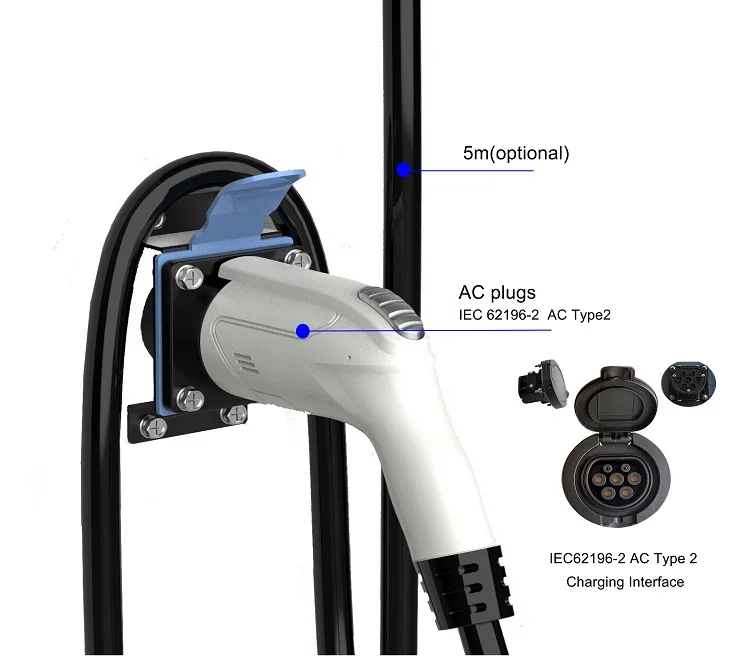

AC plugs
IEC 62196-2 AC Type2
Display
4.3”TFT Color touch screen
RFID system
Mifare (Classic, DesFire EV1) or others on request
Communication
GPRS /LAN/Wi-Fi
Communication Protocols
Customizable
Place of installation
Indoor and outdoor
Altitude
6000m（Derating over 3000m ）
Protection grade
IP54
Operating Temperature
-20-60℃（Derating over 50℃ ）
Storage Temperature
-40-70℃
Humidity
5%~95% without condensation
Cooling mode
Natural cooling
Length of charging gun cable
5m(optional)

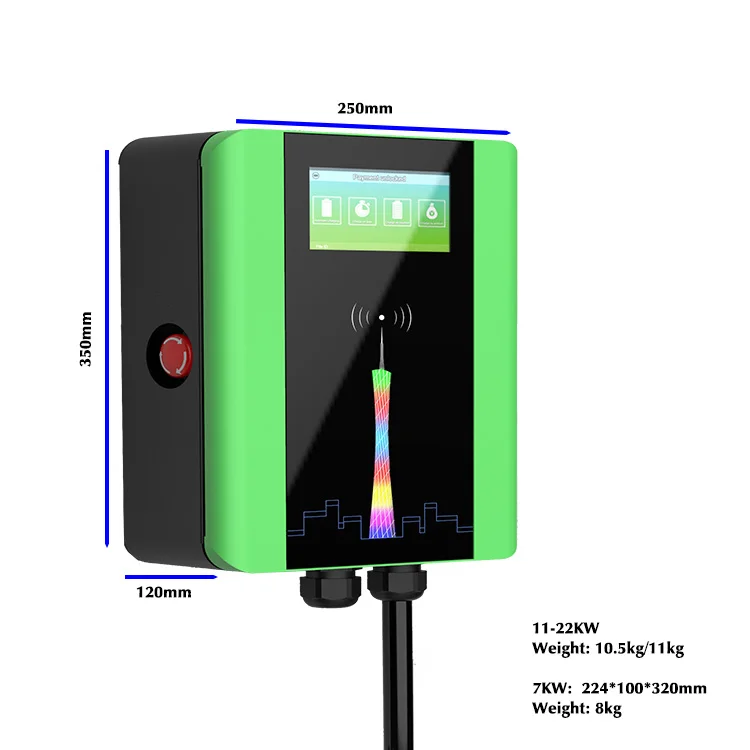

Dimensions(W*D*H)
224*100*320mm
250*120*350mm
Weight
8kg
10.5kg
11kg

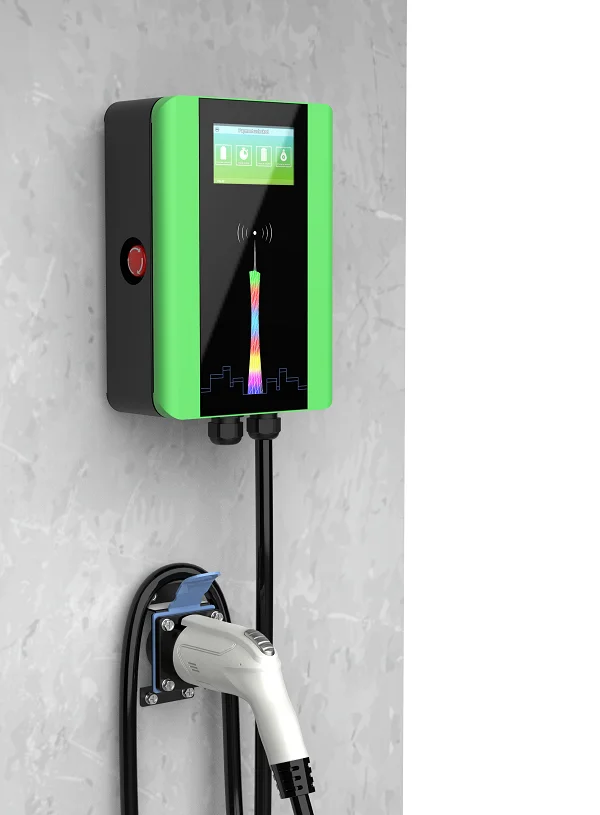

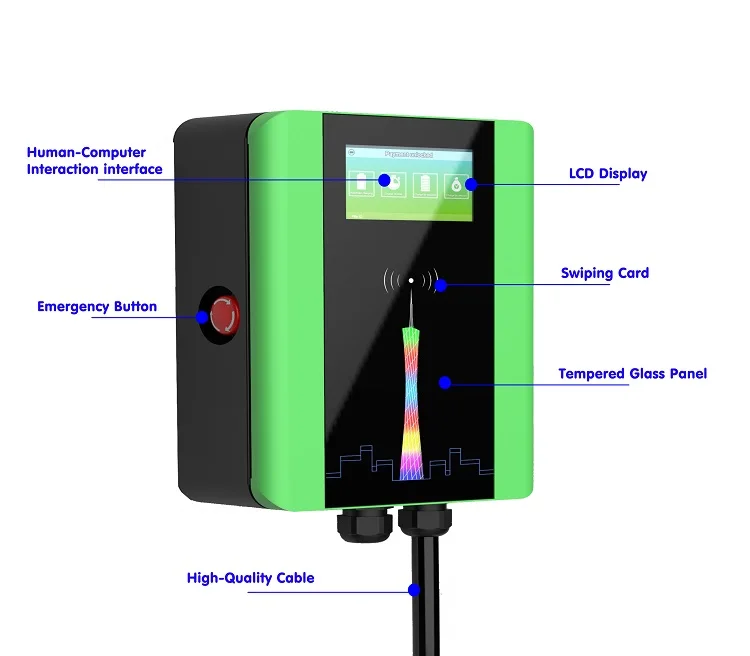

Details Images

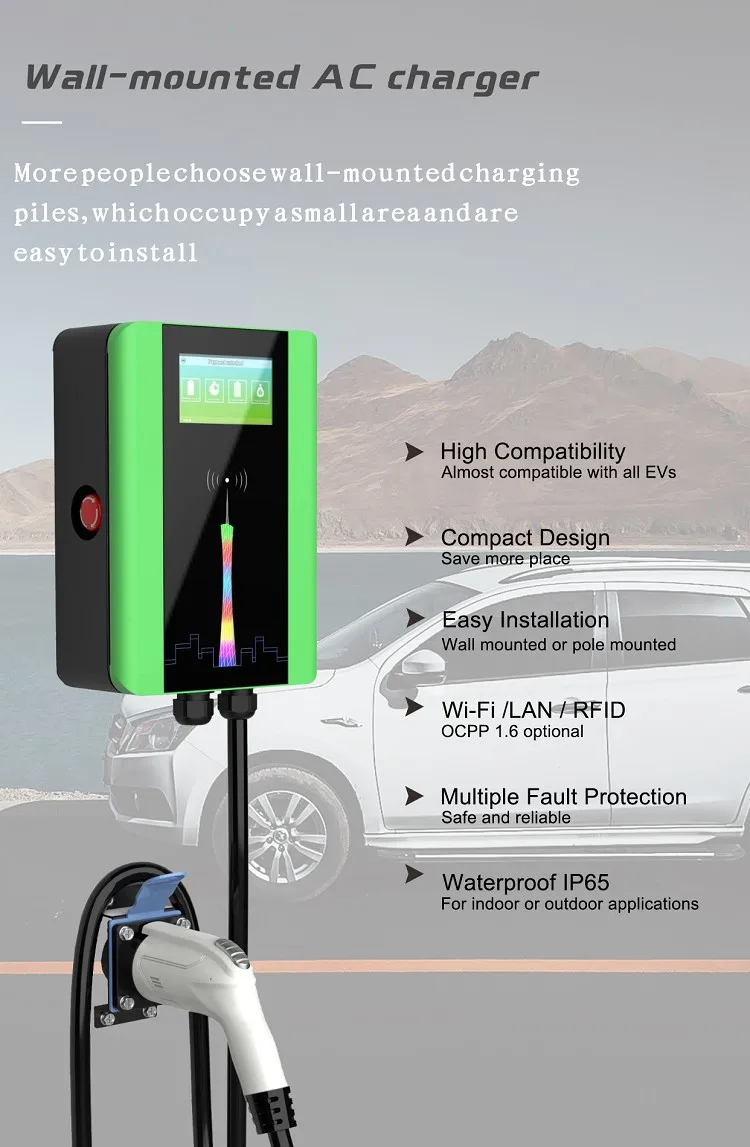

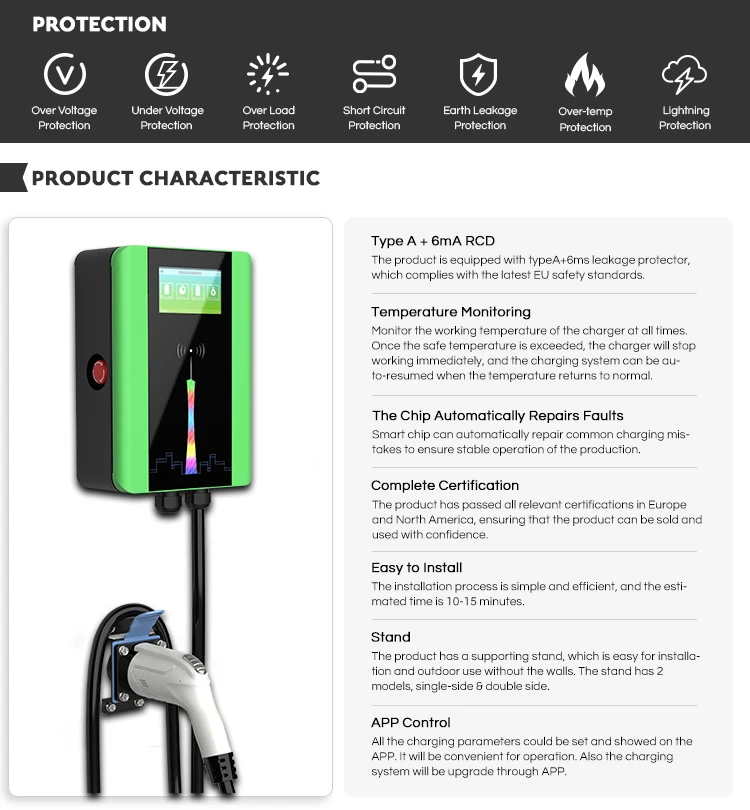

Product Features:
★ Perfect charging protection such as input over/under voltage, connection abnormality, emergency stop

★ Protection against lightning protection, leakage, short circuit, over current, over temperature, reverse battery connection, etc.
★ Wall-mounted installation, cover an area of an area small, easy to install

★ Touch screen operation interface, charging mode can be set up to fill automatically, charge according to electric quantity, charge according to amount and charge according to time, etc.

★ Support swiping card/ WeChat Mini Program starts

★ Support IEC 61851 standard charging



Applications:
◆ EV charging stations for large, medium and small

◆ Private installation or public parking
◆ EV dealers and service providers

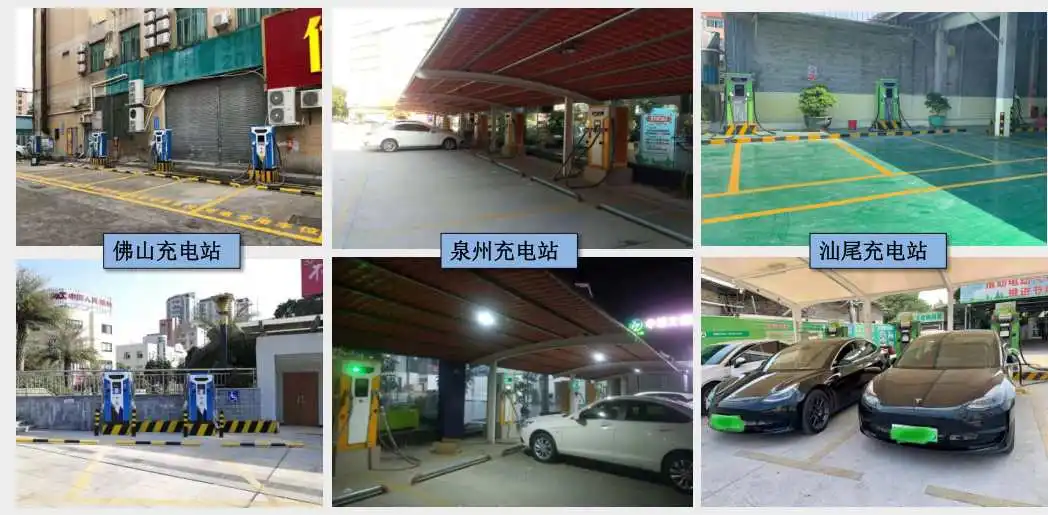

Application Display

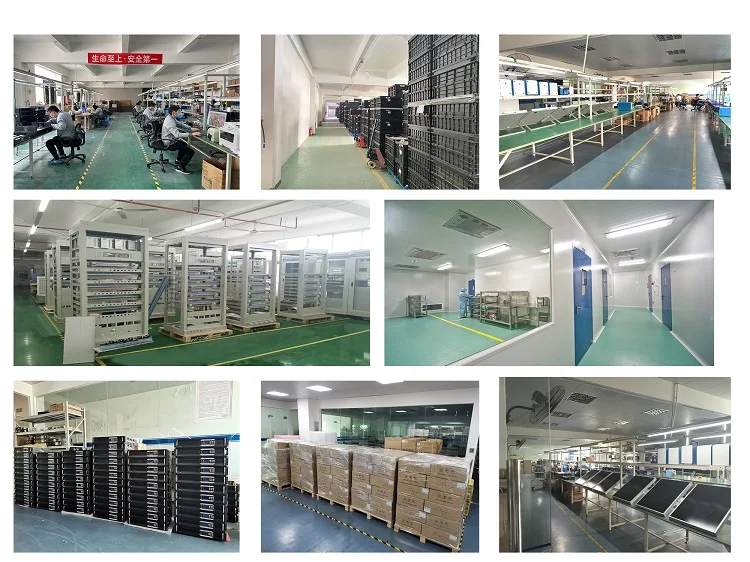

Company Profile






Certifications




FAQ


Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.

Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We willprovide specific solutions for your requirements.

Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as
possible.
