Versatile General Application Low Voltage Pressure Transmitter for Water
- Category: Pressure Transmitters >>>
- Supplier: Jiangmen,Xinghan,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product Paramenters
Model number | M5100 |
Range | 0~7 Bar~700 Bar |
Output | 4-20mA / 0-10V / 0-5V / 1-5V / 0.5-4.5V |
Customized support | OEM, ODM |
Thread | M20*1.5 / G 1/4 / Customerized |
Accuracy | ±0.5%FS、±0.25%FS |
Electrical connection | Direct cable / Hirschman / M12 / Packard connector |
Power supply | 13~36V DC / 5V DC |

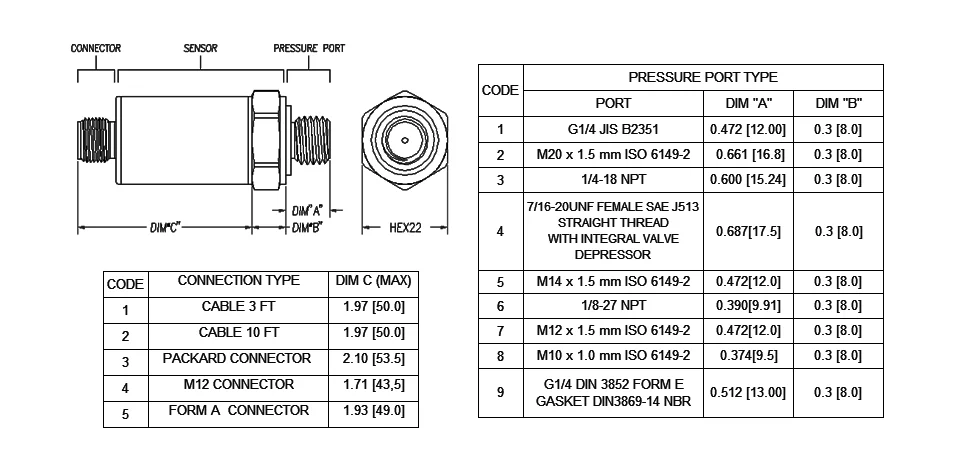

Dimensions

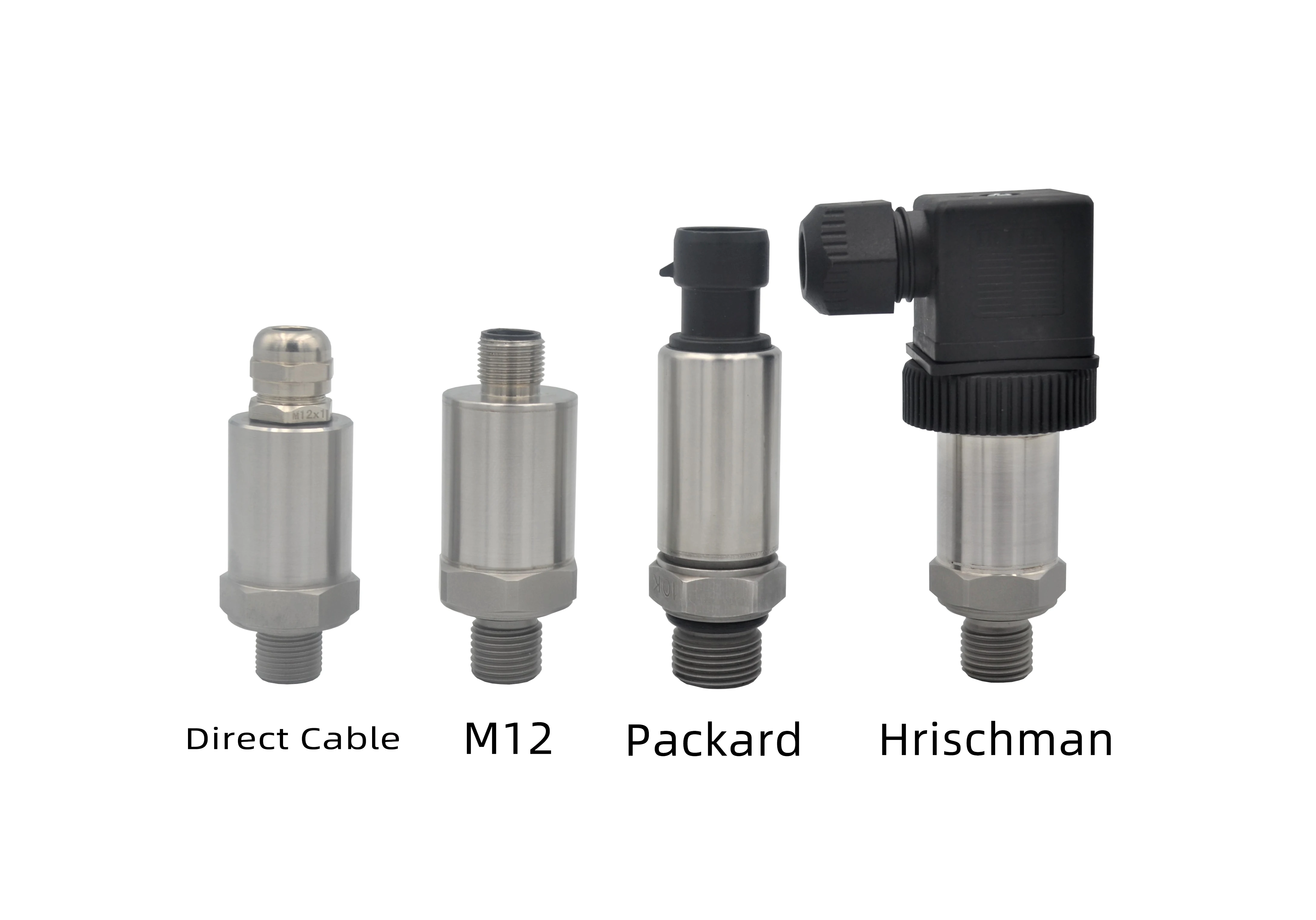

Different Choice for Electrical Connection

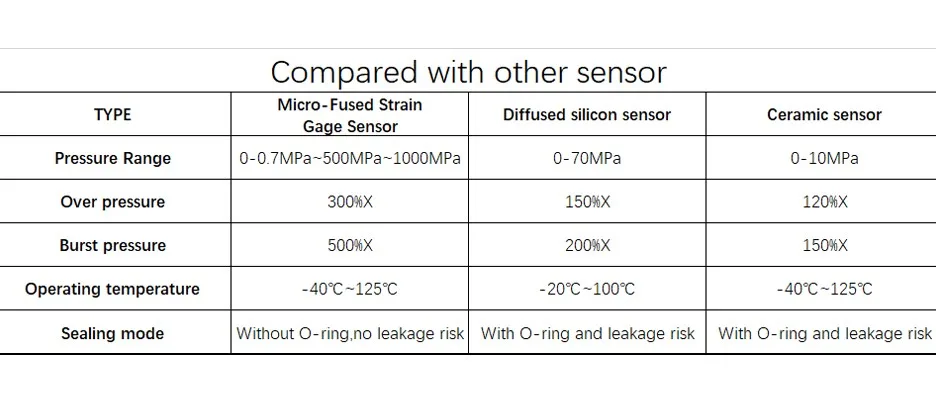

Why Choose Us
M5000 series of Pressure Transmitters, based on Micro-fused Glass Strain Sensor, work in industrial and resident application.
M5000 series of Pressure Transmitters have the edge of low-cost, strong stability, high accuracy, high overload and impact resistance .
1. They are applied with imported sensitive components and special digital compensation amplifier circuit, greatly preventing electromagnetic interference.
2. They are designed as an integrated structure without O-ring, avoiding potential leakage problems.
3. Housing uses SS304 material as outer protection and is welded with the help of continuous laser welding technology to ensure secure capability.
Manufacturing Technique
M5000 series Pressure Transmitters is created on the basis of Micro-fused Glass Strain Gauge Sensor.
After the continuous testing of accuracy, loading, shocking and vibration on sensors, each part of transmitters will be assembled together accordingly and have capability-testing before labelled.
To ensure each product work well, please kindly contact us for appropriate solution if having questions on products or customerization needed.Transportation
Company Profile
JXI ( Jiangmen Xinghan Instrument Co., Ltd. ) is a high-tech enterprise, integrating technology, R & D, manufacturing, sales and service of sensor and transmitters. Our goal is to provide customized design and manufacturing services associated with pressure, force, displacement sensors and transmitters for our customers.
Our domestic markets are located in more than 30 provinces in China. At present for better services, our company has expanded to more than 1000㎡ of production and office space, equipped with advanced testing, calibration and production equipment etc.
We also maintain tight cooperation and business dealings with many well-known enterprises abroad and our products are widely used in aerospace, hydraulic equipment, air conditioning and refrigeration, water supply and other fields.
Our company is co founded by technologists with more than 15 years of sensor development experience. MSG (Micro-Fused Strain Gauge) is one of our core technology platforms. We grasp the core technology of the whole production process of MSG pressure sensor, and transform the technical advantages into efficient technical service and stable product quality.
We adhere to the quality first, service-oriented spirit, and our professional technical team is to timely provide customers with customized product application, professional technical support, first-class product integrated service and supporting solution according to their actual needs.
