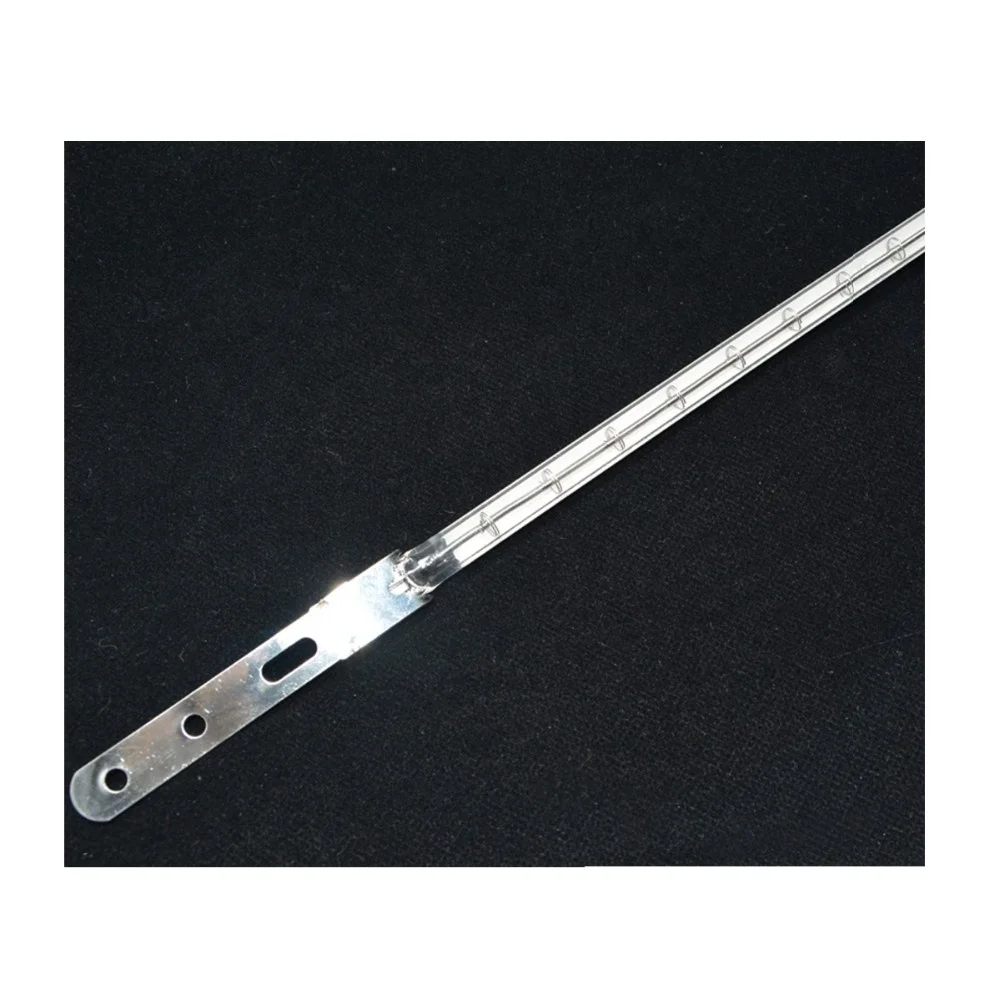

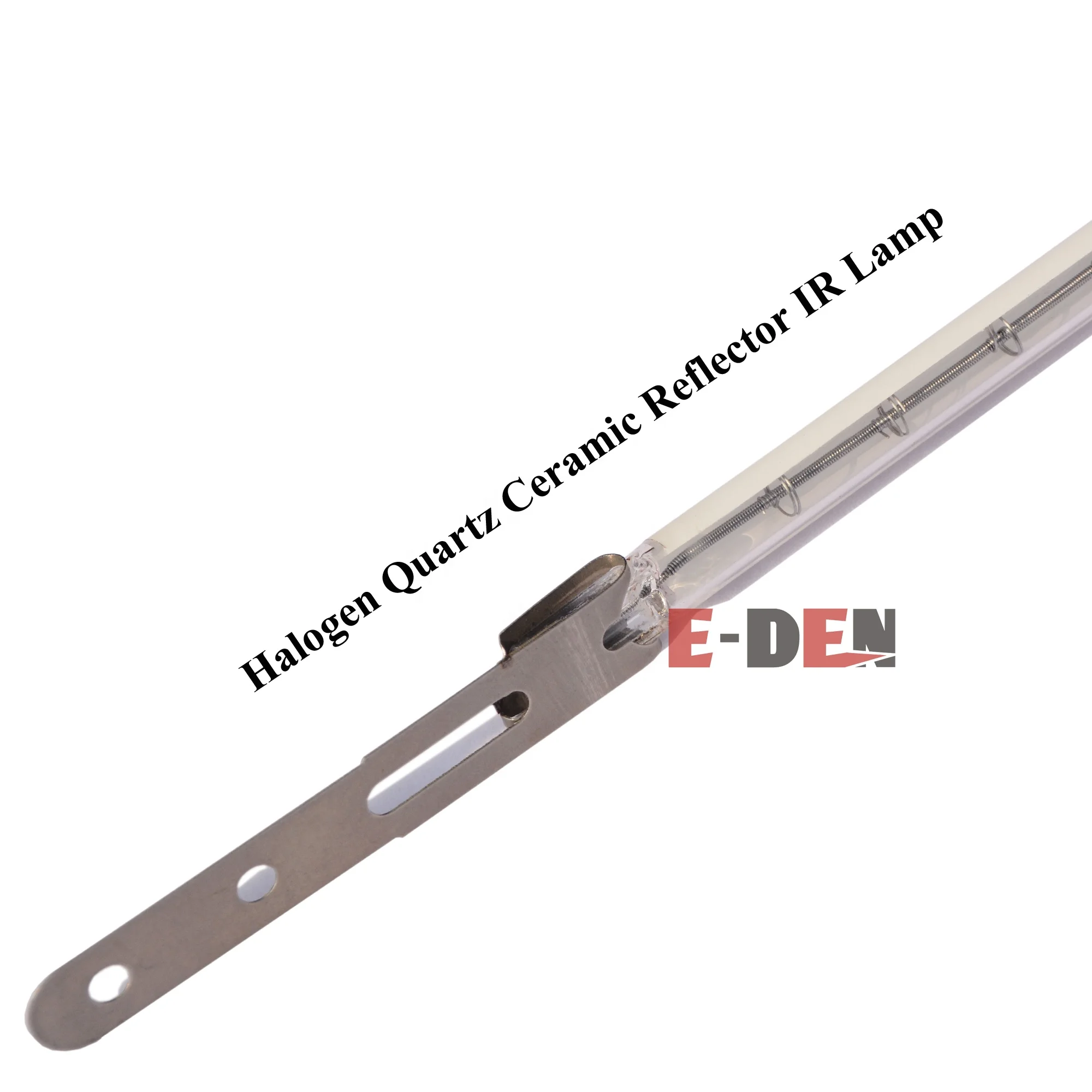

Halogen Quartz Infrared Lamp Single Tube 240V 1000W Replacement 13195X/98 IR Lamp
- Category: >>>
- Supplier: Nanjing E-DEN Lighting Technology Co. Ltd.
Share on (1600350919352):
Product Overview
Description
Product Description
Specification
item | value |
Color Temperature(CCT) | 2000K -2500K |
Input Voltage(V) | 12V-600V |
Warranty(Year) | 1-Year |
Support Dimmer | NO |
Lighting solutions service | Industrial Heating |
Lifespan (hours) | 5000 |
Product Weight（kg） | 0.1 |
Place of Origin | China |
Jiangsu | |
Brand Name | E-DEN |
Color | White |
Specification | Single Tube Twin Tube |
Material | Glass |
Lamp Luminous Efficiency(lm/w) | >18 |
Working Lifetime(Hour) | 5000 |
Beam Angle(°) | 180 |
Application | Bottle PET Blowing Machine |
Rated Voltage | 240V |
Rated Wattage | 1000W |
Total length | 480mm-485mm |
Heat length | 290mm |
Reflector | Ceramic white |
Tube diameter | 10mm/11mm/12mm |
End base | X metal |
Replacement | 13195X/98 |
Burning position | Horizontal |
Standard Product
Short Wave Single Tube IR Lamp | ||||||||||||
Peak wavelength | 1.0-1.4 μm | |||||||||||
Heating filament | Tungsten | |||||||||||
Filament working temperature | 1800℃-2200℃ | |||||||||||
Response time | 1 second | |||||||||||
Diameter | 10mm | 11mm | 12mm | 14mm | 15mm | 19mm | ||||||
Max. Length | 1.1m | 1.1m | 1.5m | 2.0m | 2.0m | 2.5m | ||||||
Reflector | White ceramic or Gold reflector | |||||||||||
Burning position | Horizontal or Vertical | |||||||||||
Total length (mm) | Heated length (mm) | Voltage (V) | Wattage (W) | Diameter (mm) | Reflector | End cap | Burning position |
120 | 60 | 240 | 500 | 10 | No | E/R7s | Universal |
200 | 130 | 230 | 800 | 10 | White | D | Horizontal |
240 | 160 | 240 | 1000 | 10 | Gold | D | Universal |
300 | 230 | 230 | 1200 | 10 | No | A/SK15 | Horizontal |
340 | 270 | 115 | 1000 | 10 | No | E/R7s | Horizontal |
350 | 280 | 235 | 2000 | 11 | White | A/SK15 | Vertical |
355 | 285 | 400 | 2500 | 12 | White | A/SK15 | Vertical |
355 | 285 | 400 | 3000 | 12 | White | A/SK15 | Vertical |
380 | 310 | 400 | 3000 | 12 | White | A/SK15 | Vertical |
500 | 430 | 230 | 2500 | 12 | No | C | Horizontal |
550 | 480 | 230 | 2500 | 11 | No | D | Vertical |
550 | 480 | 230 | 3000 | 11 | Gold | D | Horizontal |
620 | 550 | 230 | 2500 | 11 | No | A/SK15 | Vertical |
630 | 560 | 230 | 2000 | 11 | White | C | Vertical |
680 | 610 | 230 | 2500 | 12 | No | A/SK15 | Horizontal |
680 | 610 | 400 | 3500 | 12 | No | A/SK15 | Horizontal |
800 | 700 | 230 | 3000 | 12 | No | D | Horizontal |
840 | 700 | 230 | 3000 | 12 | No | D | Horizontal |
900 | 800 | 230 | 2800 | 12 | White | D | Horizontal |
1000 | 900 | 230 | 3000 | 12 | No | A/SK15 | Horizontal |
1100 | 1000 | 400 | 4000 | 12 | White | A/SK15 | Horizontal |
1150 | 1070 | 400 | 3500 | 12 | No | D | Horizontal |
1200 | 1100 | 230 | 3000 | 15 | White | A/SK15 | Horizontal |
Standard Design
According to the different ending caps, single tube infrared lamps can be produced in the following different types.
\t\t\t\t\t\t\t\t\tAlternative model \t\t\t\t\t\t\t
