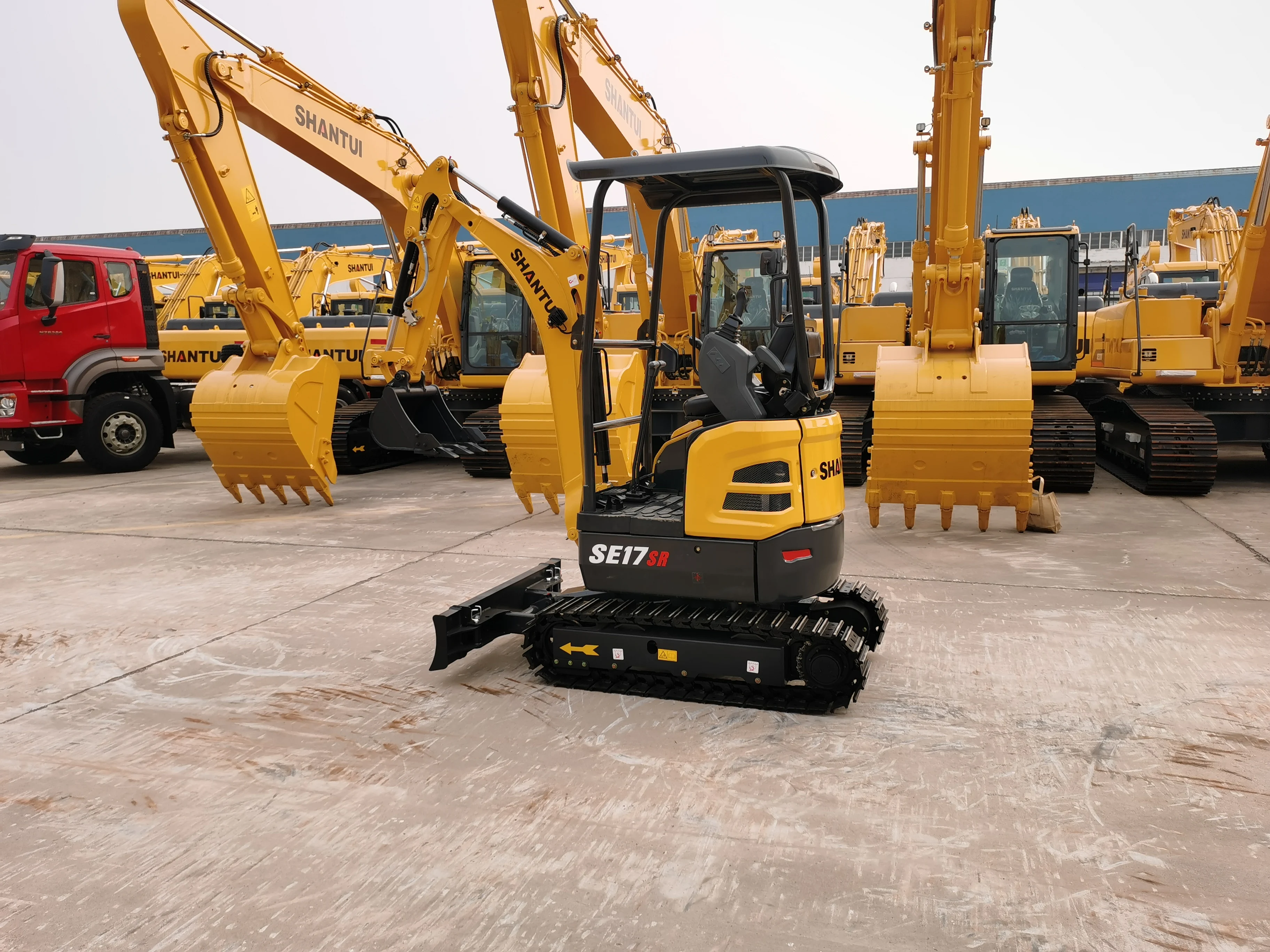

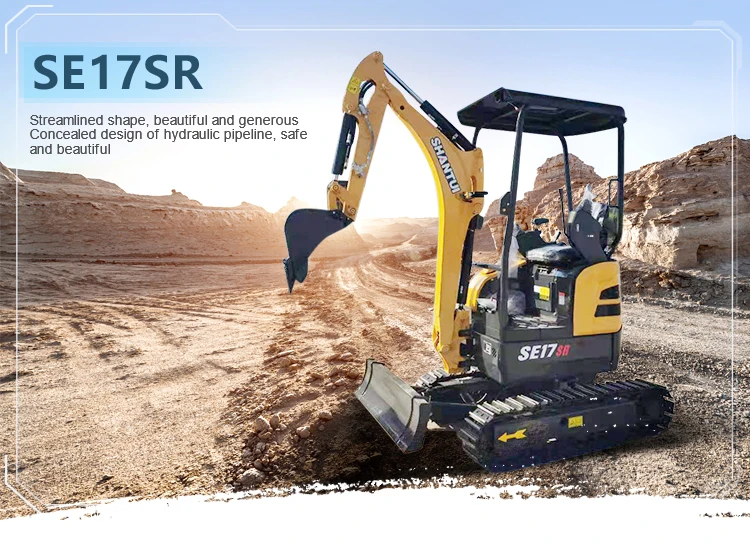

China Shantui CE High precision Pilot Operation SE17SR 1.8 Ton Small Digger Machine Hydraulic Mini Crawler Excavator India Price
- Category: >>>
- Supplier: Shandong Shantui Construction Machinery Import And Export Co. Ltd.
Share on (1600350989489):
Product Overview
Description
Products Description
Mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Main Specification | Operating Weight | 1800kg |
Type | Backhoe bucket | |
Bucket Capacity | 0.04cbm | |
Bucket Digging force | 16KN | |
Arm Digging force | 9.5KN | |
Ground Press | 29Kpa | |
Swing speed | 9.5r/min | |
Fuel Tank | 19L | |
Cooling system | 5L | |
Engine Oil | 3.7L | |
Hydraulic Oil Tank | 20L | |
Overall Dimension | Transport Length | 3570mm |
Height | 2400mm | |
Transport Width | 990/1300 mm | |
Crawler Width | 1587mm | |
Thead | 1230mm | |
Scope of Work | Max.Digging Height | 3545mm |
Max.Dumping Height | 2451mm | |
Max.Digging Depth | 2295mm | |
Max.Vertical Digging Depth | 1670mm | |
Max.digging Distance | 3910mm | |
Min.Swing Radius (front) | 1431mm | |
Min.Swing Radius (Tailer ) | 650mm | |
Engine | Model | Kubota D902 |
Emission Standard | EUROV EPA Tier4 | |
Type | 3 Cylinder Directly injection | |
Displacement | 0.898L | |
Rated Capacity | 11.8KW/2300Rpm | |
Hydraulc System | Type | Single plunger pump |
Rated Discharge flow | 28L/min | |
Main Pump | Hengli | |
Main Valve | Hengli | |
Swing motor | Eaton | |
Traveling Motor | Eddie | |
Traveling System | Support rollers quantities | 3*2 |
Traveling speed | 0-2.2~4.3km/h | |
Drawbar pulling force | 18KN | |
Grade ability | 58% | |
Ground clearance | 360mm |
Related Products
Why Choose Us
Company Profile
Exhibition
After-sale Service
Six Free Services
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
