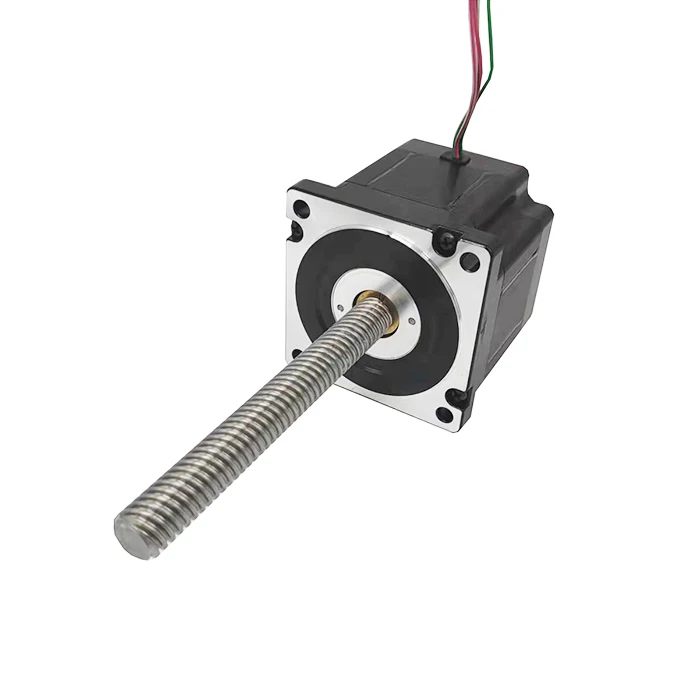

12.7mm lead 1.8 degree step angle 50KG thrust 86mm NEMA34 linear hybrid stepper motor with lead screw and nut

Product Overview

Description

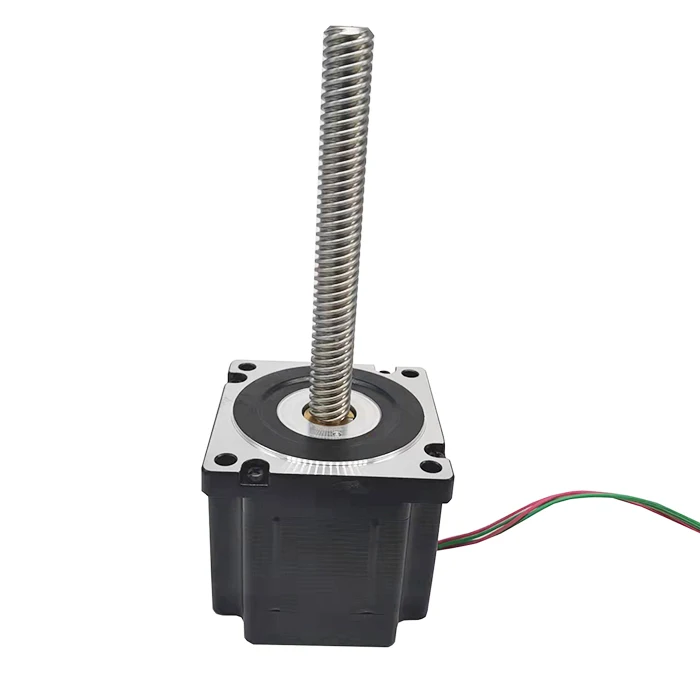

12.7mm lead 1.8 degree step angle 50KG thrust 86mm NEMA34 linear hybrid stepper motor with lead screw and nut



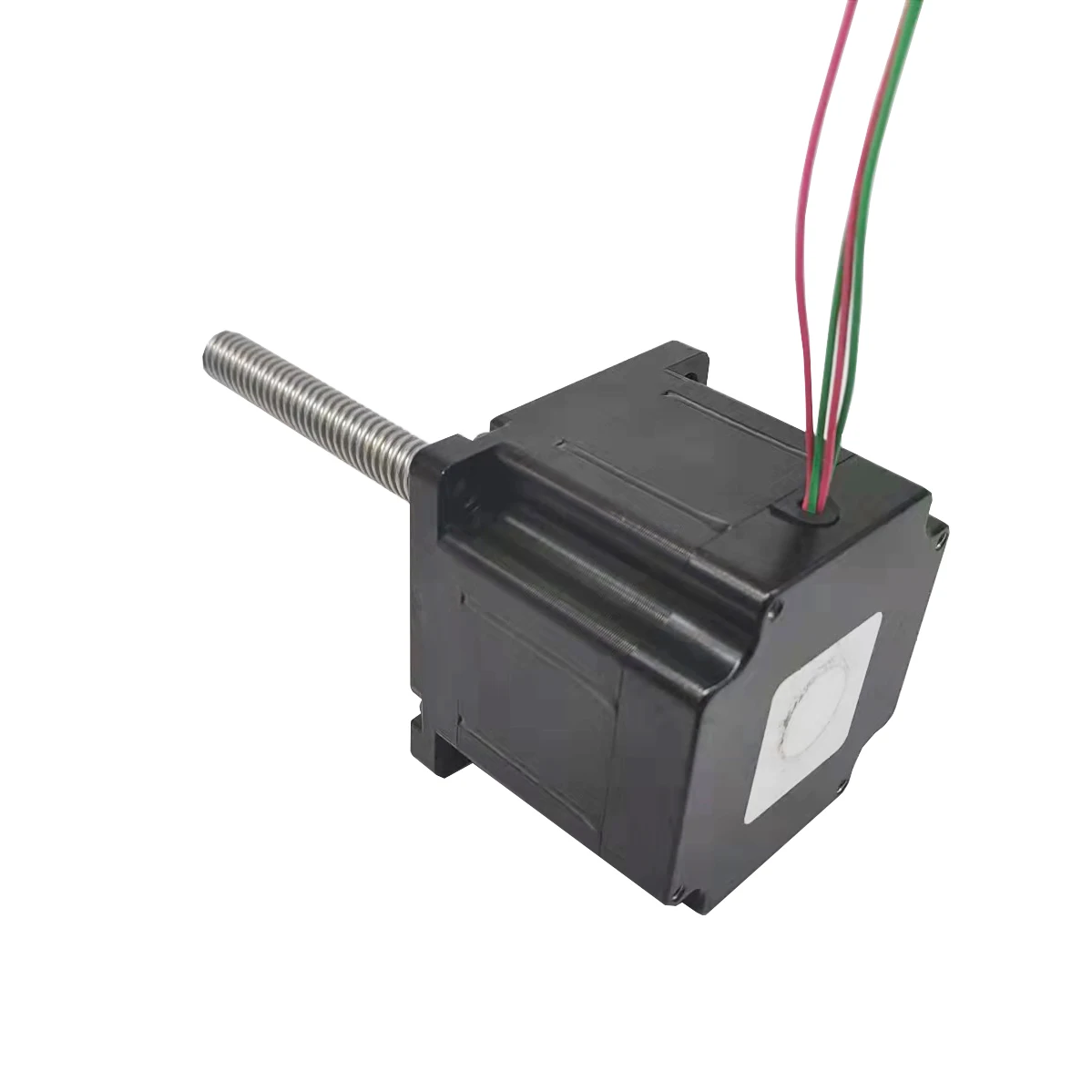

This is 86 mm stepper motor attached with lead screw and nut on top.

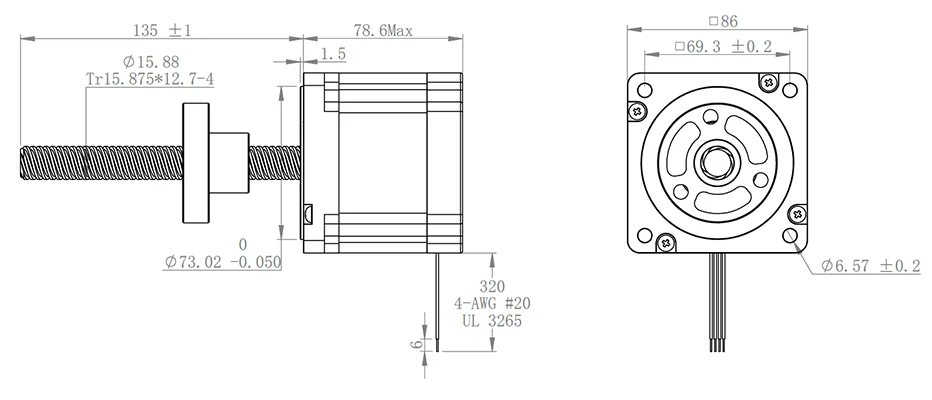

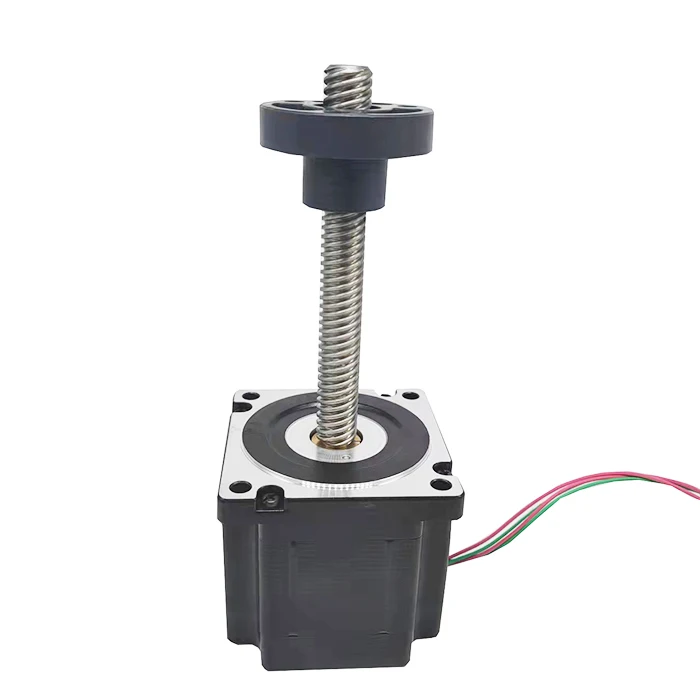

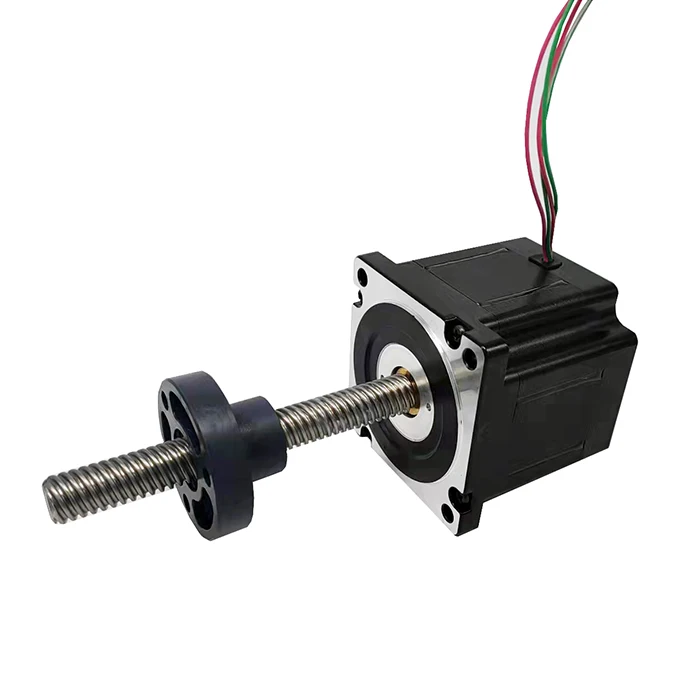

We have two types material on nut, including POM and PPS.

Both of them are plastic, with self-lubricating function.

The step angle of this motor is 1.8°, which means when this motor takes 200 steps, it will rotate one turn.

The lead crew’s lead is 12.7mm, so linear travel each step is 12.7/200 = 0.0635mm/step

This motor is used on high precision systems/devices, such as 3D printer, or machine tools.



Parameters:

Motor type	Linear hybrid stepper motor
Motor diameter	86mm
Lead screw lead	12.7mm
Linear travel per step	0.0635mm/step
Step angle	1.8°
Resistance	1.6Ω/phase
Inductance	8.8mH/phase
Minimal thrust at 300 PPS	50KG
Nut material	POM or PPS
Net weight	2.3KG (5.1lbs)





SHAFT TYPES:

Out shaft standard as follows,also can customerized due to the user drawings

welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm


• D-cut   Type: DIA3-D2.5  DIA4-D3 etc


• Screw Type:  M3 M4 M5 Serial


• Trape  Type


• I-cut    Type:  DIA3-I2 DIA4-I3


• Other  Type:  Shaft with a hole etc

TYPE of FIXTURE COVER:

The regular models are shown in the figure, and the special sizes can be customized.



TYPE of WIRE CONNECT:

Motor input method with Pin type

, FPC, PCB, Lead wire etc. These can be customized according to customer needs.
