Product Overview
Description
Product Overview

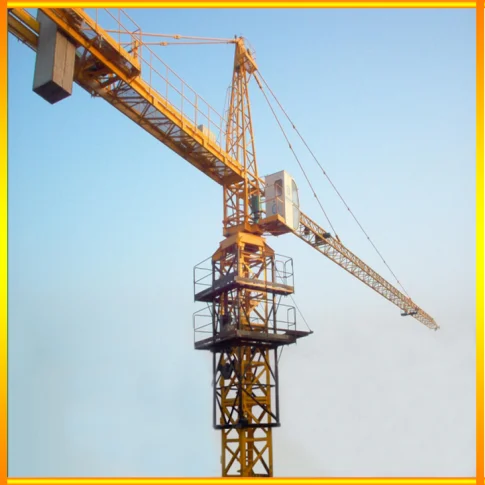

QTZ100(TC6010) Topkit crane
TC6010 Topkit crane is the latest domestic lifting and transportation machinery designed by our company, which makes full use of group technology, combination design technology and finite element analysis technology, and takes "microcomputer design platform of Topkit crane" as the tool.This machine is horizontal boom, trolley amplitude, up rotary hydraulic jacking crane.
Rated lifting weight 1t,
Rated lifting weight 1t,
the maximum lifting weight is 6t;
Rated lifting moment: 1000kn.m.
Arm length: 60m.
Hoisting speed :(a=2）80/40（a=4)40/20 m/min
Amplitude speed: 48/24m /min
Rotation speed: 0-0.67m/min
Widely used in high-rise hotels, residential buildings, industrial buildings and other medium-sized construction projects, is the majority of small and medium-sized construction enterprises ideal construction machinery.
Rated lifting moment: 1000kn.m.
Arm length: 60m.
Hoisting speed :(a=2）80/40（a=4)40/20 m/min
Amplitude speed: 48/24m /min
Rotation speed: 0-0.67m/min
Widely used in high-rise hotels, residential buildings, industrial buildings and other medium-sized construction projects, is the majority of small and medium-sized construction enterprises ideal construction machinery.
Product features
1.All parameters and performance have reached the international level.
2.The appearance adopts the international popular form, beautiful and generous.
3.Multiple working methods and wide application range. There are two ways of foundation fixation and external wall attachment.
4.Fast working speed, good speed regulation performance, stable work, high efficiency.
5.The boom adopts rigid double pull rod suspension, stable and reliable.
6.All kinds of safety devices are complete to ensure safe and reliable work.
7.Independent side position of cab, good vision.
8.Easy to use and maintain.
Specifications, configuration and process
Number | Project | Parameter |
1 | Model | QTZ100(TC6010) |
2 | Tip load | 1t |
3 | Jib length | 60 m |
4 | Mast | 160x14mm 1600*1600*2500mm |
5 | Freestanding height | 42m |
6 | Max installation height | 180m |
7 | LIft speed | (a=2) 80/40m/min (a=4) 40/20 m/min |
8 | Rotary speed | 0.6r/min |
9 | Luffing speed | 0-44 m/min |
10 | Main electric | Schneider |
11 | Total power | 40.2 Kw |
12 | Basis | Pre-embedded leg or beam |
Institutions Introduction
Lifting mechanism

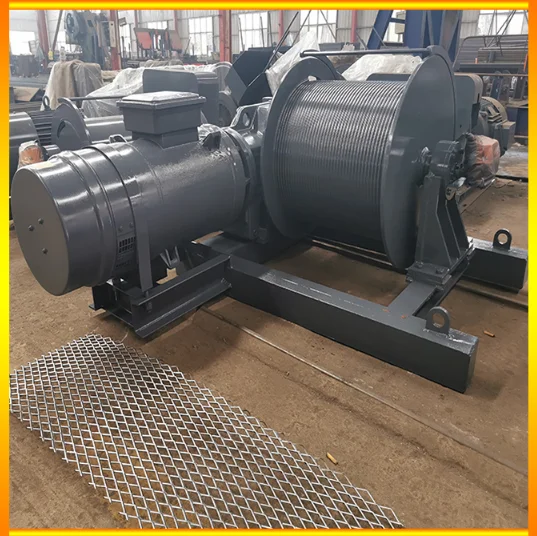

Lifting mechanism is mainly composed of motor, brake, reducer, drum, lifting height limiter and so on. Mounted on the rear of the balance arm, it is driven by a three-speed motor, through a transfer switch on the console, to achieve the desired lifting speed and slow emplacement accuracy. The end of the drum is equipped with a lifting height limiter. When the lifting item reaches the highest position, the lifting mechanism can stop automatically.
Slewing mechanism

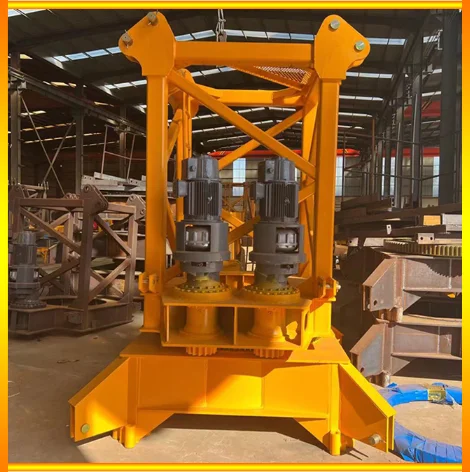

Rotary mechanism is mainly composed of winding motor, hydraulic coupler, electromagnetic brake, rotary limiter, planetary reducer, pinion. The mechanism is compact, the transmission is good, and the braking is stable. Work is not affected by the larger wind.
The brake can make the lifting arm stay in the designated position. The brake is only used for positioning, not for decelerating. In the non - working state, the lifting arm can rotate with the wind.

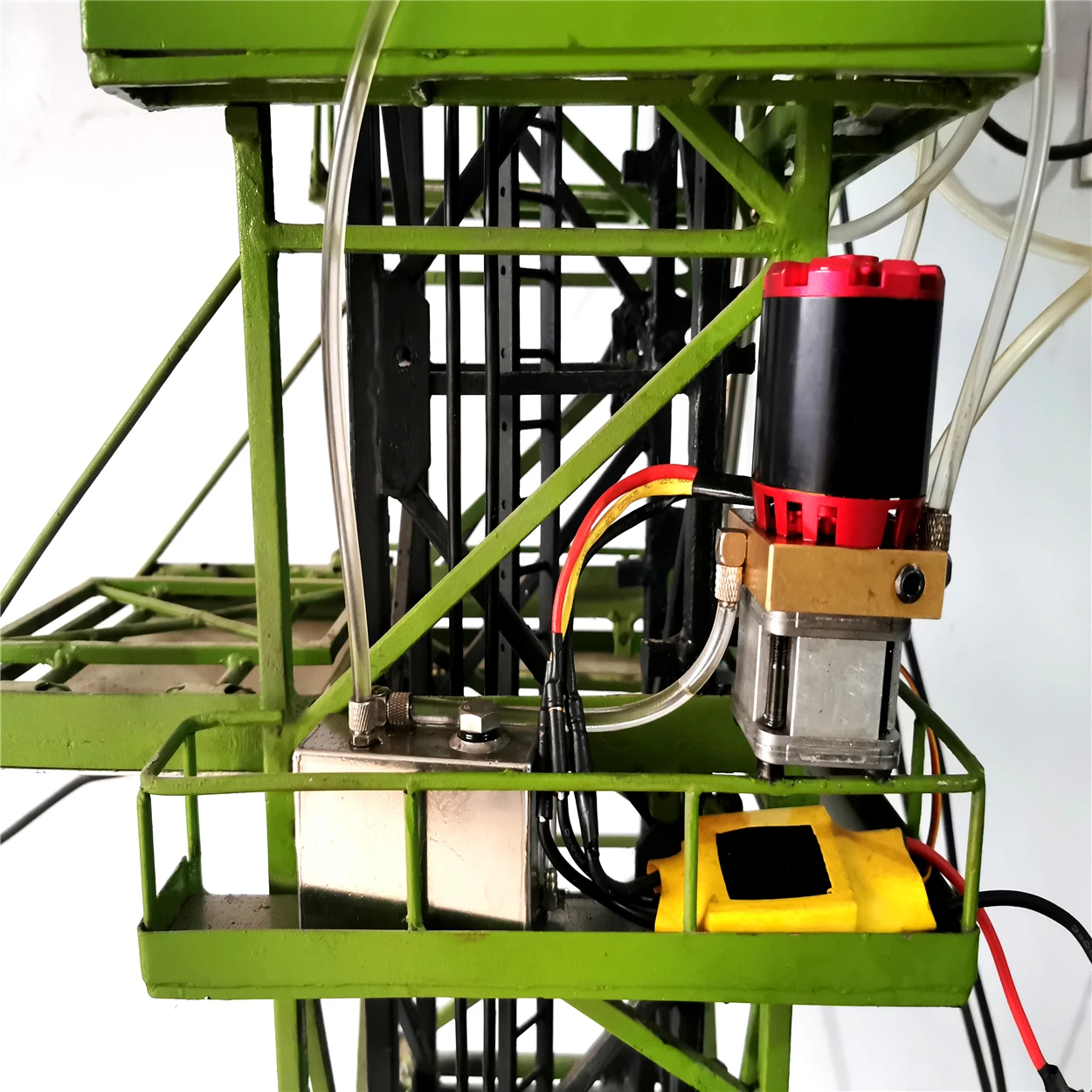

Jack-up site mechanism

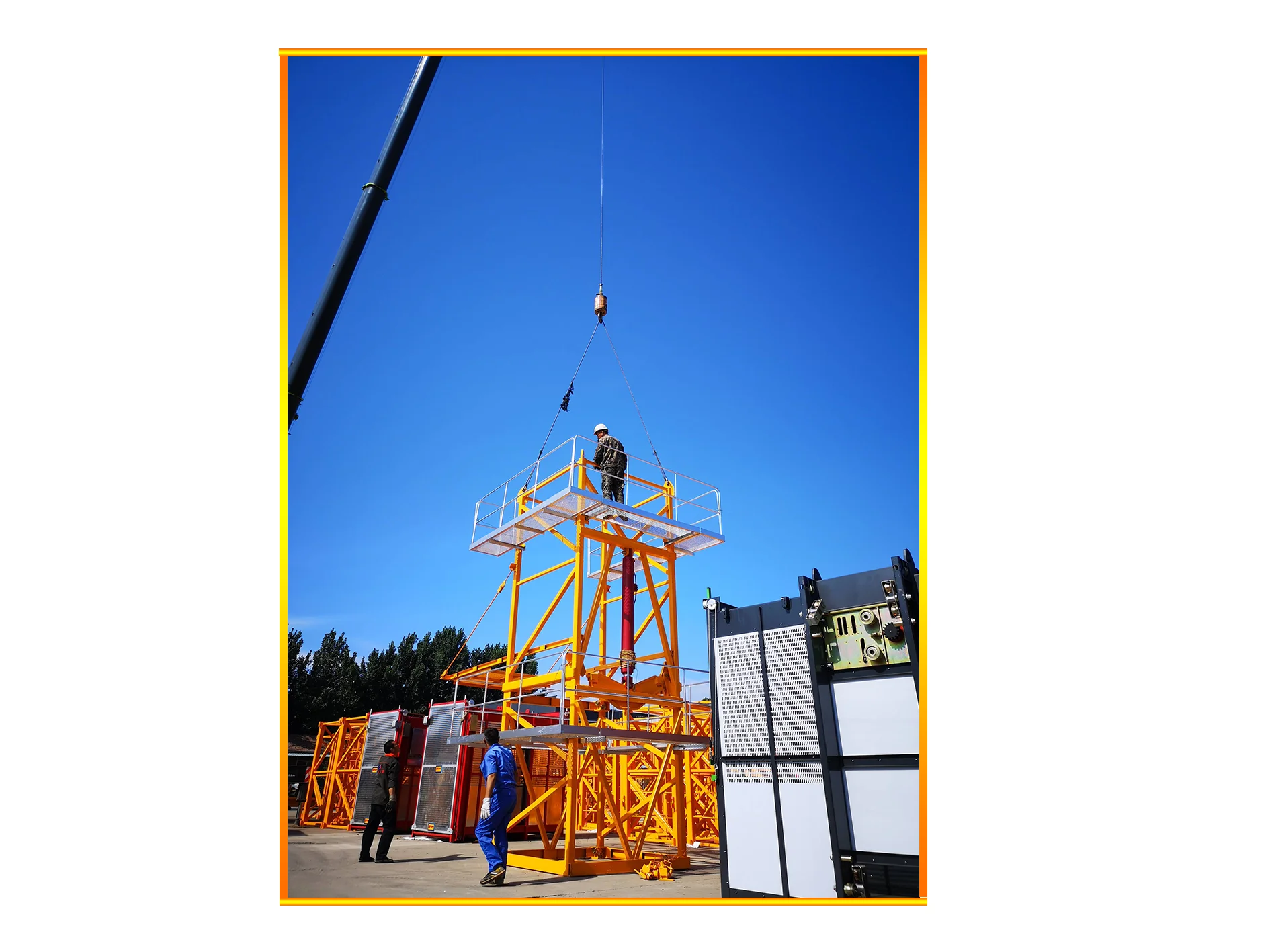

Jacking frame is mainly composed of jacking frame structure,
Introduction and installation of platform, ladder climbing and hydraulic lifting system, standard sectionThe hoisting movement of tower crane mainly depends on this part Into.The jacking cylinder is installed on the beam at the back of the jacking frame (that is, one side of the pre-loaded balancing arm), and the hydraulic pump station is placed on the platform at the side of the hydraulic cylinder. There are 16 guiding rollers inside the jacking frame, which are supported on the outside of the main string of the tower body to act as guiding support. In order to facilitate jacking installation and safety needs, a platform is provided in the middle and upper position of the jacking frame, and a platform is also provided on the introduction beam. When jacking, the
staff stands on the platform, controls the hydraulic system, and completes the work of jacking, introducing the standard section and fixing the standard section bolts.
Introduction and installation of platform, ladder climbing and hydraulic lifting system, standard sectionThe hoisting movement of tower crane mainly depends on this part Into.The jacking cylinder is installed on the beam at the back of the jacking frame (that is, one side of the pre-loaded balancing arm), and the hydraulic pump station is placed on the platform at the side of the hydraulic cylinder. There are 16 guiding rollers inside the jacking frame, which are supported on the outside of the main string of the tower body to act as guiding support. In order to facilitate jacking installation and safety needs, a platform is provided in the middle and upper position of the jacking frame, and a platform is also provided on the introduction beam. When jacking, the
staff stands on the platform, controls the hydraulic system, and completes the work of jacking, introducing the standard section and fixing the standard section bolts.
Trolley luffing mechanism

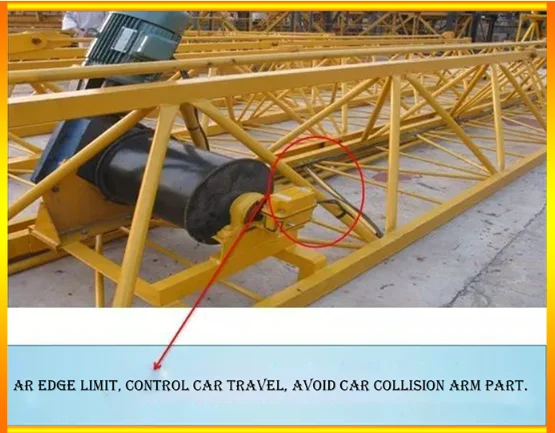

The luffing mechanism of the trolley drives the reduction device in the drum through the motor to make the trolley luffing motion the mechanism is used to drive the luffing trolley to reciprocate along the vertical axis of the lifting arm so as to realize the luffing motion between the hook and the lifting object. It is installed on the first arm of the crane arm, mainly composed of two-speed motor reducer, drum and limiter.

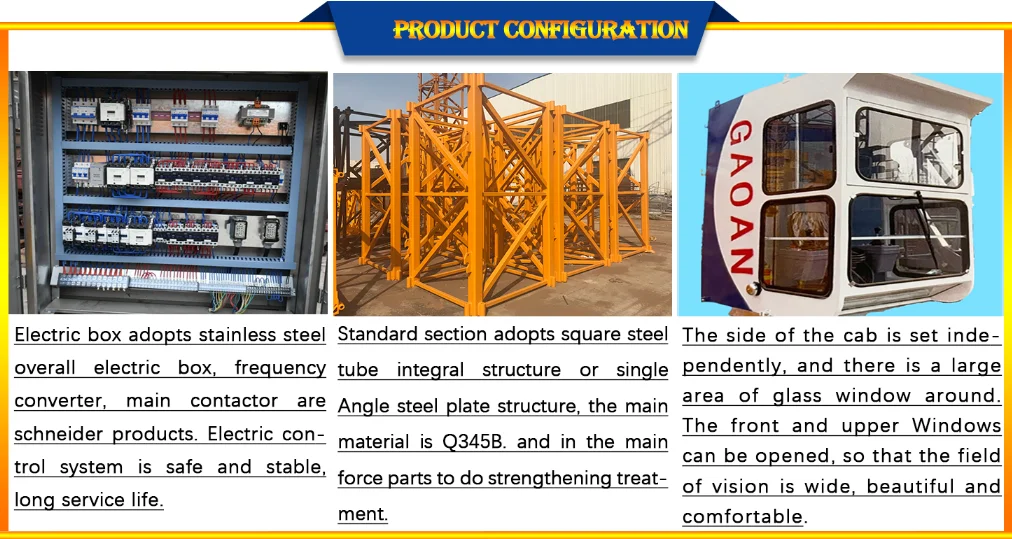

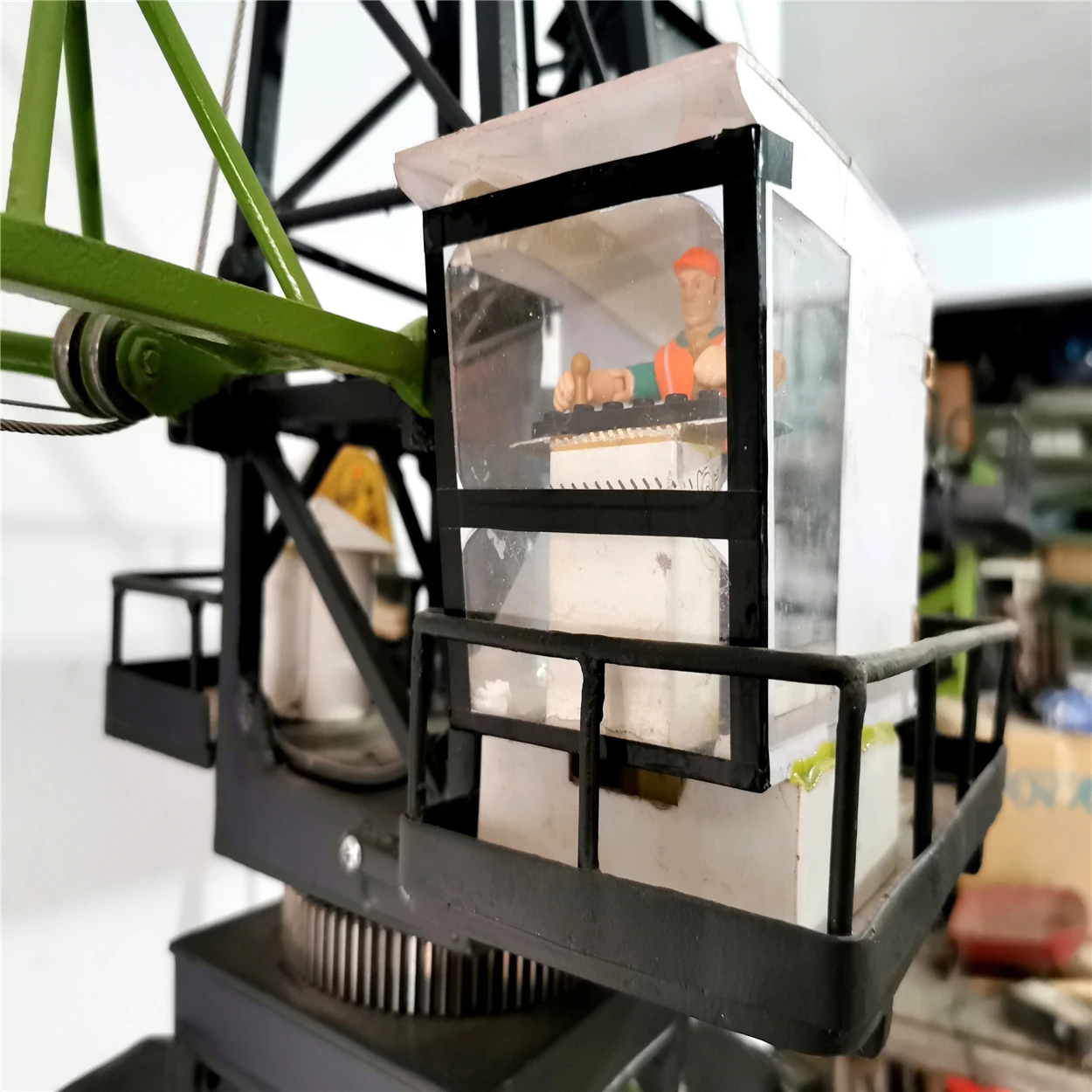

The details show
About us
Company profile
Shandong Gao 'an Construction Machinery Co., Ltd. was established in 2009 with a registered capital of 15 million yuan. The factory covers an area of more than 6000 square meters. Gao 'an company mainly engaged in various tower cranes and construction cranes, stable performance, reliable performance, low maintenance rate, easy installation and disassembly. Gao 'an group's products, especially "large tower crane" products have the leading edge, to provide high quality products and after-sales service for users of high-rise buildings around the world.
Main Products

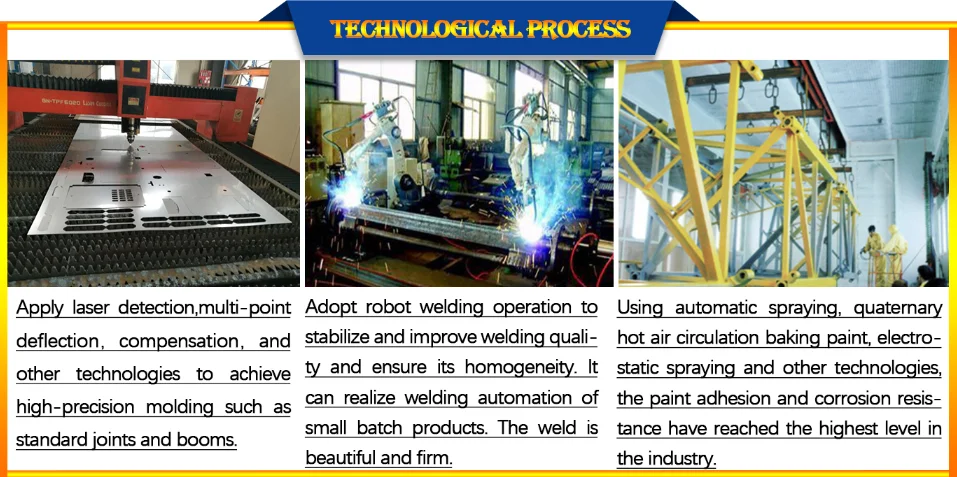

The main products of the company tower crane are :QTZ63 series, QTZ80 series, QTZ100 series, QTZ125 series, QTZ160 series, QTZ200 series, QTZ250 series, QTZ315 series, TC and PT type tower crane and SC200/200 Construction elevator series. Relevant electrical accessories are provided by well-known suppliers such as Schneider. Our materials are all made of Q355B manganese steel. The equipment adopts laser cutting and cutting, robot welding and other advanced technology for production. standard derrick section size specifications are complete, can becustomized according to customer requirements of various fixed and plate derrick section sizes.
