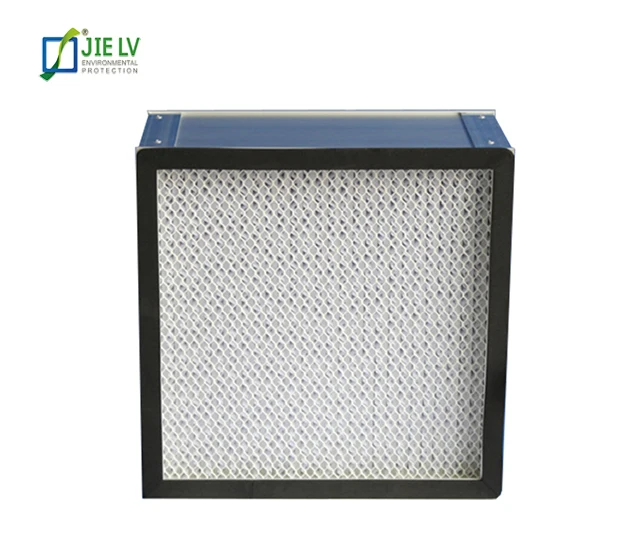

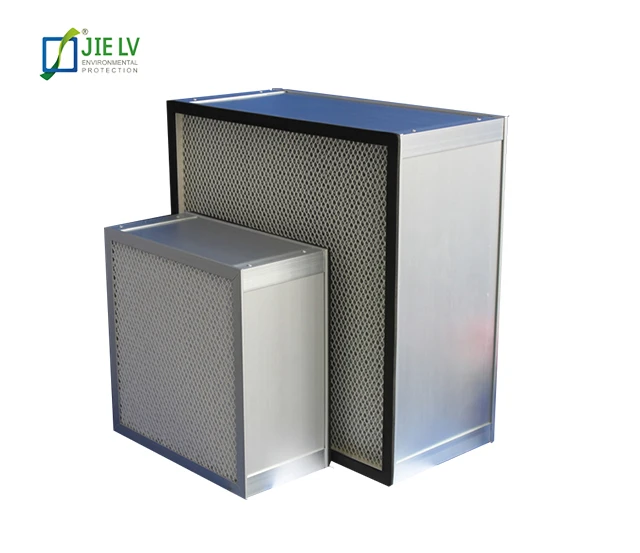

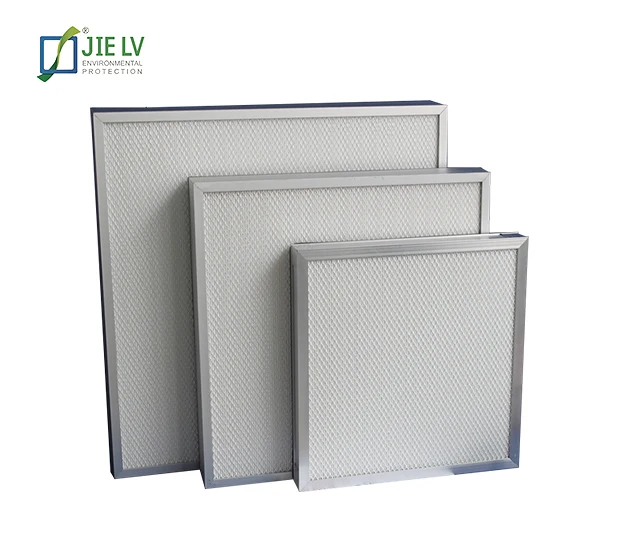

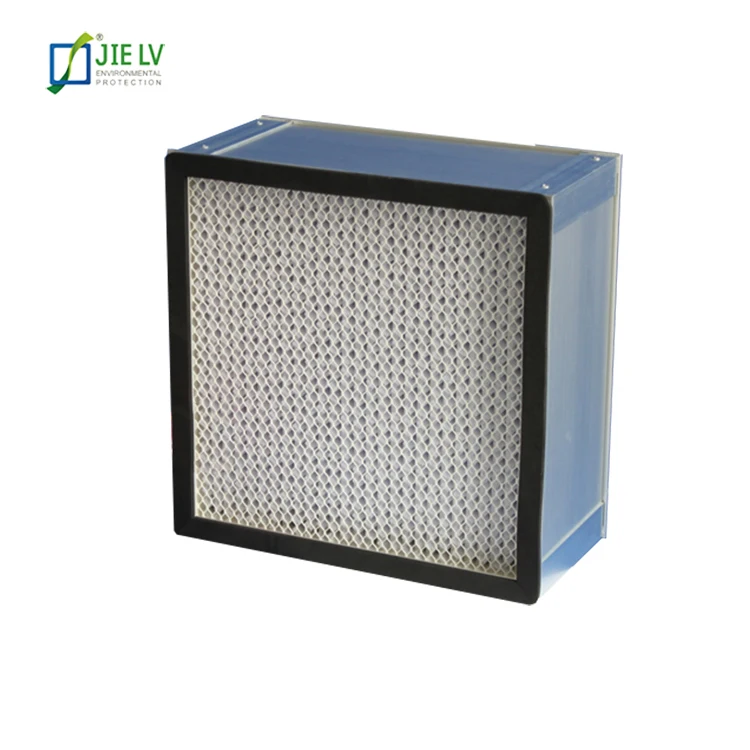

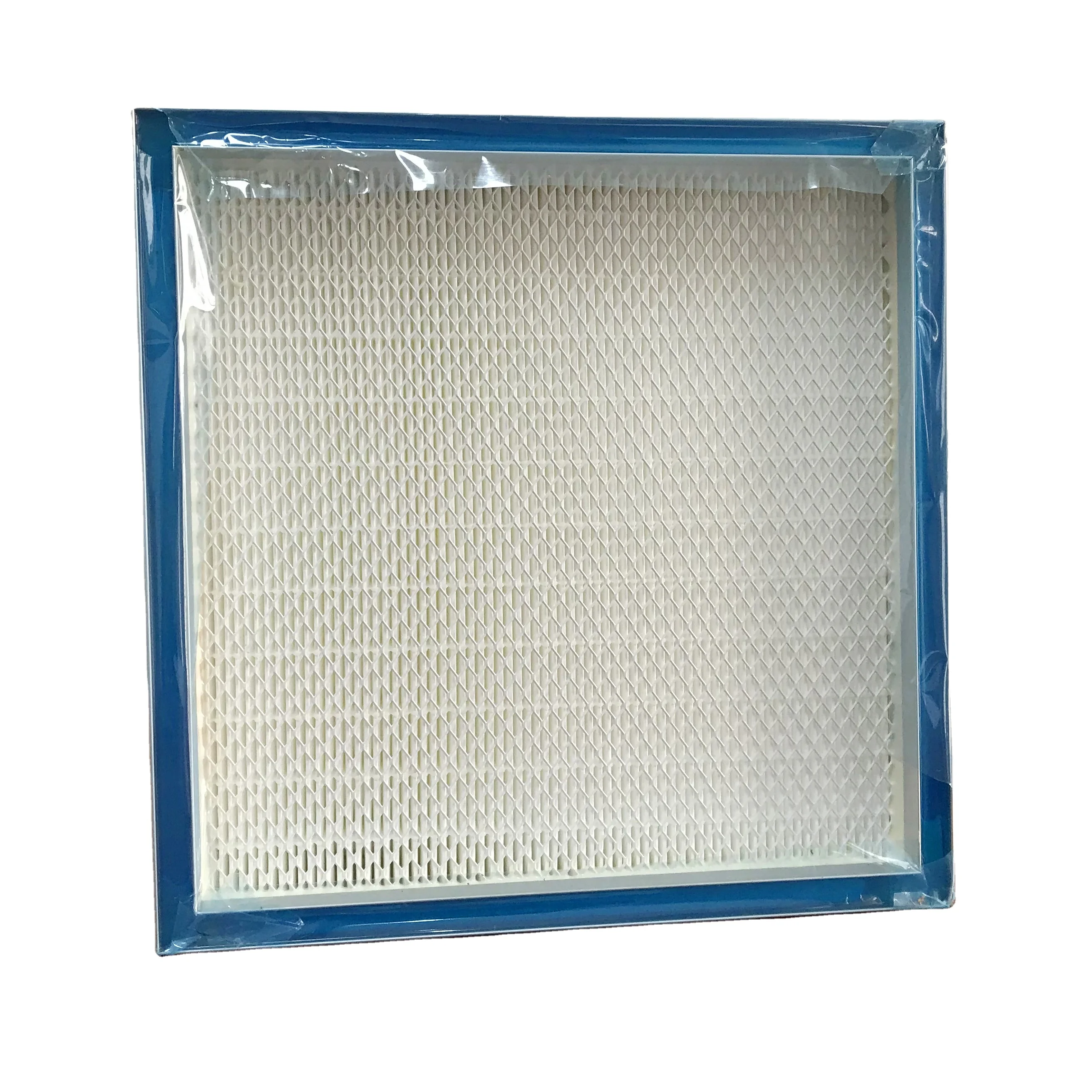

Fluid Gel Seal Style mini pleated no leakage, Delicate aluminum alloy frame, Mini pleated HEPA air filter
- Category: >>>
- Supplier: Guangzhou Jielv Environment Technology Co. Ltd.
Share on (1600351297763):
Product Overview
Description
Product Description
Hepa & Ulpa Filters are designed for terminal filtration in applications ranging from cleanrooms and semiconductor fabrication to the food and beverage industry and pharmaceutical manufacturers.
They help to protect sensitive advanced manufacturing processes, prevent microbiological contamination in research labs and eliminate infectious airborne contaminants in the healthcare sector.

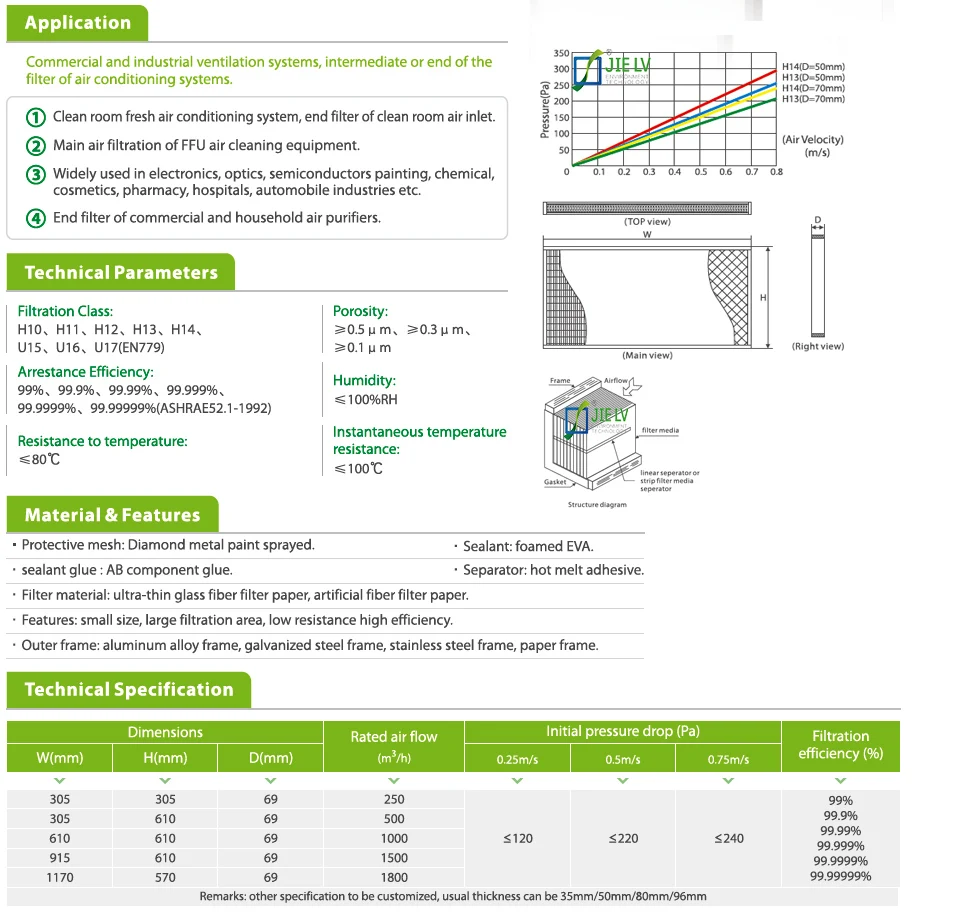

Product name | H11 H12 H13 H14 U15 Hepa filter |
External Frame | Aluminum alloy |
Material | Ultrafine fiberglass |
Separator | Hot melt adhesive |
Sealant | polyurethane |
Protection mesh | Steel mesh, spraying plastics, white, wind |
Efficiency | MPPS= million pulses per second |
H10(EN1822): ≥85%@MPPS(≥90%@0.3um) | |
H11(EN1822):85%@MPPS(≥90%@0.3um) | |
H12(EN1822):95%@MPPS(≥99%@0.3um) | |
H13(EN1822):99.5%@MPPS(≥99.99%@0.3um) | |
H14(EN1822):99.995%@MPPS(≥99.999%@0.3um) | |
Operating Temperature | ≤70℃ |
Humidity | ≤100%RH |
Model | Dimensions | Media area | Face velocity | Rated air flow (m3) | Initial pressure drop(pa) | ||||||
JL-Hwa | mm | m2 | m/s | standard | rated air flow | H13 | H14 | H15 | |||
305*305*50 | 1.6 | 0.5 | 150 | 525 | ≤190 | ≤250 | ≤280 | ||||
305*610*50 | 3.3 | 0.5 | 300 | 1500 | |||||||
610*610*50 | 6.7 | 0.5 | 600 | 2250 | |||||||
915*610*50 | 10.1 | 0.5 | 900 | 3000 | |||||||
1220*610*50 | 13.5 | 0.5 | 1200 | 1200 | |||||||
305*305*70 | 2.7 | 0.75 | 250 | 2250 | |||||||
305*610*70 | 5.5 | 0.75 | 500 | 3300 | |||||||
610*610*70 | 11.3 | 0.75 | 1000 | 4500 | |||||||
915*610*70 | 17 | 0.75 | 1500 | 375 | |||||||
1220*610*70 | 22.7 | 0.75 | 2000 | 750 | |||||||
305*305*90 | 3.7 | 1.0 | 320 | 1500 | |||||||
305*610*90 | 7.5 | 1.0 | 650 | 2250 | |||||||
610*610*90 | 15.4 | 1.0 | 1300 | 3000 | |||||||
915*610*90 | 23.2 | 1.0 | 2000 | 1500 | |||||||
1220*610*90 | 31.1 | 1.0 | 2600 | 3000 | |||||||
More Advantages:
Jielvfilter air filters use high quality filter element to trap the airborne dust and dirt, including particles as small as a grain of sand and provide longer lasting engine protection.
1) High Quality Control air filter.
2) Rapidly delivery.
3) Sufficient capacity supply of air filter.
4) Customer's Designs and Logos on air filter boxes are welcome.
5) Favorable price of air filter.
6) Variety of Designs are allowed.
7) Small Order of air filter are Acceptable.
8) Air filter OEM Accepted.

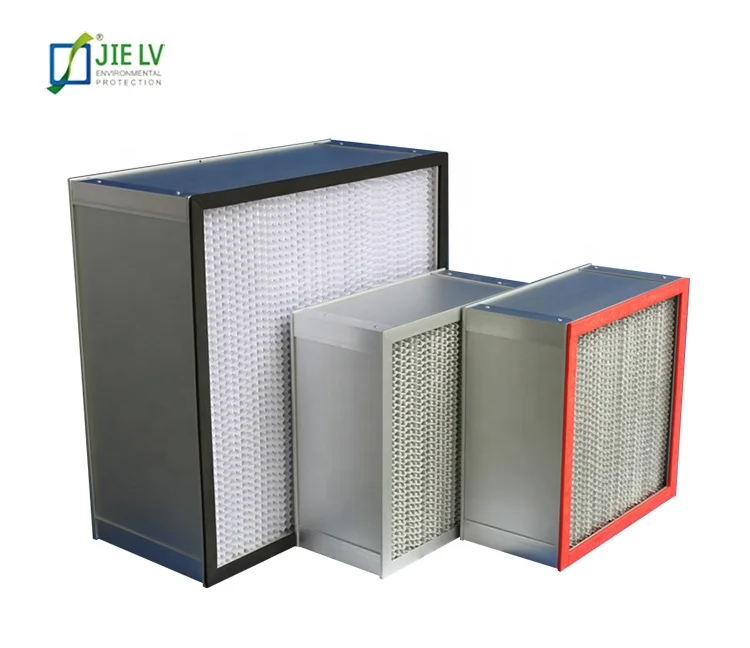

Air Filter Pictures
Related Products
See More Air Filter Products
Applications
1) Air condition system.
2) Ventilate system.
3) Exhaust gas filter in paint exhaust system on the floor of dry spray booth.
4) Avoid tar room and dust from high-temperature dryer.
5) Clean room, cleaning equipment.
6) FFU.
7) Pharmaceutical factory,hospital, electronic factory food factory.
8) Car production line development.
9) Ultra-clean high-temperature oven.
10) Car spray paint baking temperature applications.
11) Chemical, food factory etc industries.
2) Ventilate system.
3) Exhaust gas filter in paint exhaust system on the floor of dry spray booth.
4) Avoid tar room and dust from high-temperature dryer.
5) Clean room, cleaning equipment.
6) FFU.
7) Pharmaceutical factory,hospital, electronic factory food factory.
8) Car production line development.
9) Ultra-clean high-temperature oven.
10) Car spray paint baking temperature applications.
11) Chemical, food factory etc industries.

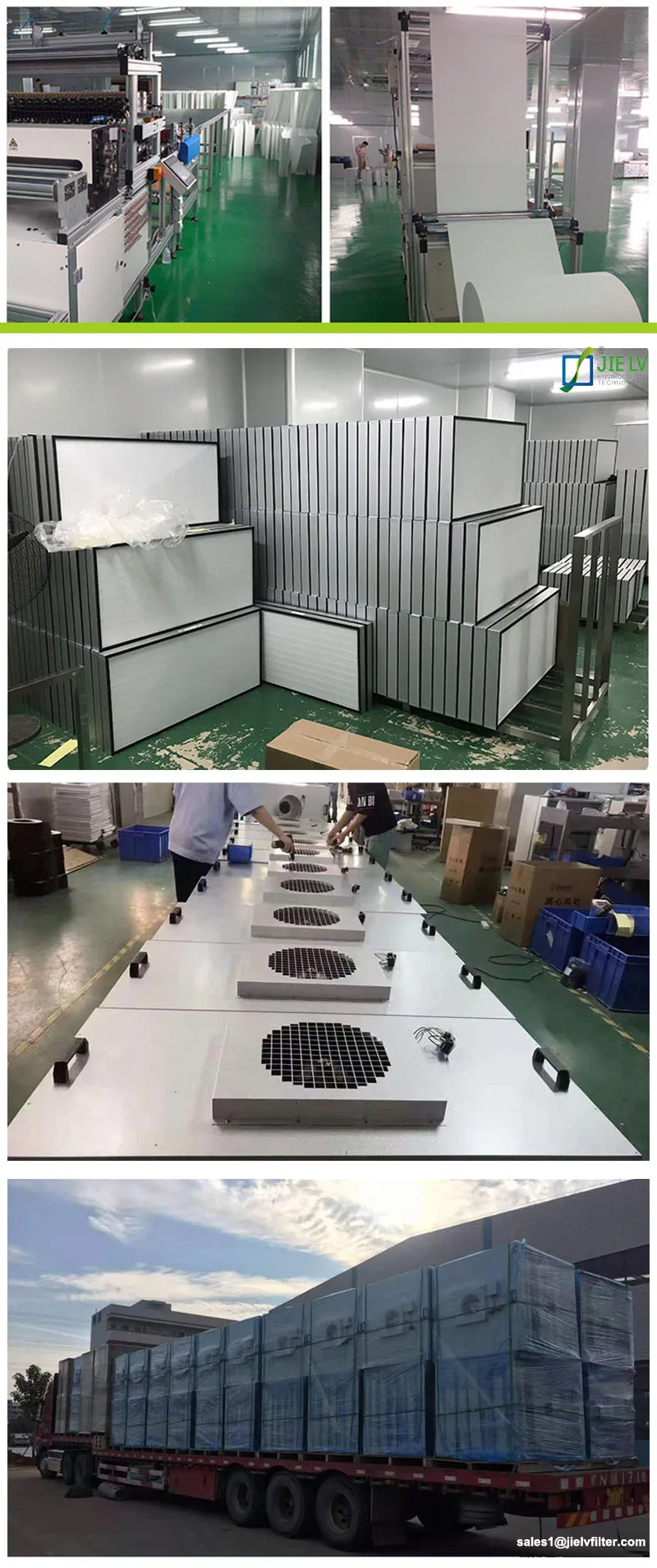

About JIELV
GUANGZHOU JIELV ENVIRONMENT TECHNOLOGY CO.,LTD

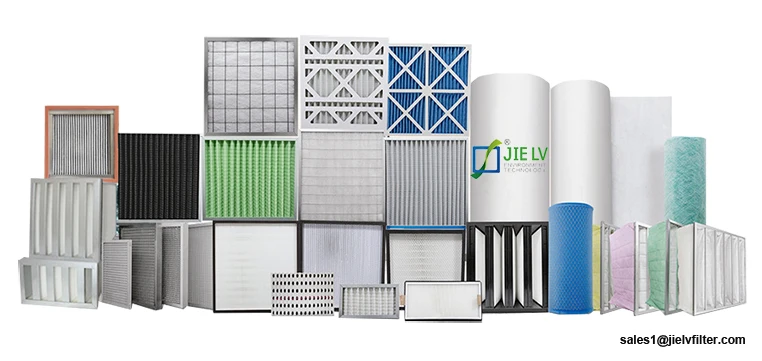

Factory main products are fan filter units (FFU), G1~G4 Primary, F5~F9 Medium, H10~H17 High efficiency HEPA & ULPA air filter. The typical applications are Microelectronics, Bio-pharmaceuticals, Medical, Food and Beverage, Fuels, Petrochemical, Chemical, Laboratory benches, and Automotive industries.Base on satisfied product quality and professional solutions, Our products have served German, France, Canada, Russia, USA, Australia, New Zealand, Malaysia, India, Thailand and Singapore worldwide customers.
Our slogan is " Quality is priority. Buying products is for solving problems, not to make troubles".
Certifications
FAQ
Q: Why choose JIELV?
A: Guangzhou Jielv Environmental Protection Co., Ltd. is famous for high-tech filtration, separation and purification, committed to provide the highest quality filtration products to meet worldwide customers various needs with excellent service.
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we won the trust and good remarks of a numbers of customers because of the high quality and reasonable price.
On the basis of the powerful technical force, standard testing equipment, strict quality-controlled systems and the excellent after-sales services, we won the trust and good remarks of a numbers of customers because of the high quality and reasonable price.
1)Q: Are you a trading company or a factory?
7)Q: How to choose the right products?
A: We have our own factory in GUANGZHOU KEHUI TECHNOLOGY ZONE.
2)Q: Do you support OEM & ODM made?
A: OEM & ODM is warmly welcomed, we can arrange your own color or label, print your OEM package, and make your own shape and size according to your drawing.
3)Q: Do you provide samples ? is it free or extra?
A: Yes, you need pay for sample cost.
4)Q: How long is your delivery time?
A:Generally it is 10-15 days lead time for production according to your quantity and our production schedule. 5)Q: How's the service? A: From order confirmation to production shipping, we will keep you informed your goods each process
status and send you product picture, vedio to check product quality. with DOP testing machine to 100% QC each ready products.We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.
6)Q: What is your terms of payment?
status and send you product picture, vedio to check product quality. with DOP testing machine to 100% QC each ready products.We’ll take photos for your check before loading container and confirm all of documents within 48 hours after shipment.
6)Q: What is your terms of payment?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
7)Q: How to choose the right products?
A: The following parameters are what we have to know to make the right products:
a) FFU &H13 H14 air filter size.
b) Galvanized frame or aluminum frame.
c) 110V OR 220V voltage. d) 60HZ or 50HZ.
e) Air filter filtration class.
8)Q: what's your product application?
A: Applications Cleanroom,surgical theaters, ICUs , medical settings, ,mushroom, tissue, cannabis plant room
9)Q: what services can we provide?
A: Accepted Delivery Terms: FOB,C&F,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English
