Product Overview
Description
Product Paramenters
We can send you coating samples and you can also send us samples for coating test .then check the coating quality.
YOU CAN DOWNLOAD OUR TEST REPORT BY BELOW LINK
https://drive.google.com/drive/folders/1RxkAYGQeX6t-OkrCDNMiC2ykQulrE2U5?usp=sharing
Substrate | Vehicle Wraps: Bus, Trailer, Van, Truck, Car Wraps PET /PVC/PP Vinyl Advertising Signs Billboards Banners Wallpaper, Canvas, Tarpaulin. Aluminum Window wood grain sticker |
Varnish Component | 99% solid content of epoxy resin with additives such as defoamer, leveling agent, photoinitiator. and 1% solvents. |
Glossy Varnish | SC-6748 80-85 ° Glossiness (60° vanceometer) |
Matte Varnish | SC-6738 20 ° Glossiness (60° vanceometer) |
Storage | 6 months at 0-50℃ |
Package | PVC Sealed Bottle |
Hardness | ≥2H (pencil hardness) |
Consumption | 600 square meter / 5 kg |
Drying speed | 40-80Ft/Min/80W/Cm/Lamp |
Viscosity | coating with 4 jar in 22 second/25℃ |

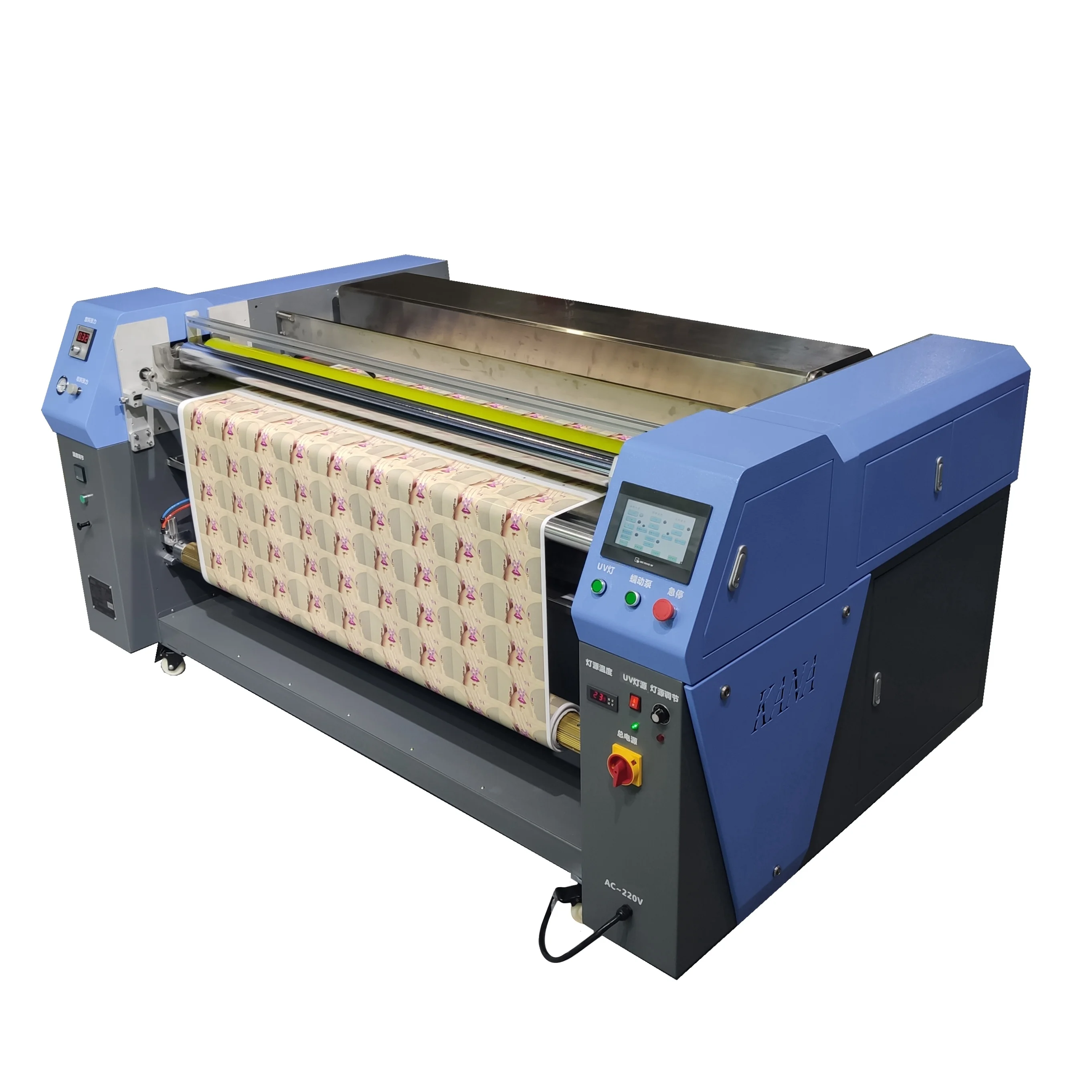

Control System | PLC with Touch Screen |
Model Number | KANA-1300/KANA-1700/KANA-2200 |
Working Width | 1200mm / 1600mm /2100mm |
Power | 5kw |
Voltage | 220V 50/60Hz |
Speed | 1-15m/min |
Coating Thickness | 5～10um |
Substrate Thickness | <2mm |
Curing System | LED - UV |
LED Life Expectancy | 15000 hours |
Product Description
We can send you coating samples and you can also send us samples for coating test .then check the coating quality.
YOU CAN DOWNLOAD OUR TEST REPORT BY BELOW LINK
https://drive.google.com/drive/folders/1RxkAYGQeX6t-OkrCDNMiC2ykQulrE2U5?usp=sharing
Inkjet printing ADS without coating
KANA UV curable coating
Cold laminating film
Features | Cold roll laminator | IR drying coater | KANA LED UV curing roll coater |
Cost | During production, due to the various sizes of the substrate, Cold laminating film requires large stock volume and has a scrap rate at over 15%. | Infrared radiation dry water-based wet coatings by solvent evaporation which shrinks the initial coating application by more than 50%. The limited length of heating conveyor lower the yield rates to 1-2 m/minute. It is not applicable on heat sensitive substrate. | KANA UV curable coatings have 99.5% solid content of phenolic epoxy resin with additives such as defoamer, leveling agent, photoinitiator and a very little solvents. it costs only 5 to 8g per square meter to apply coatings on various format substrate which can reduce scrap to 2% and increase yield rates to 5-8 m/minute and even 15 m/minute at ultimate load. |
Ductility | The poor ductility of the cold laminating film leads to inconvenience and difficulty in application. | Good ductility leads to easy application | Good ductility leads to easy application |
Speed | 0~10m/min | 0~10m/min preheating 3-10min | 0~15m/min no down time |
Quality | The film may easily peel off above +40℃. The Film will easily break below -5℃. Curling, shrinkage, breakage, bubbles and wrinkles happen easily after a short period of time. | If Using A 2kg weight to scratch the coating back and forth at a uniform speed, and the surface coating falls off within 100 times of scratching test. Waterproof quality of IR drying coating is worse than that of UV curable coating. | Excellent adhesion: the coating will not fall off when pulled by 3M tape. Brilliant quality: SGS aging test guarantee no quality change within 1.5 years of outdoor exposure under sunlight and rain and within 48 hours between -20℃ to +68℃. KANA UV curable coating can resist 2000 times of scratching test and 20 times of rubbing with alcohol. |
Color Consistency | PVC laminating film application will darken printing colors due to lower transmittance | the coating surface brightness is among 50°-60°. and it will become darker under high temperature. | KANA UV curable coating has better color consistency due to the higher transmittance. the coating surface brightness can reach 90° -92°. |
Smell | Heavy odor: the odor is difficult to dissipate in a confined space. | Solvent evaporation creates unpleasant smell of ammonia plus environmental pollutants | Only a little smell of epoxy resin. 0.5% solvents solves the problem of volatility and irritation. |
Environmental Friendliness | White Pollution: The PVC laminating film incineration will generate air pollution; PVC takes more than 30 years to decompose. PVC landfill will cause water and soil pollution. | Envrionmentally friendly with no VOCs | Envrionmentally friendly with no VOCs Test report as shown in below pictures |
Human Hazards | Above 65℃, PVC cold laminating film will produce harmful substances and gases such as lead, tin, chlorine, and cause health hazards to humans and animals. | No human hazards | No human hazards Test report as shown in below pictures |
Our Advantages
Company Profile
Hefei Kana Photoelectric Technology Co., Ltd. was newly established in April 2020 and is located in Hefei National High-tech Development Zone. The KANA team started focusing on surface coating technology in 2006, and its product development has obtained a number of national authorized patent certificates. Hefei Kana is committed to the R&D, production and marketing of LED cold light source energy-saving coating equipment and surface environmental protection coating materials, and strives to replace all kinds of PVC cold-laminated film protection.
Packaging & shipping
FAQ
No. | Service | Description |
1 | OEM ODM | Custom Logo, Color Available |
2 | MOQ | Machine 1 pcs, Matte or Glossy Varnish Available 200kg |
3 | SAMPLE | Free Sample Available,7 Days |
4 | PACKAGING | Plywood Box |
5 | PRICE | EXW FCA FOB CIF DAT DDP |
6 | PAYMENT | Credit/Debit Card,Paypal,Google Pay,ApplePay,WESTERN UNION,T/T,L/C, |
7 | SHIPPING | By Air 9-15 Days,By Express 7-14 Days,By Sea or Train 20-45 days, |
