Double Layers Copper Strip Winder Cold Welding Transformer Foil Winding Machine
Introduction
Double Layers Copper Strip Winder Cold Welding Transformer Foil Winding Machine BRJ300-2 is a dedicated equipment for winding reactor foil coil and other similar product. The foil winding machine adopts PLC based controlling system, with high degree of automation and complete functions.
Main Components:
1. Main frame
2. Foil decoiler
3. Pressing roller
4. Winding unit
5. Insulation decoiler unit
6. Edge alignment system
7. Automatic cold welding unit
8. Pneumatic unit
9. Electrical control system
Technical Parameters
Typical standard specifications of BRJ300-2 are shown below, however these can be modified as requested.
Max. Axial Length: | 300mm |
Conductor Decoiler Number: | 2 |
Conductor Decoiler Length: | 350mm |
Conductor Decoiler Shaft: | Dia. adjustable range: 400-520mm |
Max Coil Weight: | 1000kg |
Insulation Paper Decoiler Number: | 1set |
Insulation Paper Coil OD.: | ≤ 400mm |
Insulation Paper Coil ID.: | 76mm |
Insulation Decoiler Width | 350mm |
Pressing Roller Unit: | 1 set |
Max. Tension Of Foil: | 8000N |
Winding Speed: | 0-35 RPM |
Welding Pressure: | 200 KN |
Cold Welding Device: | 1 set |
Positioning Bus Bar Device: | 1set |
Electric Grinding Device: | 1 set |
Cold Welding Mould: | 6 sets |
Programming Type: | PLC |
Basic Function: | Input by segment, reversible counting, and power-off memory, etc. |
Operation Interface: | Touch screen |
Counting Turn Range: | 0 - 9999.9 |

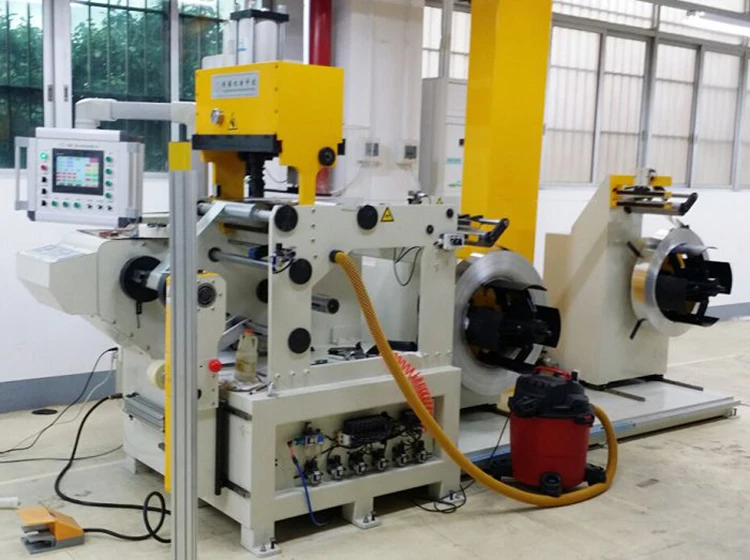

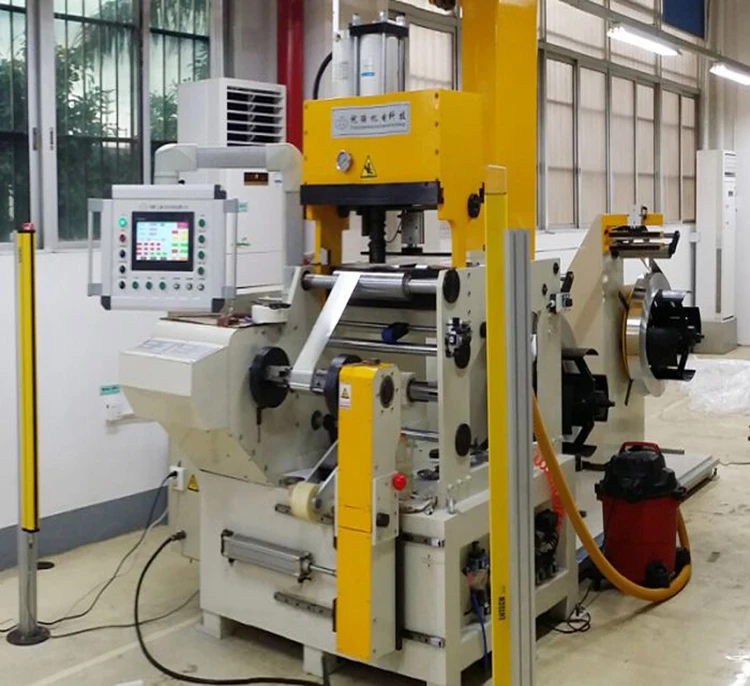

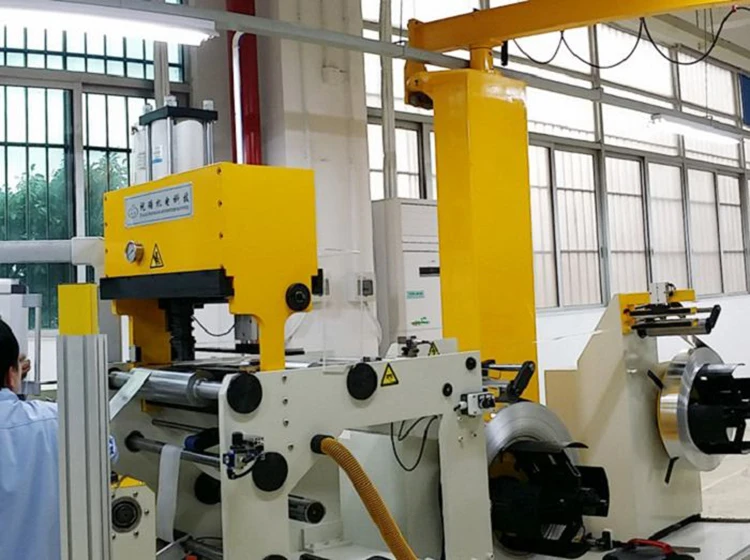

Figure 1:Reactor Automatic Cold Welding Foil Winding Machine BRJ300-2's full view

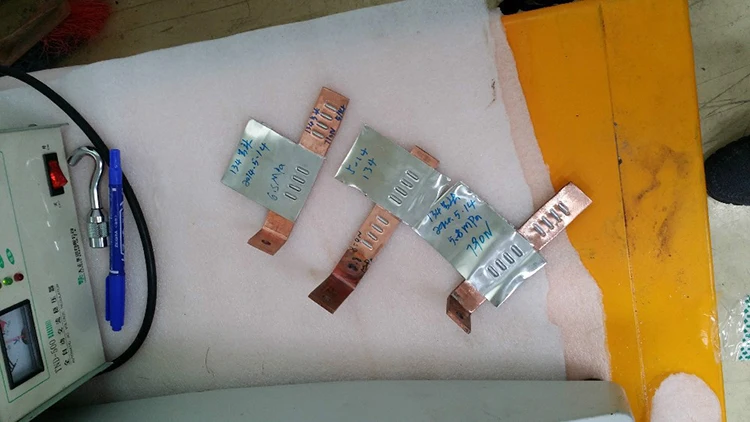

Figure 2:Reactor Automatic Cold Welding Foil Winding Machine BRJ300-2's welding effect
