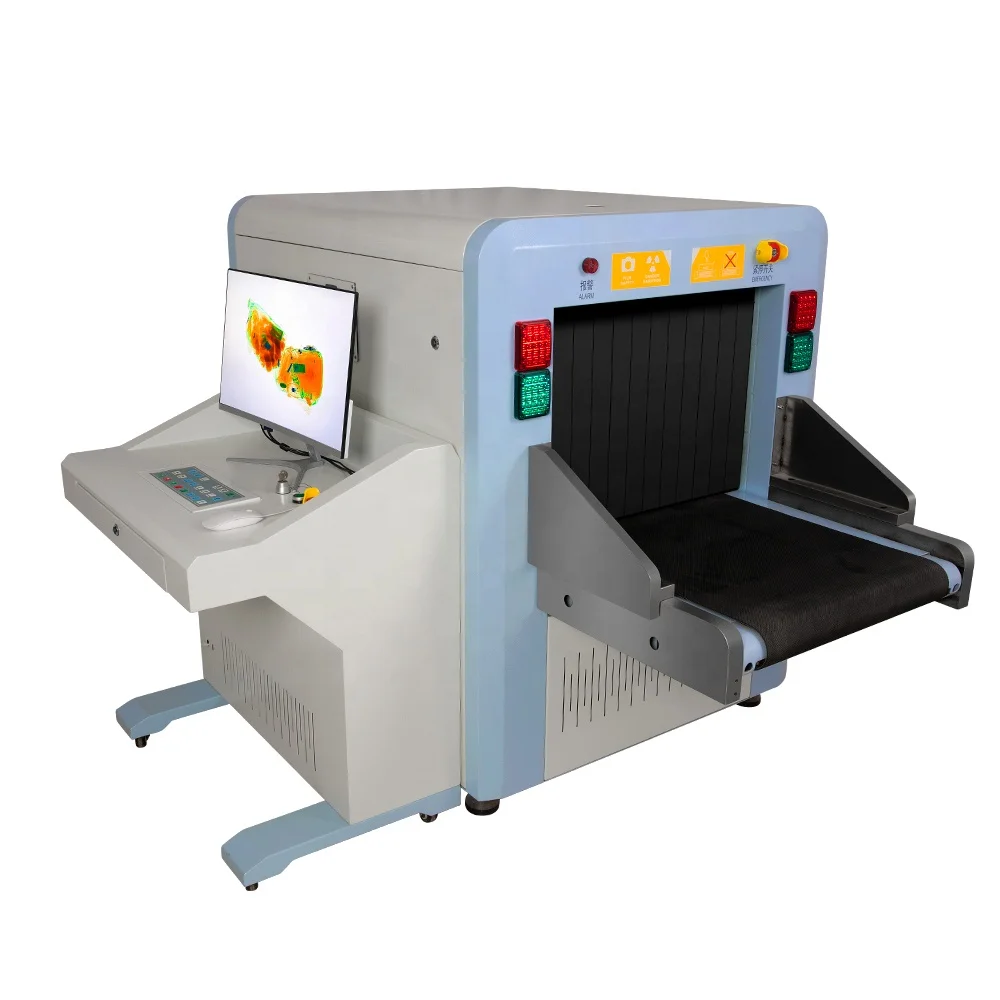

High Quality Tunnel Size 655 x 500 MM X Ray Baggage And Parcel Inspection Machine X ray Baggage Scanner
- Category: Other Security & Protection Products >>>
- Supplier: Shenzhen,Fangji,Infinite,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
█ STANDARD FEATURES
▶ Multi-energy Imaging (4 color)
▶ View Previous/Next Bag
▶ Image Archive
▶ Baggage Counter
▶ Date/Time,Model Display
▶ Adjustable Zoom Preview Window
▶ TIP (Threat Image Project)
▶ Multi Language Support
▶ High Definition Image
▶ Intelligent Alarm
▶ Image Management
▶ Dynamic Processing
▶ Green Lead Curtain
▶ Network Interface and Wireless LAN
▶ Shutdown with One Key
▶ Self-diagnose
▶ Intelligent Roller
▶ Double/Single Display Operation Desk(Optional)
█ STANDARD IMAGE PROCESSING SYSTEM
▶ Black and White Image
▶ Organics / Inorganic Stripping
▶ Partial / Super Enhancement
▶ Multi Energy Method Material Classification
▶ Fixed Zoom (64 X)
▶ High Density Alert
▶ Multi-energy Imaging (4 color)
▶ View Previous/Next Bag
▶ Image Archive
▶ Baggage Counter
▶ Date/Time,Model Display
▶ Adjustable Zoom Preview Window
▶ TIP (Threat Image Project)
▶ Multi Language Support
▶ High Definition Image
▶ Intelligent Alarm
▶ Image Management
▶ Dynamic Processing
▶ Green Lead Curtain
▶ Network Interface and Wireless LAN
▶ Shutdown with One Key
▶ Self-diagnose
▶ Intelligent Roller
▶ Double/Single Display Operation Desk(Optional)
█ STANDARD IMAGE PROCESSING SYSTEM
▶ Black and White Image
▶ Organics / Inorganic Stripping
▶ Partial / Super Enhancement
▶ Multi Energy Method Material Classification
▶ Fixed Zoom (64 X)
▶ High Density Alert
Specification
General Specification | ||
Tunnel Size | 655 x 500 mm | |
Conveyor Load | 170 kg | |
Conveyor speed | 0.22 m/s | |
Penetration | 33~40 mm steel | |
Resolution | 38~40 AWG | |
Film safety | Guarantee ISO 1600 Film | |
X-ray leakage | ＜0.5 μSv/h | |
X-ray Generator and Image Performance | ||
Anode voltage | 140~160 kV | |
Cooling | Oil Cooling 100% | |
Beam direction | 80° | |
X-ray converter | L-Shaped Photodiode Array | |
Grey Level | 6535 | |
Image penetration | B/W, color | |
Monitor | 19” LCD | |
Installation Data | ||
Operation/Storage Temperature | 0℃~45℃/-20℃~+60℃ | |
Humidity | 20%~98% non-condensing | |
Power consumption | 0.8 kw (Max) | |
Power supply | 100-240 VAC+10%/-15% selectable 50/60 Hz±3 Hz | |
Sound supply | ＜56 dB | |
N.W/G.W.: | 354 kg / 468 kg 780.4 lbs / 1031.8 | |
CertificateCompliance |
CE compliant: Directive 2004/108/EC Electromagnetic Directive 2006/42/EC Machinery Directive 2006/95/EC Low Voltage RoHS: EN62321:2008 Film Safety: ISO 1600 Radiation Safety Certificate ISO9001 Quality Management System ISO14001 Environment Management System OHSAS18001 Occupational Health Management System GB15208.1-2018《Microdose X-ray safety inspection equipment - Part 1: General technical requirements》 GB15208.2-2018 Safety inspection equipment for microdose X-ray - Part 2: Safety inspection equipment for transmission type packages |
