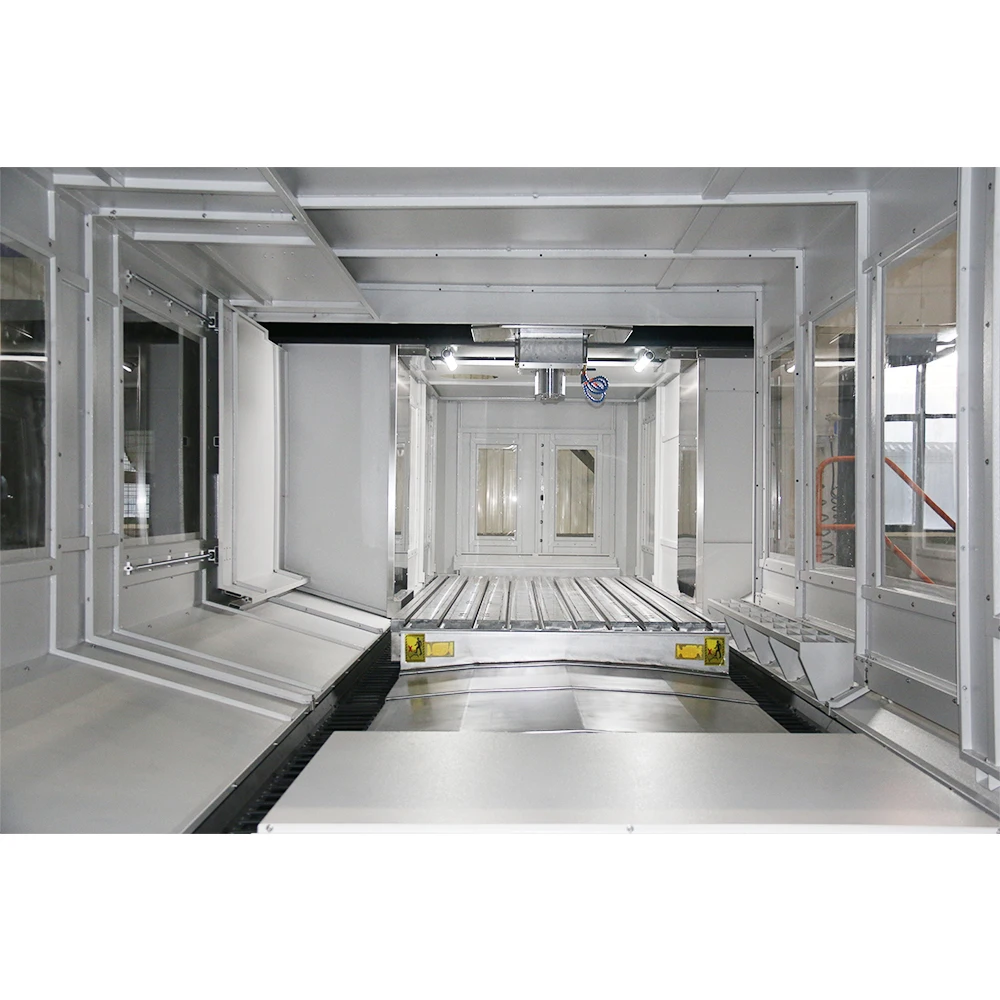

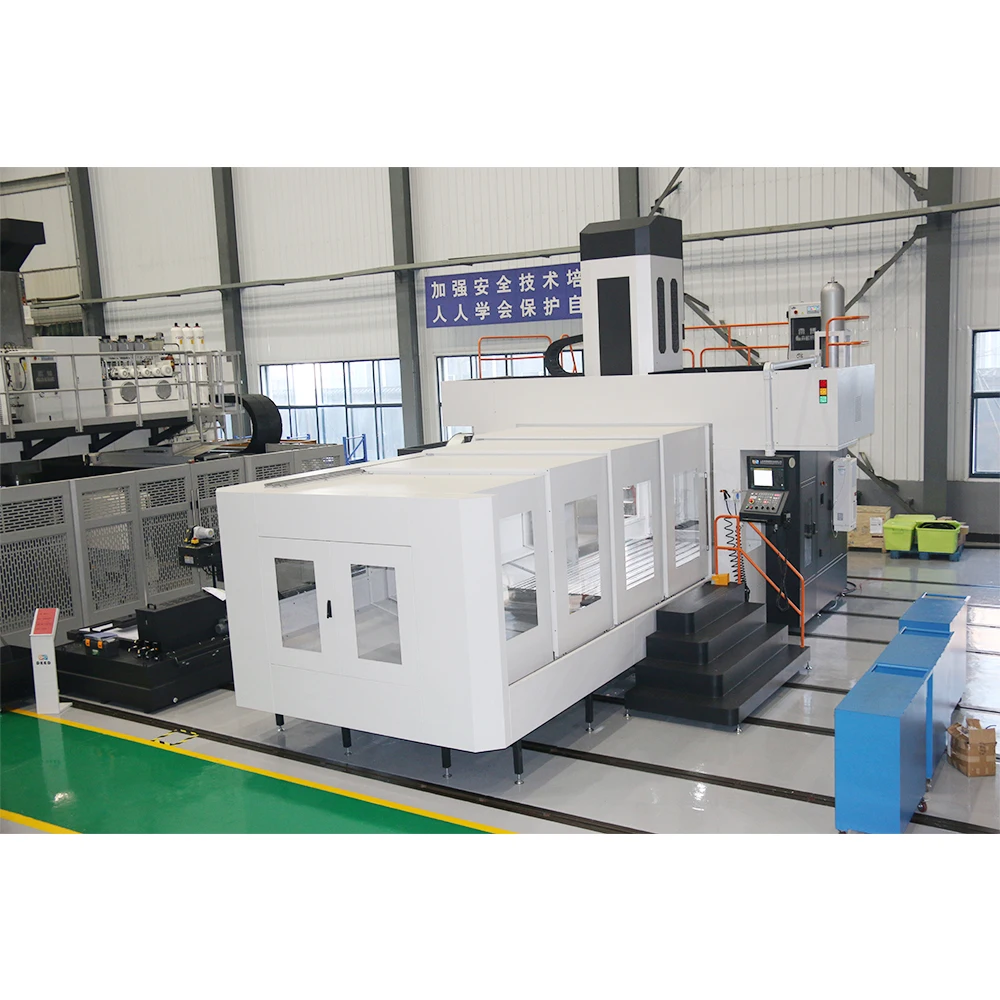

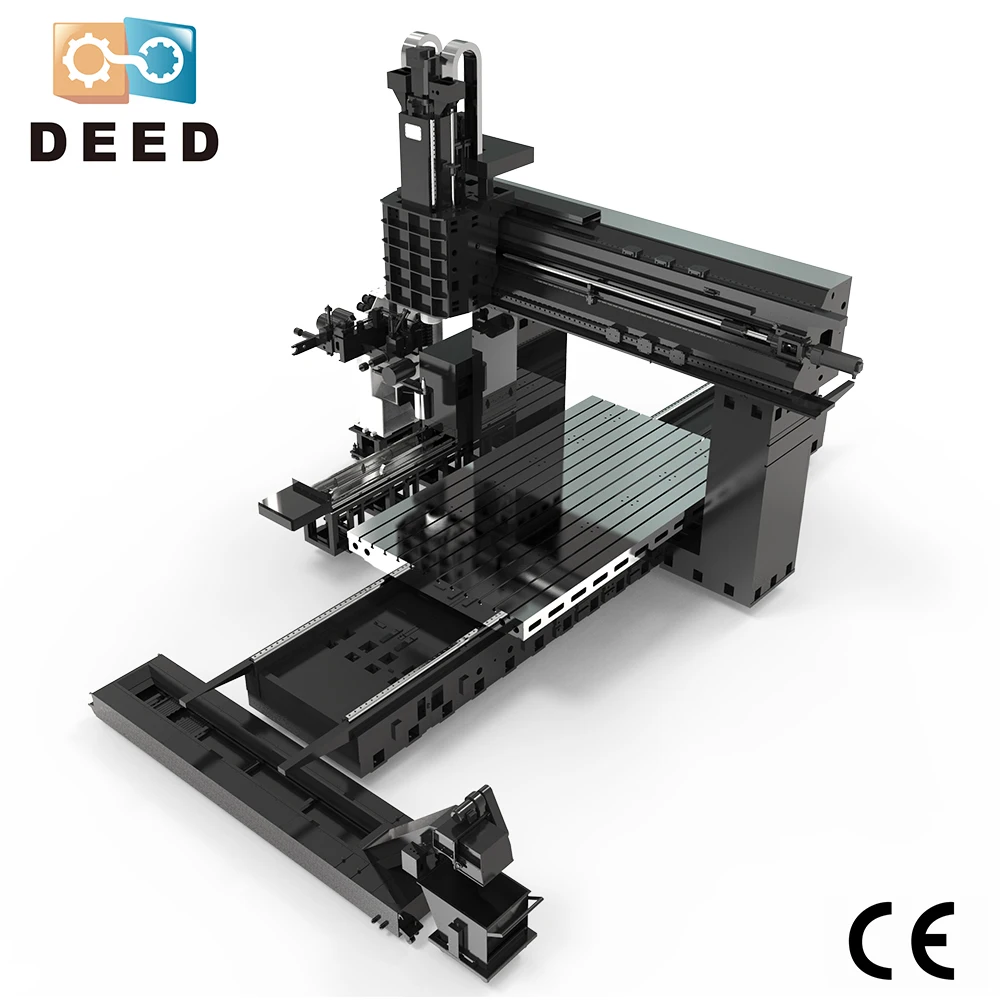

Professional Manufacture Lathe 5 Axis Center Big Cnc Milling Machine
- Category: >>>
- Supplier: Jinan Deed Precision Machine Tool Co. ltd.
Share on (1600351891997):
Product Overview
Description
Products Description
TRAVEL | |
X-axis travel | 3000mm |
Y-axis travel | 2000mm |
Z-axis travel | 850mm |
Spindle nose to table surface | 200~1050 |
SPINDLE | |
Drive type | Direct drive + Gearbook |
Spindle taper | BT50 |
Max. Speed | 8000rpm |
Spindle Power | 22/26 KW |
Spindle Torque | 560-660N.m |
TABLE | |
Size | 3000×1600mm |
T-Slot | 22mm |
Max load | 11t |
FEED | |
Max.cutting speed | 5-12000 mm/min |
Rapid traverse | 16/16/16m/min |
ACCURACY | |
Positioning(half-closed loop) | 0.018*0.017*0.011mm |
Repeatability(half-closed loop) | 0.011*0.009*0.006mm |
ATC | |
Type | ATC-24T |
ATC capacity | 24/32/40 |
Tool holder type | BT50/HSK63 |
OTHERS | |
Air Pressure | 0.65Mpa |
Power Capacity | 50KVA |
Machine Weight | 28T |
Machine Floor Space (L *W *H) | 9000×5400×5100mm |

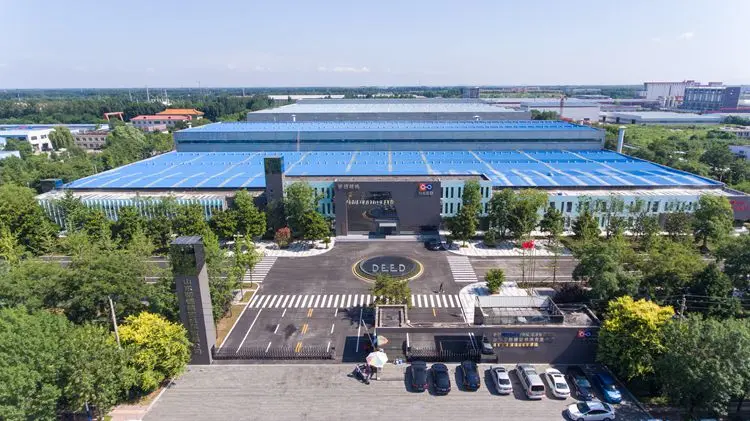

Company Profile

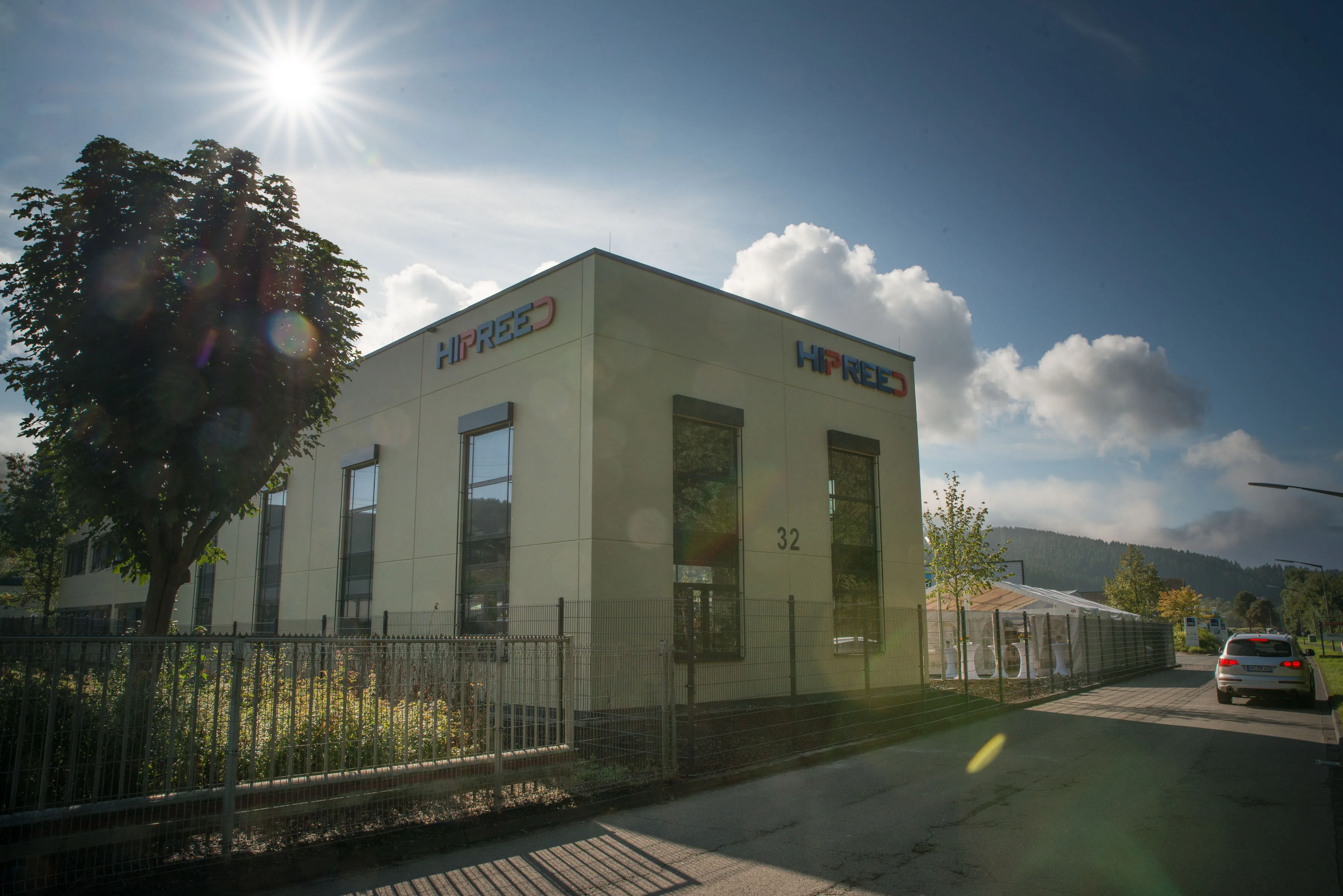

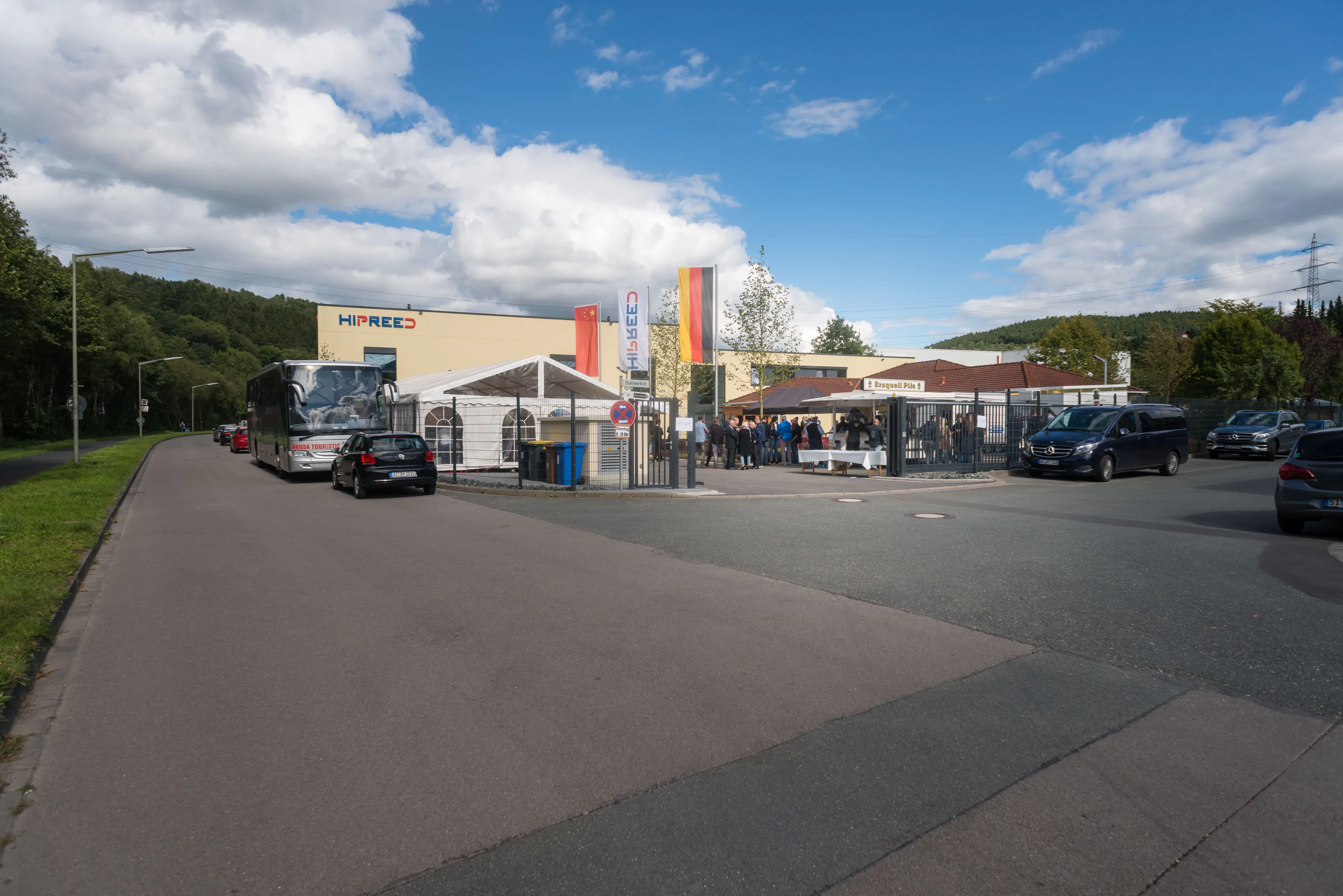

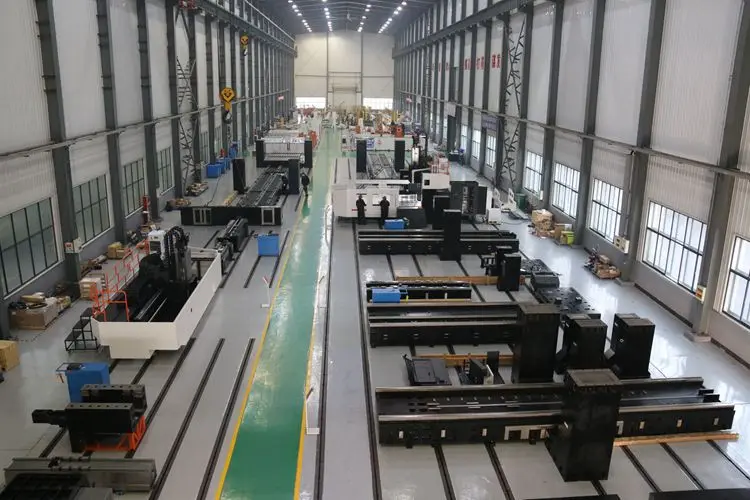

DEED Precision Machine Tool Co., Ltd. is committed to development and manufacture of high quality CNC machine tool, main products including high precision vertical machining center, large gantry machining center and 5-axis machining center. We started comprehensive strategic cooperation with ROTTLER from Germany in 2014 and established our subsidiary corporation HIPREED Technology GmbH in Germany, aiming to be more professional in the international machinery industry. Our company currently has 15000 m² dust-free constant temperature assembling plant and over 100 mechanical and electrical engineers local and overseas. Everything we do is to provide reliable quality guarantee for our clients.

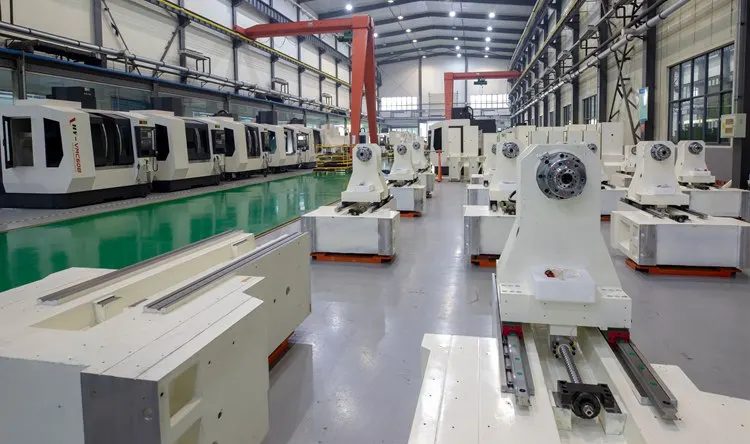

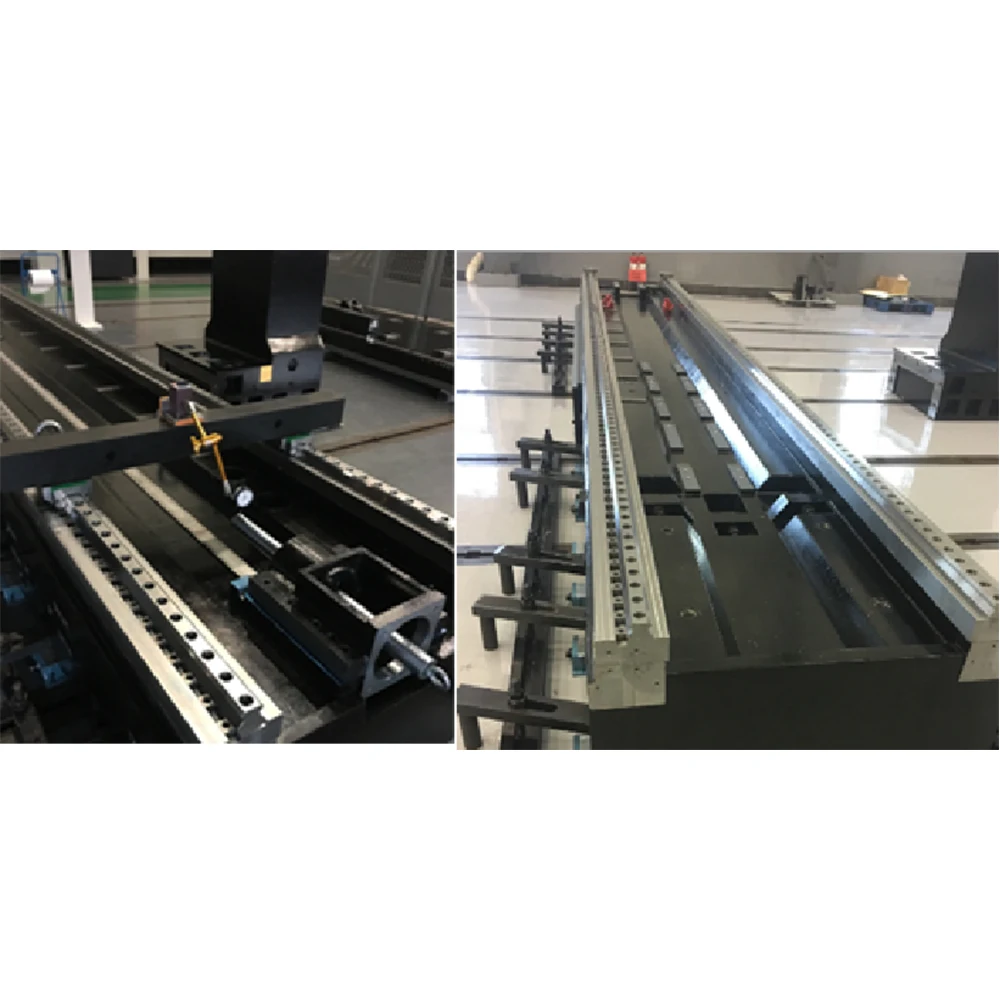

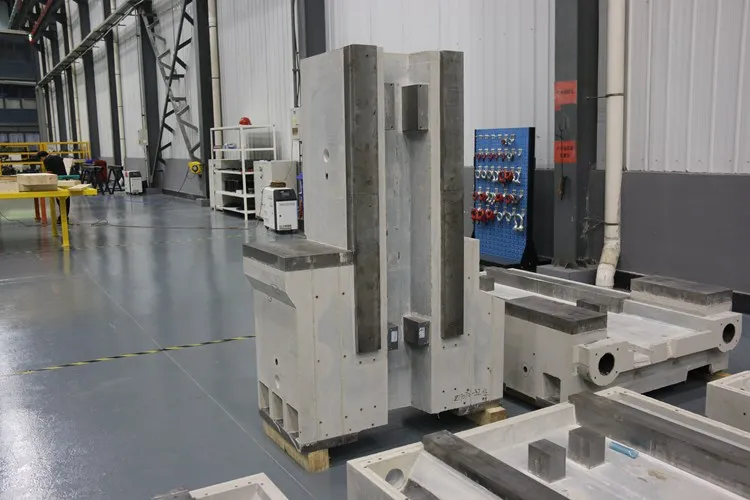

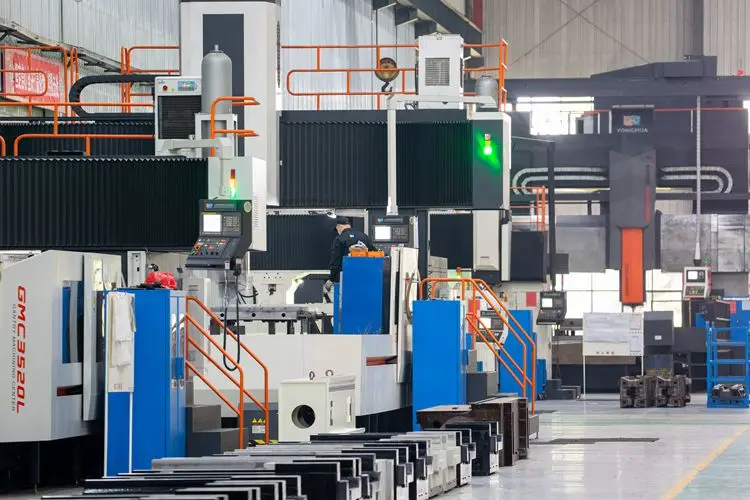

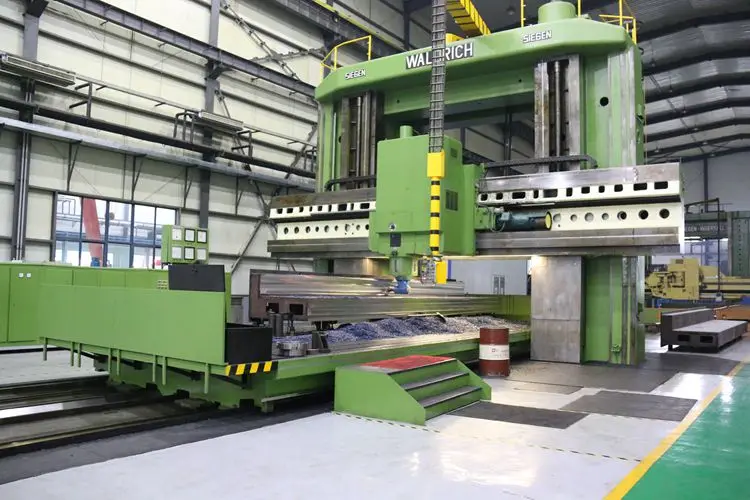

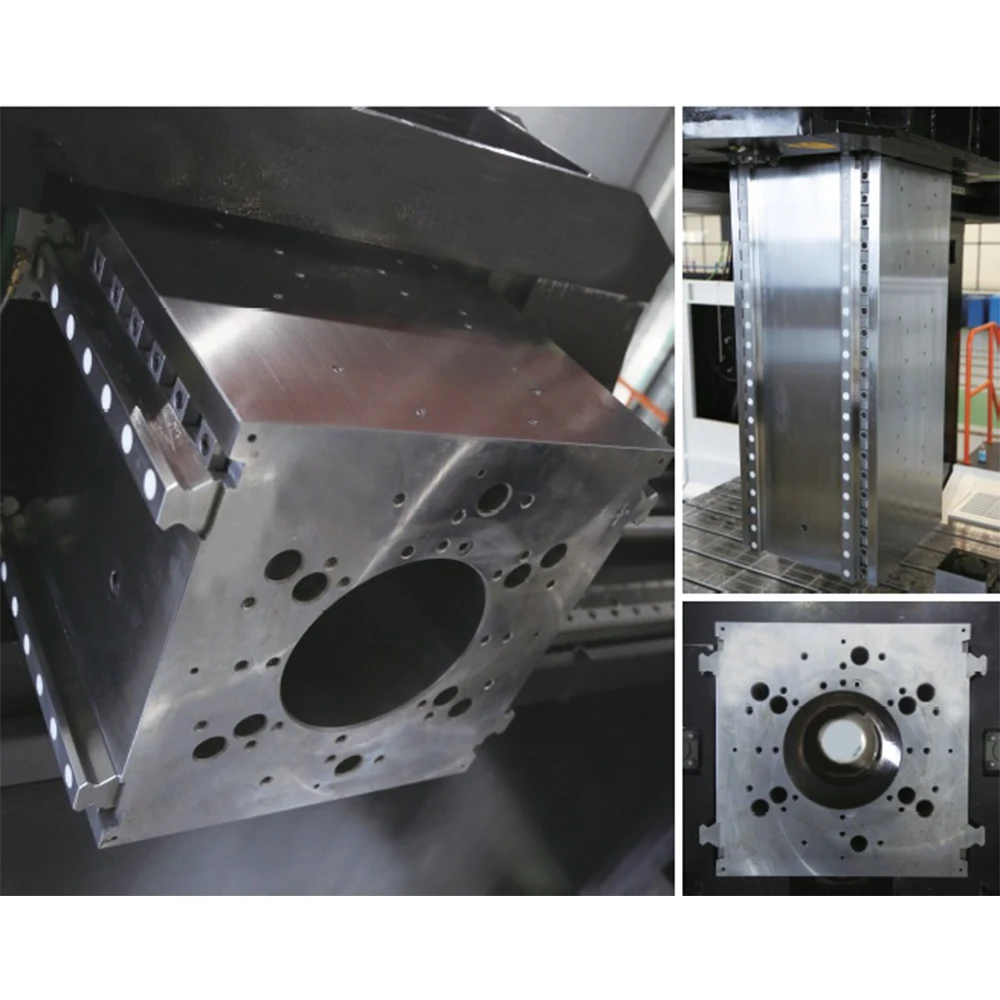

Manufacturing Technique

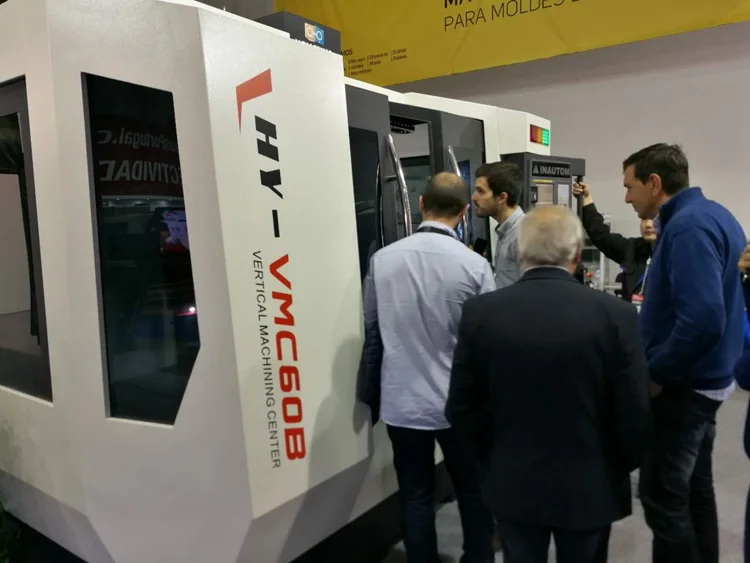

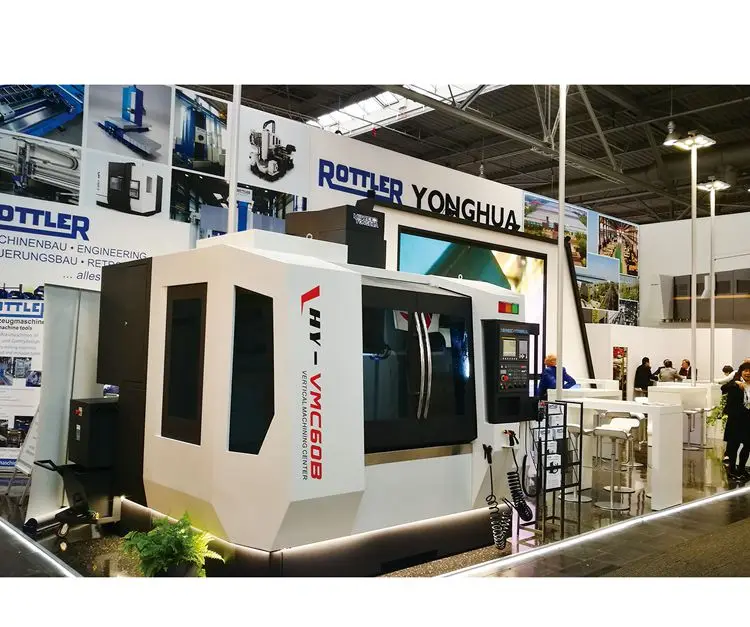

Exhibition
Customer Photos

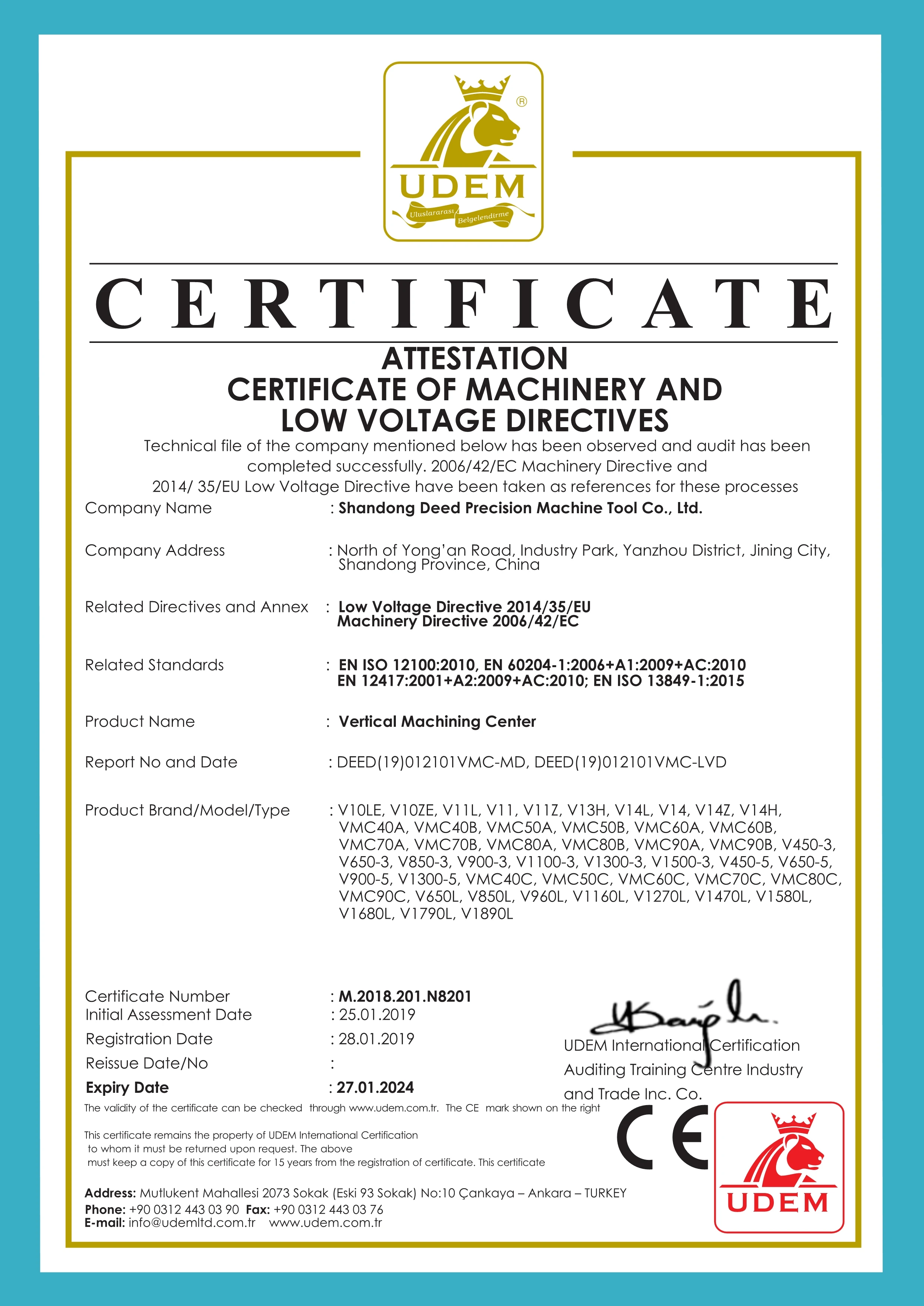

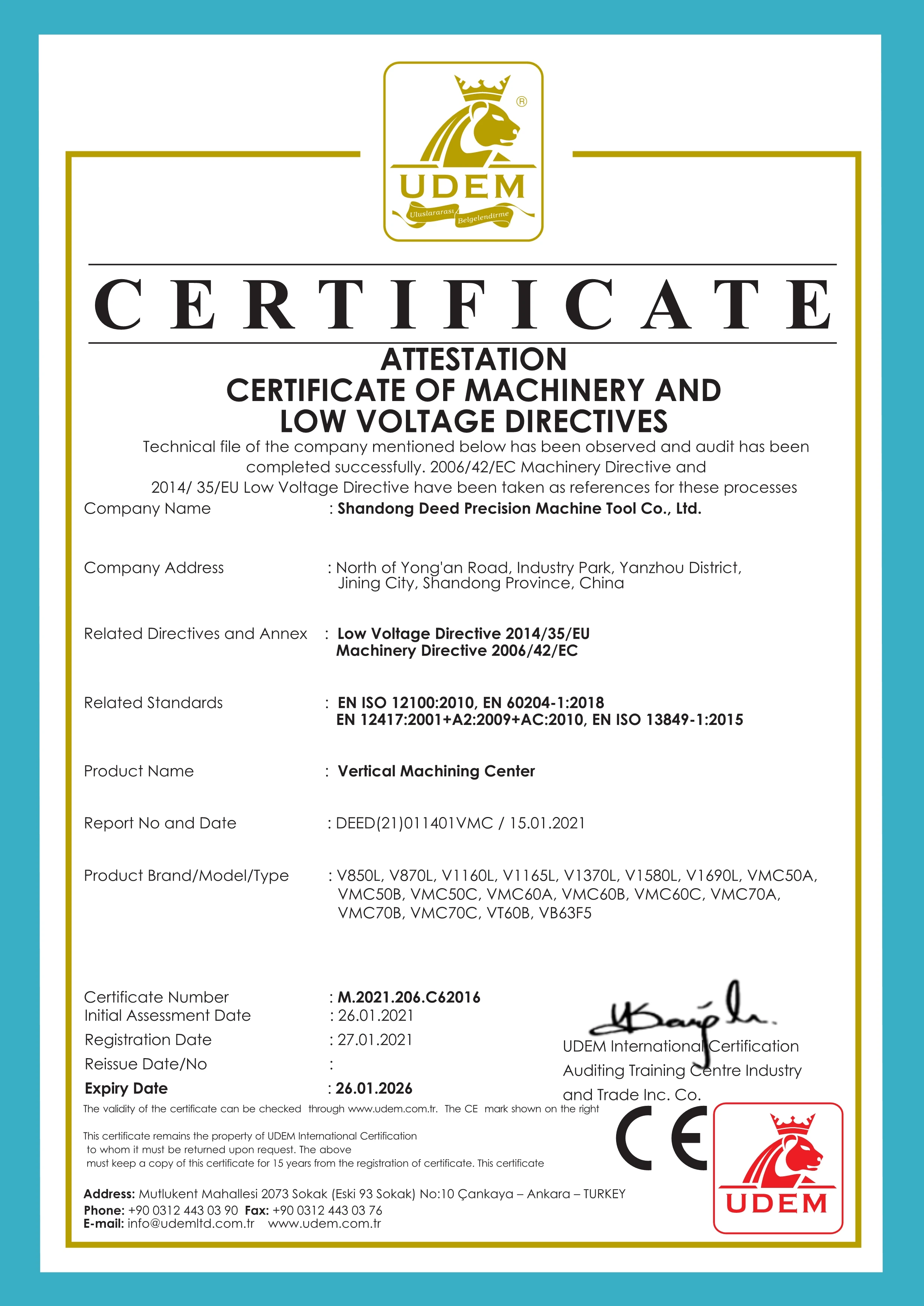

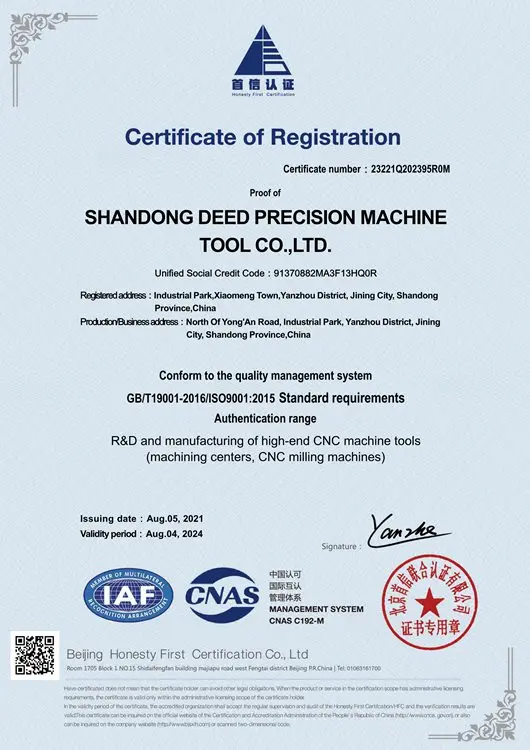

Certifications

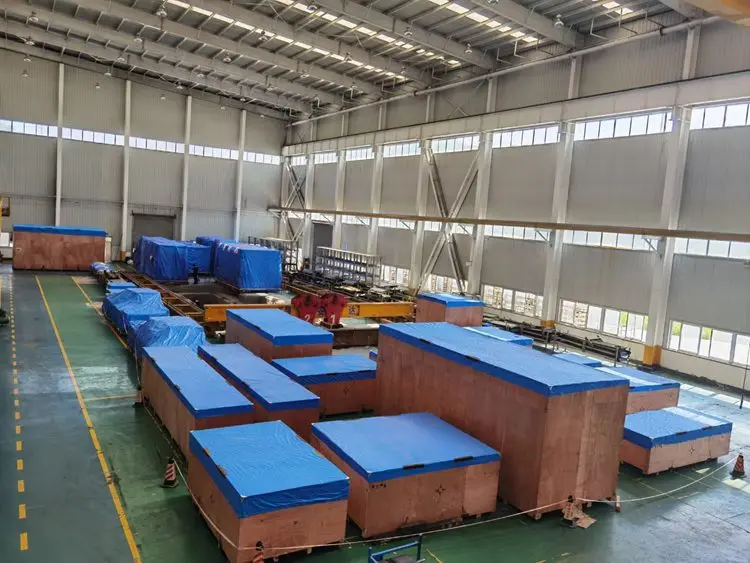

Product packaging
