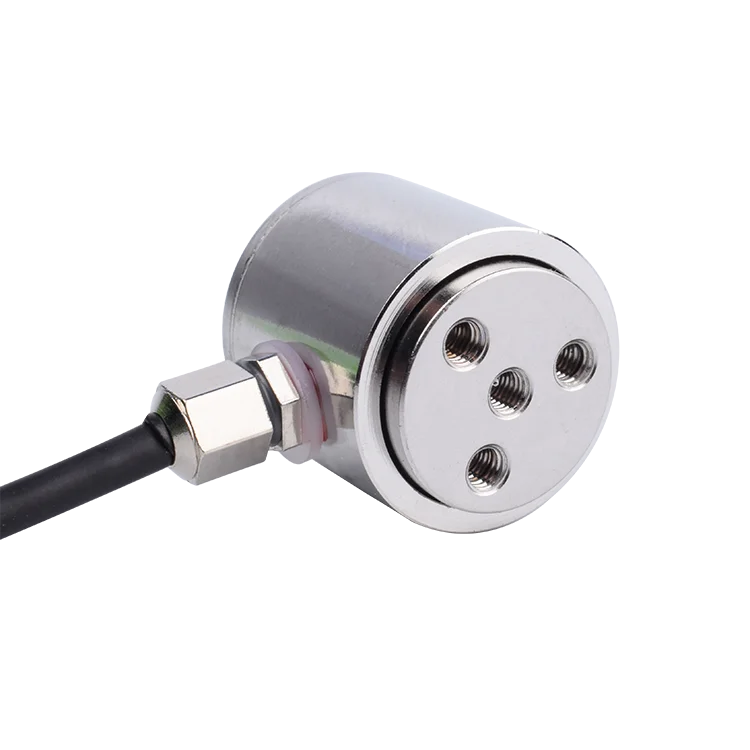

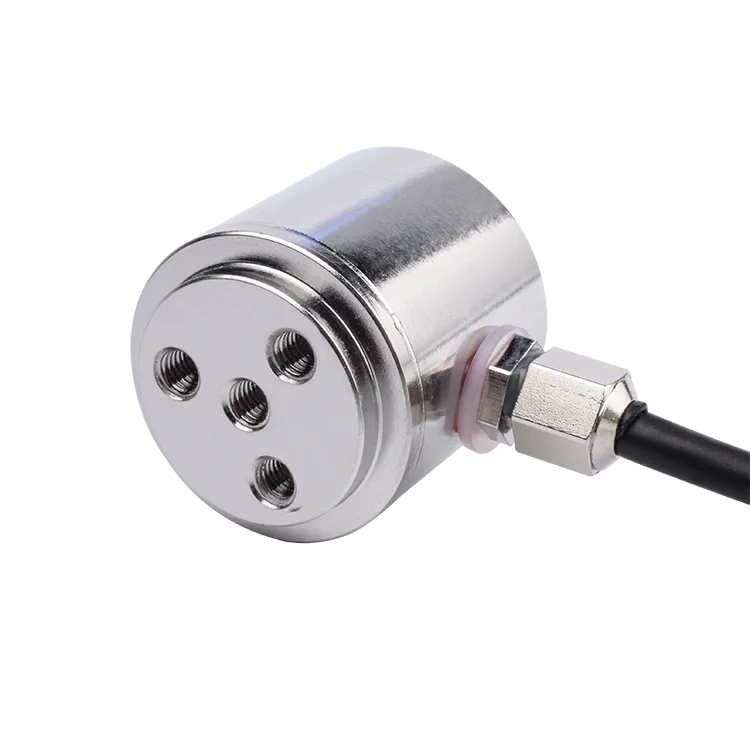

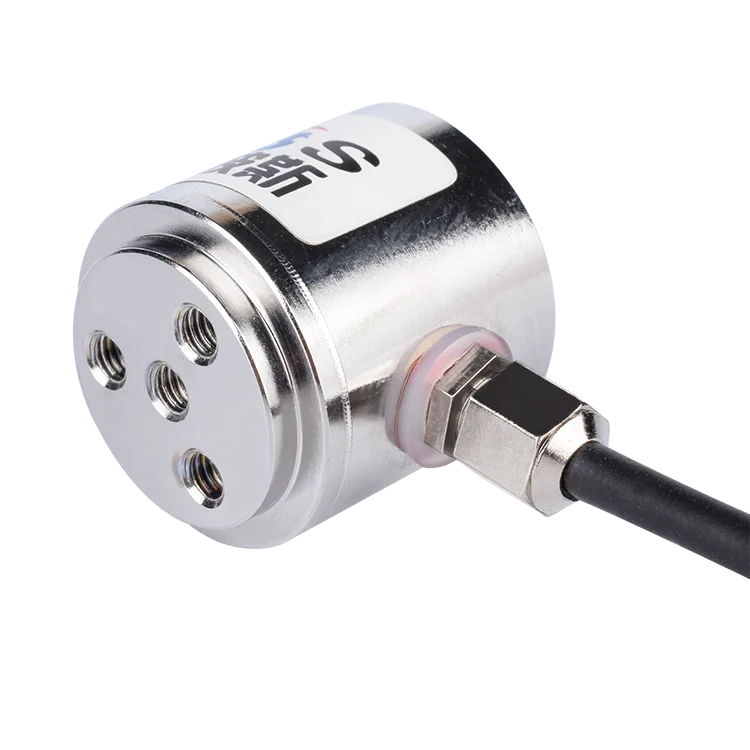

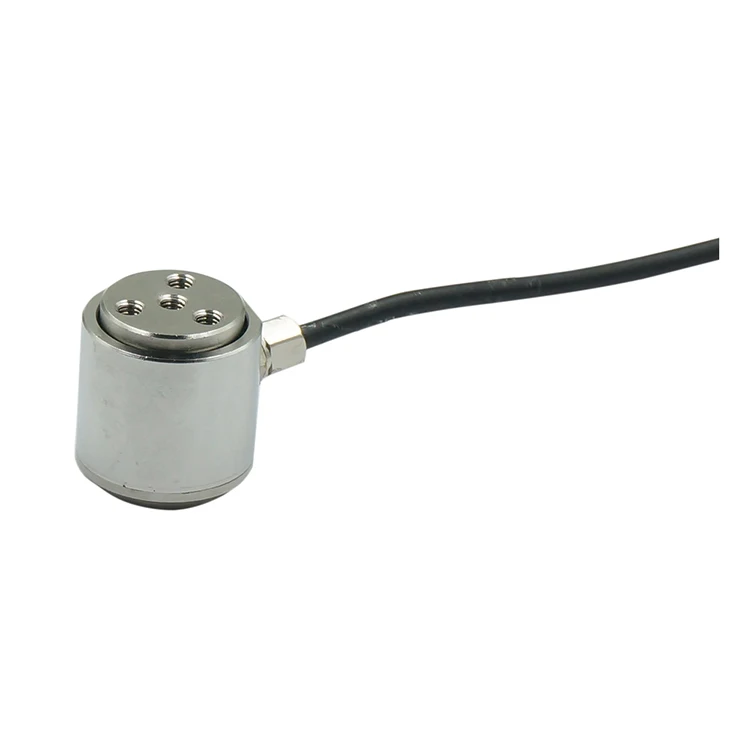

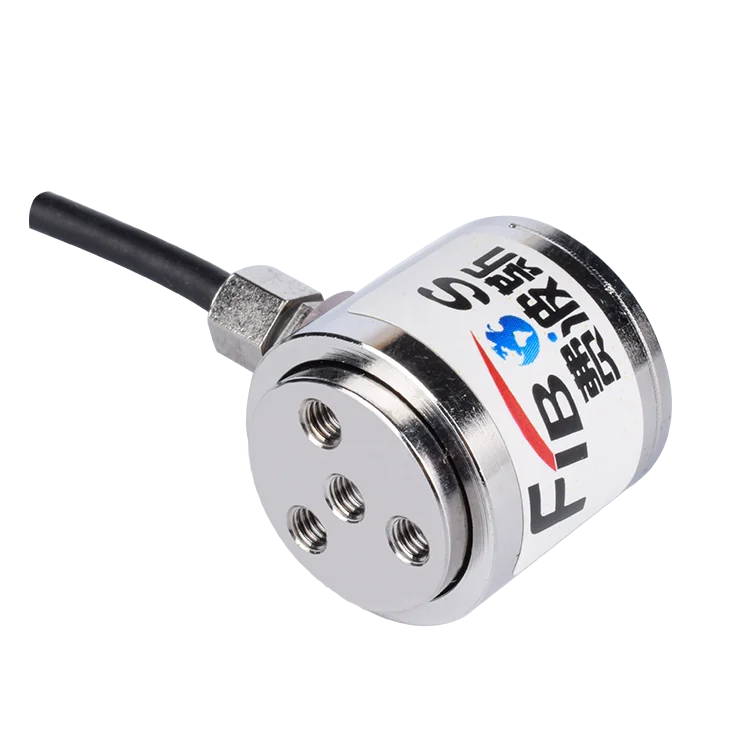

Best Selling mini button tension load cell static 20 2000N force transducer for button feel detection
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1600351909548):
Product Overview
Description
Product Description
Best Selling mini button tension load cell static 20-2000N force transducer for button feel detection
Feature of FIBOS COLUMN LOAD CELL FA404
1. High measurement accuracy, compact structure, small size, light weight, good sealing, strong and durable, good long-term stability.
1. High measurement accuracy, compact structure, small size, light weight, good sealing, strong and durable, good long-term stability.
2. The column-type tension sensor has good rigidity, high natural frequency and good dynamic response, which is conducive to dynamic measurement.
3. It is not sensitive to vibration, and has strong anti-eccentric load capacity. Generally, 3g movement is allowed under the clarity of use; the anti-overload capacity and anti-shock capacity are better than any other sensors of other structures.
4. The measurement axis of the column sensor is coincident with the load direction, low drift, safe and reliable, and there is no influence and constraint of the fixed boundary conditions on it. Therefore, the column sensor has much smaller non-repetition and hysteresis errors than any other sensor structure.
5. After the welding and sealing process of single-layer diaphragm or double-layer diaphragm is adopted, good lateral and torsional resistance can be obtained. Column tension sensor can be used for the measurement of tension and pressure values, suitable for various batching scales, hook scales and various special scales, and is widely used in batching, machinery manufacturing, tensile testing machines and other measurement and control systems.
3. It is not sensitive to vibration, and has strong anti-eccentric load capacity. Generally, 3g movement is allowed under the clarity of use; the anti-overload capacity and anti-shock capacity are better than any other sensors of other structures.
4. The measurement axis of the column sensor is coincident with the load direction, low drift, safe and reliable, and there is no influence and constraint of the fixed boundary conditions on it. Therefore, the column sensor has much smaller non-repetition and hysteresis errors than any other sensor structure.
5. After the welding and sealing process of single-layer diaphragm or double-layer diaphragm is adopted, good lateral and torsional resistance can be obtained. Column tension sensor can be used for the measurement of tension and pressure values, suitable for various batching scales, hook scales and various special scales, and is widely used in batching, machinery manufacturing, tensile testing machines and other measurement and control systems.
Specification
item | value |
Series | FA40 |
Mounting Type | Flange mounted |
Description | Tensile compressive force sensor |
Model Number | FA404 |
Type | Load Cell |
Place of Origin | China |
Jiangsu | |
Brand Name | Fibos |
Usage | Force measurement |
Theory | Resistance strain-gage |
Output | Analog or digital signal |
Description | Tensile-compressive force sensor FA404 |
Capacity | 20 50 100 200 300 500 1000 2000N |
Sensitivity | 2.0±1%mV/V |
Creep(30min) | ≤0.05%F.S. |
Zero Balance | ±2%F.S. |
Non-linearity | ≤0.05%F.S. |
Hysteresis | ≤0.05%F.S. |
Repeatability | ≤0.05%F.S. |
Safe Overload | 150%F.S |
Cable size | 3*3000mm |
Material | Stainless Stell |
