Dental Equipment Denshine Dental Slow Low Speed Handpiece Kit Push Button Contra Angle Air Motor 4H E type
- Category: >>>
- Supplier: Beijing Jiaxinshenghe Technology Co. Ltd.
Share on (1600352015677):
Product Overview
Description
Products Description
Dental Equipment Denshine Dental Slow Low Speed Handpiece Kit Push Button Contra Angle Air Motor 4H E-type

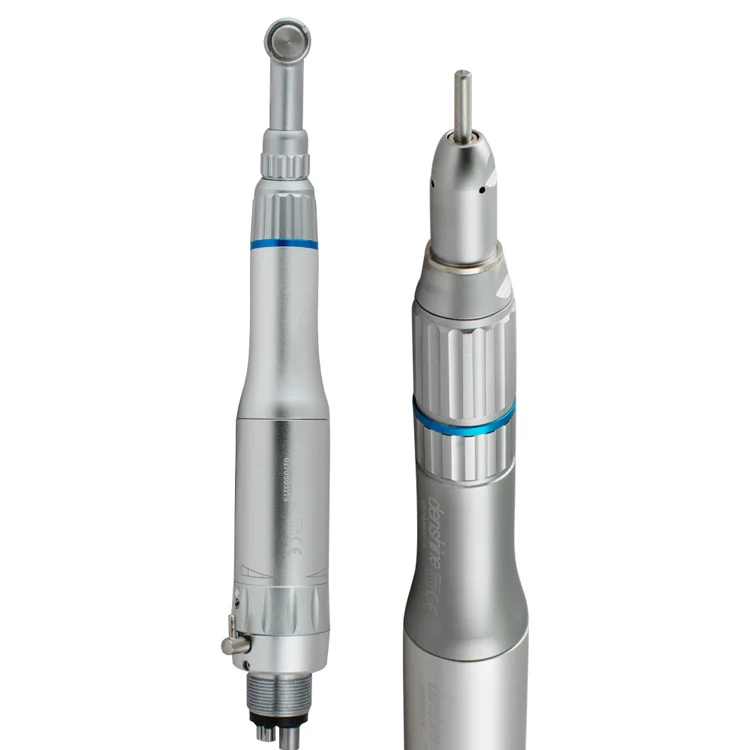

This complete kit includes low speed handpiece contra angle model, low speed handpiece straight model and low speed dental air motor.
Features
- E-type connector
- Push Button
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave
- Push Button
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

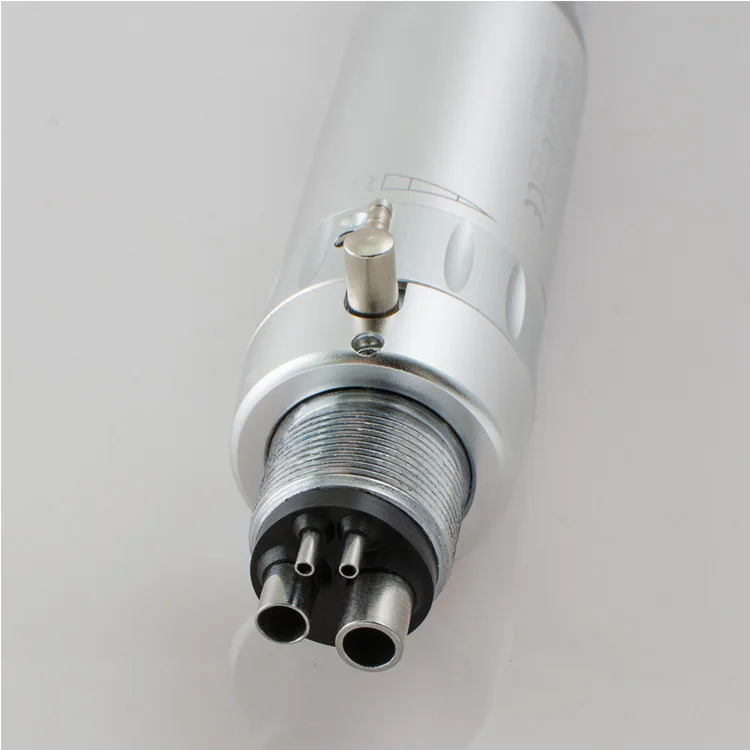

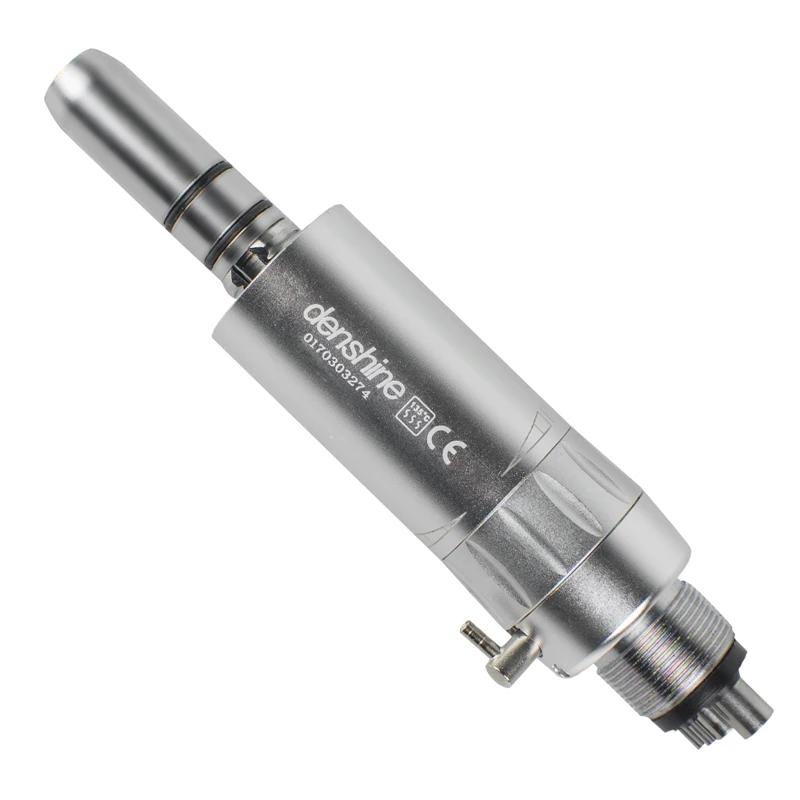

Air Mortor
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 4 holes
- Max speed 20,000 min-1
- 1:1 Direct Drive
- 4 holes
- Max speed 20,000 min-1

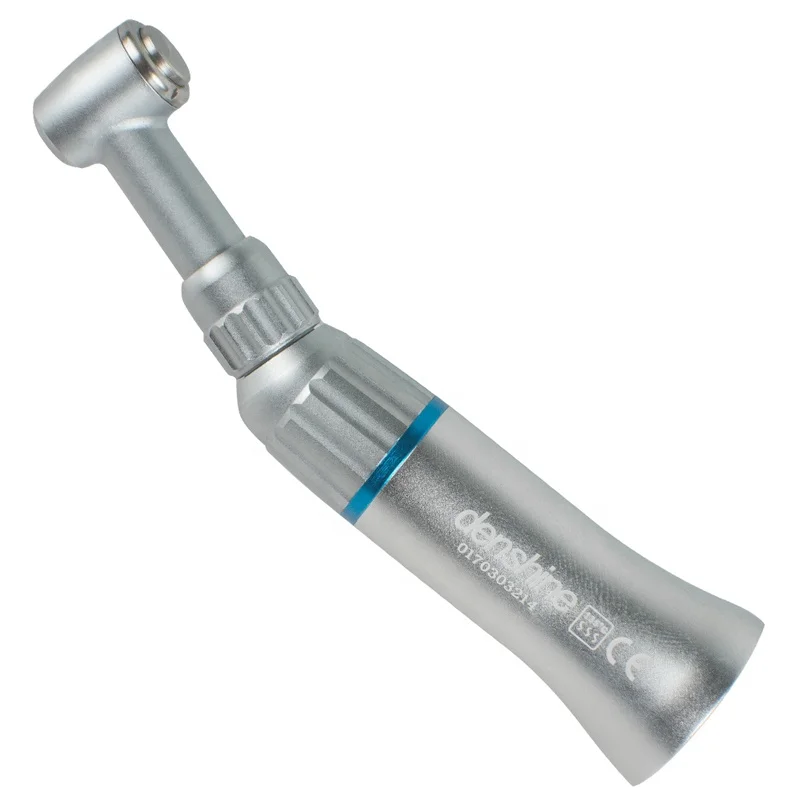

Contra Angle Handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

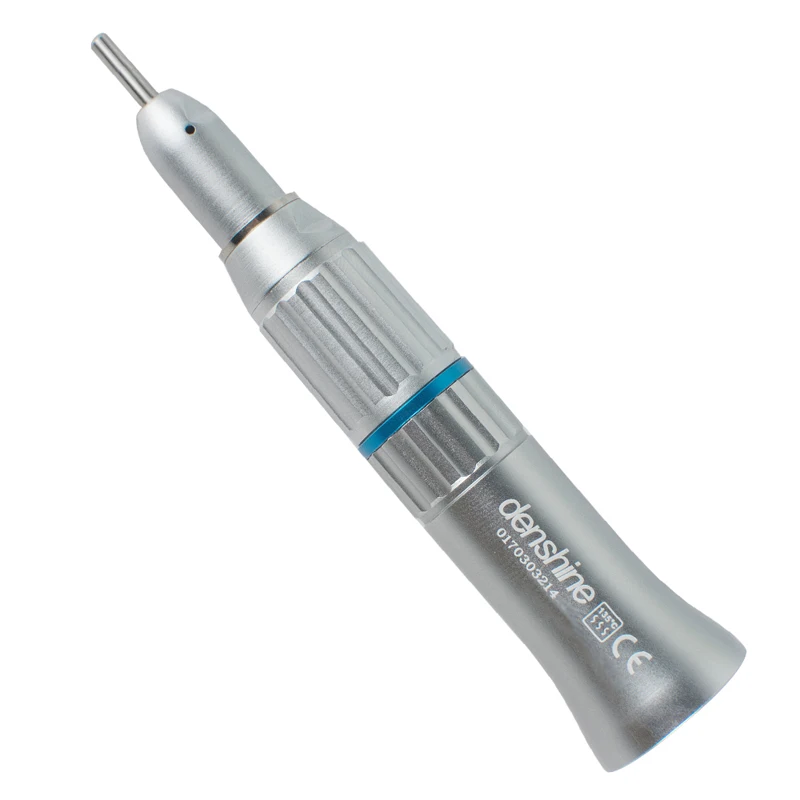

Straight Nose cone
- Working pressure: 0.3MPa (4-hole);
- 0.25MPa (4-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.
- 0.25MPa (4-hole) (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.
Specification
Air-in Pressure(kg/c㎡) | Motor Rotation(rpm) | Air Wastage:(N1/min) |
2.5 | 22,000 | 42 |
3 | 25,000 | 51 |
4 | 2700 | 72 |
Packing Include
- E-type air motor 4-Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- CAP Spanner: 1 each
- English manual: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- CAP Spanner: 1 each
- English manual: 1 each
