TY1X40DQ Hydraulic Overhead Conductor Stringing Tensioner
- Category: >>>
- Supplier: Yixing Boyu Electric Power Machinery Co. Ltd.
Share on (1600352015948):
Product Overview
Description
TY1X40DQ Hydraulic Overhead Conductor Stringing Tensioner
Product Description
TY1x40DQ Hydraulic Tensioner
Operated with 50kN tension machine, this machine is mainly applied in hilly and flat lands for tension stringing of 500kV conductors, and because of the great convenience brought by the reverse traction function, it is the better choice for the construction in small projects of transmission lines such as the modification works of rural and urban networks.
Performance
Max intermittent pull: 45kN
Max continuous pull: 40kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Corresponding Tension: 20kN
Max Reverse Pulling Force: 40kN
Max Reverse pulling Speed: 3km/h
Engine
Diesel: 56kw(73hp)
Cooling system: air cooled
Electrical system: 24V
Characteristics
Bull-wheel diameter: 1300/1500mm
Max conductor diameter: 40mm
Max Optical fiber cable diameter: 21mm
Groove width: 55mm
Groove number: 5
Total weight: 2800kg
Overall dimension (length*width*height): 4200×2000×2500mm
Structural Style: Single bridge trailer
Hydraulic power output: Connected hydraulic lead tail car
Main configuration
Engine: Deutz air cooled
Quantitative pump: HUADE

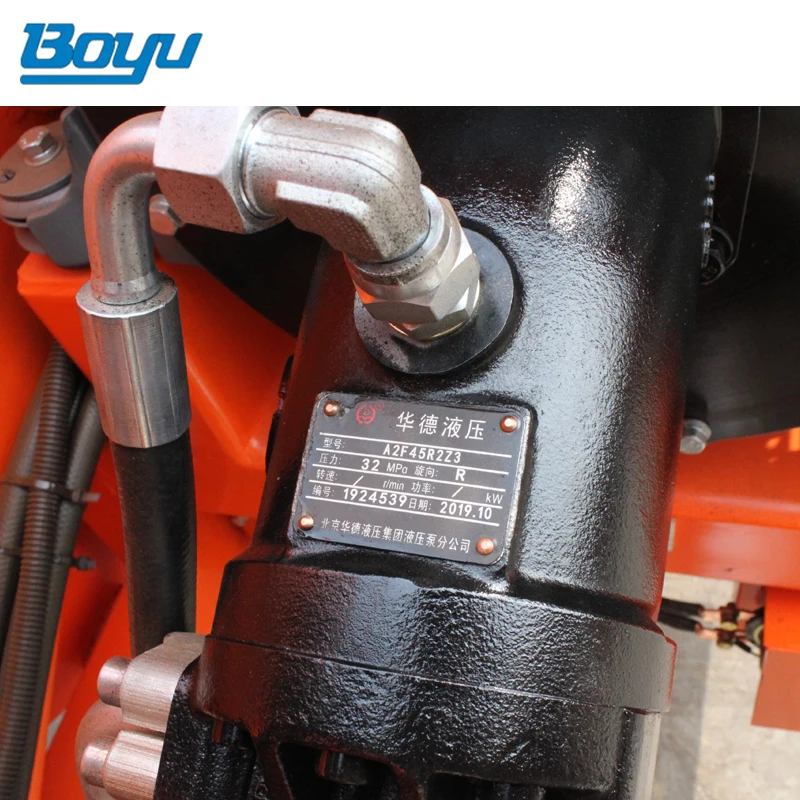

Main motor:German Rexroth/French HYDROLEDUC
Speed reducer: German Rexroth / Italy BONFIGLIOLI

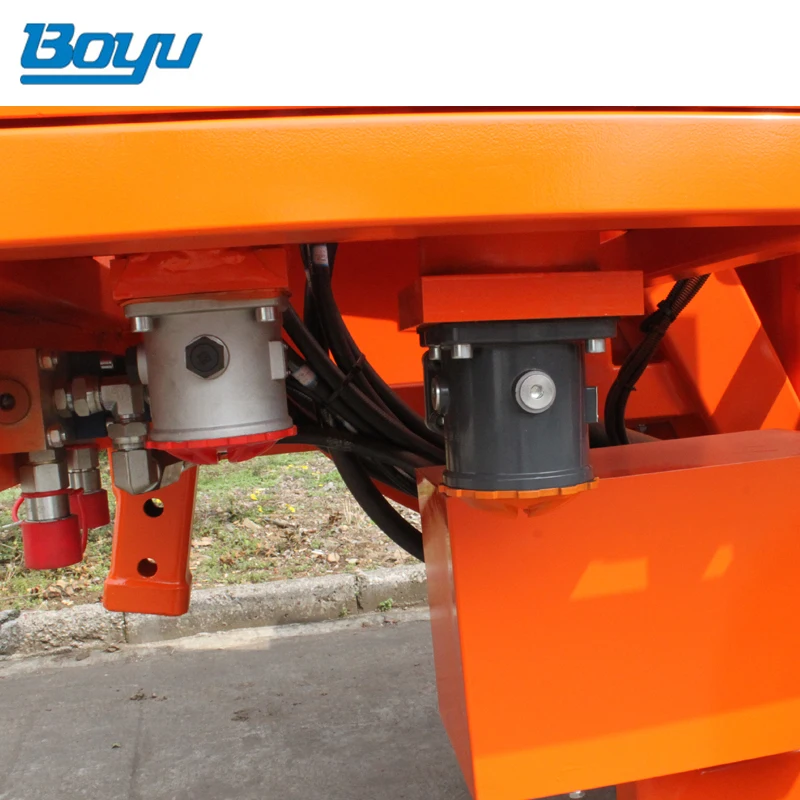

Main hydraulic valve parts: German Rexroth/American SUN/Italy ATOS
Configuration

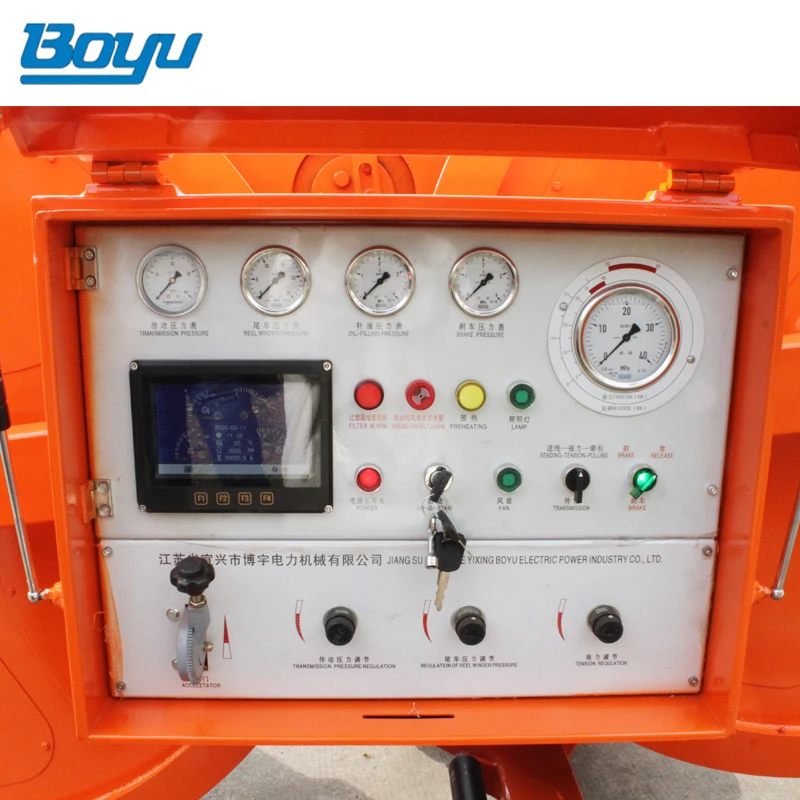

Hydraulic dynamometers
Hydraulic oil cooling system
Mechanical meter counters
Grounding connection point

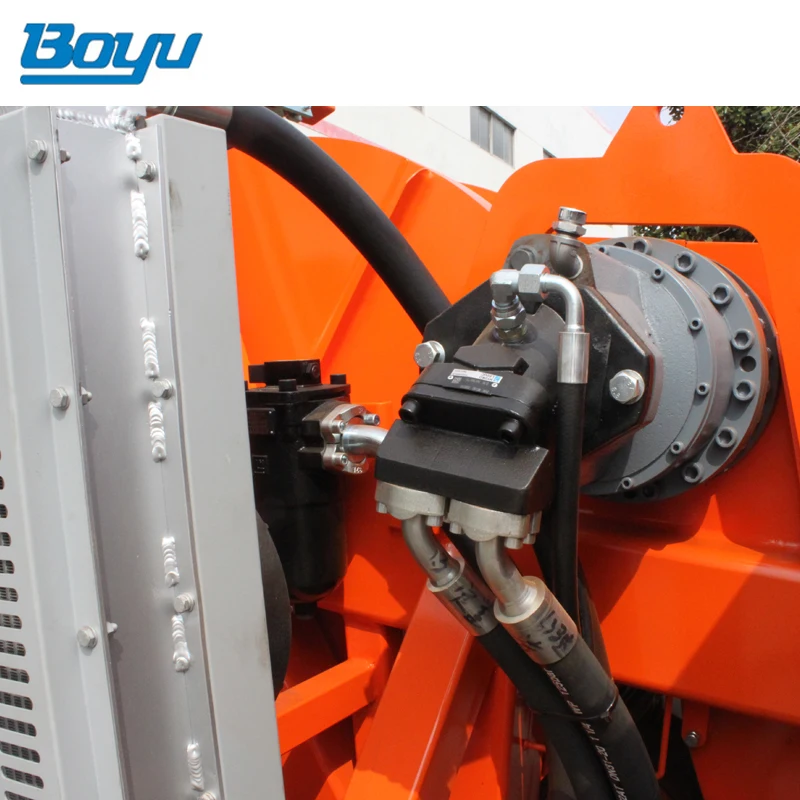

Hydraulic power pack to control drum stands with hydraulic motor

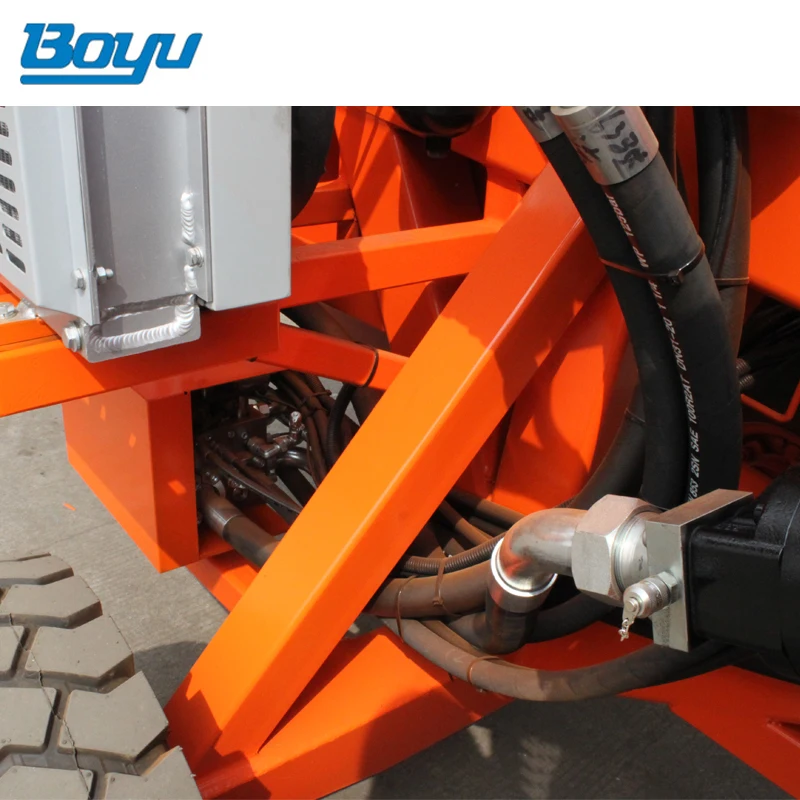

Hydraulic Transmission
- The machine can realize step less speed
- The machine is provided with tension presetting system
Additional Devices
Lighting system for the trailer
Air brake system for the trailer(extra charge)
Hydraulic conductor clamps for drum change operations (extra charge)
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Digital speed and meter counter
Product Show
Other Models
| Model | Max intermittent tension | Max continuous tension | Speed at max tension | Max speed | Tension at max speed | Max reverse pulling force | Max reverse pulling speed | Diesel | Cooling system | Electrical system |
| kN | kN | km/h | km/h | kN | kN | km/h | kw(hp) | V | ||
| TY1X7.5 | 7.5 | 2.4 | ||||||||
| TY1X20 | 20 | 5 | ||||||||
| TY1X20II | 20 | 4 | ||||||||
| TY1X20III | 20 | 2.5 | 5 | 10 | 15 | 10kw (3600rpm) | Air | |||
| TY1X30 | 30 | 2.5 | 5 | 15 | 20 | 12(16) | 12 | |||
| TY1X40 | 45 | 40 | 2.5 | 5 | 20 | 35 | 77(103) | Water | 24 | |
| TY1x40DQ | 45 | 40 | 2.5 | 5 | 20 | 40 | 3 | 56(73) | Air | 24 |
| TY1x40DV | 45 | 40 | 2.5 | 5 | 20 | 40 | 3 | 56(73) | Air | 24 |
| TY1X50 | 50 | 40 | 2.5 | 5 | 25 | 45 | 2.4 | 77(103) | Water | 24 |
| TY140IV | 1x140 | 1x120 | 2.5 | 5 | 35 | 1x120 | 1.2 | 77(103) | Water | 24 |
| TY2X35 | 2x40/ 1x80 | 2x35/ 1x70 | 2.5 | 5 | 2x20/ 1x40 | 2x30/ 1x60 | 5 | 77(103) | Water | 24 |
| TY2X40 | 2x45/ 1x90 | 2x40/ 1x80 | 2.5 | 5 | 2x20/ 1x40 | 2x35/ 1x70 | 5 | 77(103) | Water | 24 |
| TY2X50 | 2x55/ 1x110 | 2x50/ 1x100 | 2.5 | 5 | 2x25/ 1x50 | 2x45/ 1x90 | 5 | 77(103) | Water | 24 |
| TY2X70 | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| TY2x70IV | 2x70/ 1x140 | 2x65/ 1x130 | 2.5 | 5 | 2x25/ 1x50 | 2x60/ 1x120 | 5 | 77(103) | Water | 24 |
| TY2X90 | 2x100/ 1x200 | 2x90/ 1x180 | 2.5 | 5 | 2x40/ 1x80 | 2x80/ 1x160 | 2 | 130kw (2500r/min) | Water | 24 |
| TY4x50 | 4x50/ 2x200 | 4x40/ 2x80 | 2.5 | 5 | 4x20/ 2x40 | 4x40/ 2x80 | 1.25 | 77(103) | Water | 24 |
| Model | Bull-wheel diameter | Max conductor diameter | Max optical fiber cable diameter | Groove width | Groove number | Total weight | Overall damension |
| mm | mm | mm | mm | kg | mm | ||
| TY1X7.5 | 1100 | 24 | 21 | 220 | 1 | 850 | 2300*1250*1620 |
| TY1X20 | 1300 | 40 | 21 | 55 | 5 | 1920 | 4080*1930*2300 |
| TY1X20II | 800 | 23 | 45 | 5 | 950 | 2400*1500*1650 | |
| TY1X20III | 800 | 22.5 | 55 | 5 | 1150 | 2500*1500*1700 | |
| TY1X30 | 1300 | 40 | 21 | 60 | 5 | 2064 | 3700*1950*2150 |
| TY1X40 | 1300 | 40 | 21 | 55 | 5 | 3430 | 4000*2000*2300 |
| TY1x40DQ | 1300/1500 | 40 | 21 | 55 | 5 | 2800 | 4200*2000*2500 |
| TY1x40DV | 1300/1500 | 40 | 21 | 55 | 5 | 2800 | 4200*2000*2500 |
| TY1X50 | 1300/1500 | 55 | 21 | 68 | 6 | 2400 | 4000*1900*2300 |
| TY140IV | 1500 | 40 | 16 | 10000 | 5500*2280*2700 | ||
| TY2X35 | 1300 | 40 | 2x5 | 4500 | 4300*2250*2700 | ||
| TY2X40 | 1300/1500 | 40 | 2x5 | 6230 | 4300*2250*2700 | ||
| TY2X50 | 1300/1500 | 40 | 2x5 | 6000 | 4700*2300*2700 | ||
| TY2X70 | 1700 | 40 | 2x6 | 7500 | 4700*2300*2700 | ||
| TY2x70IV | 1500 | 40 | 2x8 | 10000 | 5500*2280*2700 | ||
| TY2X90 | 1900 | 50 | 2x6 | 7500 | 5400*2300*2700 | ||
| TY4x50 | 1500 | 40 | 4x5 | 13000 | 5900*2300*2700 |
