HW 5V1A/5V2A wireless power supply module wireless charging transmitter receiving circuit board

Product Overview

Description

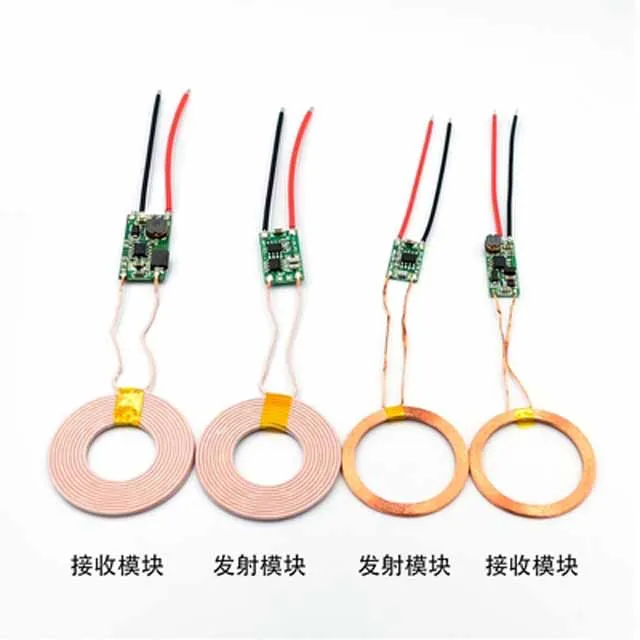

5V1A/5V2A wireless power supply module wireless charging transmitter receiving circuit board





5V2A wireless charging module

---- Instructions for use

This product is designed for wireless charging and power supply development of various series of small electronic products. It has the characteristics of small size, extremely simple use, high efficiency and low price. It is mainly suitable for mobile electronic products such as mobile phones and games. Machine, fish tank, MP3, MP4, adult products, digital camera, electric razor, learning machine, medical, underwater products, etc.; due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof Increase product life and make it easier to use

Main parameters of the module:

Input voltage: 9~12V

Maximum load current: 1.3A

Receive output voltage and current: 5V/2A, 12V/700mA

Transmitting coil size: outer diameter 43mm, thickness 2.3mm

Transmitter module size: 18mm*8.5mm*15mm

Receiver module size: 10mm*25mm*3mm

Receiver coil size: outer diameter 43mm, thickness 1.2mm

Receiving the best distance: 3~6mm

5V1A wireless charging module

Special note: Please press the icon to clearly indicate that the transmitter and receiver terminals should be reversed before use. Do not directly contact the two coils between 1-20mm. The 12V battery is a battery with a nominal voltage of 12V that cannot be directly used for power supply. The normal full output can reach 12.8~13.5V. It must be added with a voltage regulator module.

---- Instructions for use

This product is designed for wireless charging and power supply development of various series of small electronic products. It has the characteristics of small size, extremely simple use, high efficiency and low price. It is mainly suitable for mobile electronic products such as mobile phones and games. Machine, fish tank, MP3, MP4, adult products, digital camera, electric razor, learning machine, medical, underwater products, etc.; due to the use of contactless charging power supply, the product can be completely sealed, waterproof and dustproof Increase product life and make it easier to use

Transmitter module size: length 17mm width 11mm height 2.5mm

Receiver module size: length 24mm width 10mm height 5.5mm

Transmitting and receiving coil size: outer diameter 38mm inner diameter 28mm thickness 1.3mm

Connection method: 1 pin is connected to the negative pole of the power supply; 2 is connected to the positive pole of the power supply; 3 and 4 are connected to the external transmitting coil

Transmitter module working voltage: 5V~12V

Transmitter module operating current: automatically increase or decrease with the receiving load current

Maximum output current of the receiving module: 1A

Transmitting distance: 1~20mm

If the small current works, increase the number of receiving coil turns to increase the transmission distance.





Usage: Connect the DC 5-12V power supply at the transmitting end, then place the two coils close to each other between 1mm and 20mm vertically. Connect the devices that need to be powered, such as LED lights, at the receiving end. The maximum value of the receiver output is 5V/1A.
