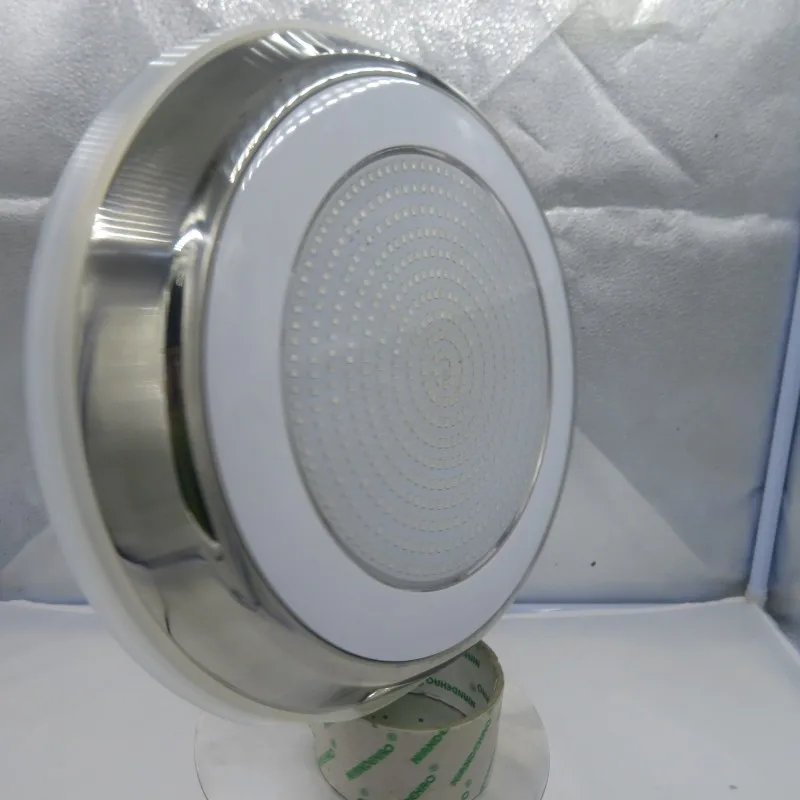

Kwode Factory Wholesale Wall Mounted Above Ground Stainless Steel Ip 68 Swimming Pool Led Light Spot

Notes need to be careful.
1. Do not connect AC110V, AC230V, or any voltage greater than 12V to our lamp, and It only works in AC12V, not DC12V.
2. Do not let the lamp CONTINUOUSLY on more than 10 minutes when the lamp is out of water, if not, it will be easier hot and get burned.
3. You don't need to worry when you see the RGB lamps don't show the same color after connecting power, but just switching main power off/on THREE TIMES, they will show the same color.
Parameters
Input Voltage: AC12V
Light Source: SMD 2835 LED
Watt versions: 18W 24W 30W 35W and 42W
Lumen: 18W=1440lm, 24W=1920lm , 30W=2400lm , 35W=2800lm , 42W=3360lm
Material: The frame is in 316 stainless steel, the led light source is in plastic material.
Dimension: D285xH40mm
Waterproof Grade: IP68(Can be put into water directly).
Power cable: with 1.5 meter
Life span: 50000 hours
Knowledge

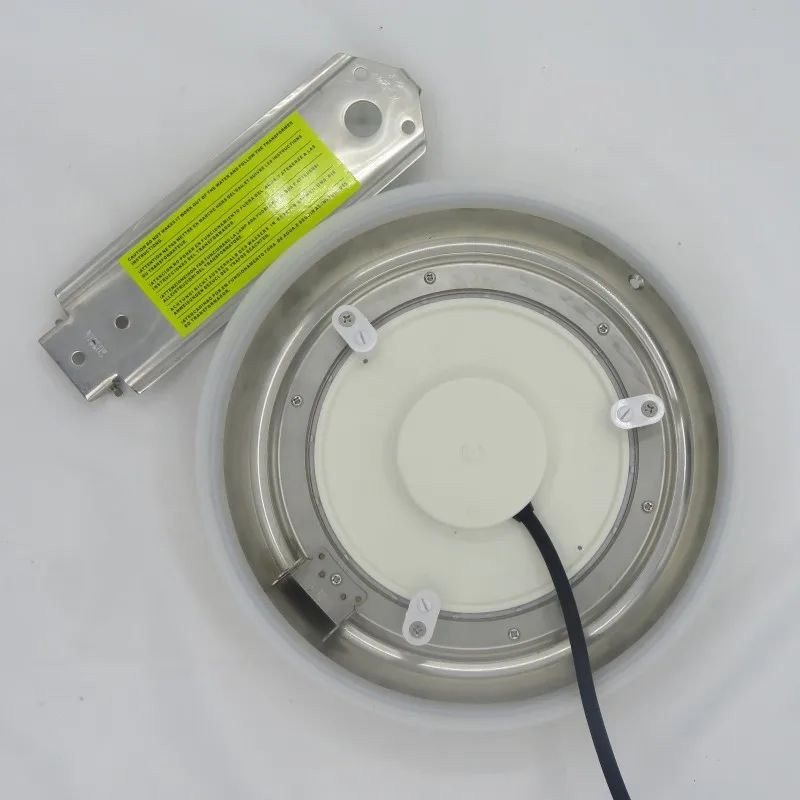

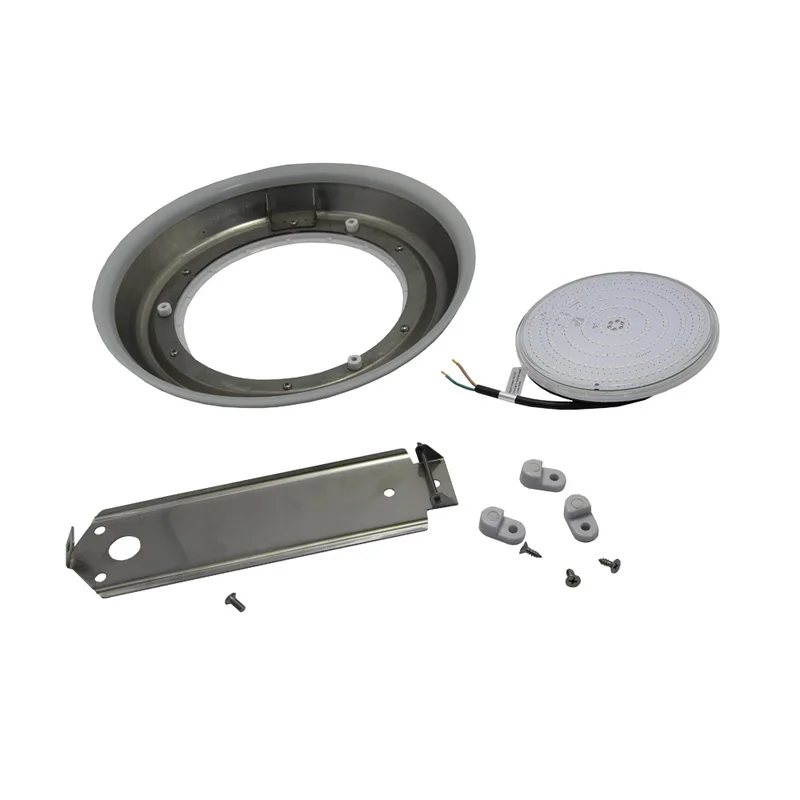

1. The light source can be removable from its frame, which means you can change the light source if it is defect, but keep the frame.
2. It is using resin filled technology, which is much better than other wall mounted pool light in waterproof grade, and it is plastic material body, won't be broken.
3. The lamp is using LED as light source, can help you save electricity bill.
4. Our Lamp only works in AC12V.
5. RGB is multicolor, including red, green, blue, cyan, purple, yellow, white, and some dynamic modes.

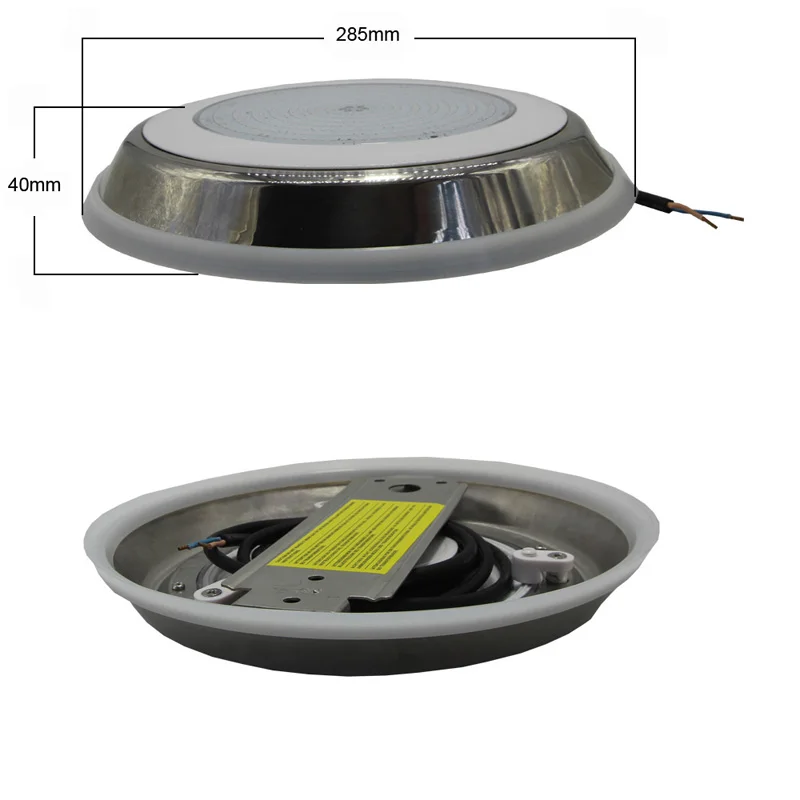

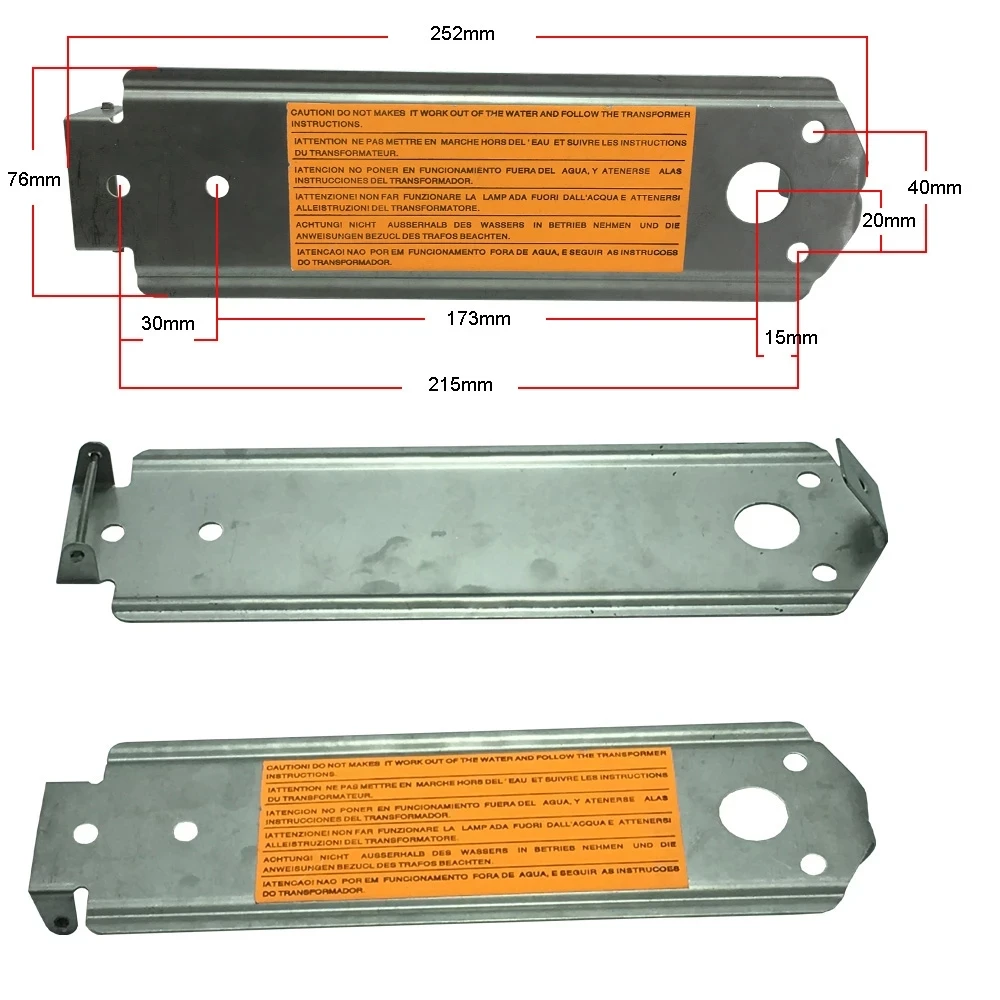

Dimension

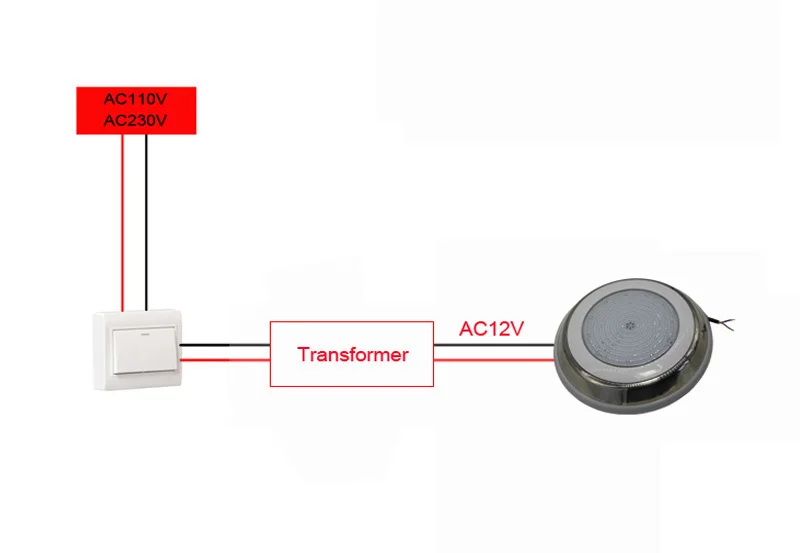

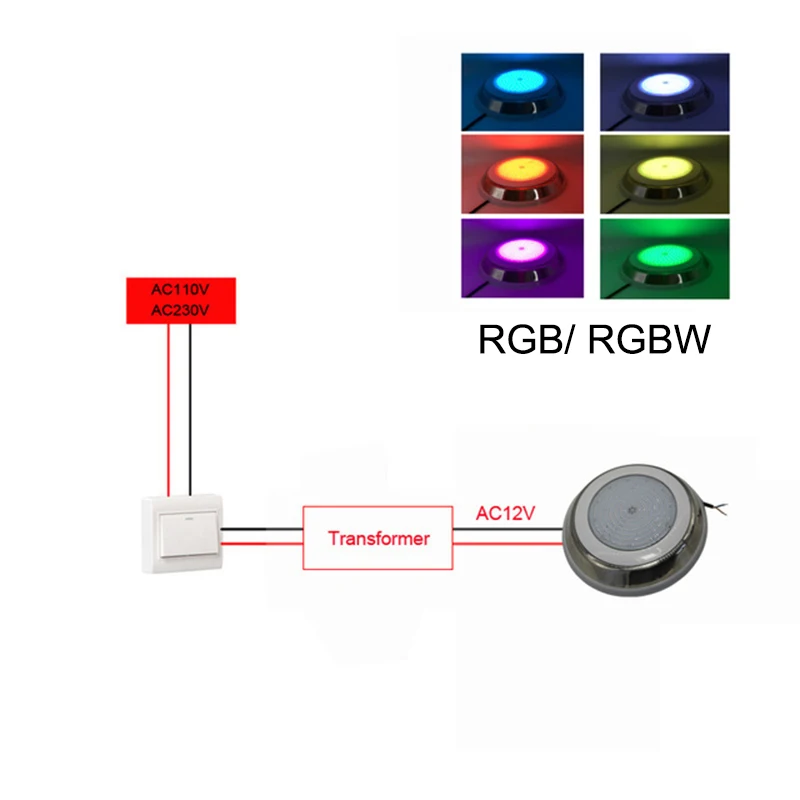

Connection
The transformer is not included in price, buyer needs to have or buy it separately, our lamp only works in AC12V, not DC12V, please be careful.

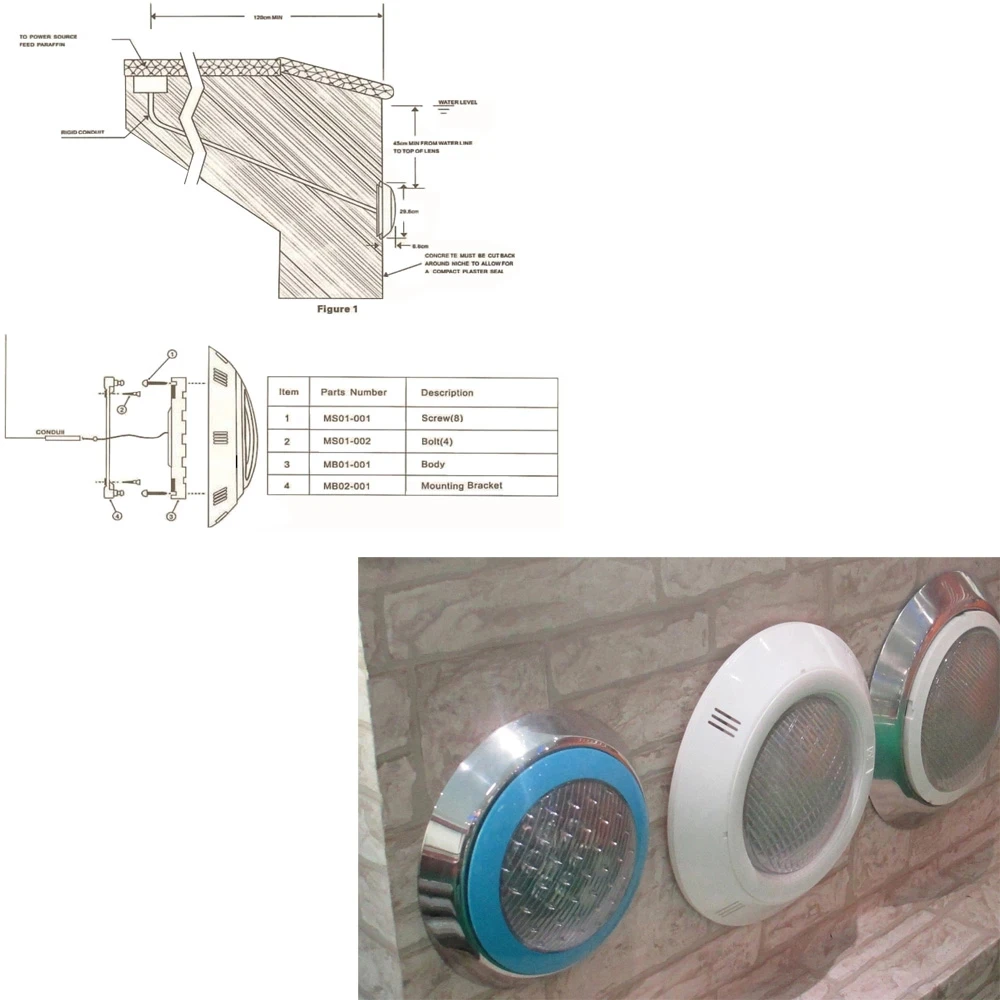

Installation diagram
It is wall mounted installation, but it can't be used for liner pool.

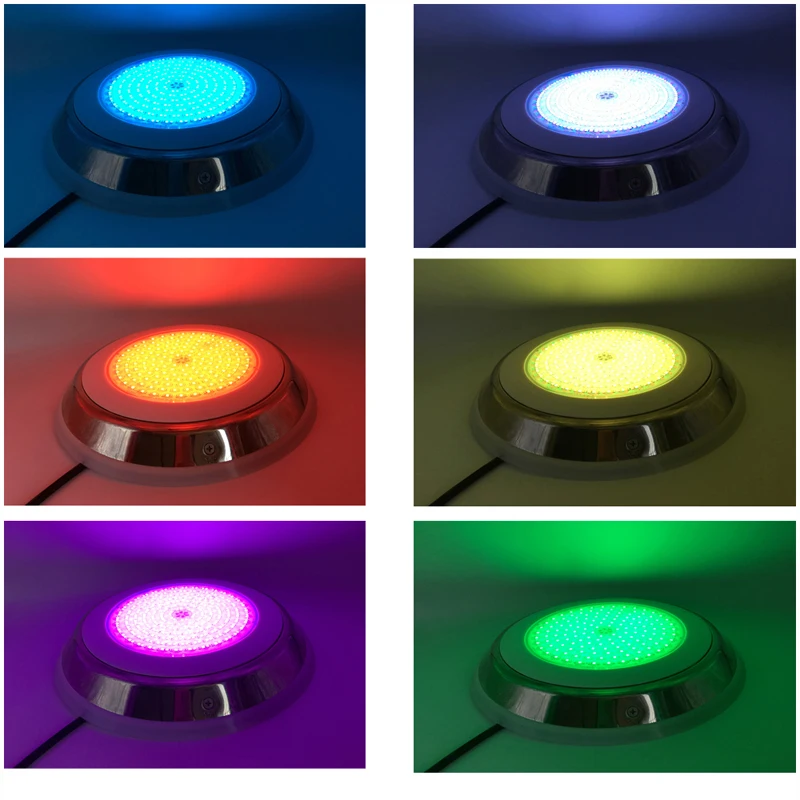

Light effect of RGB color
1. RGB is multicolor, including red, green, blue, cyan, purple, yellow, white, and some dynamic modes.

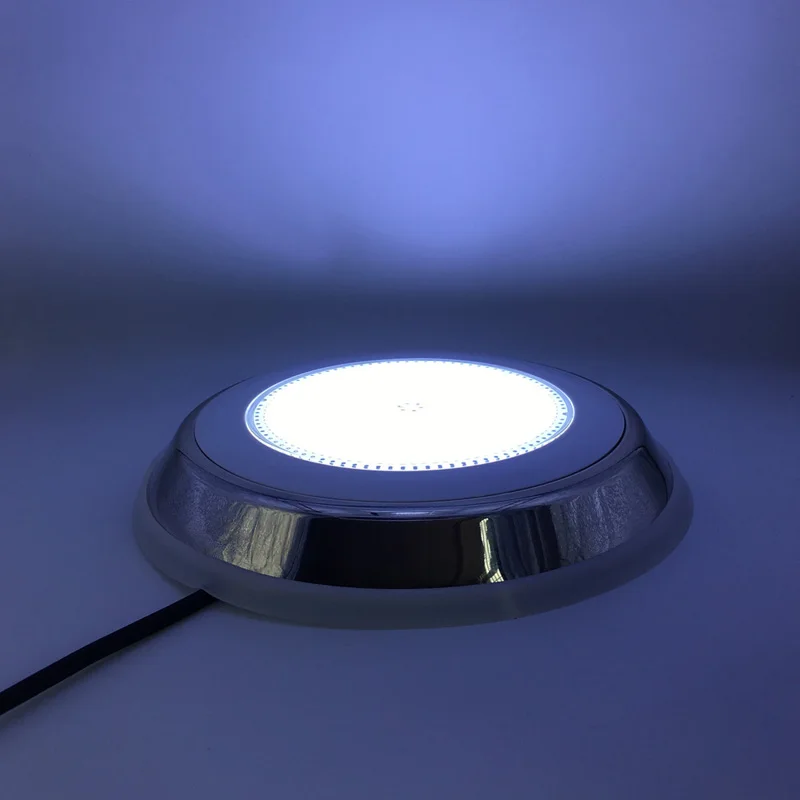

Light effect of Pure white

| Item Type: | Pool Lights |
| Color Temperature(CCT): | RGB |
| Lamp Luminous Efficiency(lm/w): | 80 |
| Color Rendering Index(Ra): | 80 |
| Light Source: | LED |
| Support Dimmer: | Yes |
| Lighting solutions service: | Lighting and circuitry design, DIALux evo layout, auto CAD layout |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 |
| Product Weight(kg): | 1.90 |
| Input Voltage(V): | AC / DC 12V |
| Lamp Luminous Flux(lm): | 1440-3360 |
| CRI (Ra>): | 80 |
| Working Temperature(℃): | -15-50 ℃ |
| IP Rating: | IP68 |
| Certification: | CCC, CE, FCC, RoHS |
| Lamp Body Material: | Stainless Steel + PC |
| Place of Origin: | Guangdong, China |
| Brand Name: | kwode/ OEM |
| Application: | Pool Lights, Pool, public or private fountain, etc. |
| Warranty(Year): | 3-Year |
| Product Name: | External Control Wall Mounted 316 Stainless Steel Pool Light |
| Material: | Stainless Steel + PC + LED |
| Emitting Color: | RGB, 16 color modes |
| Power: | 12V, 18W-24W-30W-35W-42W |
| Control method: | External Control (Without Remote) |
| Waterproof: | Ip68 Underwater Light Rgb |
| Size: | 29 x 29 x 7cm; 1.90kg/pc |
| Type: | Wall Mounted Stainless Steel Pool Light |
| MOQ for OEM: | Only 10pcs |

Q1. Are you manufacturer?
A: Yes, we are factory and focus on LED pool light, underwater light for nearly decade. Professional R&D and produce team grasp the quality of the product strictly to make the product pass the IP68, CE, RoHS, FCC ect.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are also acceptable.
Q3. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q4. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 working days to arrive. Airline and sea shipping also optional.
Q6. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
Q7. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q8: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q9: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
