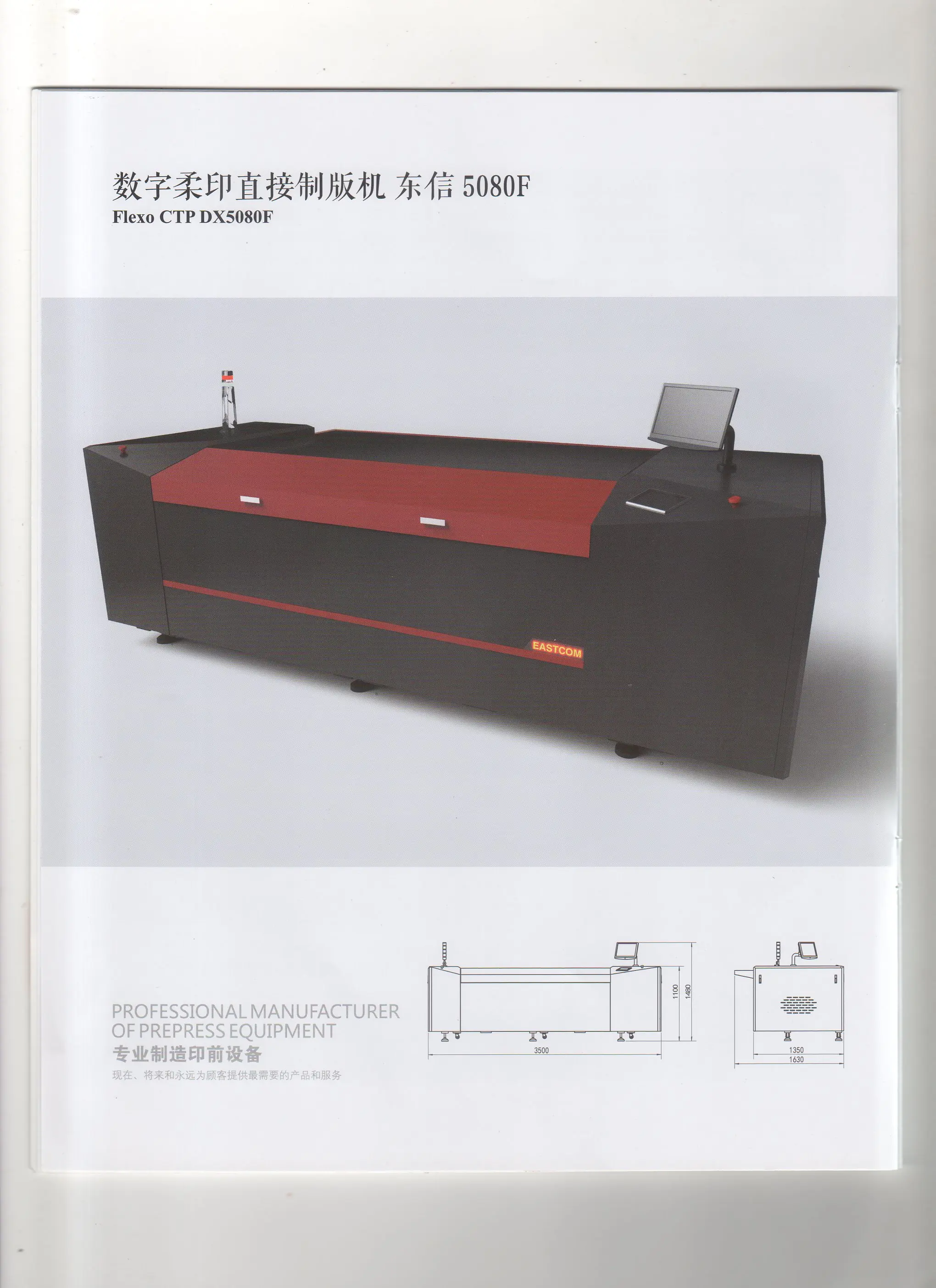

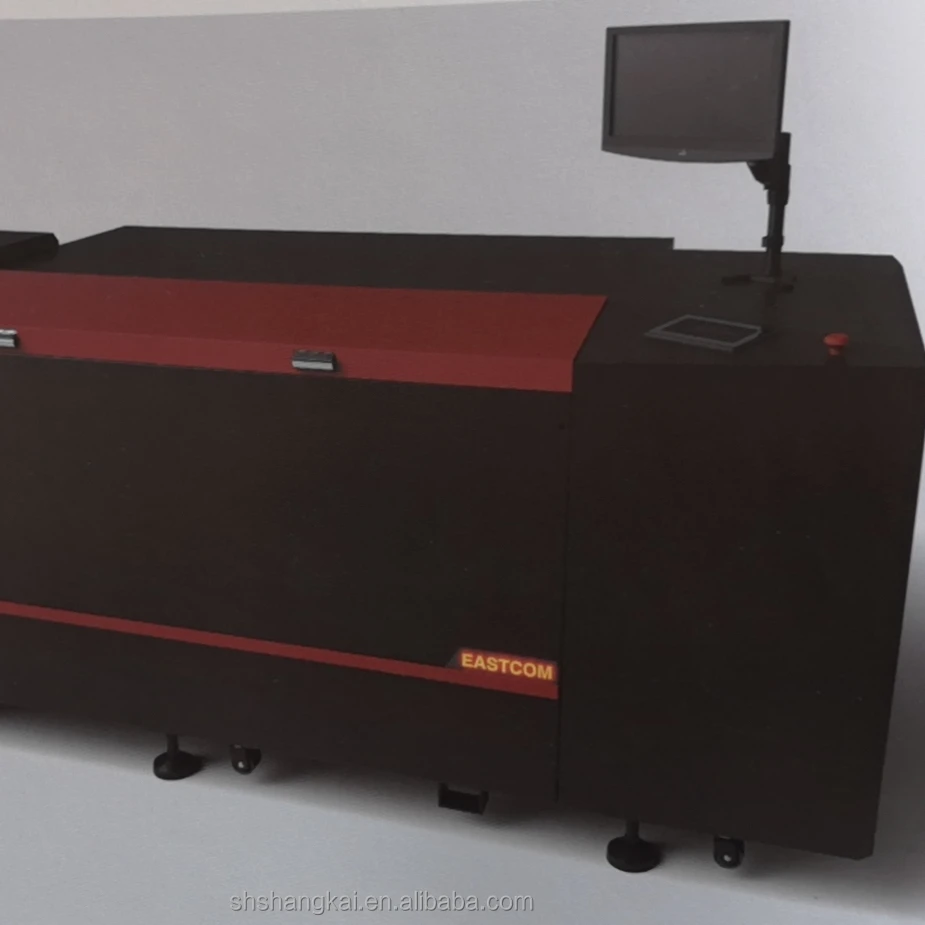

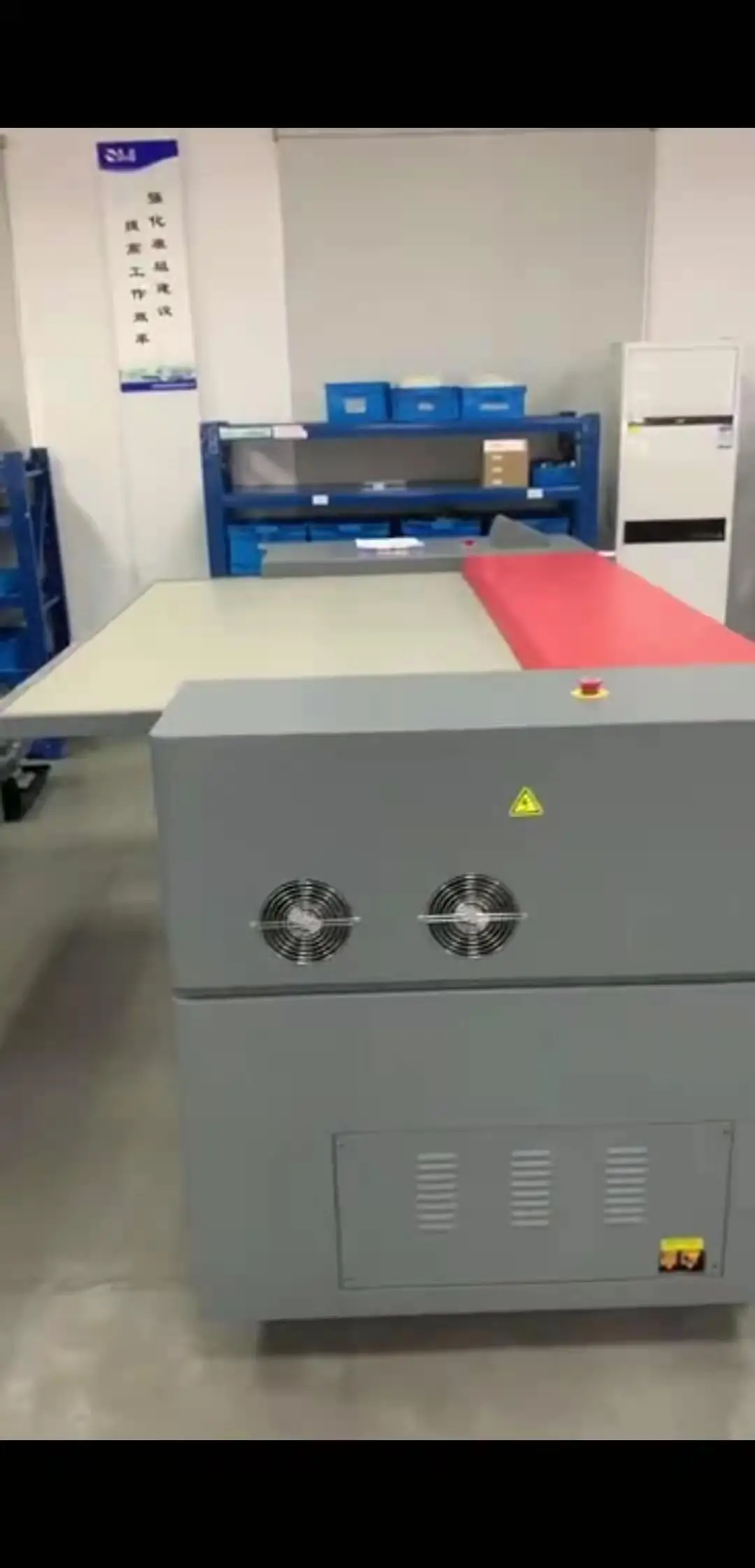

DX5080F II Goog Quality Flexo CTP Machine
- Category: >>>
- Supplier: Shanghai Shangkai Industry Co. Ltd.
Share on (1600352355434):
Product Overview
Description
Product Description
Specification
DX5080F-1 FLEXO CTP
Technical parameters:
Made in china
External drum
Laser system: 32 channels
Productivity: 2.5㎡/h
Max. plate size: 2032 x 1270mm
Plate thickness: 0.95-4.7mm
Output media: Flexographic water-washable letterpress plates; Flexographic water-washable plates; Flexographic solvent-washable plates;
Resolution: 4800dpi/2400DPI(Switch)
Application: Label printing\\Trade mark\\Packing
Loading method: Manual loading
Interface: Gigabit Ethernet
External dimension (mm): 3500（L）x 1630(W) x 1480mm(H)
Power supply: 8kW/220v, 50/60Hz
Environment: Temperature 18-30℃，Humidity 40-70% non condensing
Technical parameters:
Made in china
External drum
Laser system: 32 channels
Productivity: 2.5㎡/h
Max. plate size: 2032 x 1270mm
Plate thickness: 0.95-4.7mm
Output media: Flexographic water-washable letterpress plates; Flexographic water-washable plates; Flexographic solvent-washable plates;
Resolution: 4800dpi/2400DPI(Switch)
Application: Label printing\\Trade mark\\Packing
Loading method: Manual loading
Interface: Gigabit Ethernet
External dimension (mm): 3500（L）x 1630(W) x 1480mm(H)
Power supply: 8kW/220v, 50/60Hz
Environment: Temperature 18-30℃，Humidity 40-70% non condensing
Flexo CTP Technical Superiority
1、Advantage: For the plates of different sizes, ensure the absorbent pressure and adsorption effect are almost the same,thus the plate can be adsorbed perfectly.
2、Online Minification Adjustment
Reduce the workload of Designer ,put all the minification for different printing machines into the Flexo CTP,and realize the
function of minification on Flexo CTP. The minification can be adjustable for 97-100%.
3、Automatic Focusing Technology
For the plates of different thickness 0.15-4.7mm, after the plate is loaded onto the drum, the focus can be adjusted
automatically by click “Automatic Focusing” whatever the plate thickness is, which can be ensure the will be exposed at proper
focus to gurantee the expose quality.
Advantage: The temperature of the workshop for Flexo CTP is more flexible and the machine can work well when the temperature is
10℃-30℃.
4、Flatness Scanning
Plate stick to the drum ,flatness laser scanning of the high-preciision to verify the plate flatness ,to ensure the center focus
of the plate in the actual& clear imaging . If uneven adsorption ,the error will be immediately reported. It reminds the user to
reload the plate and reduce the unnecessary loss.
5、Automatic Dedusting
1> Activated carbon
2>Filter
3>Pressure real-time monitoring
6、Linear Motor Scanning System:
High precision , high speed ,and maintenance free, to ensure the stable working of the laser system.
Marble Plartform : High precision, low temperature factor, extremely precision at long term lifecycle.
7、7 Inch Touch-screen Monitor: More simple and practical for operation.
8、Bidirectional Pedals : Free operator's hands to make the loading and unloading process easier.
9、Gigabit Ethernet Interface:
More stable and reliable of data transmission, and further of the transmission distance. The distance of the equipment and the edition computer can be more than 100 meters away.
1、Advantage: For the plates of different sizes, ensure the absorbent pressure and adsorption effect are almost the same,thus the plate can be adsorbed perfectly.
2、Online Minification Adjustment
Reduce the workload of Designer ,put all the minification for different printing machines into the Flexo CTP,and realize the
function of minification on Flexo CTP. The minification can be adjustable for 97-100%.
3、Automatic Focusing Technology
For the plates of different thickness 0.15-4.7mm, after the plate is loaded onto the drum, the focus can be adjusted
automatically by click “Automatic Focusing” whatever the plate thickness is, which can be ensure the will be exposed at proper
focus to gurantee the expose quality.
Advantage: The temperature of the workshop for Flexo CTP is more flexible and the machine can work well when the temperature is
10℃-30℃.
4、Flatness Scanning
Plate stick to the drum ,flatness laser scanning of the high-preciision to verify the plate flatness ,to ensure the center focus
of the plate in the actual& clear imaging . If uneven adsorption ,the error will be immediately reported. It reminds the user to
reload the plate and reduce the unnecessary loss.
5、Automatic Dedusting
1> Activated carbon
2>Filter
3>Pressure real-time monitoring
6、Linear Motor Scanning System:
High precision , high speed ,and maintenance free, to ensure the stable working of the laser system.
Marble Plartform : High precision, low temperature factor, extremely precision at long term lifecycle.
7、7 Inch Touch-screen Monitor: More simple and practical for operation.
8、Bidirectional Pedals : Free operator's hands to make the loading and unloading process easier.
9、Gigabit Ethernet Interface:
More stable and reliable of data transmission, and further of the transmission distance. The distance of the equipment and the edition computer can be more than 100 meters away.
Company Profile
Shanghai shangkai industry co,Ltd is a joint-stock enterprises ,the company specializes in sales of flexo printing plates and flexo printing consumables,offering accomplished after-sale services.shanghai shangkai industry has more than 12 years of sales history and a professional enterprise with advanced managerial and technological system.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.
The products by the company are highly recognized for their reasonable prices and superb qualities,quality、price and service are the majorconcern of the company currently.
Shanghai shangkai industry is proud of its over 400 clients in China and other countries,which both the printing factory direct users,but also the various size professional plate-making company.
Shanghai shangkai industry adhrers to the principle of customer first,striving to improve the overall quality of its staff, to further training programs regarding service quality and to perfect the order-delivrey-settlement flow process and the customer information management.The company is confident in the provision of high-quality products and after-sale services to meet the various demands by its customers and clients.
