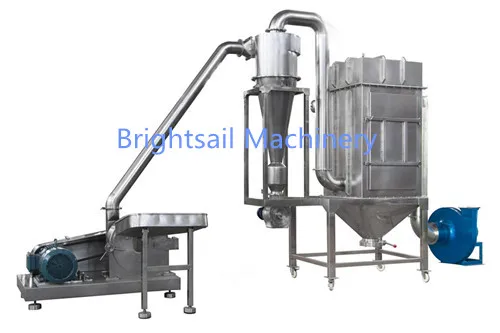

liquorice powder gridner crushing machine licorice pulverizing machine Brightsail
Product Description
BSG series crusher is a kind of high effcient mill designed and developed by my company.
This machine features compact structure,stable technical performance,wide application, which can be used in chemical industry,dye,food, and other industries.
liquorice powder gridner crushing machine licorice pulverizing machine Brightsail
Technical data
Model | BSG-300 | BSG-400 | BSG-500 | BSG-600 | BSG-700 |
Speed of main shaft(rpm) | 5300 | 4800 | 3800 | 3300 | 2800 |
Main motor (KW) | 5.5 | 7.5 | 15 | 22 | 30 |
Blower(KW) | 2.2 | 2.2 | 7.5 | 15 | 18 |
Discharge motor(KW) | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 |
Grinding fineness (mesh) | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
Capacity (kg/h) | 50-500 | 100-1000 | 300-1500 | 500-2500 | 1000-5000 |
Main Features
1) Simple structure ,easy in installation and maintenance.
2) Adopting advanced world famous brand motor ,electric parts,bearing and operation parts.
3) No dust during production, and dust can be collected in dust collecting box.
4)During production,temperature remains normal, will not get hot. So material's color and nature won't change.
5) Uniqe design, with same power consumption, it can achieve much bigger capacity.

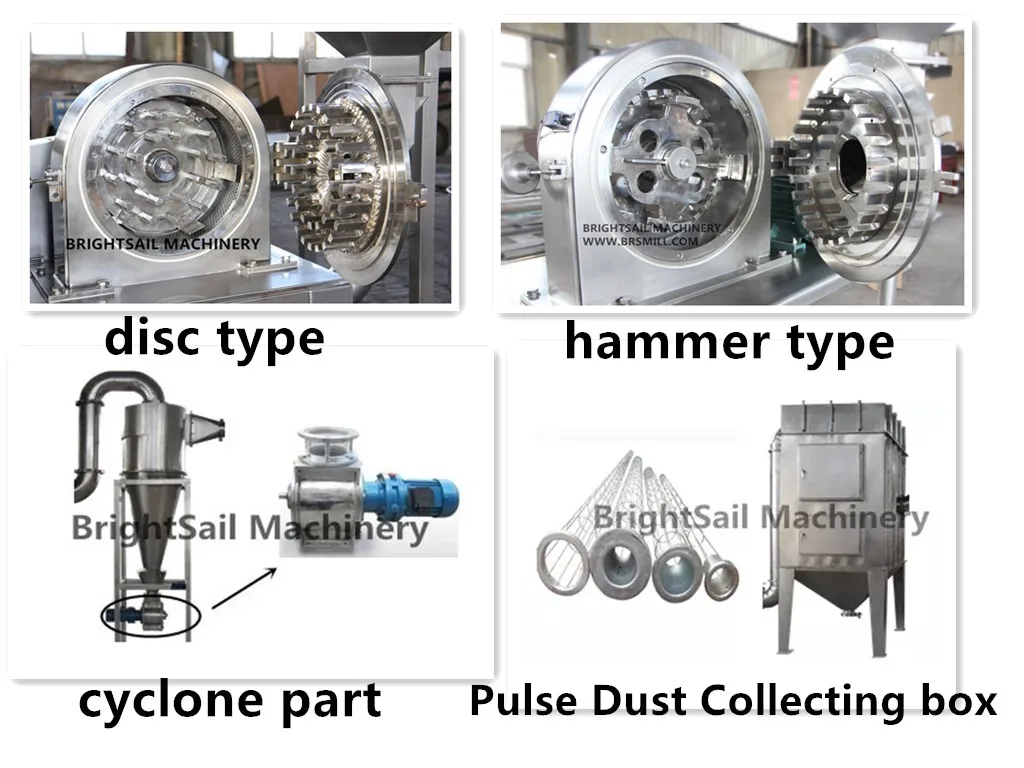

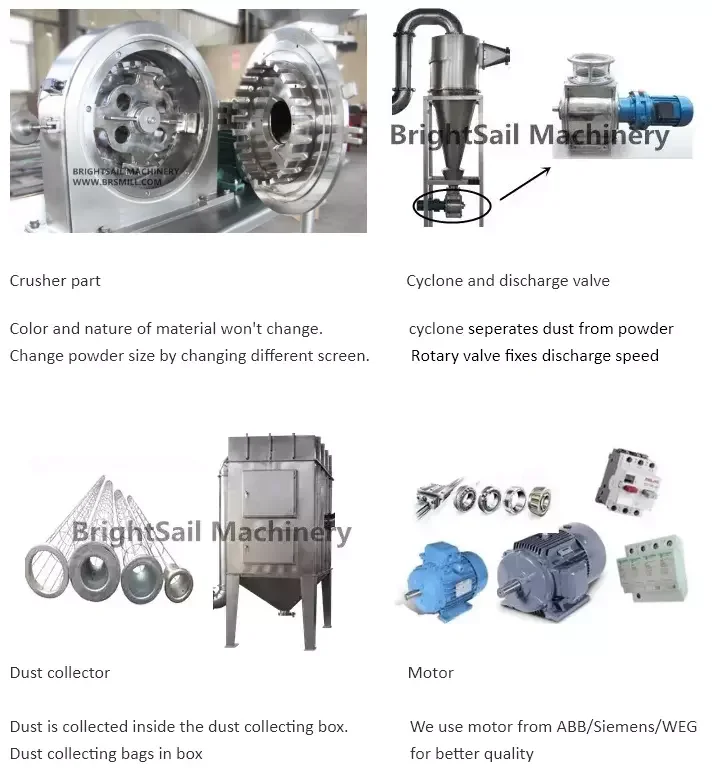

Detailed Images

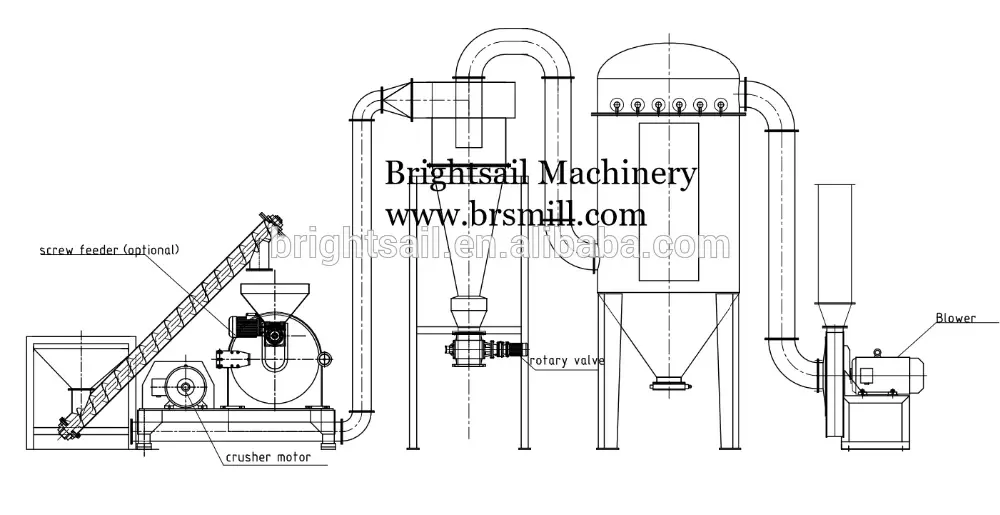

(1)The left motor is crush motor;the right motor is classifier motor.It adopts a small screw feeder, make sure feed speed is even and controllable.
(2)Material enters the mill chamber via screw conveyor where it is sheared and milled by fast-rotating blades.The powder passes the guide ring and enters the classifier chamber.
(3)Rotary valve make powder discharge speed even,Rotary valve is also made of stainless steel and to clean it and dismantle is convenient.

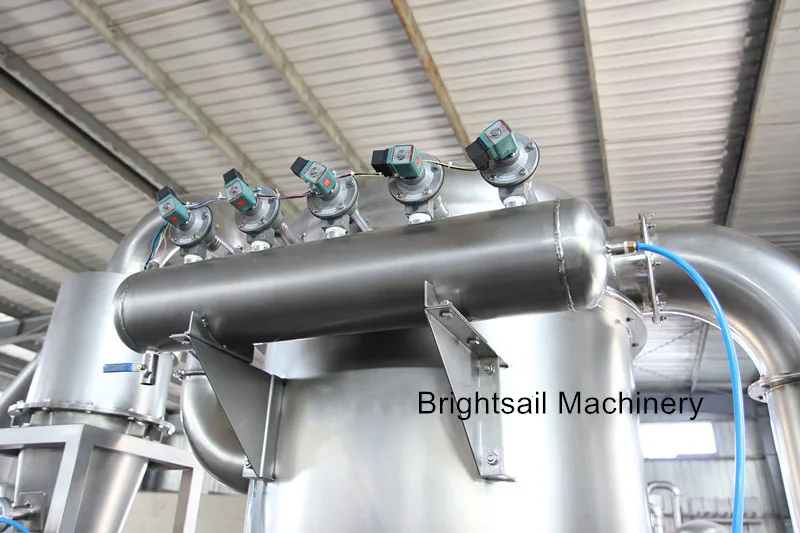

(4)Dust is collected inside the dust collecting box.
Brigthsail salt grinding machine cnc grinding machine or machine crusher saltBrigthsail salt grinding machine cnc grinding machine or machine crusher saltBrigthsail salt grinding machine cnc grinding machine or machine crusher saltBrigthsail salt grinding machine cnc grinding machine or machine crusher salt
Company Information
Brightsail Industries Group Co.,Ltd. is the trade dept of Jiangyin Brightsail Machinery Co.,Ltd and Jiangyin Heng Sheng Steel Structure Co.Ltd which is established in 2002.
We provide professional powder processing overall solution,grinder,mixer,sifter,welding service,welding machine,chemical powder...etc.
We have sent our products to more than 40 countries around the world for now.
Our customers
Packaging & Shipping
Certifications
Our grinder machine has been certified by European Conformity and International Organization for Standardization.
Our Services
1. Pre-sales service:
Inquiry and consulting support with 24 hours, Machine test service, Factory visit
2. After-sales service:
Instructing how to install and use the machine, One year warranty, video support
FAQ
About BSG Self-absorb grinding set for powder making Industrial crusher mill:
1.What raw material do you want to grind?
2.What capacity(kg/hr) do you need?
3.What powder particle size do you need?(for example,40 mesh,60 mesh,100 mesh,200 mesh,...etc)
