ETCR2100C Digital Clamp Ground Earth Resistance Tester 0.01 to 1200 Ohm Leakage Current Measure 0.00mA to 20.0A
- Category: >>>
- Supplier: Leixing Technology (Shenzhen) Co. Ltd.
Share on (1600352618239):
Product Overview
Description
Product Description

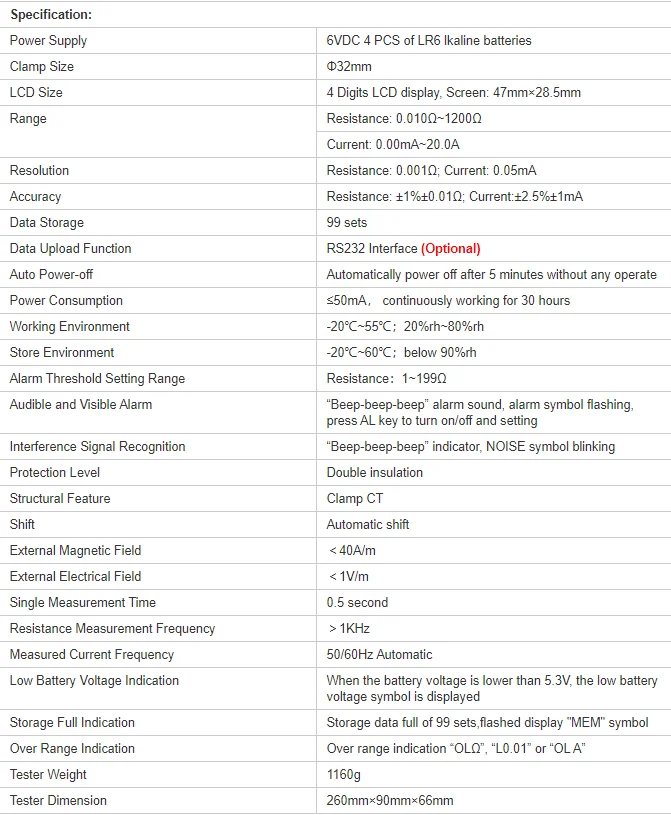

* Function: Ground resistance test, Loop resistance test

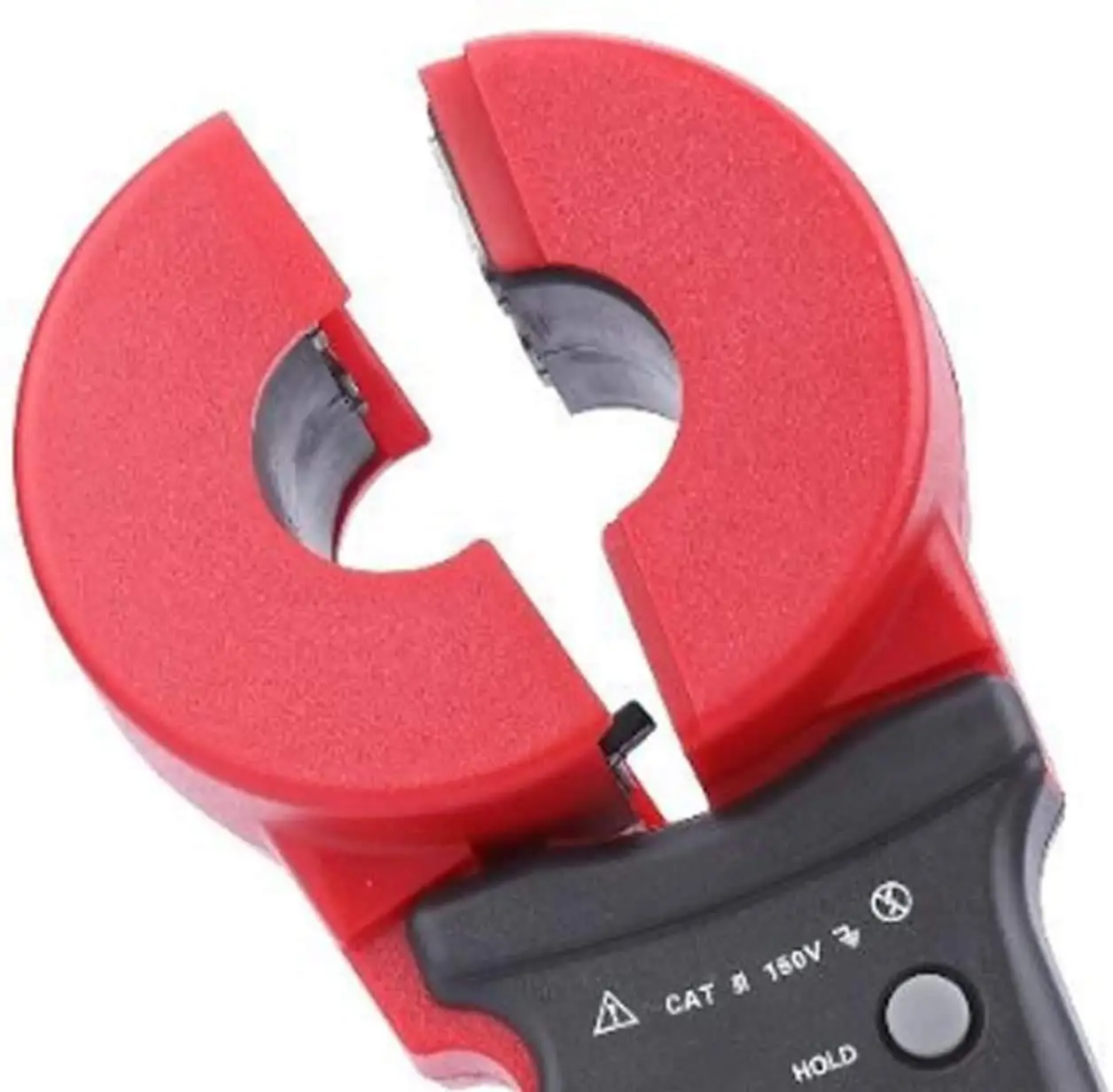

* Clamp Size: Φ32mm
* LCD Screen: 4 Digits LCD display, Screen L×W: 47mm×28.5mm
* Resistance Range: 0.01-1200Ω;Current Range: 0.00mA-20.0A
* Resistance Resolution:0.001Ω; Current Resolution 0.05mA
* Highest Resistance Accuracy:±1%±0.01Ω; Current Accuracy ±2.5%±1mA
* Data memory:99 Sets
* Auto Power-off: 5 minutes after Boot up
* Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours
* Working Temperature and Humidity: -20℃-55℃;20%RH-80%RH
* Storage Temperature and Humidity: -20℃~60℃;90%RH
* Alarm Threshold Setting Range:Resistance: 1-199Ω
* Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off Alarm or set Alarm
Threshold. * Interference Signal Recognition:”Beep-beep-beep” tone, NOISE symbol blinking
* Protection Level: Dual Insulation
* Structural Feature: Clamp CT
* Shifting: Automatic shifting
* External magnetic field: <40A/m
* External electrical field: <1V/m
* Single measurement time: 0.5 second
* Resistance measurement frequency: >1KHz
* Measured current frequency: 50/60Hz Automatic measurement
* Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V
* Memory Full Indication: MEM symbol blinks when all 99 sets memory is full
* Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A”
* Weight: 1120g
* Clamp Dimension: L×W×T: 260mm×90mm×66mm

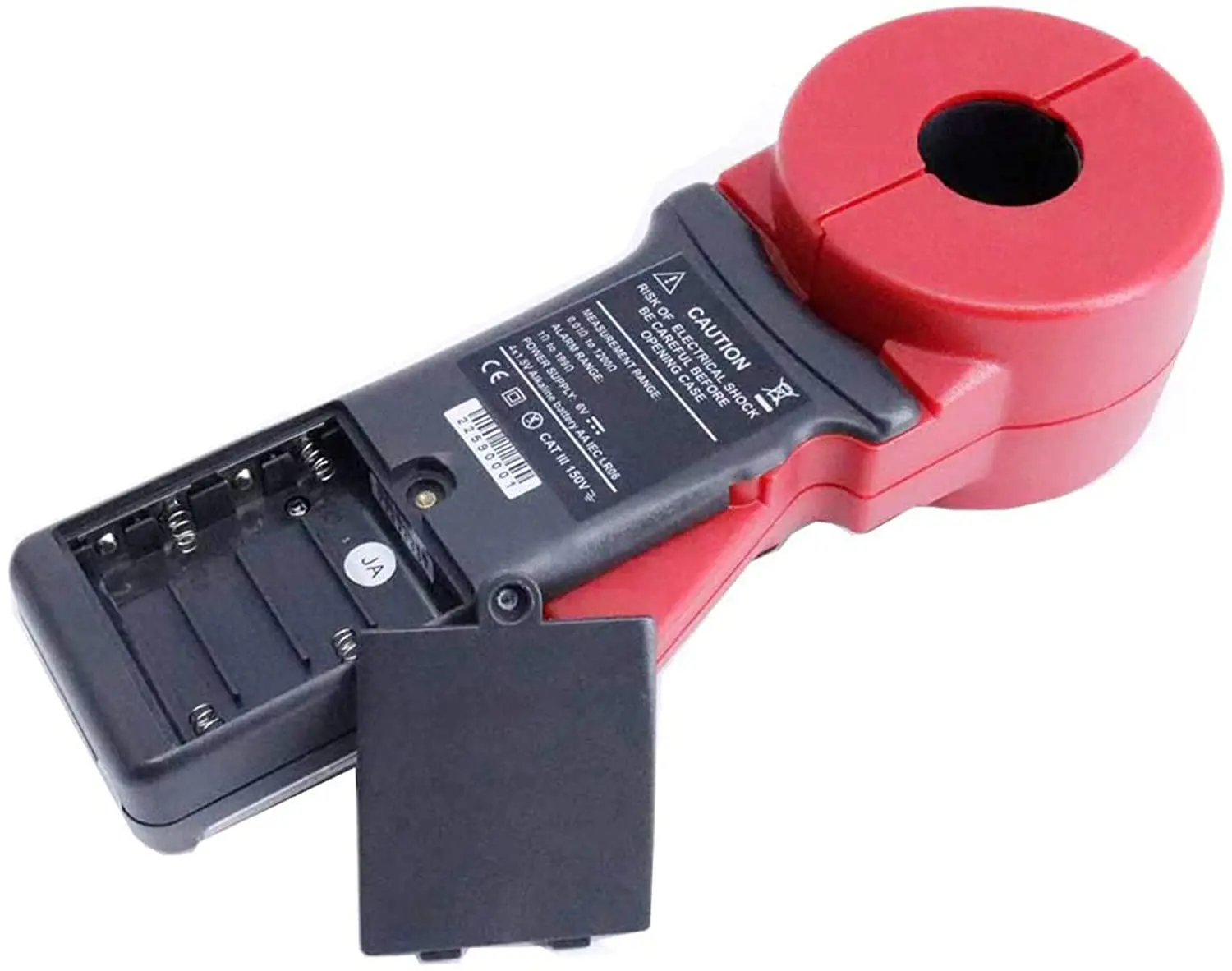

* Power Supply: 4 PCS of AA alkaline batteries（Battery not included in the package）

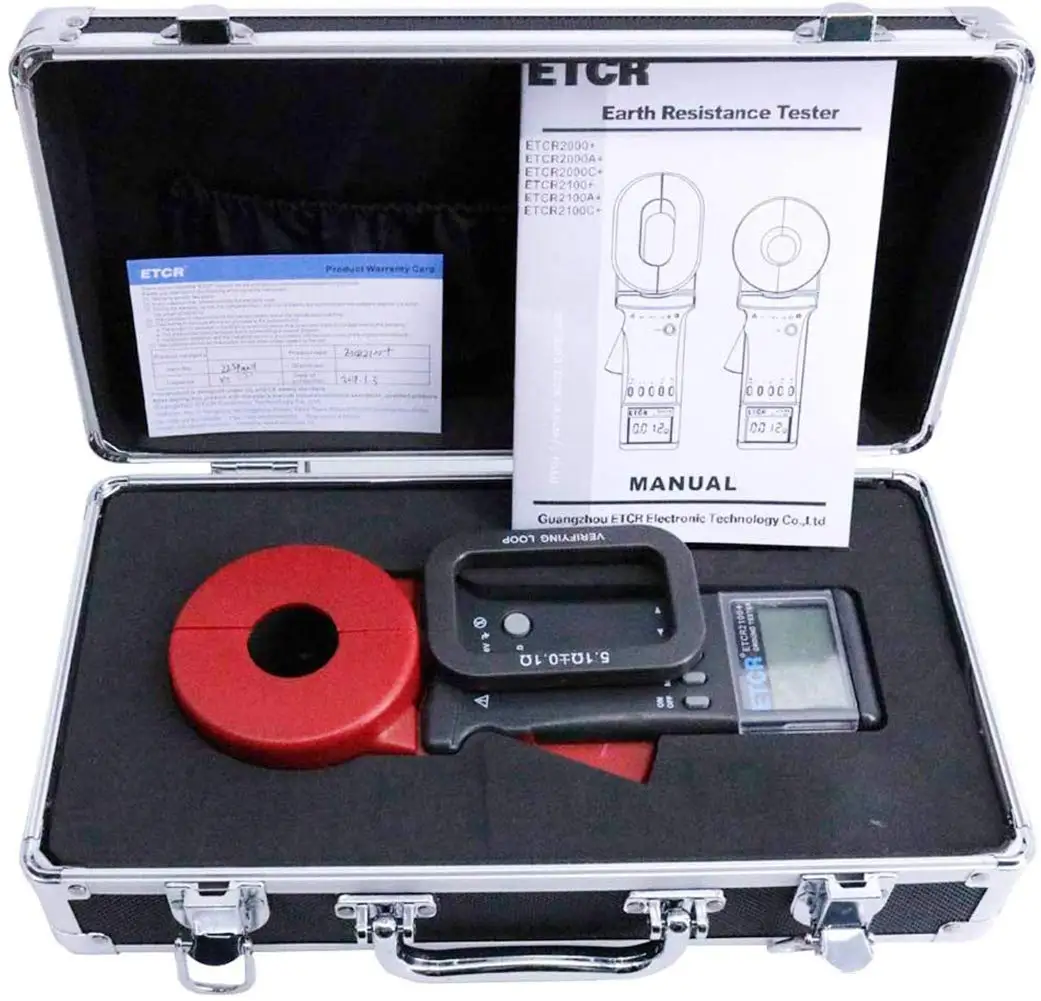

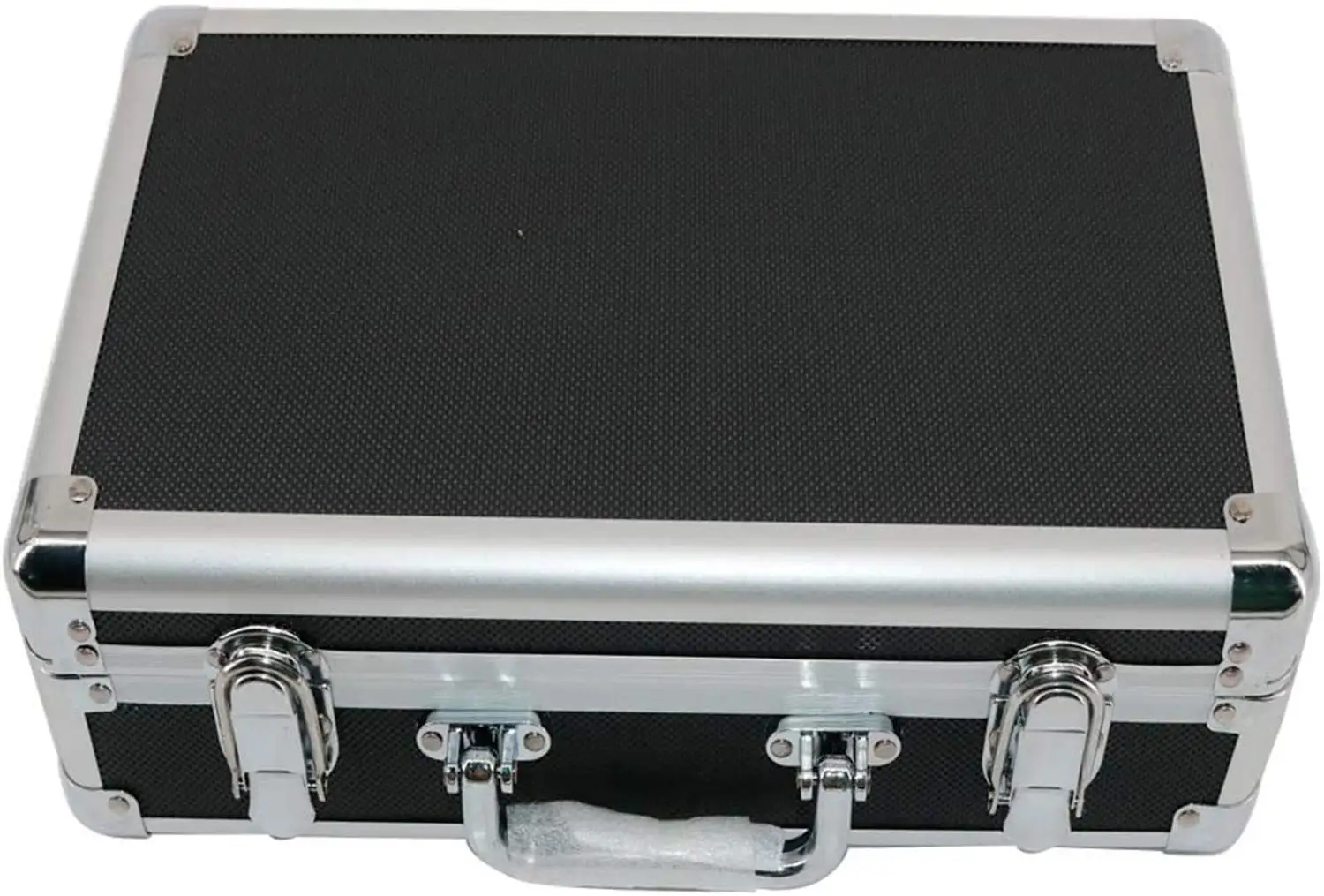

* Standard Accessories: Meter: 1; test loop: 1; meter box: 1
* Optional Accessories: RS232 interface
If you need Optional Accessories,Please contact us.
* Optional Accessories: RS232 interface
If you need Optional Accessories,Please contact us.
