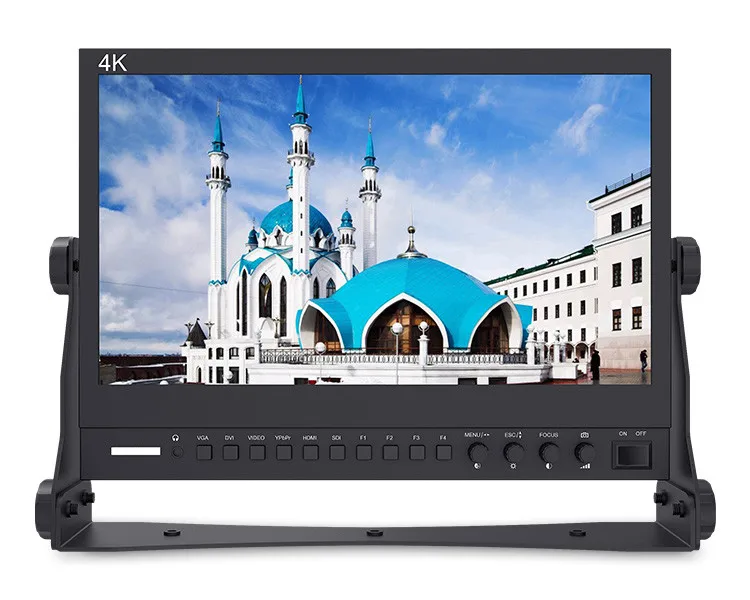

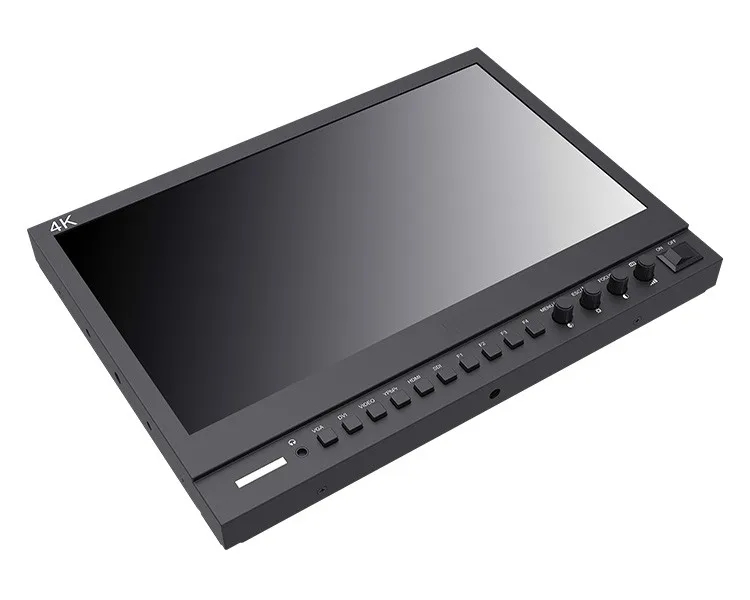

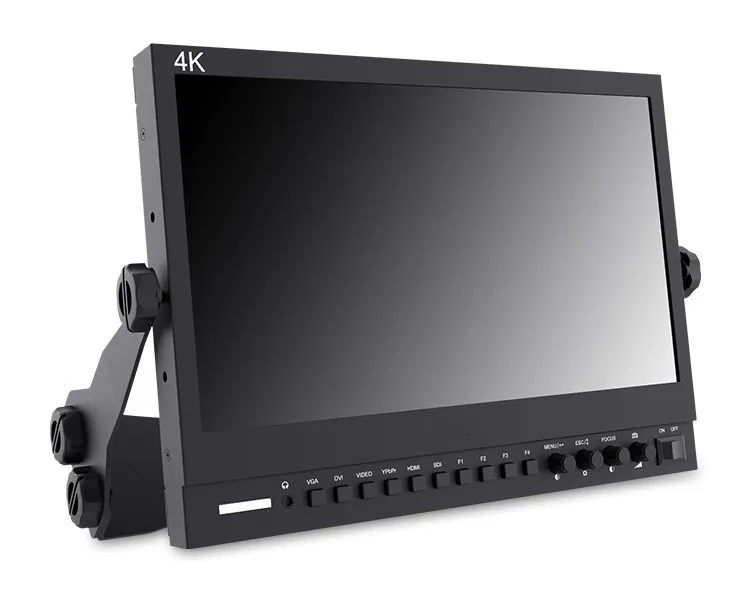

TL MEDIA 13.3inch IPS 1920x1080 broadcast grade 4K Field Monitor
- Category: >>>
- Supplier: TL Technology (Shenzhen) Co. Ltd.
Share on (1600352802004):
Product Overview
Description
Product Description
TL MEDIA 13.3inch IPS 1920x1080 broadcast grade 4K Field Monitor
Model# M13
Function
*Peaking assist focus (for black and white screen, red border)
*Center mark
*Frame mark (80%, 85%, 90%, 93%, 96%, 2.35:1)
*Image freeze
*Image flip (horizontal, vertical, horizontal & vertical)
*Camera mode
*peer to peer
*Monochrome display (red, green, blue, monochrome)
*Custom color temperature adjustment
*3-color tally indicator (red, green, yellow)
Technical Parameter
Product name 13.3" aluminum case IPS 1920×1080 SDI broadcast grade 4K director monitor
Model M13
Screen size 13.3" IPS
Resolution 1920×1080 pixels
Dot pitch 0.1533(H)×0.1533(V) mm
Color 16.7M
Screen ratio 16:9
Brightness 400cd/m2
Contrast ratio 1000:1
Backlight LED
Response time Tr + Tf=26ms
Viewing angle 85°/85°(L/R) 85°/85°(U/D)
Input 3G-SDI, HD-MI, YPbPr, Video, Audio(L/R), DVI-I, Tally, USB
Output 3G-SDI, HD-MI, YPbPr, Video
Audio headphone jack, speaker
SDI support format 480i/576i
720p (60/59.94/50/30/29/25/24/23.98)
"1080i (60/59.94/50)
"
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HD-MI support format 480i/576i/480p/576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
Power consumption ≤12W
Input voltage DC9～24V
Working temperature -10°C~50°C
Storage temperature -20°C~60°C
Single machine size 315.5L×229H×26.4D mm (without bracket)
Stand-alone weight 1.64kg (without bracket) / 1.96kg (with bracket)
Standard Optional Packaging Details
1.5A power adapter DVI to VGA adapter Single box size 37.5*10.9*35CM
V-shaped battery back button Single box weight 2.86KG
Mini HD-MI cable Packing number 5pcs
TALLY adapter kit Carton size 60.2*39*40.2 CM
Sunshade gross weight 14.5KG
Aluminum plate base U-shaped bracket
manual
Function
*Peaking assist focus (for black and white screen, red border)
*Center mark
*Frame mark (80%, 85%, 90%, 93%, 96%, 2.35:1)
*Image freeze
*Image flip (horizontal, vertical, horizontal & vertical)
*Camera mode
*peer to peer
*Monochrome display (red, green, blue, monochrome)
*Custom color temperature adjustment
*3-color tally indicator (red, green, yellow)
Technical Parameter
Product name 13.3" aluminum case IPS 1920×1080 SDI broadcast grade 4K director monitor
Model M13
Screen size 13.3" IPS
Resolution 1920×1080 pixels
Dot pitch 0.1533(H)×0.1533(V) mm
Color 16.7M
Screen ratio 16:9
Brightness 400cd/m2
Contrast ratio 1000:1
Backlight LED
Response time Tr + Tf=26ms
Viewing angle 85°/85°(L/R) 85°/85°(U/D)
Input 3G-SDI, HD-MI, YPbPr, Video, Audio(L/R), DVI-I, Tally, USB
Output 3G-SDI, HD-MI, YPbPr, Video
Audio headphone jack, speaker
SDI support format 480i/576i
720p (60/59.94/50/30/29/25/24/23.98)
"1080i (60/59.94/50)
"
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
HD-MI support format 480i/576i/480p/576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
Power consumption ≤12W
Input voltage DC9～24V
Working temperature -10°C~50°C
Storage temperature -20°C~60°C
Single machine size 315.5L×229H×26.4D mm (without bracket)
Stand-alone weight 1.64kg (without bracket) / 1.96kg (with bracket)
Standard Optional Packaging Details
1.5A power adapter DVI to VGA adapter Single box size 37.5*10.9*35CM
V-shaped battery back button Single box weight 2.86KG
Mini HD-MI cable Packing number 5pcs
TALLY adapter kit Carton size 60.2*39*40.2 CM
Sunshade gross weight 14.5KG
Aluminum plate base U-shaped bracket
manual
