Big diameter cnc stud bolt double end tube chamfering machine for bar
- Category: Chamfering Machines >>>
- Supplier: Foshan Longxin Laser Technology Co. Ltd.
Share on (1600353087453):
Product Overview
Description
Product Description

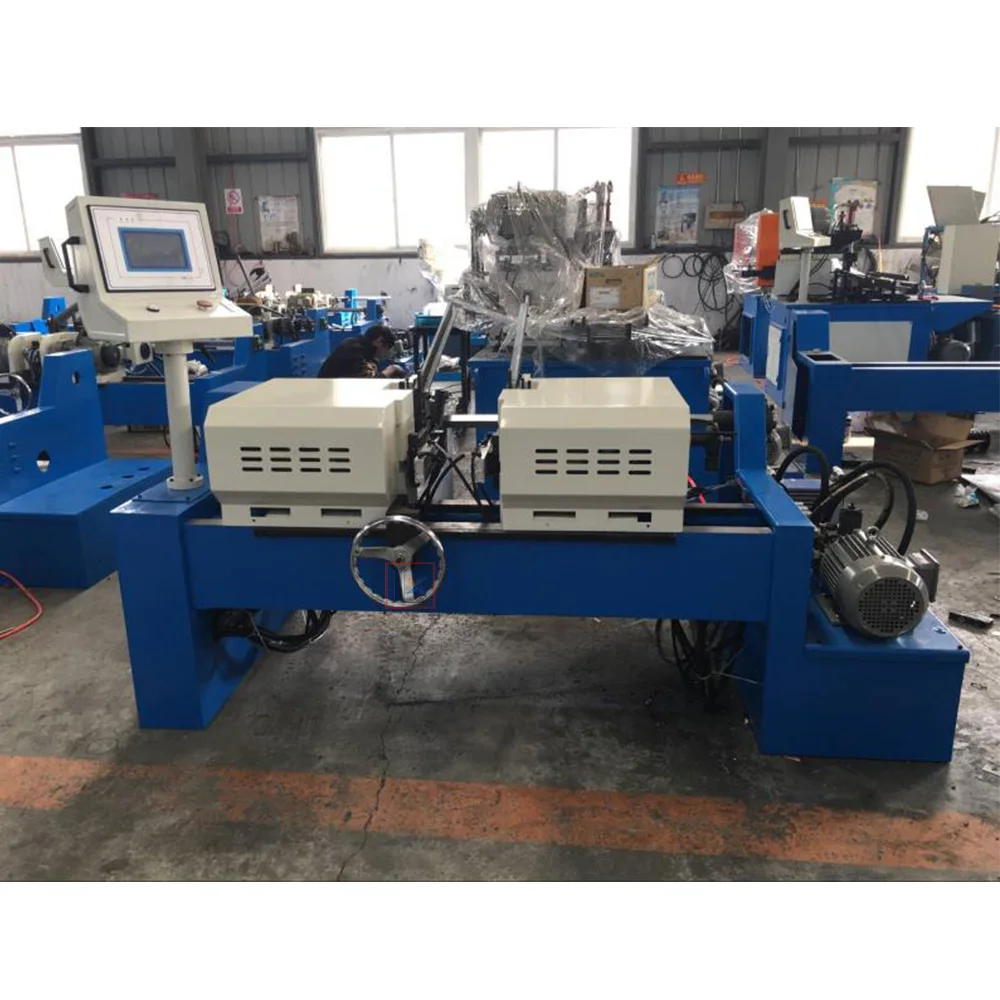

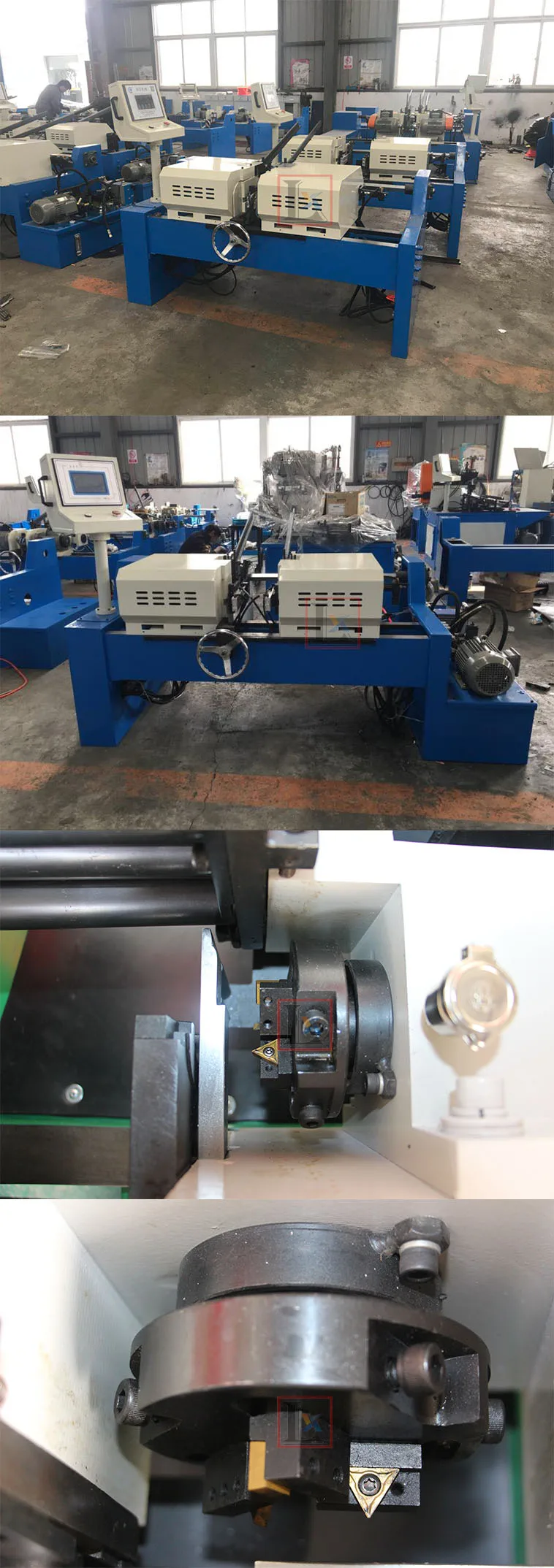

Big diameter cnc stud bolt double end tube chamfering machine for bar
Specification
Model | LX-50SM |
Main motor power | 380V* 2.2KW* 6HP *50HZ |
Apply to outer diameter | Round pipe 6-30MM,Round rods 10-50MM |
Processing length | standard 100-200MM,Short of material 40-200 |
Machining accuracy | ±0.1MM |
Working speed | 3-6 sbranch |
Suitable material | Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar |
Machine size | 2200*1000*1200MM |
Speed | 3 seconds/piece |
size | 2200*1000*1200MM |

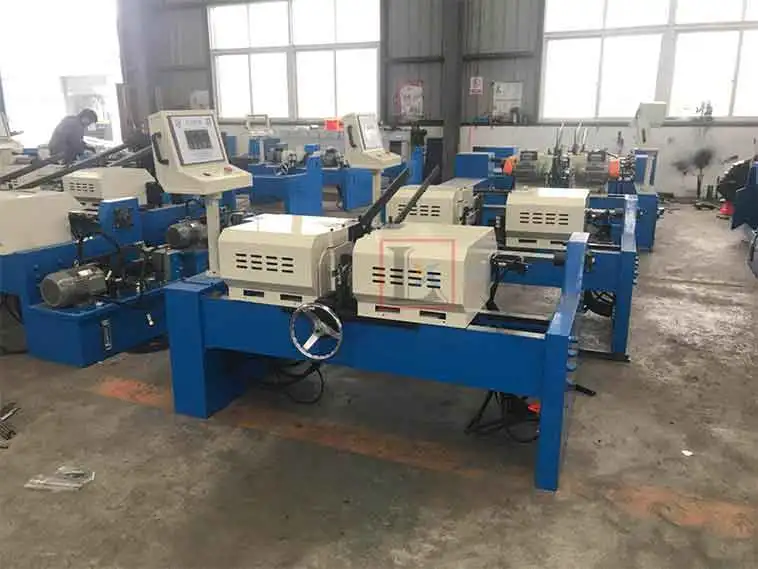

Big diameter cnc stud bolt double end tube chamfering machine for bar

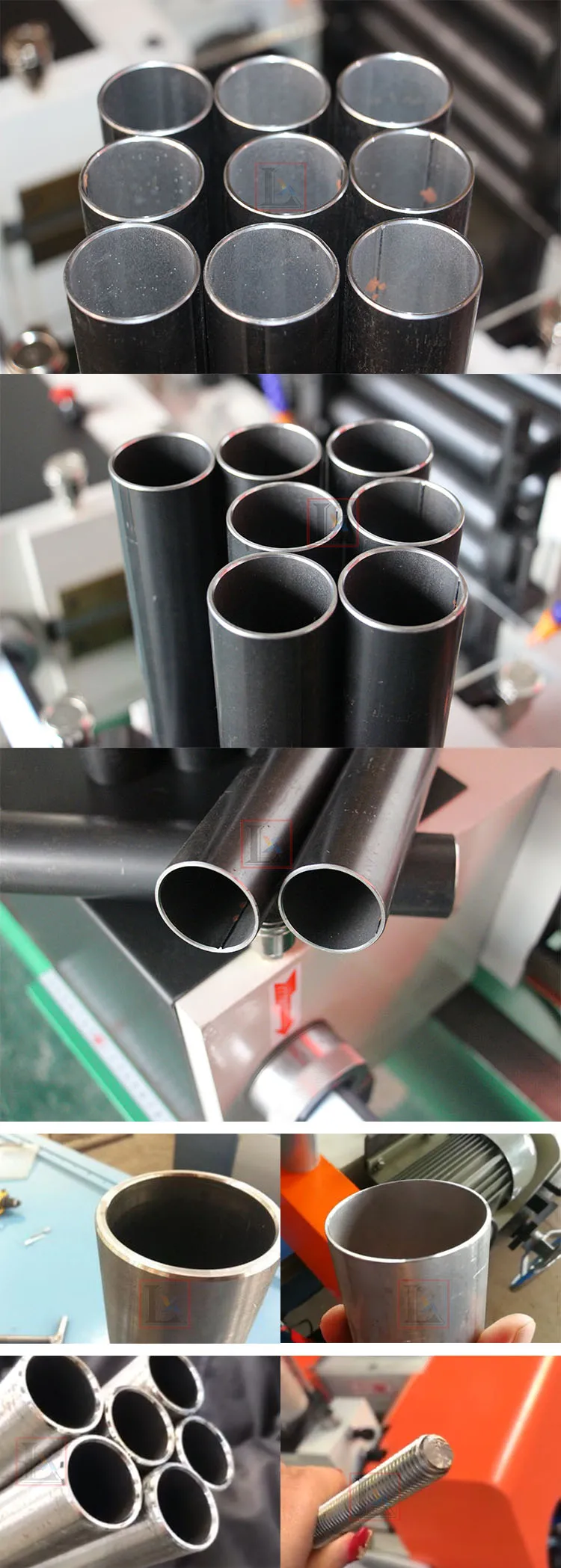

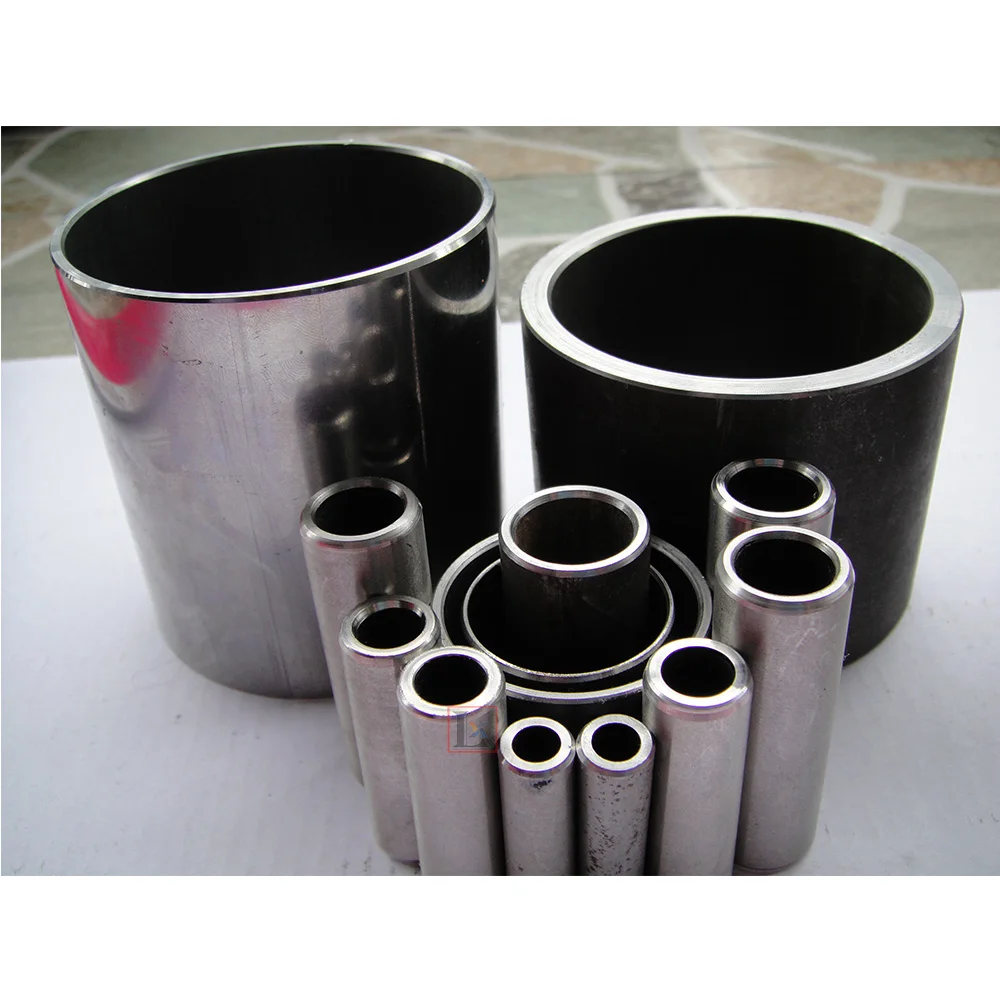

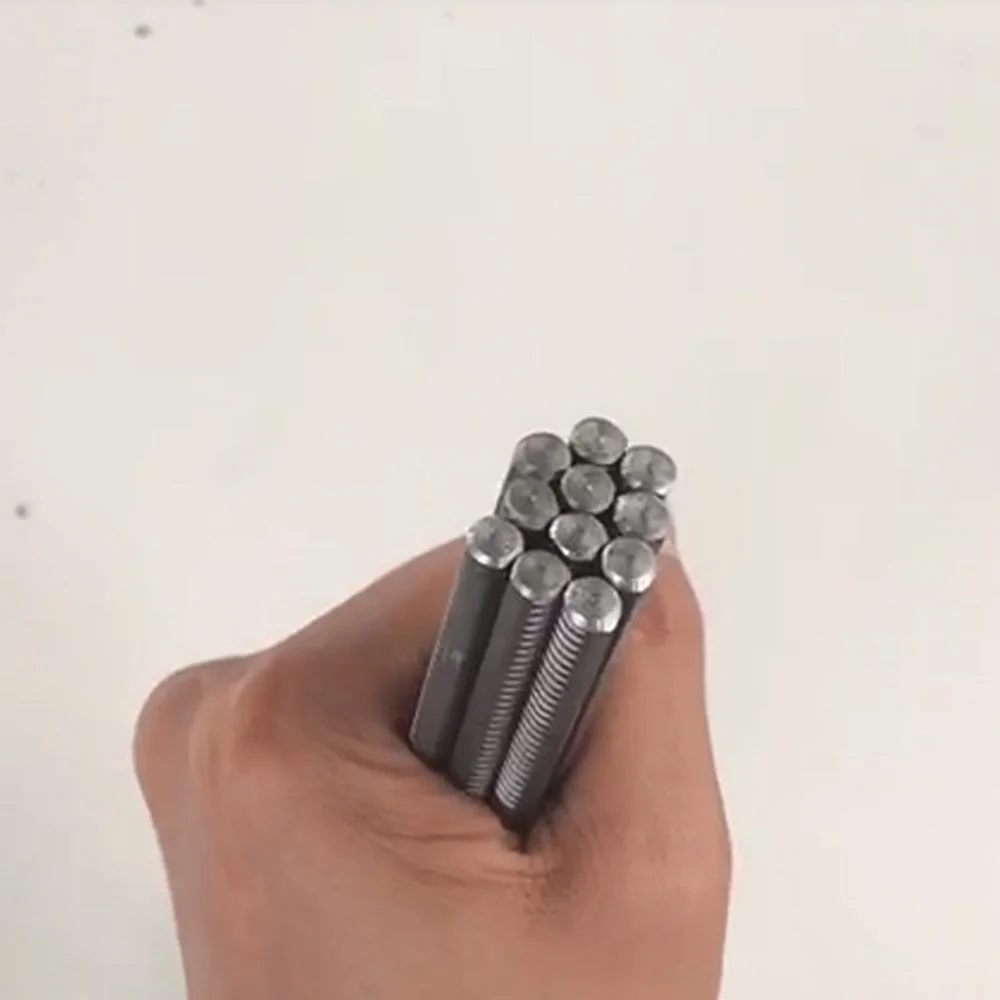

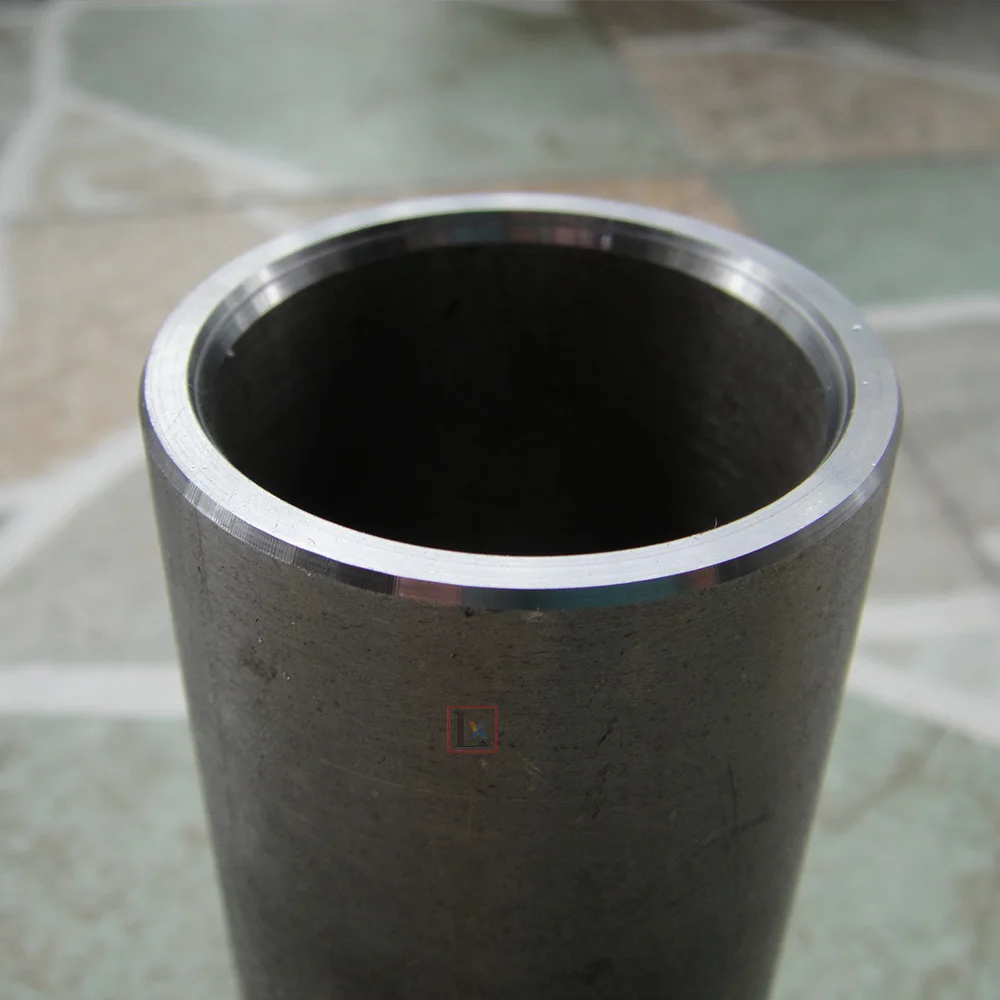

Performance Characteristics :1. Specialized in finish chamfering and trimming surface of the interior/exterior angle of circular tube and round bar end surface
once quickly and accurately.
2.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make
adjusting blade easily.
3.Manual nest, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the trip holder can make the machie available for different size of the workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 3-6 second/piece
once quickly and accurately.
2.The central line of the processing object and the cutter is precise. Specal design and standardization of the blade make
adjusting blade easily.
3.Manual nest, automatic feeding, clamping and blade feeding and backing.
4.Only changing the cutter and adjusting the trip holder can make the machie available for different size of the workpiece.
5.Suitable materials: Stainless steel, Steel, Iron, Copper, Aluminum, Nelon, Plastic Pipe and Bar.
6.Processing speed: 3-6 second/piece
Packing & Delivery
Big diameter cnc stud bolt double end tube chamfering machine for bar
A. The protective film package, wooden package.
B. Can be packaged according to customer requirements
A. The protective film package, wooden package.
B. Can be packaged according to customer requirements

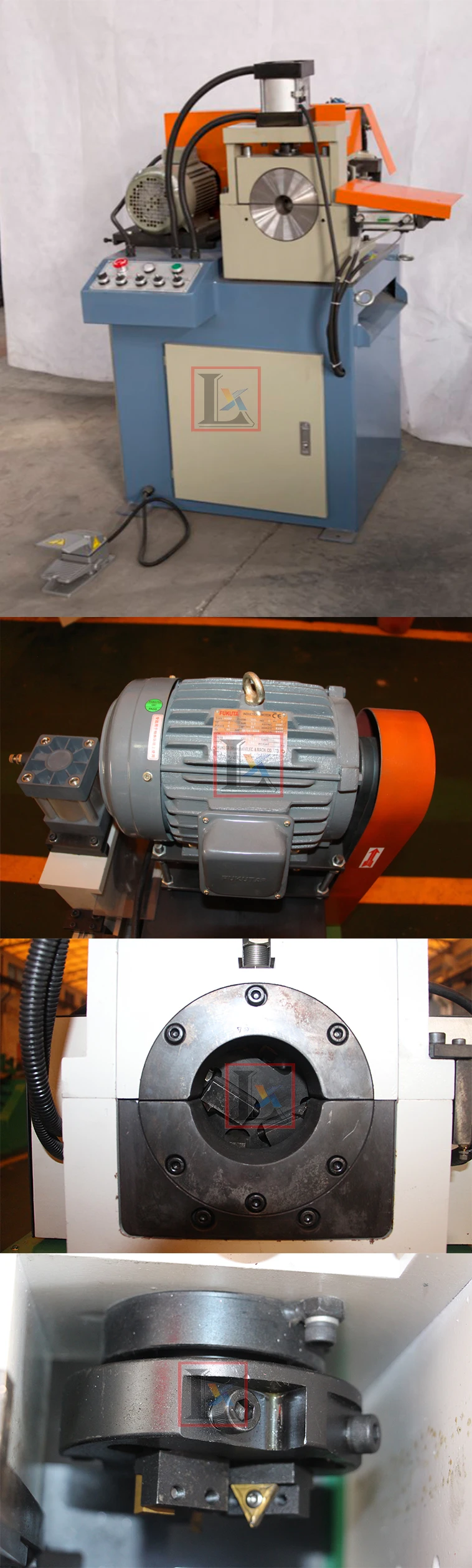

Single head chamfering machine
Modle | LX-50AC | LX-80AC | LX-120AC | LX-150AC | LX-230AC | LX-300AC | ||||||
main motor power | 1.1KW | 1.5kw | 3kw | 3kw | 5.5kw | 5.5kw | ||||||
pressure | MPA6-8KG | MPA6-8KG | MPA6-8KG | MPA6-8KG | MPA6-8KG | MPA6-8KG | ||||||
Apply to outer diameter | 3-50mm | 5-80mm | 5-120mm | 20-150mm | 30-230mm | 5-300mm | ||||||
Processing length | >35mm | 35mm | 35mm | 35mm | 35mm | 35mm | ||||||
length of tolerance | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | ||||||
Perpendicularity | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | +-0.1mm | ||||||
Processing speed | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | 3-5s/pcs | ||||||
Suitable material | Steel tubes, nylon tubes, iron tubes, stainless steel tubes, aluminum tubes, copper tubes, round rods | |||||||||||
Machine dimensions | 900X800X1300mm | 1200X150X1850mm | ||||||||||
We can customize your satisfactory products according to customer's requirements. | ||||||||||||
Company Profile
Foshan Longxin Laser Technology Co., Ltd., established in 2003, is specialized in solutions for tube and pipe industries. For over 18 years, we focus on develop and produce tube cutting and tube processing machines. We have obtained High-tech enterprise certification and CE certificates. Our machines are widely used in different industries including auto parts, furniture, kitchenware, hospital beds, fitness equipment.
We commit to providing overall solutions for intelligent manufacturing equipment for global users. We have fruitful experience in all kinds of metal tubes and know the cutting demands from different industries, we can offer the professional tube cutting solution to help you cut tubes in a better result.
Longxin Laser product lines include following machines and services:
Universal laser cutting series
High speed laser cut off series
Online laser cutting
Elbow laser cutting
HSS saw cutting series
Chamfer series
Bending series
Punching series
Pipe cutting and processing service
We commit to providing overall solutions for intelligent manufacturing equipment for global users. We have fruitful experience in all kinds of metal tubes and know the cutting demands from different industries, we can offer the professional tube cutting solution to help you cut tubes in a better result.
Longxin Laser product lines include following machines and services:
Universal laser cutting series
High speed laser cut off series
Online laser cutting
Elbow laser cutting
HSS saw cutting series
Chamfer series
Bending series
Punching series
Pipe cutting and processing service
FAQ
A. How long is the warranty?
We offer 12 months full warranty starting from the delivery date and 24 months warranty for laser source.
B. How can I setupthe machine?
We offer user manual, installation and operation videos for our machines and on-site free operation training in our factory. Inaddition, we provide oversea service with air tickets ,visa and accommodation and 100USD per day to be paid by customer.
We offer 12 months full warranty starting from the delivery date and 24 months warranty for laser source.
B. How can I setupthe machine?
We offer user manual, installation and operation videos for our machines and on-site free operation training in our factory. Inaddition, we provide oversea service with air tickets ,visa and accommodation and 100USD per day to be paid by customer.
