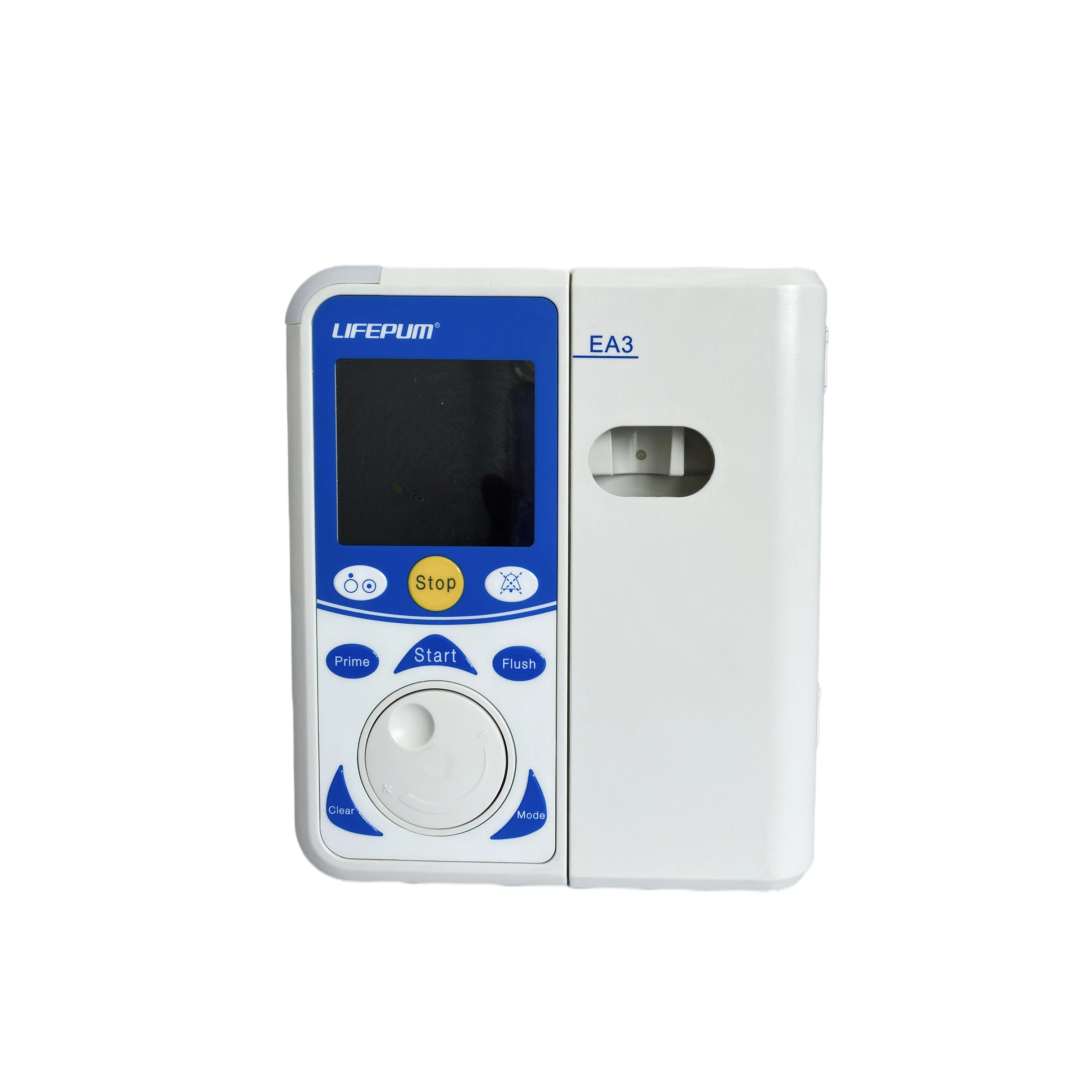

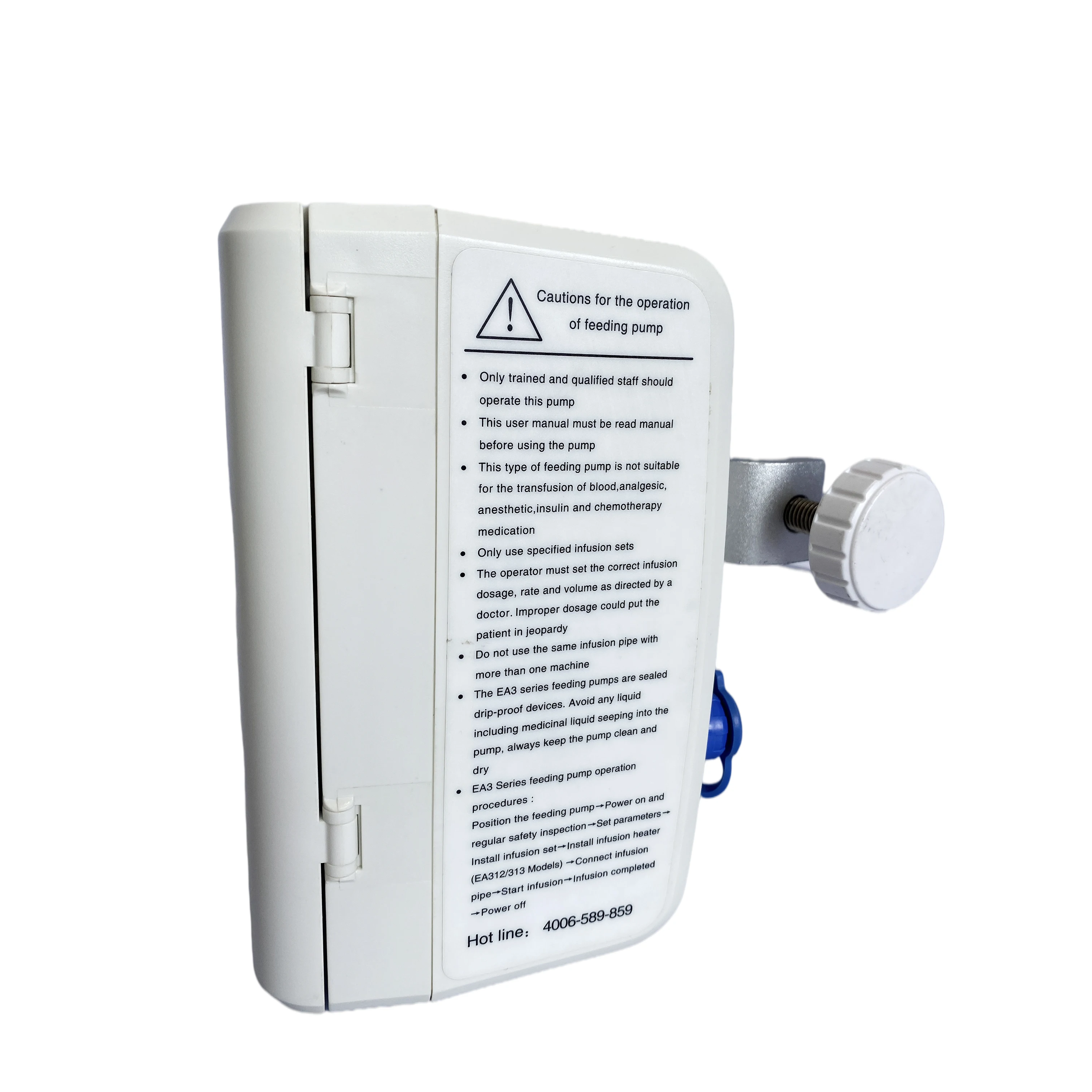

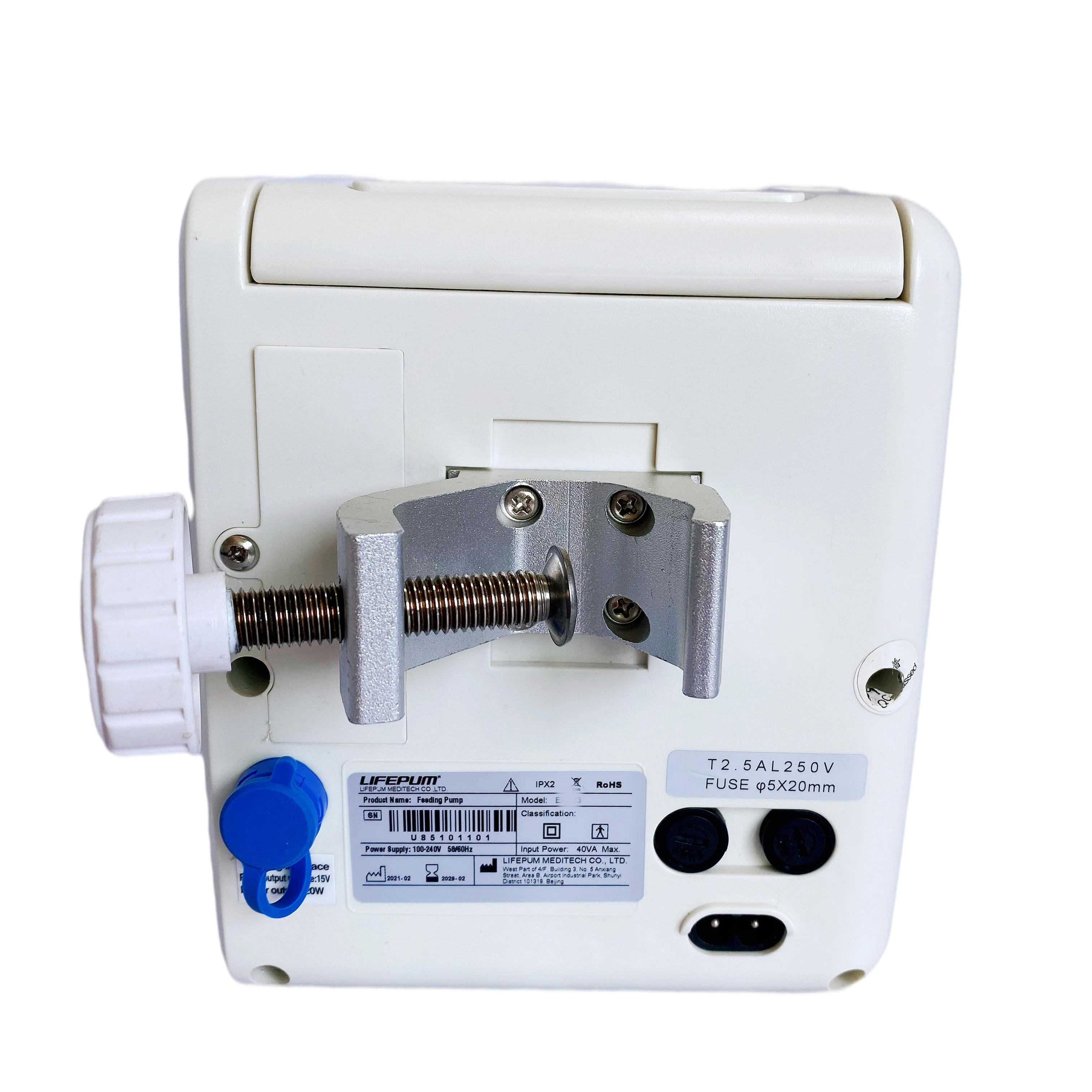

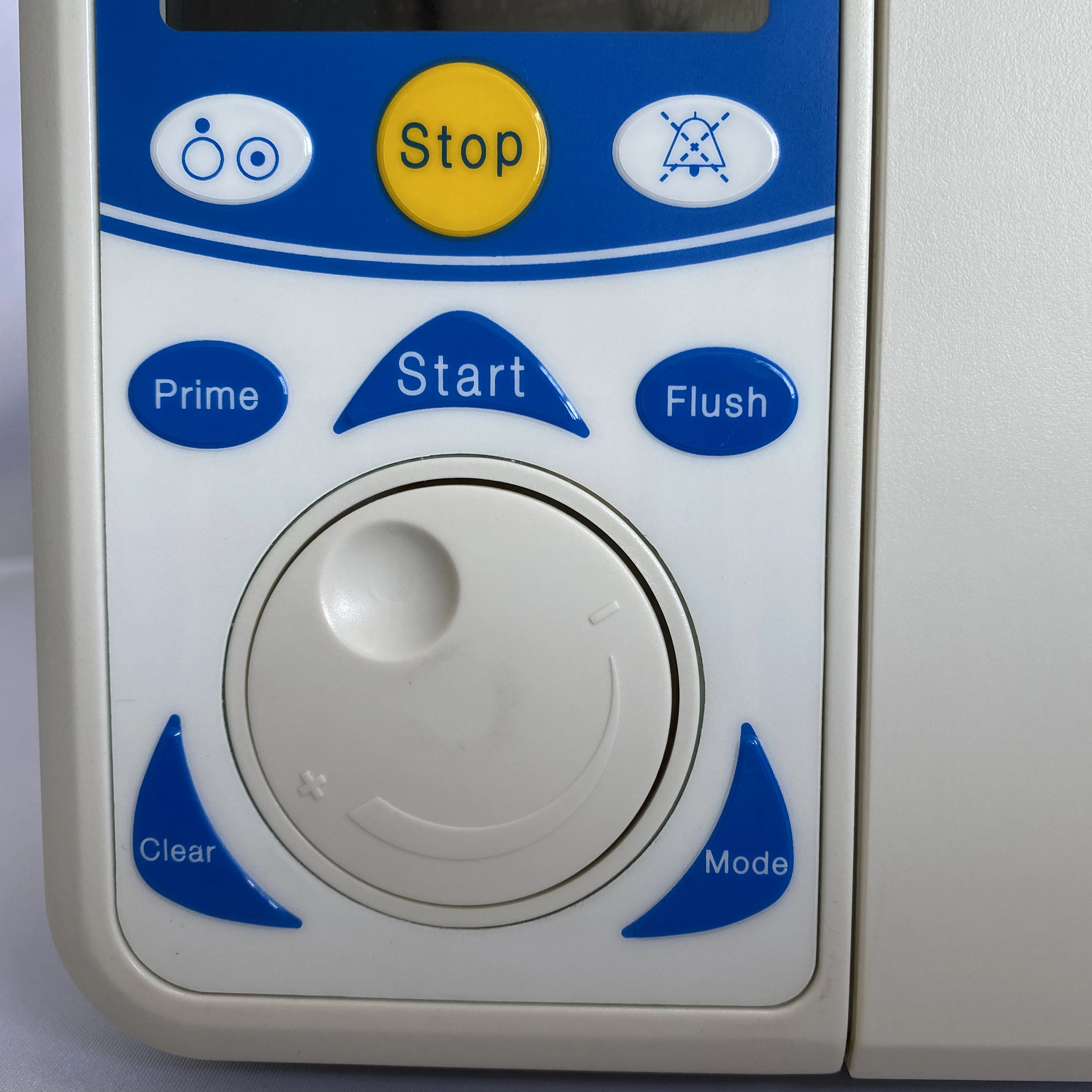

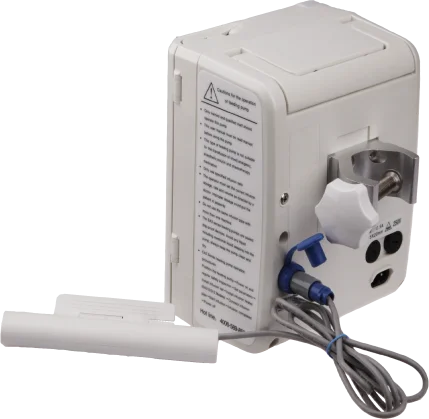

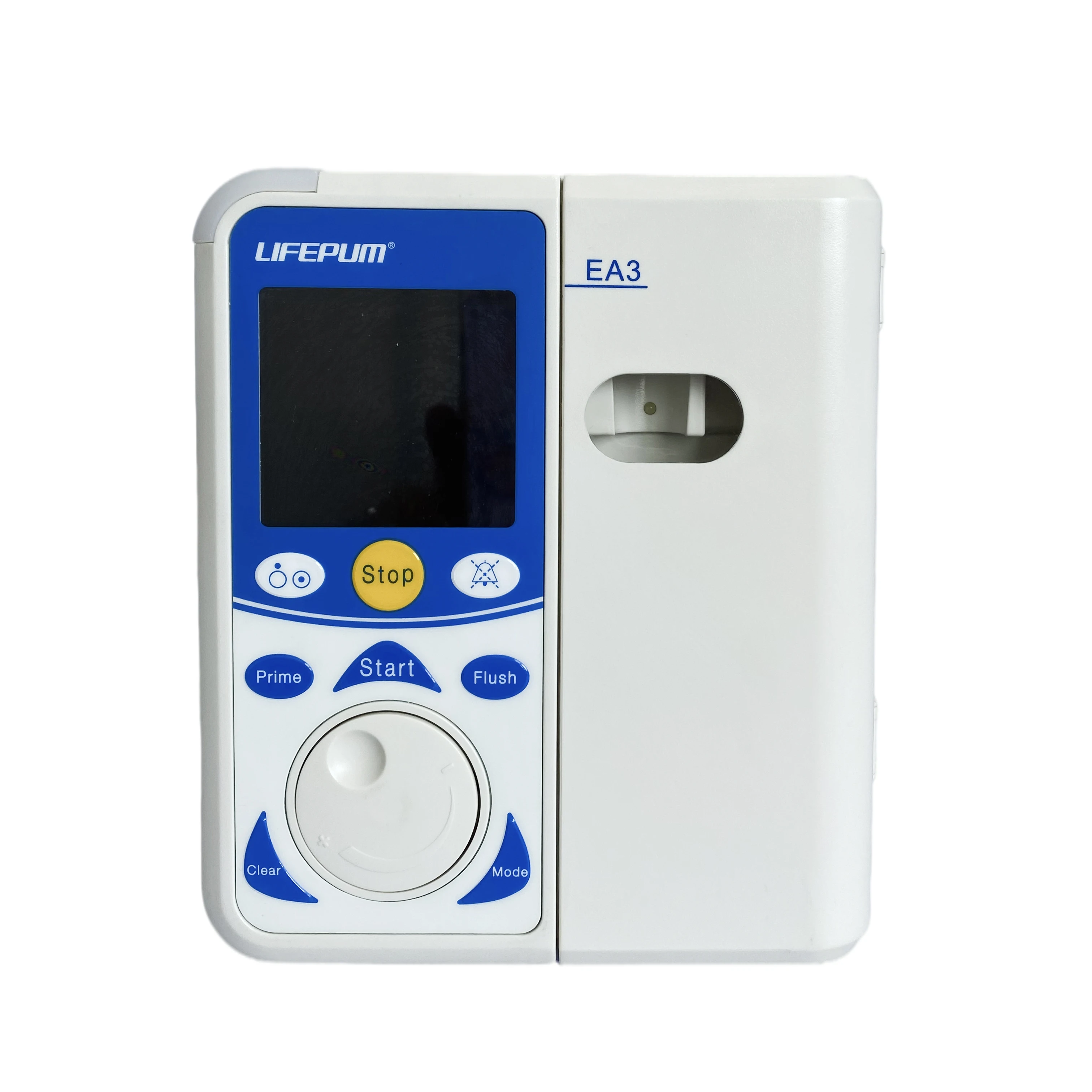

Dps double mcu feeding pump hospital medical instrument EA313 Enteral Feeding Pump
- Category: Emergency Medical Supplies & Training >>>
- Supplier: Lifepum Meditech Co. Ltd.
Share on (1600353174403):
Product Overview
Description

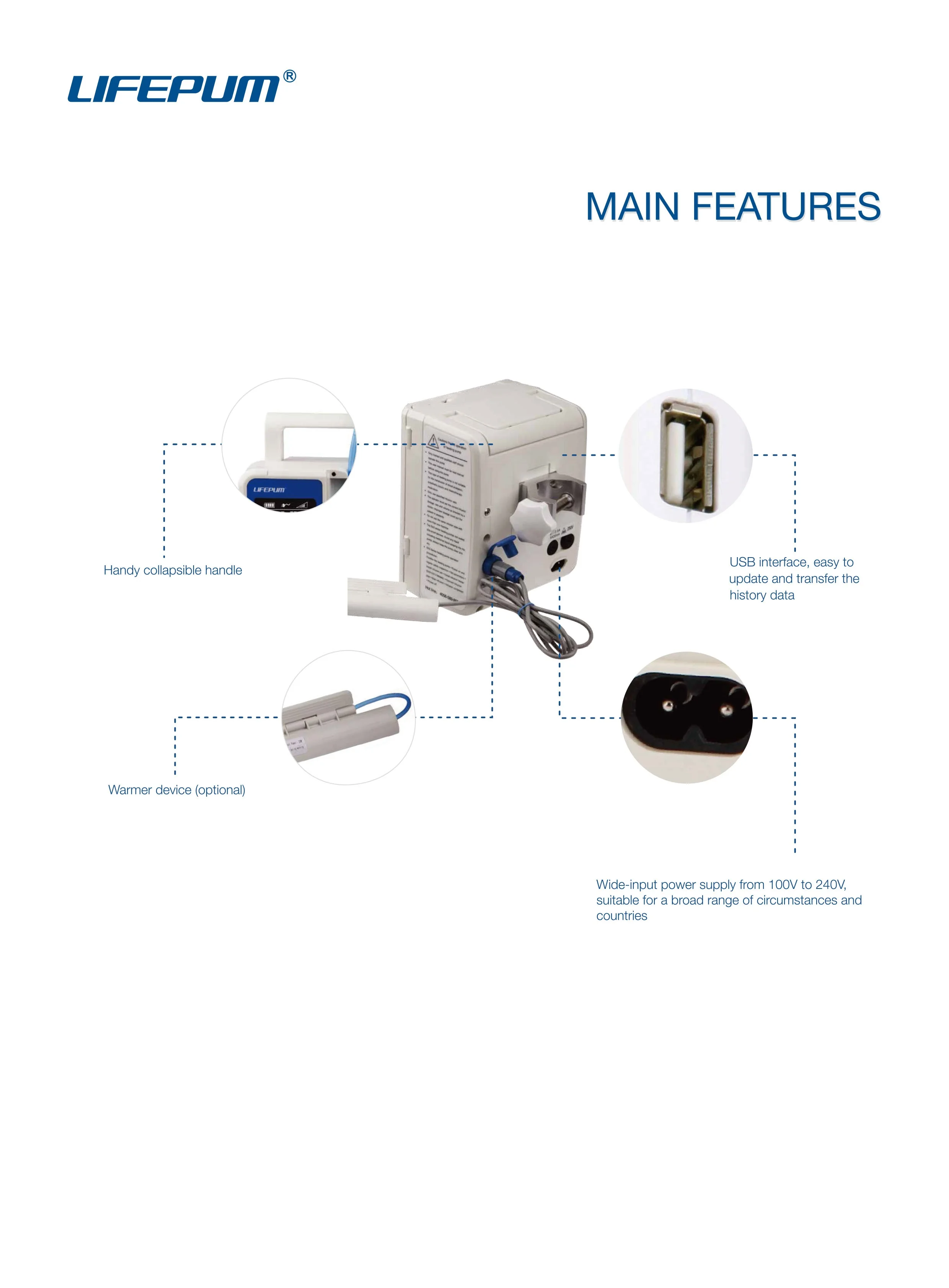

Main Feature:
1. Dual MCU, Keep the device more safely and reliably
2. With sound and light alarm system, the alarm volume can be customized
3. Dynamically display the pressure change trend
4. Quick filling and flushing function
5. Convenient and easier Operation
6.Ultrasonic detection technology
7. Heat the nutrient solution (Optional heater)
8. Different Feeding modes, suitable for different clinical needs
9. Supporting special enteral nutrition set to improvethe accuracy of infusion
1. Dual MCU, Keep the device more safely and reliably
2. With sound and light alarm system, the alarm volume can be customized
3. Dynamically display the pressure change trend
4. Quick filling and flushing function
5. Convenient and easier Operation
6.Ultrasonic detection technology
7. Heat the nutrient solution (Optional heater)
8. Different Feeding modes, suitable for different clinical needs
9. Supporting special enteral nutrition set to improvethe accuracy of infusion

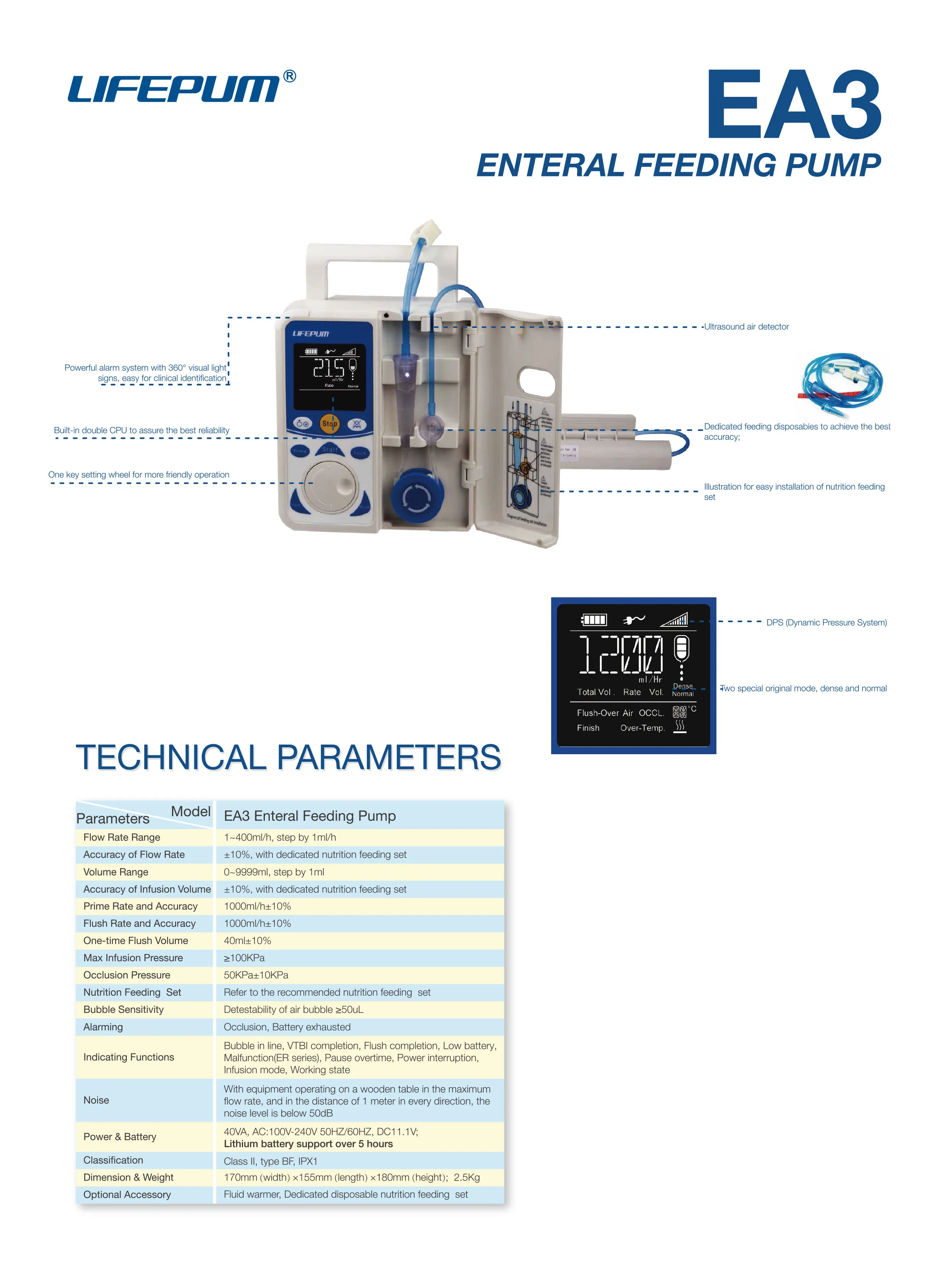

MODELS | EA313 |
infusion rate (ml/h) | 1～400 ml/hr in 1 ml increments |
mean flow velocity accuracy | ±10% of selected flow rate |
dosage limit(ml） | 0-9999 in 1 ml increment |
meanvolume accuracy | ±10% |
loading speed andmeanaccuracy (ml/h) | 1000±10% |
Cleaning speed andmeanspeedaccuracy(ml/h) | 1000±10% |
max volume flushandmeanspeed accuracy(ml) | 40±10% |
max feeding pump pressure | ≥0.1 MPa |
occlusion alarm level (pressure) | 50KPa±10KPa |
the longest occlusion triggering time of this device at minimum flow rate | 43min |
the shortest occlusion triggering time of this device atintermediate flow rate | 85s |
Medium speed running the pills from blocking the alarm threshold | 0.79ml |
recoverable Alarm | 1min50s—2min |
pause overtime alarm time | 1min50s—2min |
heating temperature | Infusion flow rate≥ 20ml / h, 15cm distance away from the heater outlet at 25-38 ℃ (EA312/313 models have this feature) |
use ofinfusionset | see recommended infusion sets list |
air-in-line sensitivity | detestability of single size of air bubble ≥50uL |
alarm | occlusion alarm, Over heatedalarm, battery depleted alarm |
alarms | air in line,Prime, Flush, low power, failurecodes (ERxx), pause overtime, powerstate, infusion mode, work state, heaterstate. |
noise | measured at the highest flow rate on wooden table, the volume is lower than 50 dB at a distance of 1 meter |
power | ac: 100V-240V 50 Hz /60Hz |
built inbattery | a fully charged internal DC11.1V battery can continuously run the pump for approximately 5 hours on intermediate rate |
power consumption | ≤40VA |
power output | ≤20VA |
The rated output voltage | 15V |
weight | 2.0kg |
heater | W-E01 ,cable length is 1.5m,Shield |
Essential performance | This product is suitable for patients with enteral nutrition infusion, the host cancontrol the infusion rate. With alarmfunction, with bubble detection piping and piping blockage detection. |
classification | type BF,class ΙΙ continuous volumetric feeding pump with internal battery; IPX1 (sealed drip-proof device) |
dimensions | 155mm（L）×170mm（W）×180mm（H） |
accessories | 1 user manual, 1 power cable, 1 heater (EA312/313 models only) |
operational | operating temperature: 5℃～＋40℃ |
relative humility: 20％～90％ | |
conditions | atmospheric pressure: 700hPa～1060hPa |
feeding pump should be operated in conditions free from strong shocks or vibrations, strong magnetic fields or corrosive gas environments. | |
battery operating condition | charging：0 ℃～＋45 ℃ discharge：-20℃～＋60℃ |
servicelife | 5 years |

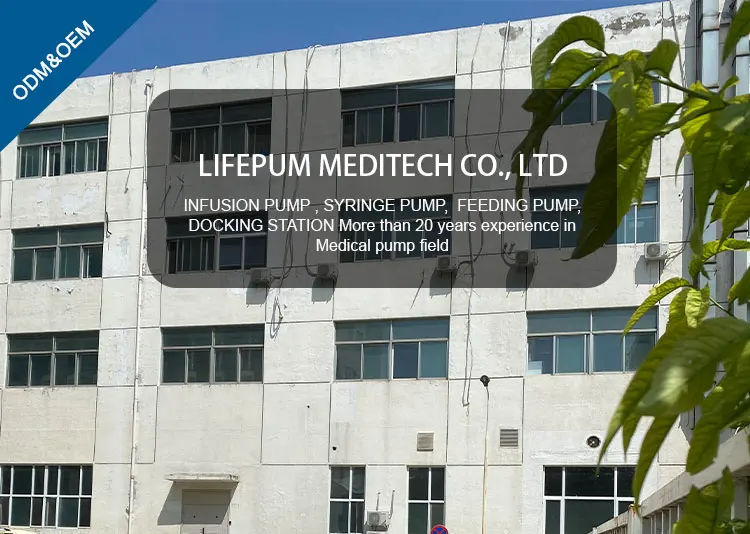

LIFEPUM MEDITECH CO., LTD is located in Beijing, the capital of China. We are High Technology company, have more than 20 years Research and Design experience, and hold the core technology of Medical pump .
