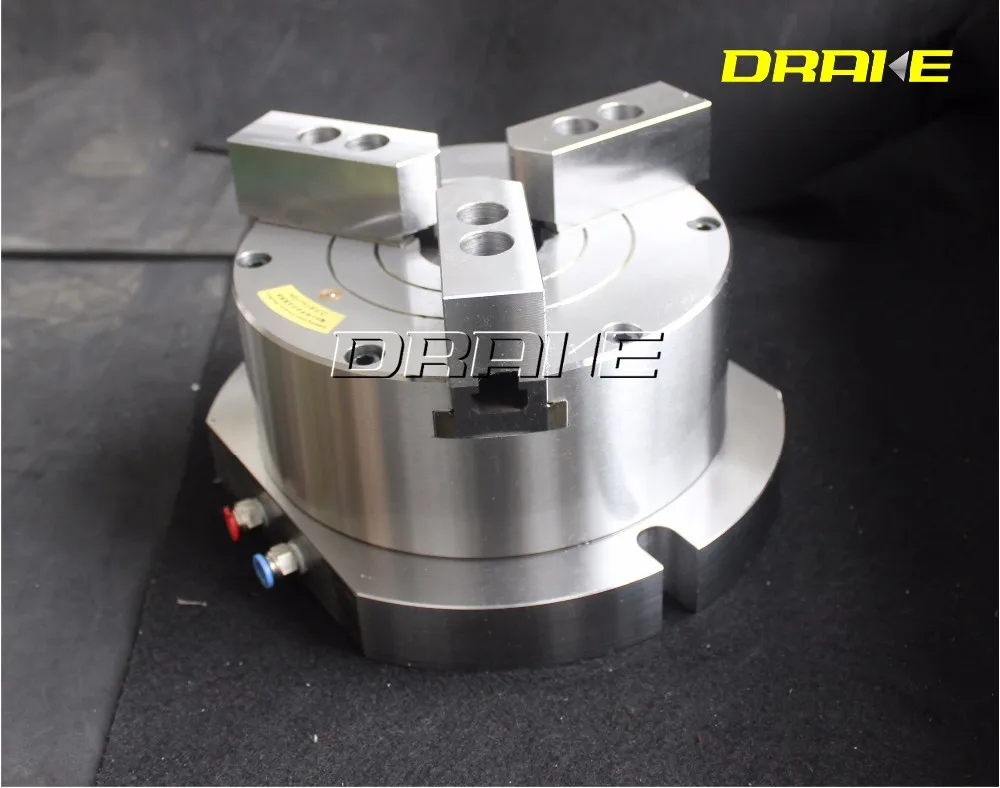

Hollow vertical pneumatic chuck 3 jaw automatic lathe chuck
Product Description
jaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuck
Technical features:

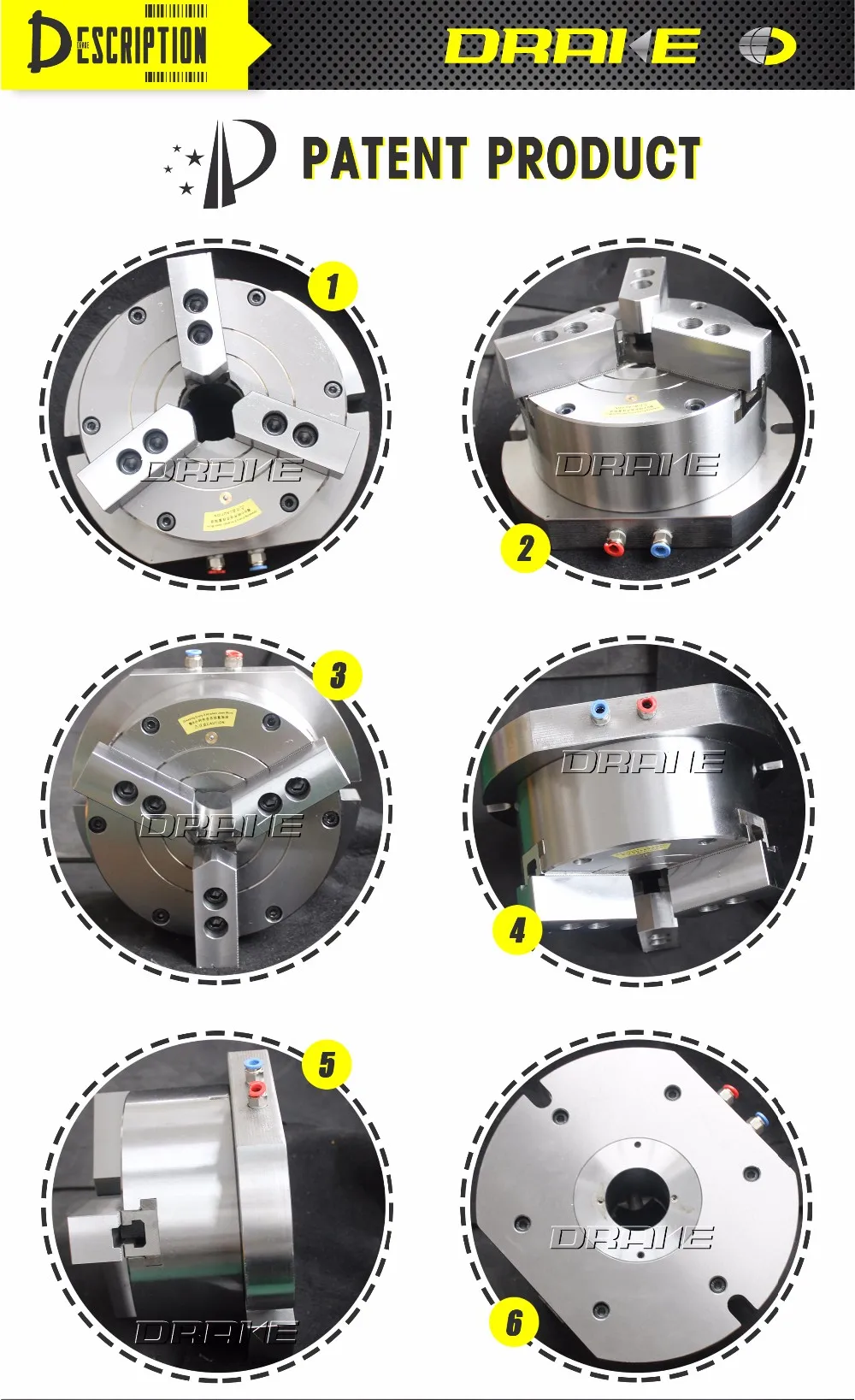

1. Patent product, vertical type with baseboard.
2. Super thin body, easy retrofit.
3. Built -in cylinder structure, convenient for installation.
4. Accuracy, within 0.03mm.
5. Pneumatic operation Standard.
6. This chuck is applicable for machining center, driller and miller.
7. 2 jaw and 4 jaware available.
8. Rigid and short construction makes the stationary 3 jaw chucks ideal for
operating in machining centers
Parameters
There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
Size Parameters
| Model/Spec | D | D1 | d | L1 | L2 | L3 | H | H1 | h | p |
| QK3-04L" | 115 | 160 | - | 2/15 | 120 | - | 116 | 92 | 20 | 14 |
| QK3-05L" | 135 | 175 | 20 | 2/15 | 140 | - | 120 | 97 | 26 | 14 |
| QK3-06L" | 172 | 218 | 35 | 2/17 | 180 | - | 142 | 109 | 26 | 20 |
| QK3-08L" | 208 | 265 | 40 | 2/17 | 220 | - | 155 | 115 | 26 | 25 |
| QK3-10L" | 252 | 310 | 60 | 2/20 | 260 | - | 157 | 115 | 26 | 30 |
| QK3-12L" | 322 | 400 | 80 | 4/20 | 340 | 150 | 185 | 133 | 30 | 30 |
| QK3-15L" | 400 | 480 | 100 | 4/20 | 430 | 150 | 220 | 148 | 35 | 43 |
It is recommended to grease chucks at least twice a day in order to maximize longevity
Performance Parameters
| Model/Spec | Jaw Stroke (Diameter) (mm) | Max. static clamping force (kgf) | Max. static holding force (kgf) | Permissible pressure (Mpa) | Clamping range | Holding range | Net Weight (kg) |
| QK3-04L" | 3.2 | 1830 | 1120 | 0.4-0.8 | 3-115 | 15-120 | 8 |
| QK3-05L" | 3.7 | 1630 | 1020 | 0.4-0.8 | 5-130 | 15-140 | 11 |
| QK3-06L" | 4.2 | 3060 | 2240 | 0.4-0.8 | 5-170 | 20-180 | 18 |
| QK3-08L" | 5 | 4890 | 3670 | 0.4-0.8 | 10-210 | 25-230 | 28 |
| QK3-10L" | 6.5 | 6830 | 5100 | 0.4-0.8 | 20-250 | 30-260 | 40 |
| QK3-12L" | 8.5 | 10910 | 8160 | 0.4-0.8 | 30-320 | 40-340 | 75 |
| QK3-15L" | 12 | 15300 | 11730 | 0.4-0.8 | 40-400 | 60-420 | 120 |

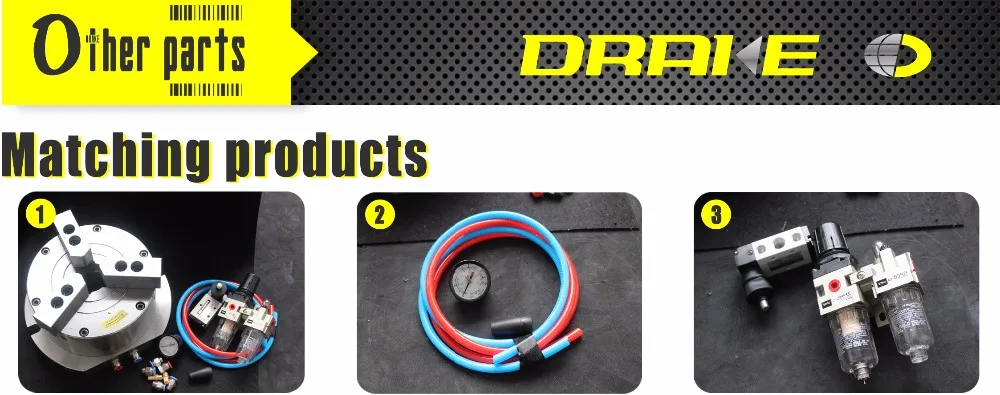

Matching products
The matching products including:
1. Soft jaws.
2. Pressure gauge, air hose
3. Manual solenoid valve, oil-water separator
Certifications
jaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuck
Work Flow & Packing
jaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuckjaw chuck
Equipments
Video
