Product Overview
Description

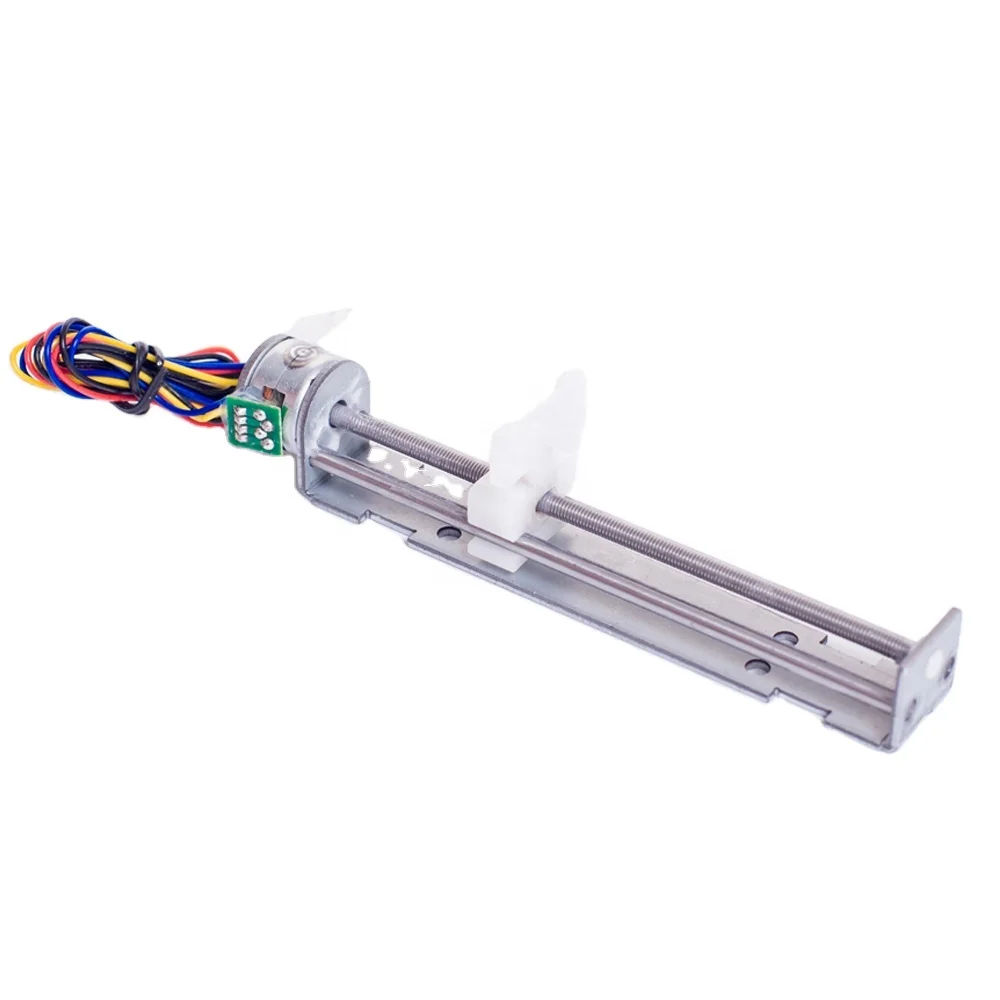

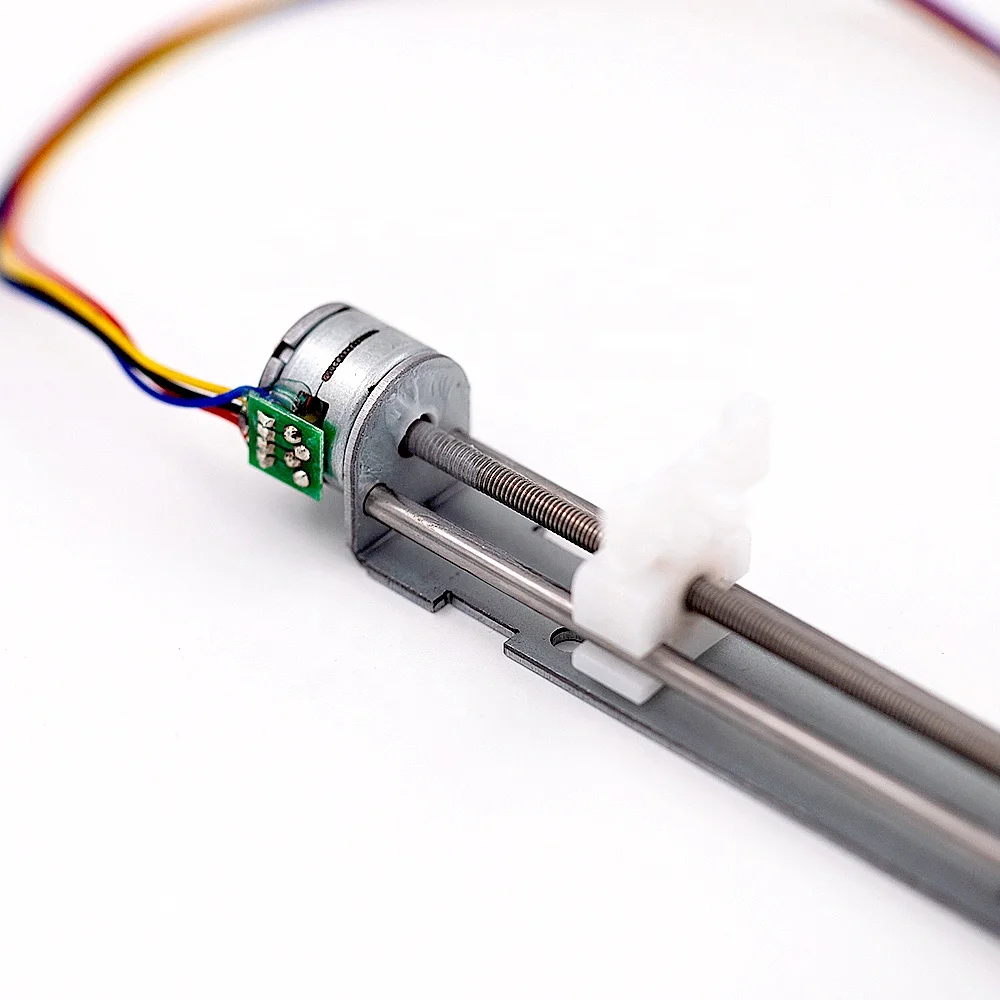

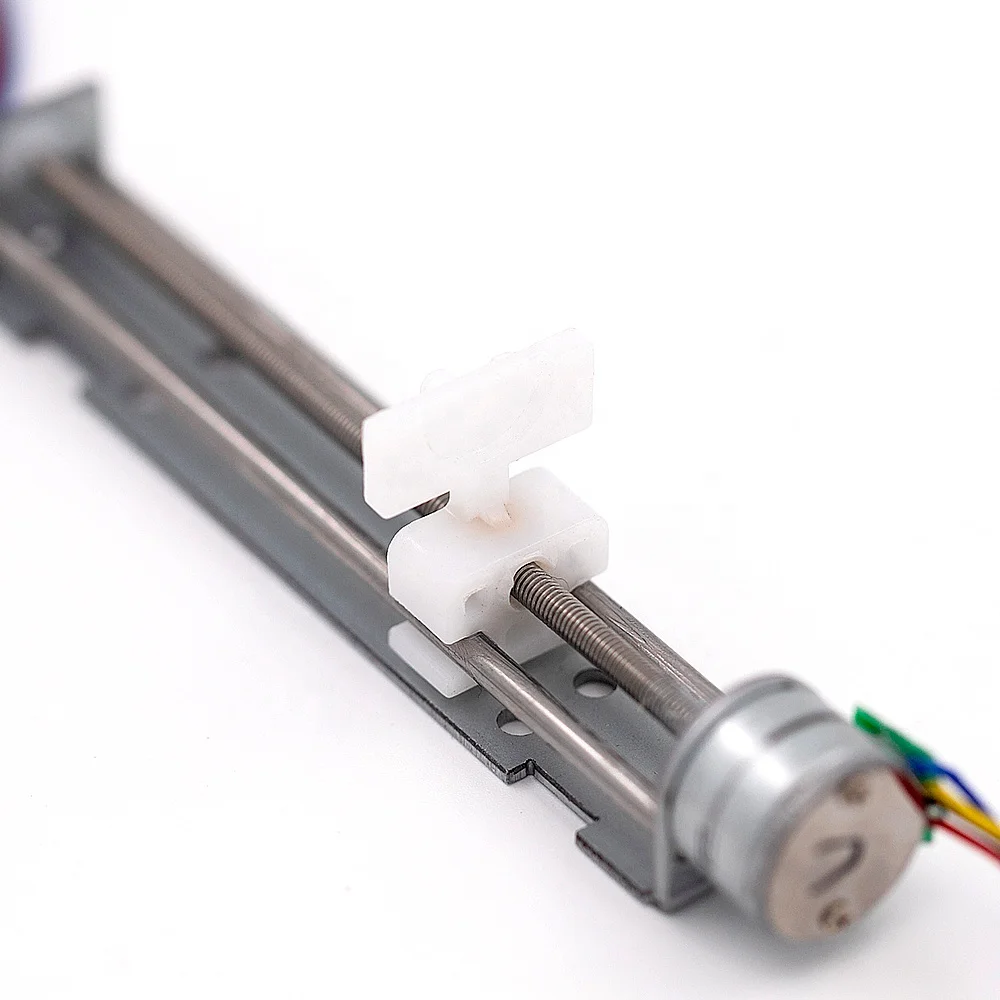

BACHIN Stainless Steel Stepper Motor Slider Travel 80mm Miniature Screw Block Slide for Linear Bearing Motor
Product Description
Product Name | Stepper Motor linear Screw Slider |
Material | Stainless steel |
Function | Micro Sliding table fit for DIY laser engraving machine as its XY axis |
Driving Voltage | DC9-12v/800mA |
Screw Length | 90mm/3.5" |
Screw Diameter | 3mm/0.1" |
Motor Type | 2 phase 4 wire |
Step Angle | 18° |
Slider Width | 15mm/0.6" |
Effective Stroke | 80mm/3.1" |
Screw Pitch | 0.5mm/0.02" |
Net weight | 46g |
Product performance
Screw thread pitch: 0.5mm (a step moving 0.025mm, as required for smaller can be used to segment the driver)
The speed of a straight line is the maximum 25mm/s

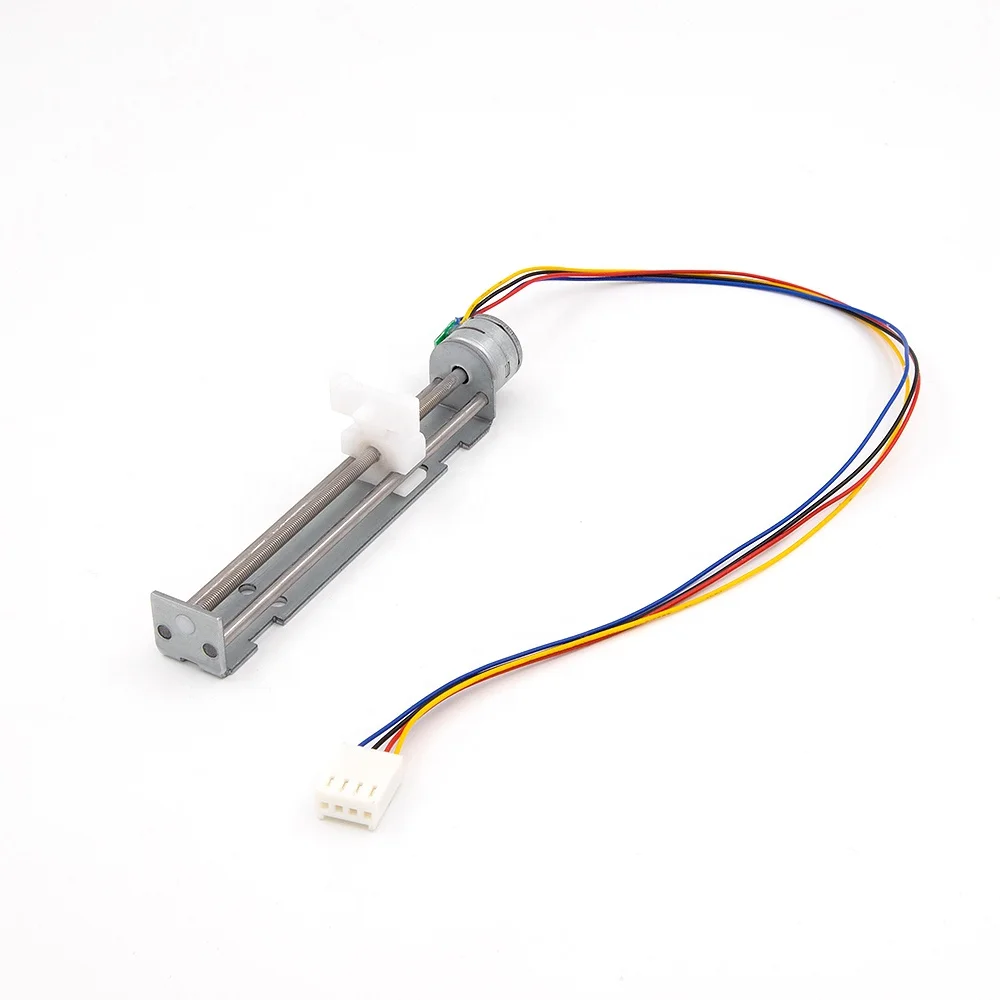

4 Wire: Blue A +, Black A-, Red B +, Yellow B-
Note: The stepper motor is not rotating with power. Need stepper motor drive board and control panel.
4 Wire: Blue A +, Black A-, Red B +, Yellow B-
Note: The stepper motor is not rotating with power. Need stepper motor drive board and control panel.
