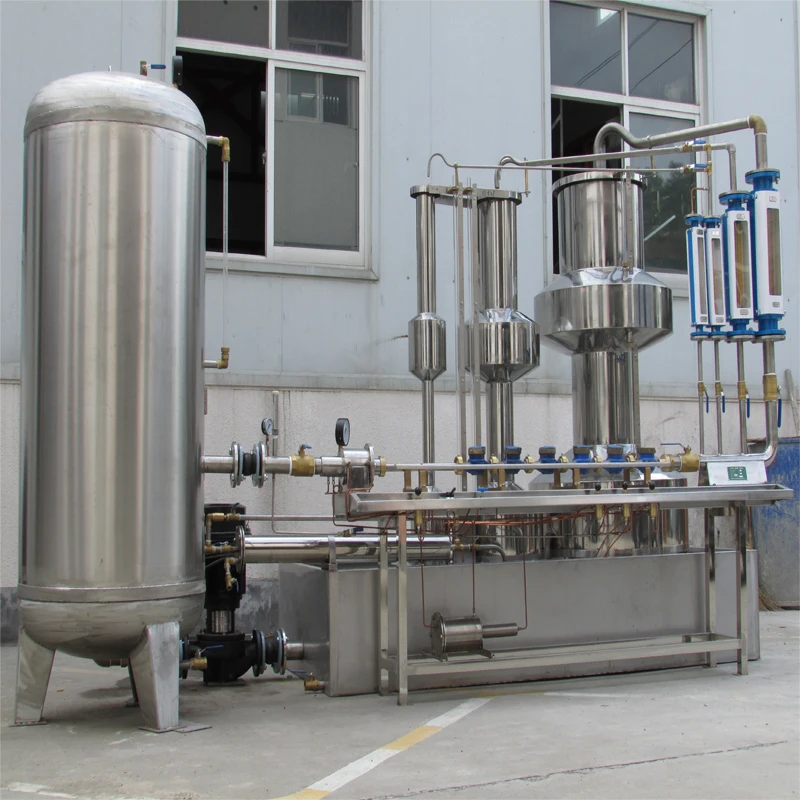

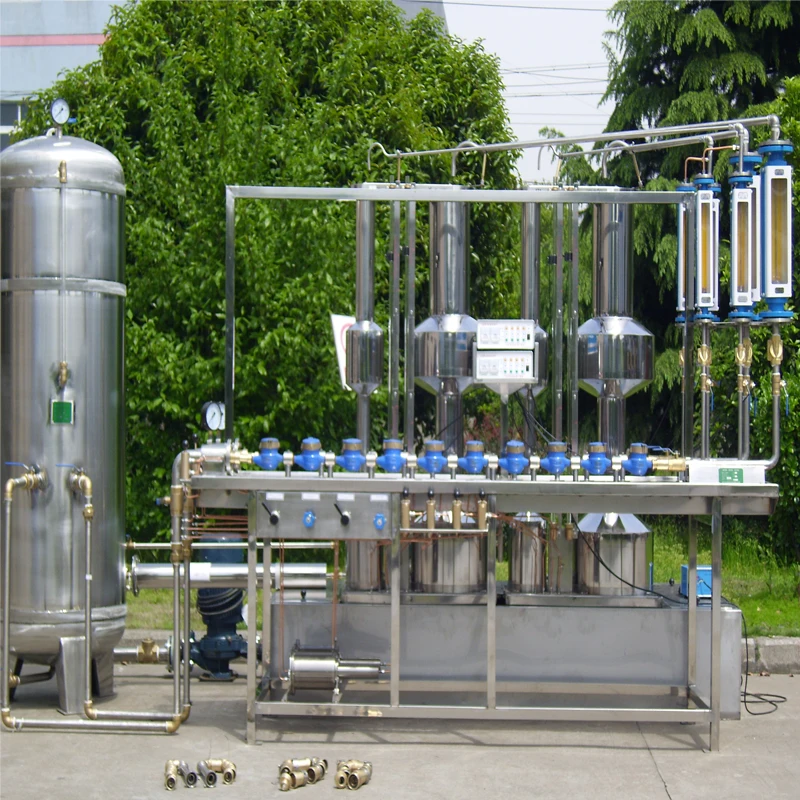

Stainless Steel Calibration Dn15 40 Flow Water Meter Test Bench for Water Meter Testing
- Category: >>>
- Supplier: Wenling Younio Water Meter Co. Ltd.
Share on (1600353223131):
Product Overview
Description
Feature:
2.1 The tester bench accuracy: 0.2
2.2 Tested water meter size:15, 20, 25, 40, 50
2.3 Technical criteria for water meter testing: used for full capability test or produce
andmaintenance
2.4 Instantaneous flow index gauge is adopted glass rotor flowmeter group, the actual
measurement accuracy not less than 2.5%
The detail type and specification as following:
LZB-15 4-90L/h
LZB-25 70-800L/h
LZB-50 450-8000L/h
LZB-80 7-31.5m 3 /h (Additional for 15-50mm tester)
2.5 Working volume container cubage:
15-50mm,(10L+10L)20L,(50L+50L)100L,(300L+200L)500L.
2.6 Using water source working pressure: 0.3-0.5MPa
2.7 Clamp equipment flex distance is:
60mm(15-50mm tester)
2.8 Appearance size
15-50mm:
4200×1800×2100 (in series meter tester)
2.1 The tester bench accuracy: 0.2
2.2 Tested water meter size:15, 20, 25, 40, 50
2.3 Technical criteria for water meter testing: used for full capability test or produce
andmaintenance
2.4 Instantaneous flow index gauge is adopted glass rotor flowmeter group, the actual
measurement accuracy not less than 2.5%
The detail type and specification as following:
LZB-15 4-90L/h
LZB-25 70-800L/h
LZB-50 450-8000L/h
LZB-80 7-31.5m 3 /h (Additional for 15-50mm tester)
2.5 Working volume container cubage:
15-50mm,(10L+10L)20L,(50L+50L)100L,(300L+200L)500L.
2.6 Using water source working pressure: 0.3-0.5MPa
2.7 Clamp equipment flex distance is:
60mm(15-50mm tester)
2.8 Appearance size
15-50mm:
4200×1800×2100 (in series meter tester)
