Product Overview

Description

Product name: 12V 5A 60W  Rainproof Sliding Cover Switching Power Supply with CE RoHS for CCTV or LED Screen or Moving Advertising Truck

Rated power: 60W

Output voltage: DC 12V

Ripple & Noise (max.): 160mVp-p

Business type: Manufacturer/Factory



12V 5A 60W  Rainproof Sliding Cover Switching Power Supply with CE RoHS for CCTV or LED Screen or Moving Advertising Truck features:

v High efficiency up to 83%

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Suitable for dry/damp/wet locations

v Built-in constant current limiting circuit



12V 5A 60W  Rainproof Sliding Cover Switching Power Supply with CE RoHS for CCTV or LED Screen or Moving Advertising Truck details:

Model		HK-60W-12V
Output	DC Voltage	12V
	Rated Current	5A
	Current Range	0~5A
	Rated Power	60W
	Ripple & Noise (max.)	160mVp-p
	Voltage Adj. Range	11.4~12.6V
	Voltage Tolerance	±2.0%
	Line Regulation	±0.5%
	Load Regulation	±0.5%
	Setup,Rise time	2s,30ms at full load
	Hold Up Time(Typ.)	10ms at full load
Input	Voltage Range	180~264VAC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	83%
	AC Current (Typ.)	Max. 1A/230VAC
	Inrush Current (Typ.)	Cold start 40A at 230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~200% rated output power
		Protection type: Shut down O/P,recovers automatically after fault removed
	Over Current	110~200% rated output current
		Protection type: Shut down O/P,recovers automatically after fault removed
	Short circuit	Protection type: Shut down O/P,recovers automatically after fault removed
Environment	Working Temperature	-10~+40°C
	Working Humidity	40~90% RH  Non-condensing
	Storage temp.& humidity	-40~+70°C, 10~93%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1 standard
	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	30000hrs     MIL-HDBK-217F (25°C)
	Dimension	140*94*50 (L*W*H)
	Packing	Product net weight: 268g; Master carton:548*319*328mm/50pcs/15.8kg;
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. Derating may be needed under low input voltages.

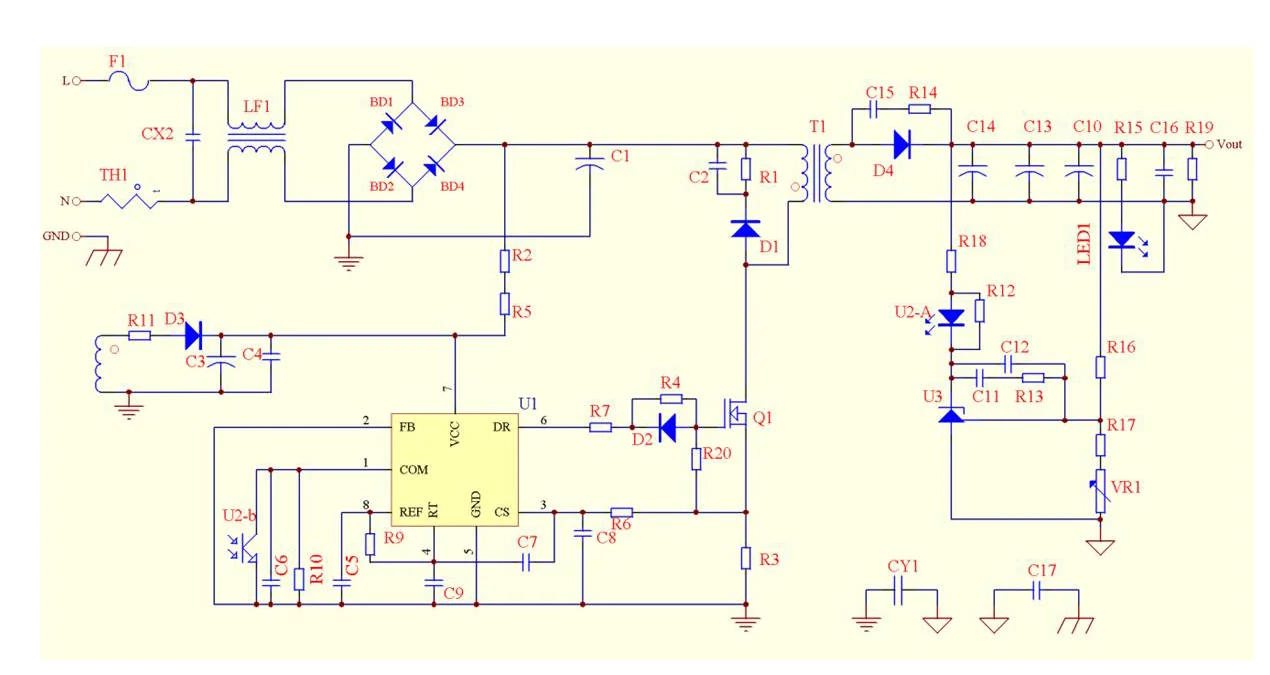

12V 5A 60W  Rainproof Sliding Cover Switching Power Supply with CE RoHS for CCTV or LED Screen or Moving Advertising Truck electrical schematic diagram:

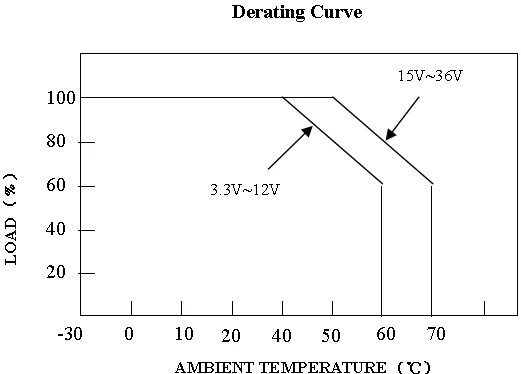

12V 5A 60W  Rainproof Sliding Cover Switching Power Supply with CE RoHS for CCTV or LED Screen or Moving Advertising Truck derating curve:











Our Advantage:

v ODM: Design & Manufacturing based on your request

v OEM: can use your customized sticker, manual, inner box/color box, master carton

v After-Sales Service: Simple procedure for warranty; Flexible warranty machanism

v 22 years experience, provide stable quality and reasonable price

v Professional sales team, greatly enhance communication efficiency



FAQ:

v Q:Is sample free?

    A: Yes, sample is free, but you should bear shipping freight by yourself

v Q:How many days does it take for sample?

    A: Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.

v Q:What kind of certificate do you have for your product?

    A: TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver; UL for Variable Frequency Drive;CE & RoHS for power supply.

v Q:What's the lead time for order?

    A: 20-25 days

v Q:What's your payment term?

    A: Normally, T/T: 30% advance before production, 70% balance before delivery;For small amount, Western Union/Paypal/Moneygram are acceptable;For order with large amount, Irrevocable L/C is acceptable.

v Q:What's MOQ?

    A: Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please contact with our sales for inventory status.
