High quality automatic bathroom toilet tissue paper making machine production line
- Category: >>>
- Supplier: Fujian Xinyun Machinery Development Co. Ltd.
Share on (1600353509363):
Product Overview
Description
Product Overview

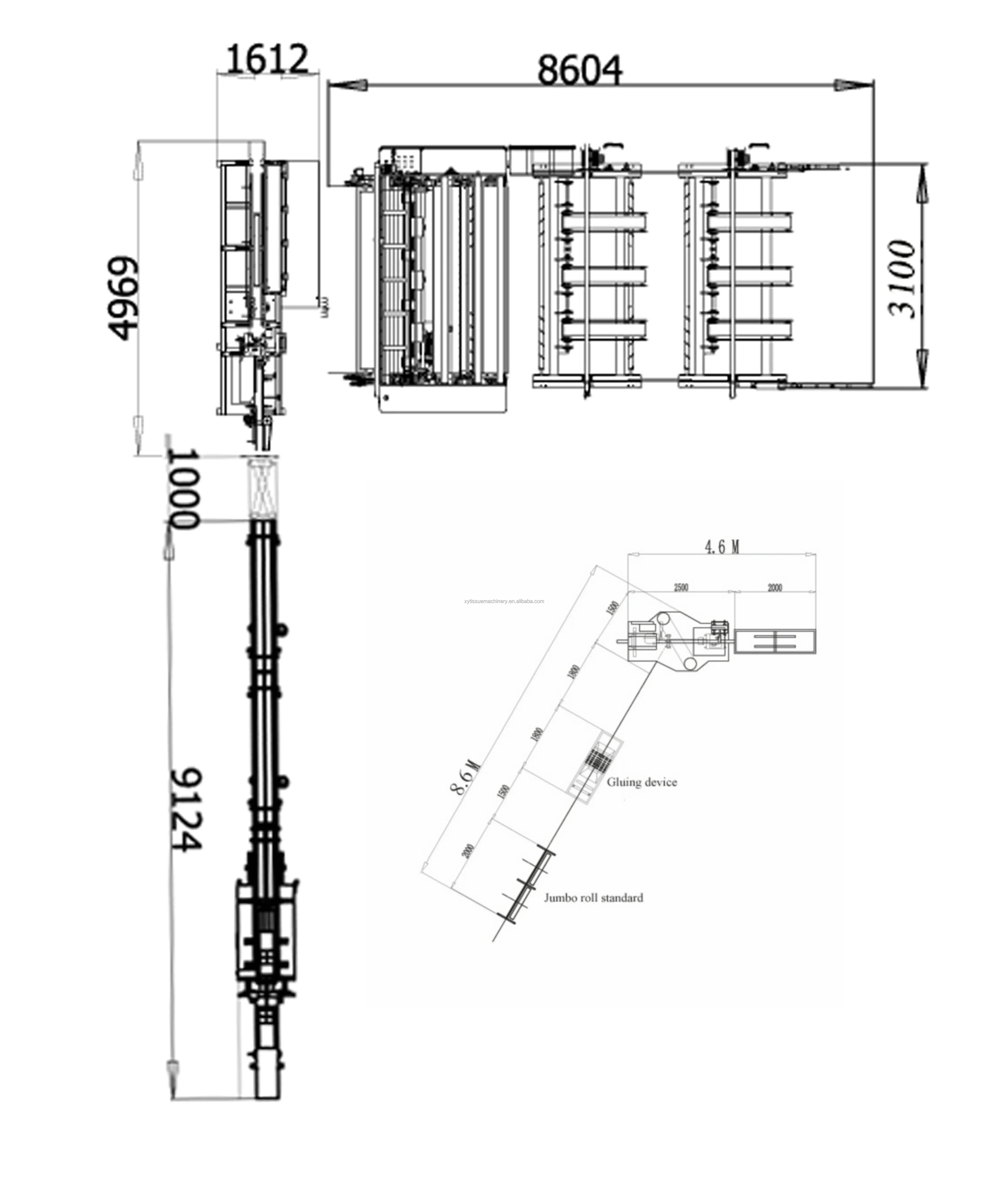

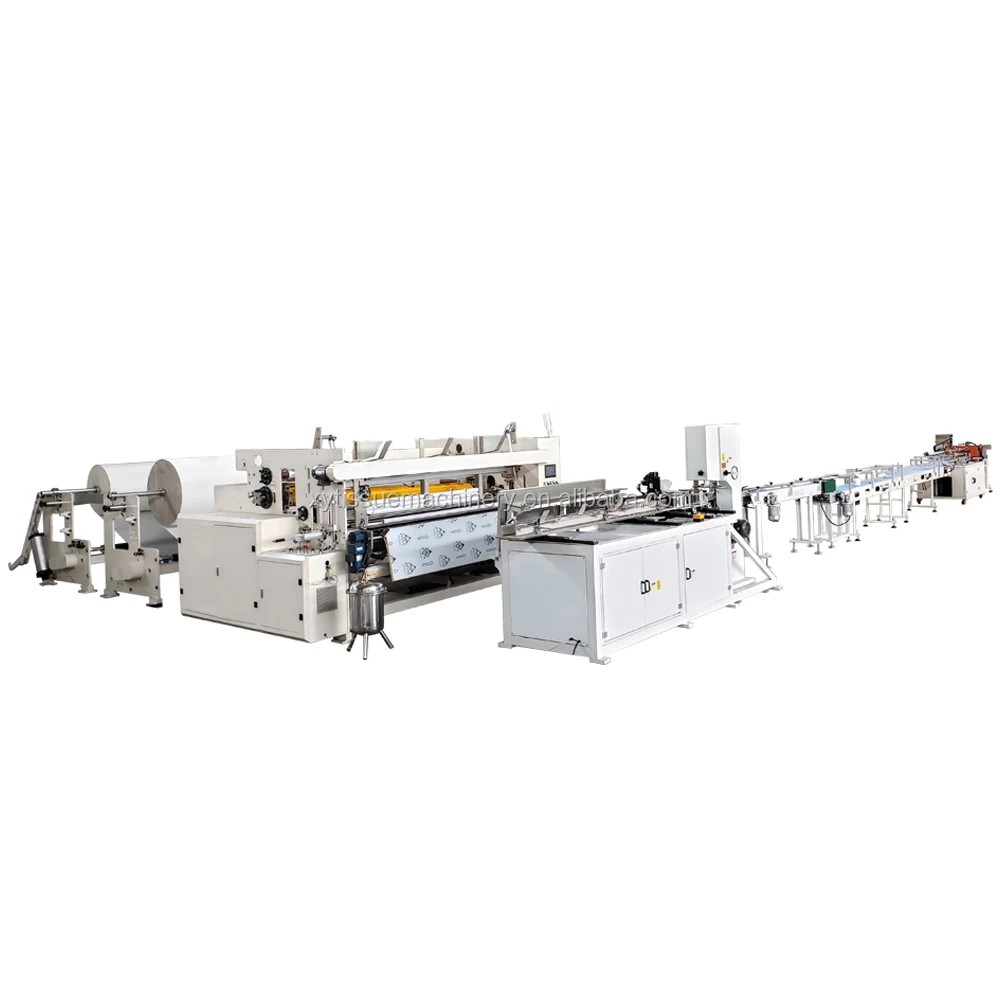

XY-TQ-B-400 High Quality Automatic Bathroom Toilet Tissue Paper Making Machine Production Line
Outline

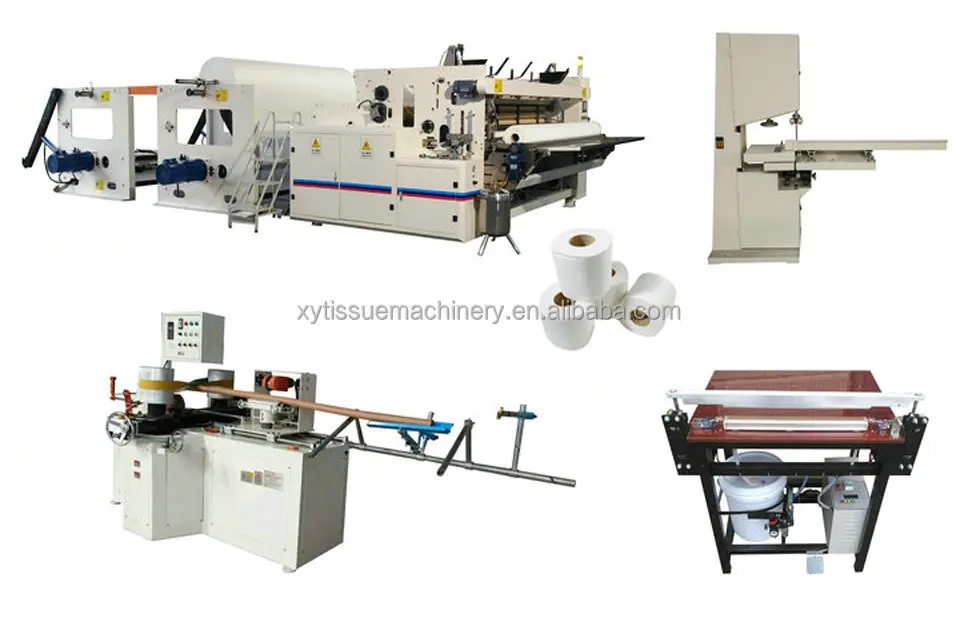

This production line consists of Fully Automatic Rewinding Machine, automatic band saw machine and semi automatic bundle packing machine. From the jumbo roll into the finished rolls, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing hygienic paper products.VIDEO LINK: https://youtu.be/5NRI0NWehwA
Production specifications

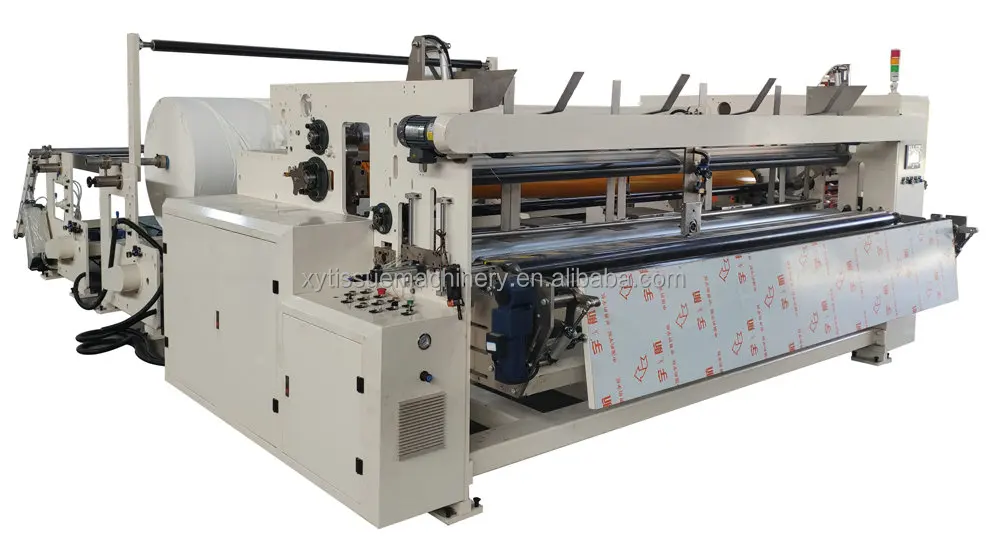

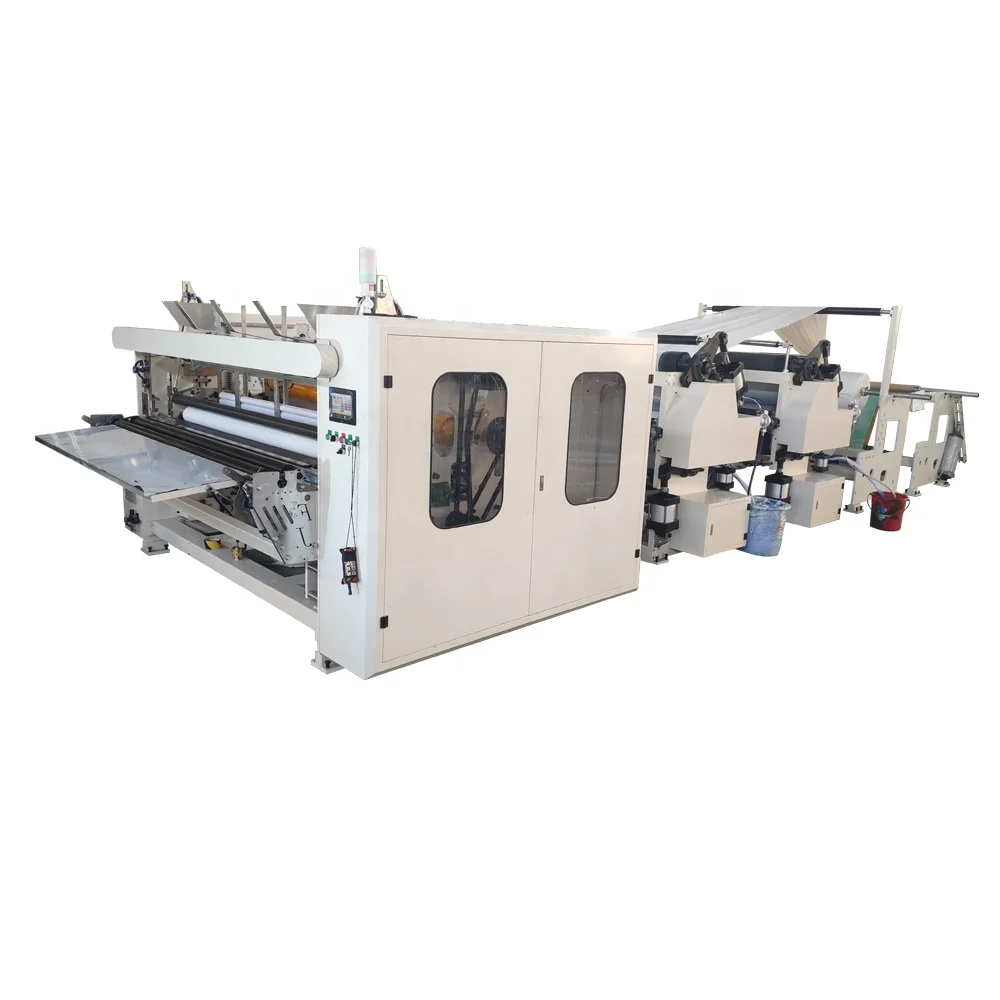

XY-TQ-B Wall Type Automatic Toilet Paper Rewinding Machine
Video Link: https://youtu.be/skfnj7zmwvY
Machine Model | XY-TQ-B |
Jumbo Roll Max Width | 2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
Perforation Distance | 4 anvil Blades（115mm）(Other size can be specified) |
Finished Product Diameter | Φ90~φ280mm |
Finished Product Core Diameter | φ38~φ76mm |
Production Speed | 200~230m/min |
Program Controller | PLC( INVT ) |
Unwind Stands | 2 Stands（Need to be specified） |
Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user） |
Main Power | 14KW 380V 50HZ |
Edge-Line Embossing | Steel to steel (Pneumatic Control) |
Full Embossment | Steel to rubber. |

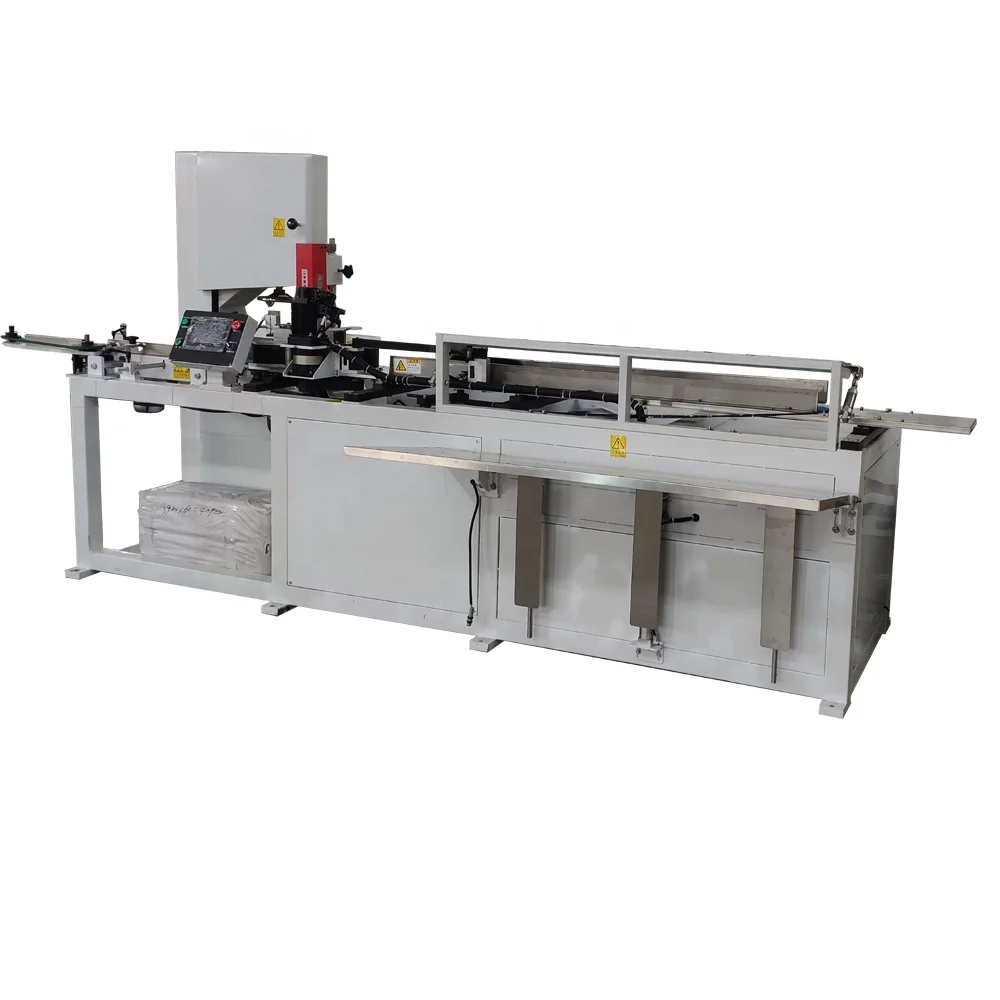

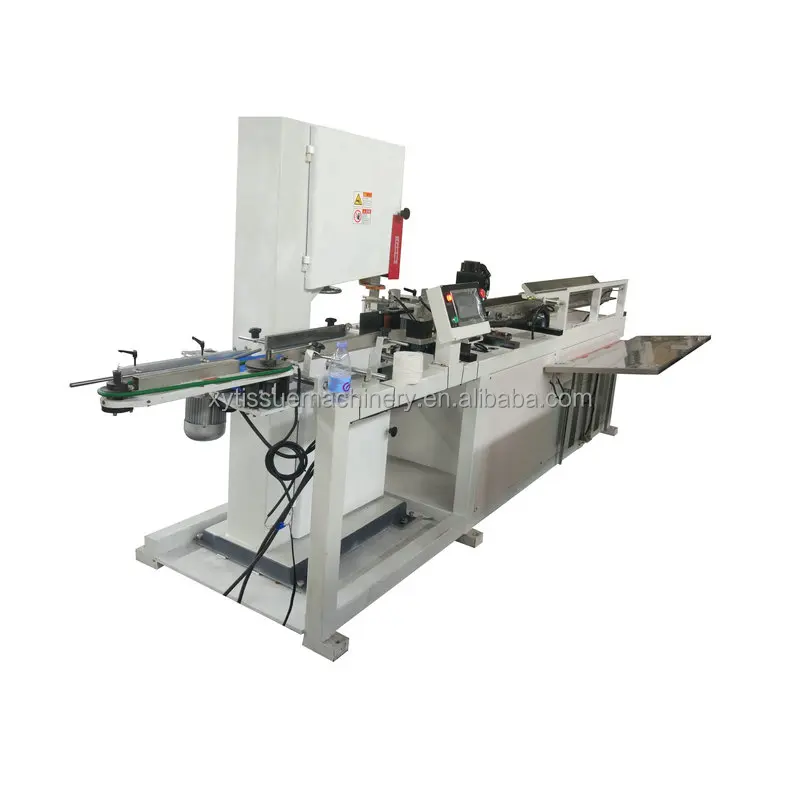

XY-AI-400 Toilet paper band saw cutting machine
Video Link: https://youtu.be/bgrCNrdUhV0
Machine Model | XY-AI-400 |
Jumbo Roll Width | 1750~2800mm (Other size can be specified) |
Jumbo Roll Diameter | Φ105~φ115mm(Other size can be specified) |
Design Speed | 150Cuts/min |
Stable Speed | 100Cuts/min |
Grinding System | Pneumatic Sharpen, grinding time can be set |
Driving System | Delta/Mitsubishi Servo Motor |
Power | 11KW |
Blade Diameter | φ610*4.7mm |
Voltage | 380V 50HZ |

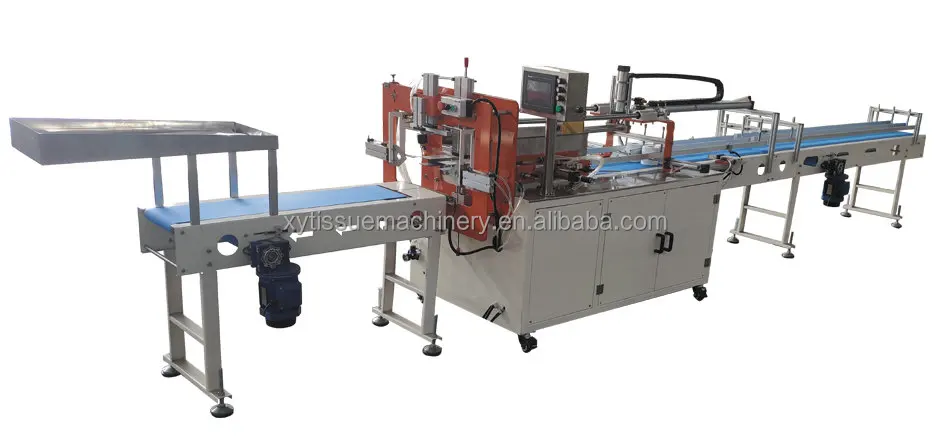

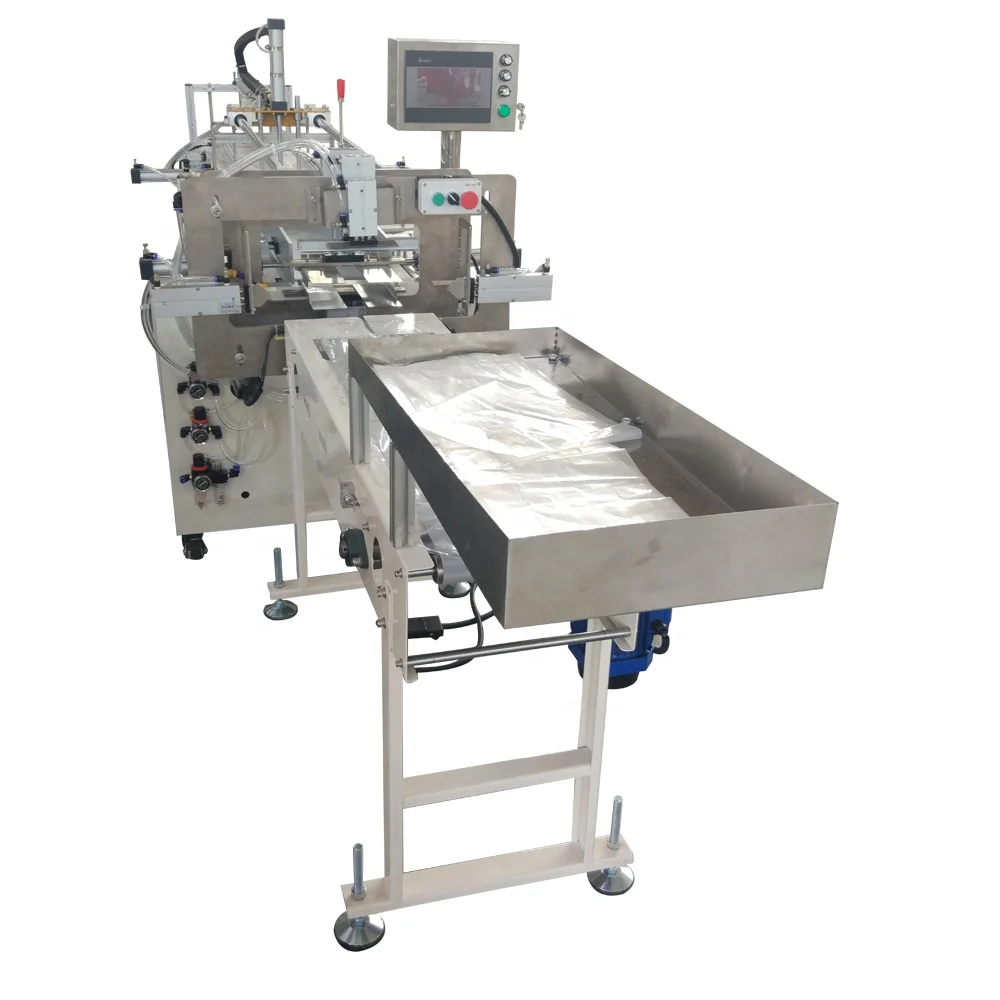

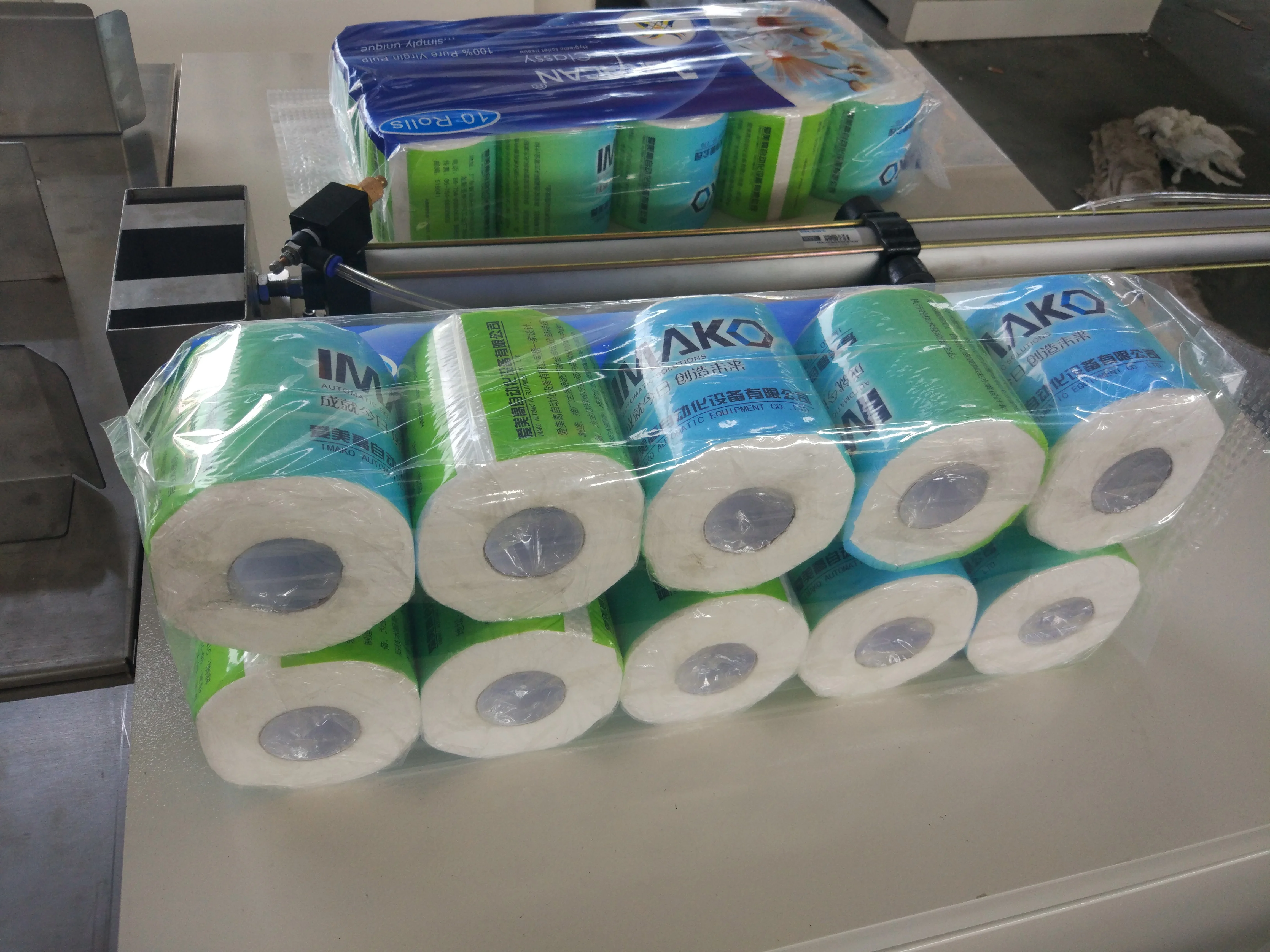

XY-AI-398A Semi Auto Multiple Rolls Toilet Paper Packing machine
Video Link: https://youtu.be/TwZTC3lniW4
Machine Model | XY-AI-398A |
Speed | 3-5bags/min |
Power | 2KW 220V 50Hz |
Air supply | 0.6 MPA(supplied by client) |
Roll size | Customized design according to your request |
Packing way | Two layers, four lines, 4*6=24 rolls in each layer, 48 rolls in total |

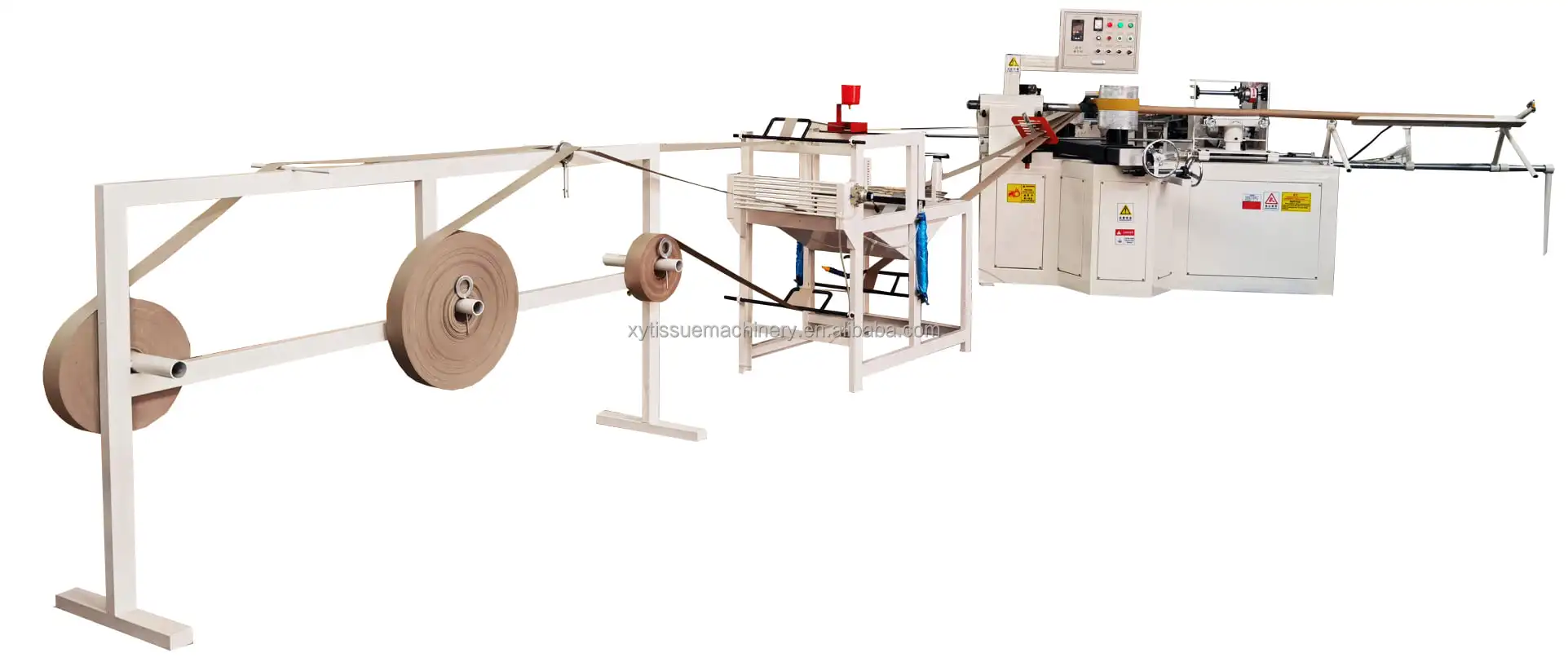

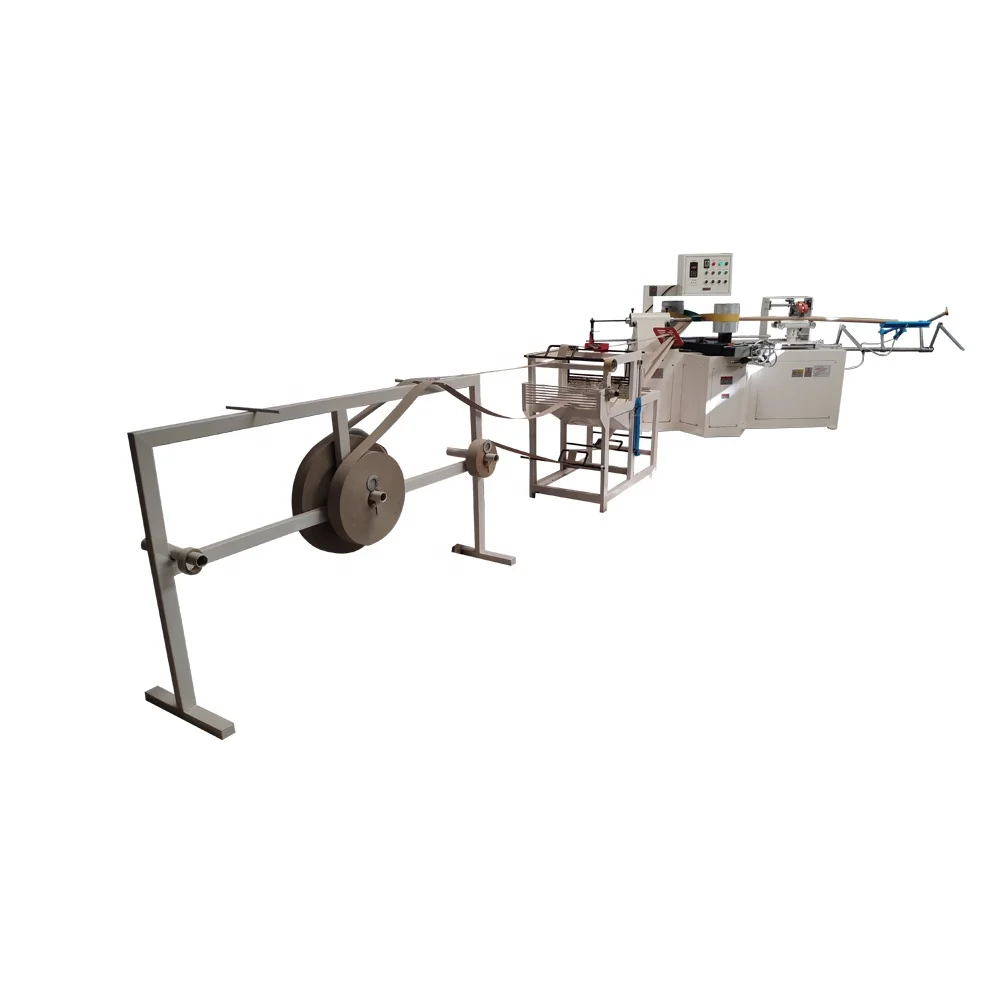

XY-SD-B Automatic Toilet Paper Core Making Machine
Video Link: https://youtu.be/RDqnvwmzsvQ
Machine Model | XY-SD-B |
speed | 15 ~ 20m / minutes |
Kraft paper width | 50~70mm |
Paper Tube diameter | 25mm~100mm (can be customized) |
Paper tube layers | 2 ~ 30 layers |
Paper grams amount | 150-400 gsm |
Reel Length | adjustable (maximum: 3.0 m) |
Defect rate | ≤2% |
Power | 4.0KW 380V 50HZ |
Recommend Products
Semi Automatic Toilet Paper Machine Production Line
Video Link: https://youtu.be/jK6efI4EzXA
There are four machines in this production line.
1) XY-TQ-B Full Automatic Toilet Paper Making Machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-300 Semi Automatic Toilet Paper Band Saw Cutting Machine
Capacity: 30-40 cuts/min
Cutting diameter:80-150mm
3) XY-AI-398B Semi Automatic Toilet Paper Multi Rolls Packing Machine
Capacity: 10-15 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min
1) XY-TQ-B Full Automatic Toilet Paper Making Machine
High speed:200 meters/minute
Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-300 Semi Automatic Toilet Paper Band Saw Cutting Machine
Capacity: 30-40 cuts/min
Cutting diameter:80-150mm
3) XY-AI-398B Semi Automatic Toilet Paper Multi Rolls Packing Machine
Capacity: 10-15 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min

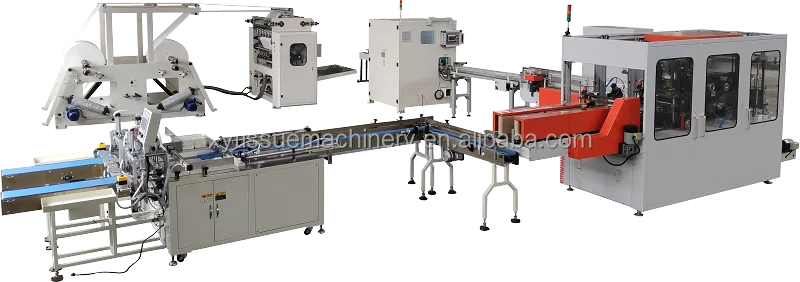

Automatic Facial Tissue Machine Production Line
Video Link: https://youtu.be/C6CLxz_XNoY
1) XY-GU-20A Automatic 6 Lines Facial Tissue Paper Making Machine
Capacity: 5,400 sheets/line/min
2) XY-GU-281 Automatic Facial Tissue Paper Cutting Machine(single channel)
Capacity: 80-100cuts/min
3)XY-BT-298 Automatic Plastic Bags Packing Machine
Capacity:50-70 bags/min
Capacity: 5,400 sheets/line/min
2) XY-GU-281 Automatic Facial Tissue Paper Cutting Machine(single channel)
Capacity: 80-100cuts/min
3)XY-BT-298 Automatic Plastic Bags Packing Machine
Capacity:50-70 bags/min
4)XY-GU-26B semi automatic multi bags packing machine(double heads)
Capacity:10-15 bags/min
Capacity:10-15 bags/min

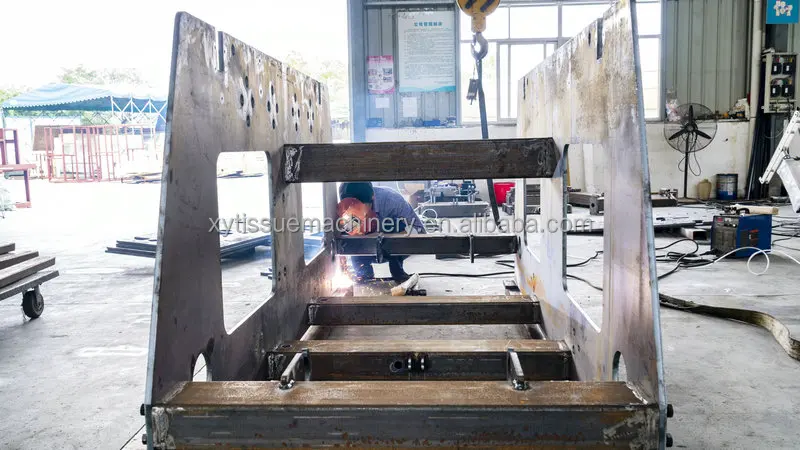

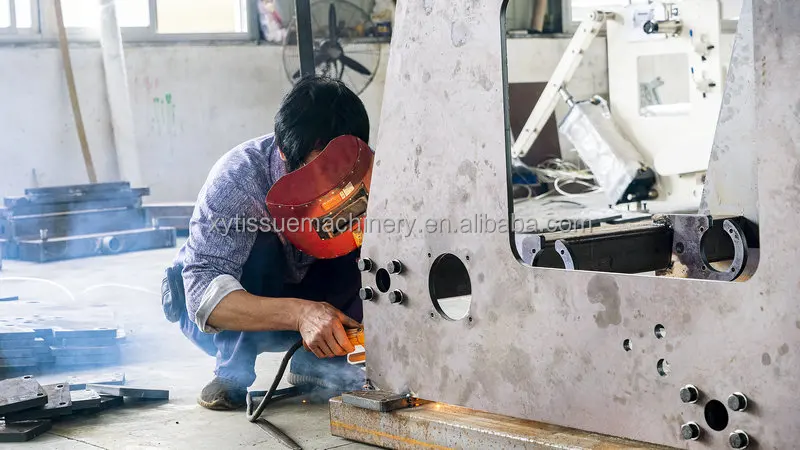

Workshop
