China SVA Hot Product Hotel Shop Gate Door Fitting Pressed Iron Material Steel Wooden Toughened Glass Door Floor Spring
- Category: Door Closers >>>
- Supplier: Guangdong,SVA,Precision,Technology,Co.,Ltd.
Share on:
Product Overview
Description
China SVA Hot Product Hotel Shop Gate Door Fitting Pressed Iron Material Steel Wooden Toughened Glass Door Dorma Floor Spring

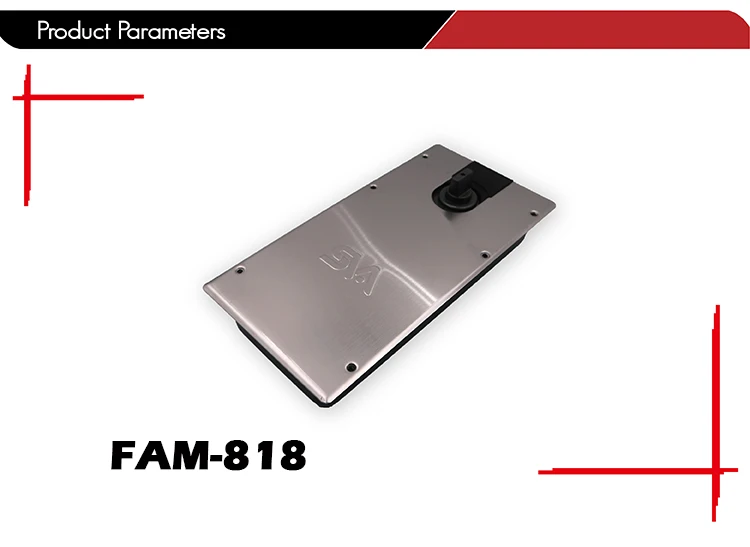

Product Name | The Practical Floor Hinge | |
Brand Name | FAM | |
Product Model | FAM-818 | |
Product Material | Pressed Iron | |
Finish | Mirror,Satin | |

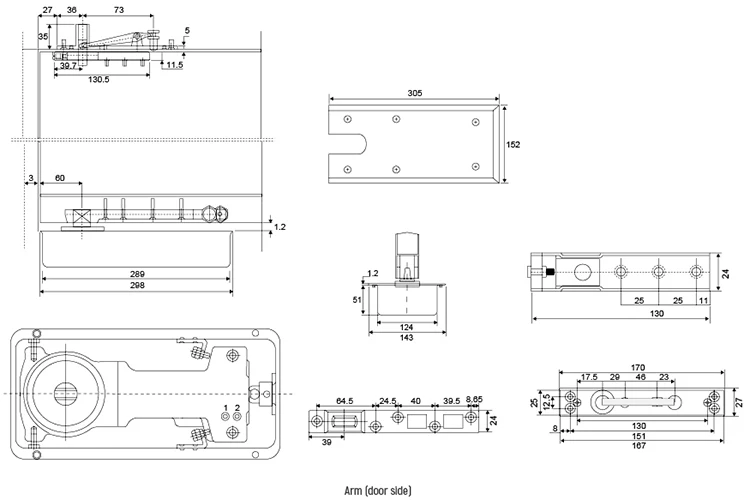

Product Size | 305*152mm | |
Max Door Width | ≤1000mm | |
Max Door Weight | ≤120kg | |
Product Feature | Switching for 500,000 times | |
Door thickness | 8-12mm | |
Function | One way open at 116° ,turn to 90° ,116° positioning | |
Application | Steel and wooden doors,8-12 toughened glass door | |
*The price of this product does not include tax and freight. | ||

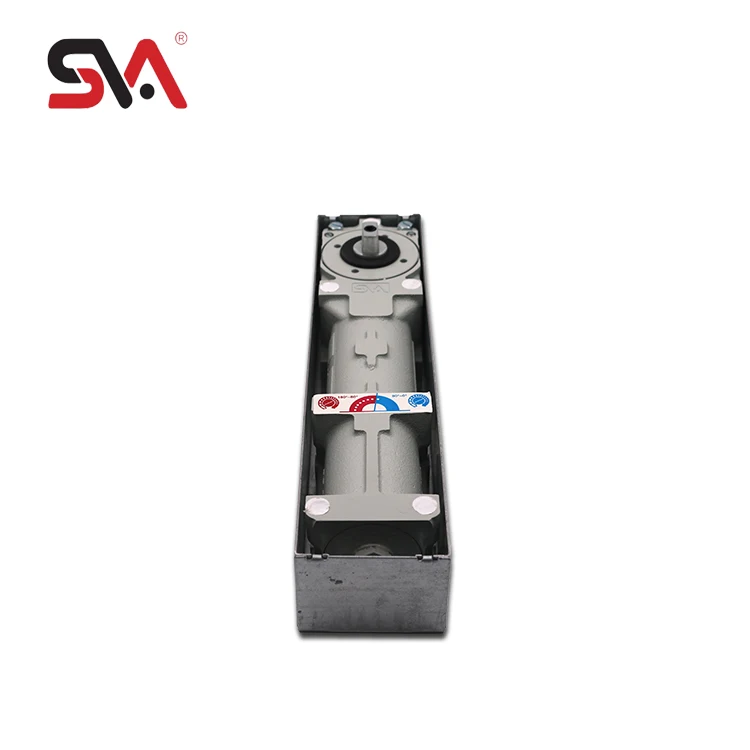

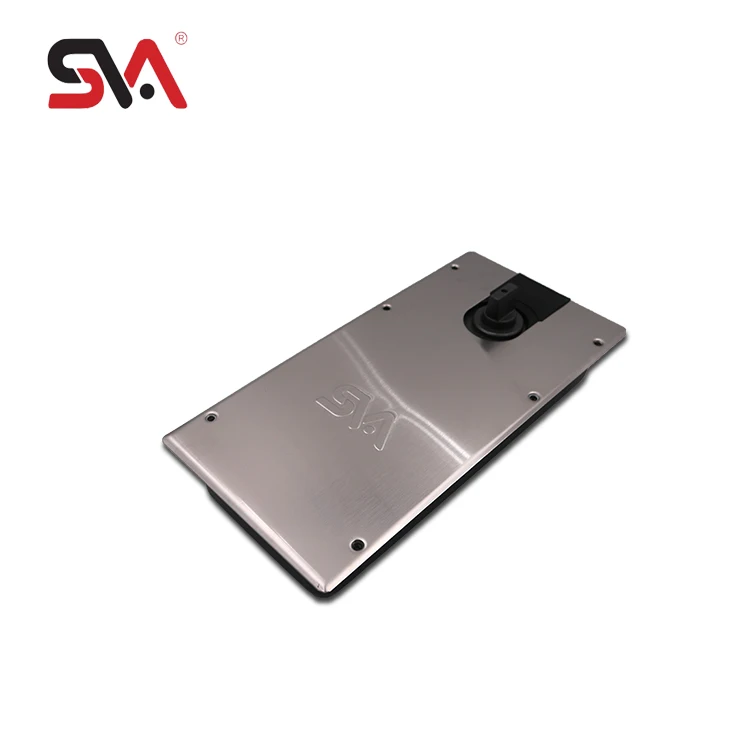

Product Details
Material
Floor sprig is equipped with double ball bearings, and the main components are forged with CP-M1 alloy steel.
It can be used normally at -40℃ to 40℃ temperature environment.

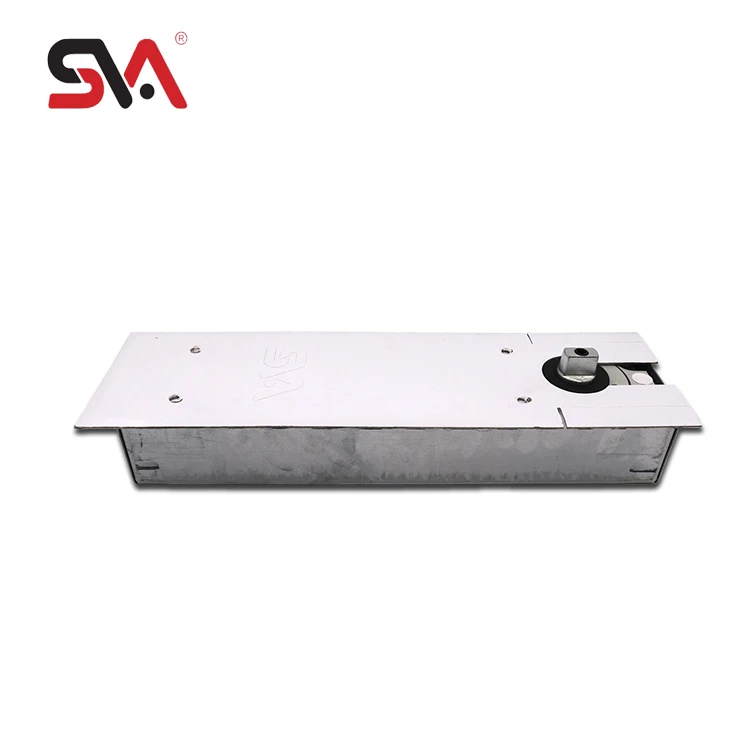

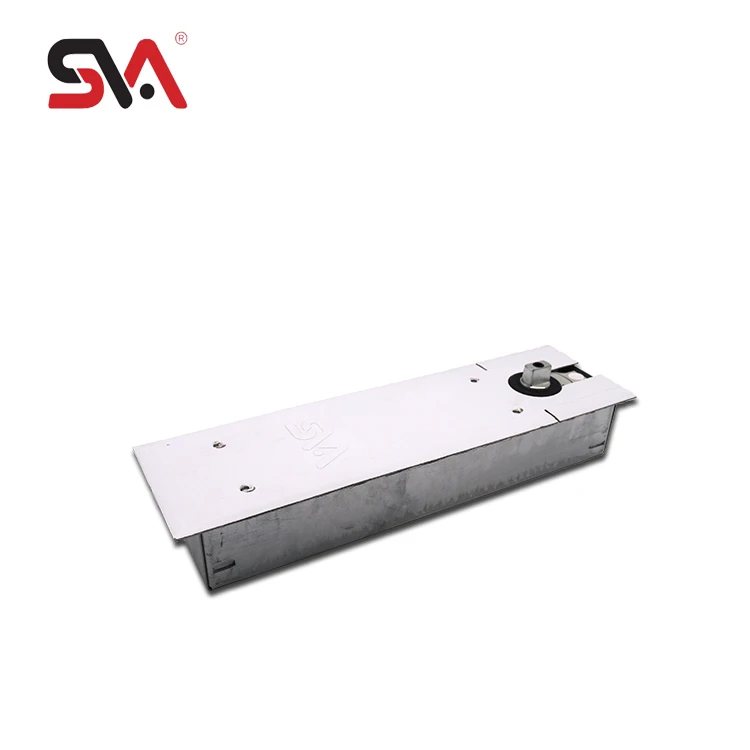

Cover Plate
The thickness of the thickened cover plate is 1.2mm, and the humanized chamfering design prevents scratching.

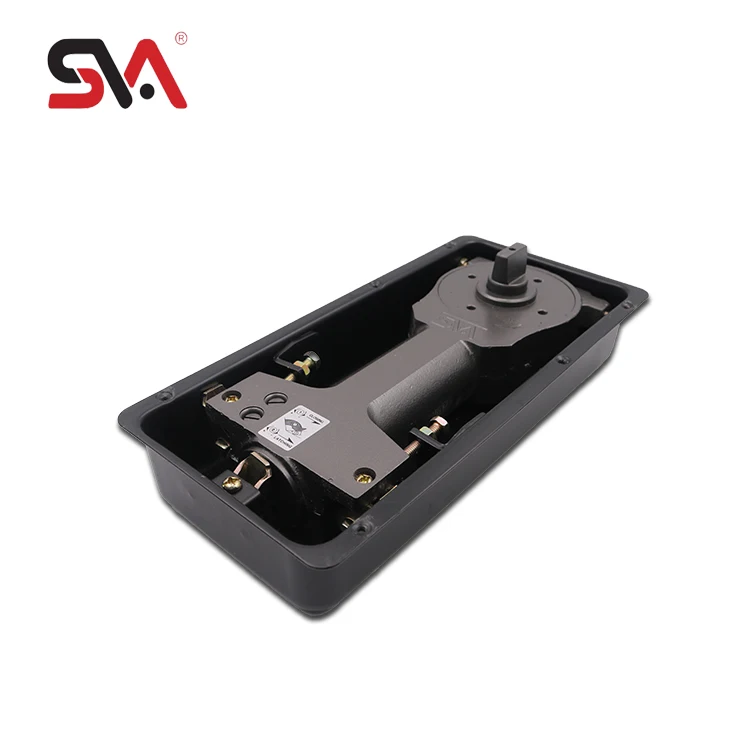

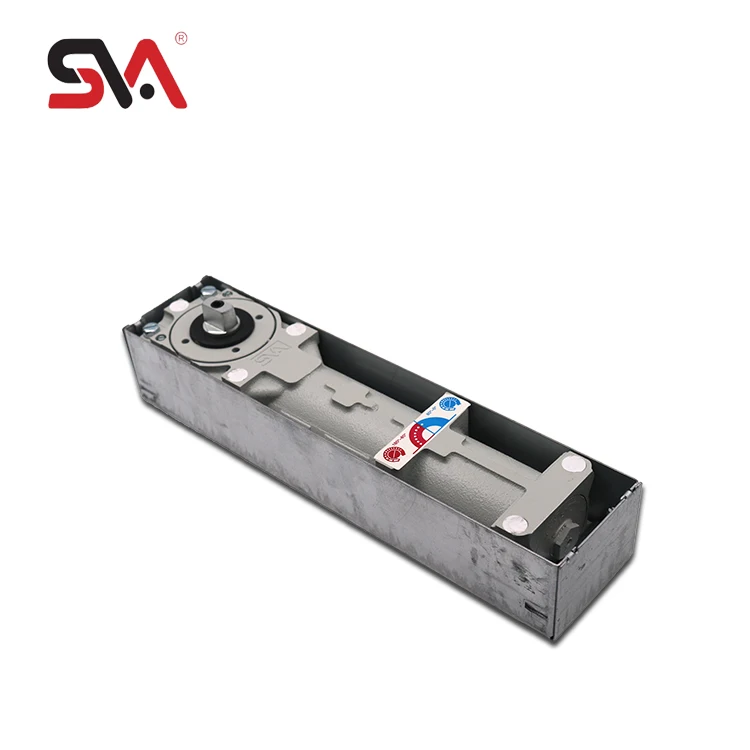

Anti-rust Paint
The machine core passes through the advanced automatic spray paint, the antirust paint evenly covers the entire machine core. Not easy to oxidize, increase the service life of the spring.
Opening&closing Times
With special spring,it can run 500000 times.
Installation
The length and width of the cement box can be adjusted by 5mm.When calibrating each one,the installation can be more convenient by adjusting ±2° longitudinally.
Spindle Head Selection
Doma Spindle Head
D-insert Spindle Head

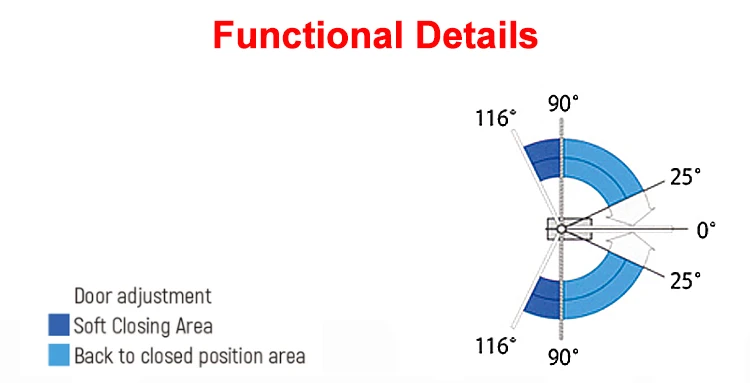

Functional description:
1, 0 degrees means the door is closed and 90 degrees means the door is positioned.
2, Second stage speed regulation: 90 degrees -15 degrees for the closing stage
15 ° -0 ° is the latching stage
15 ° -0 ° is the latching stage

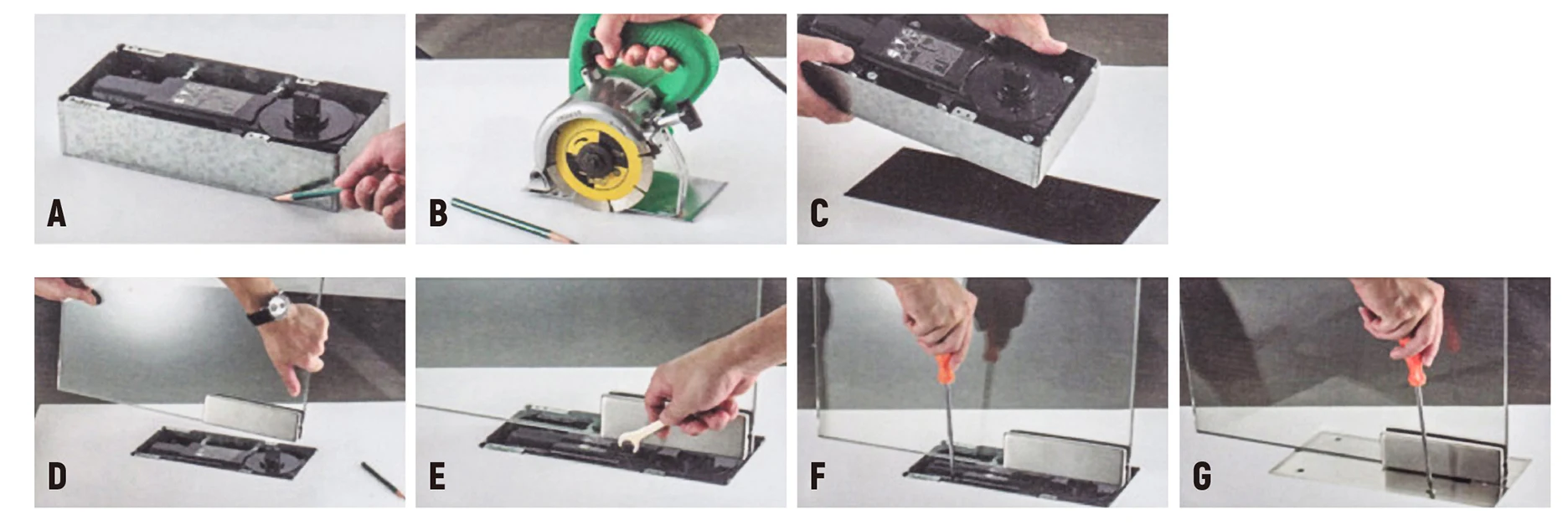

Installation Steps
Installation steps of ground spring:
A. Draw lines to coincide the center of the rotating shaft of the floor spring with the rotating shaft of the door.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.

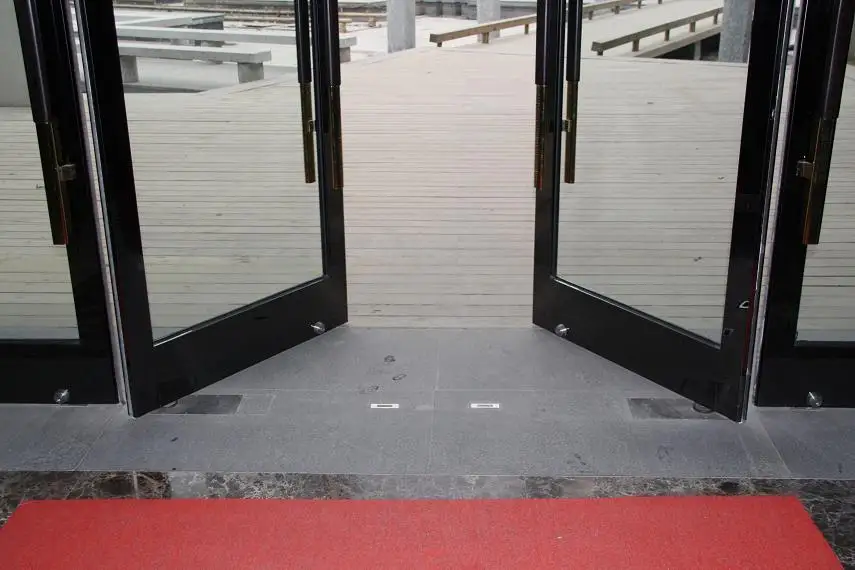

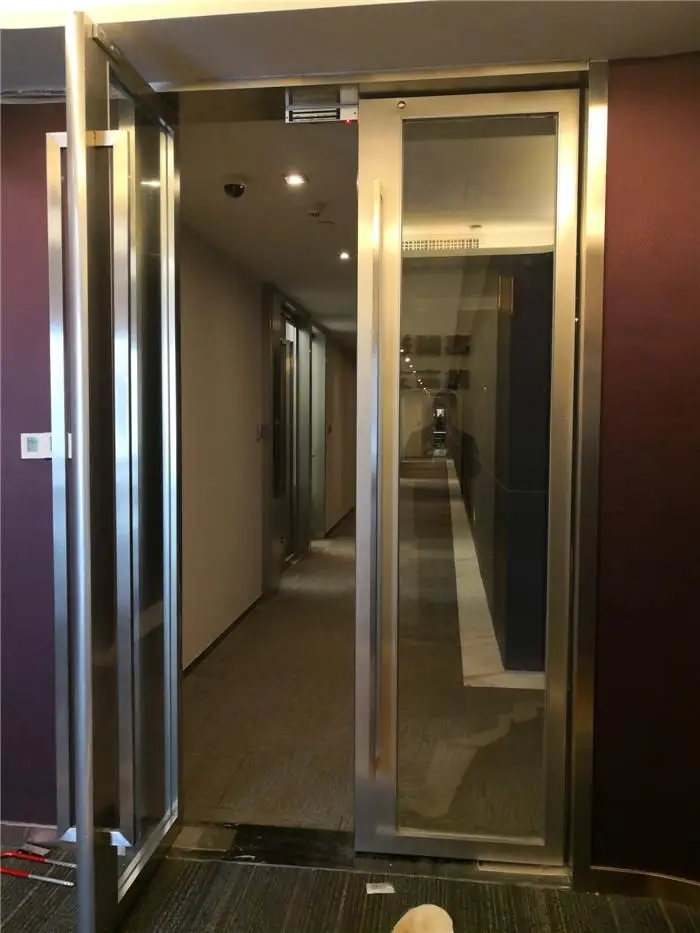

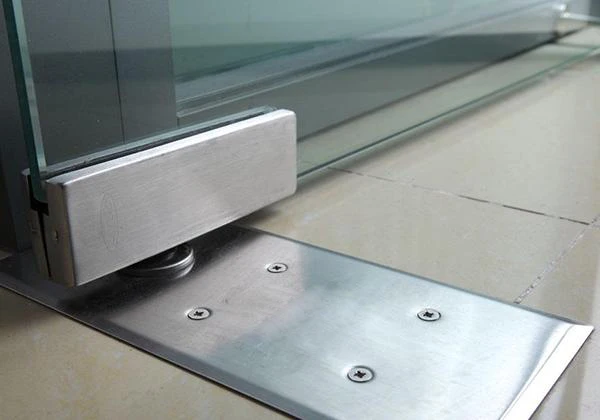

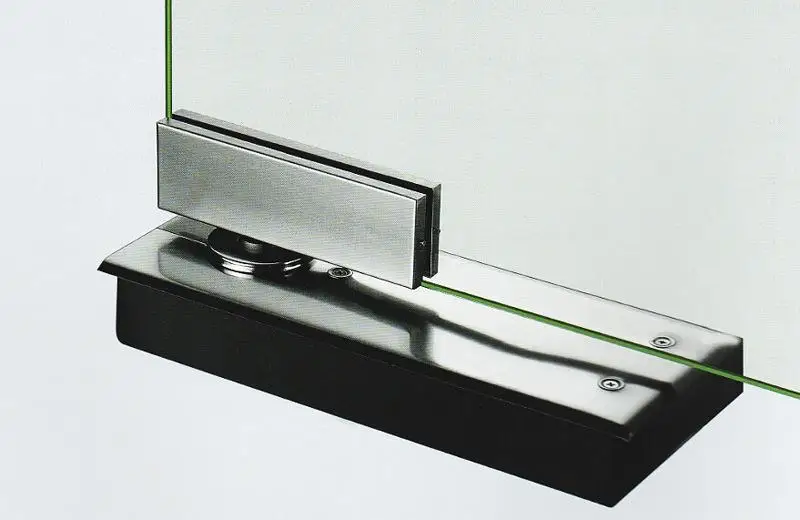

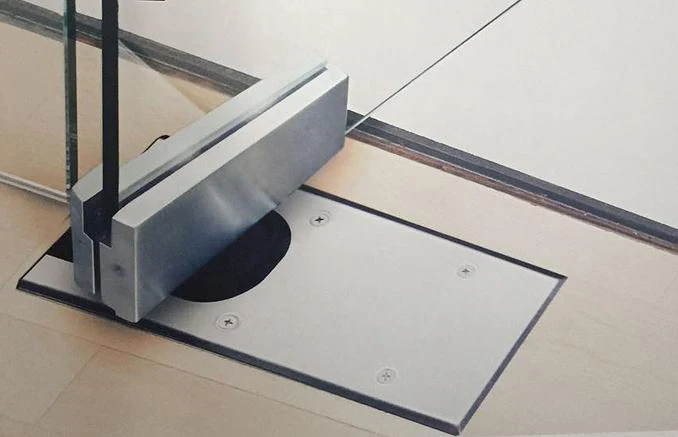

Application
Packing & Shipment
1 piece /box
4 boxes/carton
Company Profile
Why Choose Us
1.Direct manufacturer & competitive prices.
2.Experienced in doing business with big customers for more than 18 years .Europe, North America, South America, Middle East, Asia, etc.
3.The advanced equipment , the best technology and considerate after-sales service.
4. Quick delivery time for conventional and OEM orders.
5. Factory has obtained the certificate of high-tech,SGS and other certifications.
2.Experienced in doing business with big customers for more than 18 years .Europe, North America, South America, Middle East, Asia, etc.
3.The advanced equipment , the best technology and considerate after-sales service.
4. Quick delivery time for conventional and OEM orders.
5. Factory has obtained the certificate of high-tech,SGS and other certifications.
Exhibition
Certifications
FAQ
1.Q: Can you send me your whole price list?
A: Sorry,our products such as shower hinge,glass clamp,door handle,floor drain,floor spring,glass connector.As the price relates to many factors, such as specifications, dimensions, shipping.After we confirm your detail request, we will offer you exact quotation.
2.Q: What is your delivery time for this order?
A: Normally our delivery time is 30-35days. If you need regular size products such as shower glass door hinge,bathroom clips, glass connector, floor drain,PVC sealing strip,floor drain,sliding door accessories, we can deliver in about 15 days if we have stock.
3.Q: How many products can you produce in a month?
A: Punching fittings we can do about 100,000 pieces a month, casting fittings we can do about 50,000 pieces a month.
4.Q:Do your floor springs provide installation service?
A:Our floor spring products will have installation instructions.Floor spring installation service will not be provided.
5.Q:Can you send me samples then I can feel your quality?
A:Yes, of course. Our SVA hardware company can provide free samples.
6.Q: What is your main market?
A: Our SVA goods are sold mostly to the European and North and South America area, such as USA,Mexico,Germany, Italy, Poland, UK... We also sale to Asia and Africa area a lot.
A: Sorry,our products such as shower hinge,glass clamp,door handle,floor drain,floor spring,glass connector.As the price relates to many factors, such as specifications, dimensions, shipping.After we confirm your detail request, we will offer you exact quotation.
2.Q: What is your delivery time for this order?
A: Normally our delivery time is 30-35days. If you need regular size products such as shower glass door hinge,bathroom clips, glass connector, floor drain,PVC sealing strip,floor drain,sliding door accessories, we can deliver in about 15 days if we have stock.
3.Q: How many products can you produce in a month?
A: Punching fittings we can do about 100,000 pieces a month, casting fittings we can do about 50,000 pieces a month.
4.Q:Do your floor springs provide installation service?
A:Our floor spring products will have installation instructions.Floor spring installation service will not be provided.
5.Q:Can you send me samples then I can feel your quality?
A:Yes, of course. Our SVA hardware company can provide free samples.
6.Q: What is your main market?
A: Our SVA goods are sold mostly to the European and North and South America area, such as USA,Mexico,Germany, Italy, Poland, UK... We also sale to Asia and Africa area a lot.
