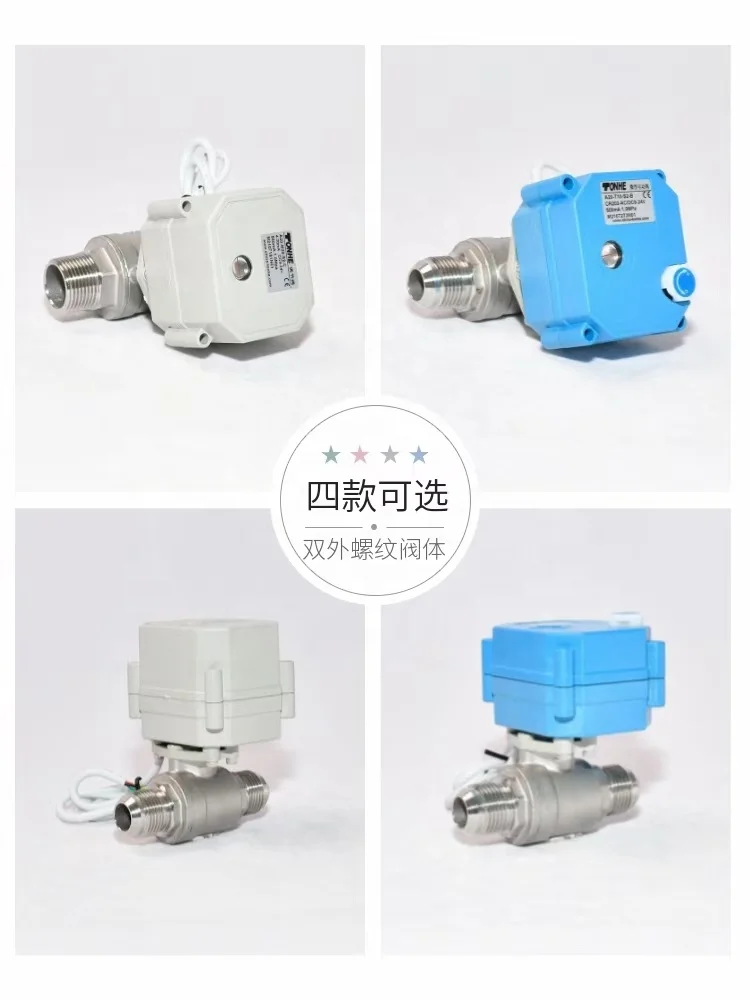

2 way DN10 3/8' male thread stainless steel304 electric control water ball valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1600354233460):
Product Overview
Description
Tonhe A20 series straight-through motorized ball valve, Has compact size with smart shape, Perform reliably, with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
Technical Parameters:
Product size NPT/BSP 1/4" NPT/BSP 1/2"' NPT/BSP 3/4'' NPT/BSP 1" NPT/BSP 1 1/4'' (Optional )
Maximum working pressure 1.3 MPa
Circulation medium Fluid, air
Rated voltage DC5V/ DC12V DC24V AC/DC9-24V AC/DC-35VAC110-230V (Optional )
Wiring control methods CR2-01 CR3-01 CR3-02 CR3-03 CR3-04 CR5-01 CR7-01 CR7-02(Optional)
Working current ≤500MA
Open/close time ≤5S
Life time 70000 times
Valve Body material Brass Nickel plated Brass 304 Stainless steel (Optional)
Actuator material Engineering Plastics
Sealing material EPDM & PTFE
Actuator rotation 90°
Max. torque force 2 N.m/4Nm(Optional)
Cable Length 0.5m,1.5m(Optional)
Environment temperature -15℃~50℃
Liquid temperature 2℃~90℃
Manual override Yes No(Optional)
Indicator Yes No (Optional)
Protection class IP67

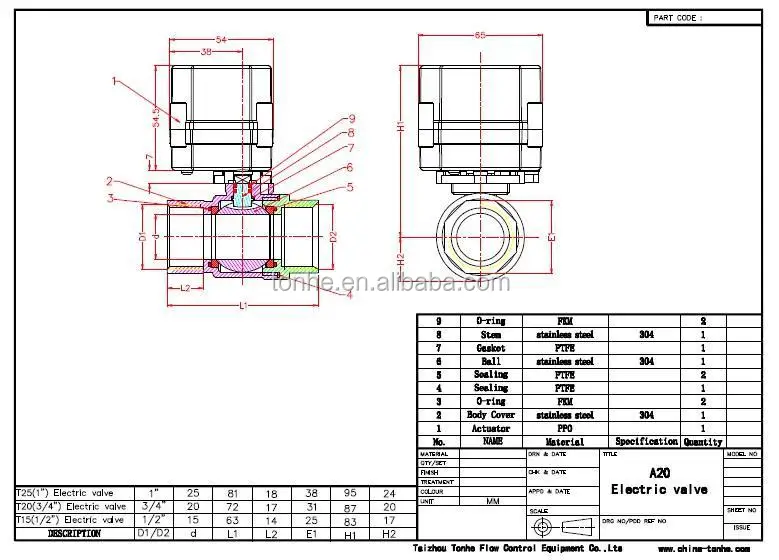

Electric valve assembly diagram
Packaging & Shipping
Our Services
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.

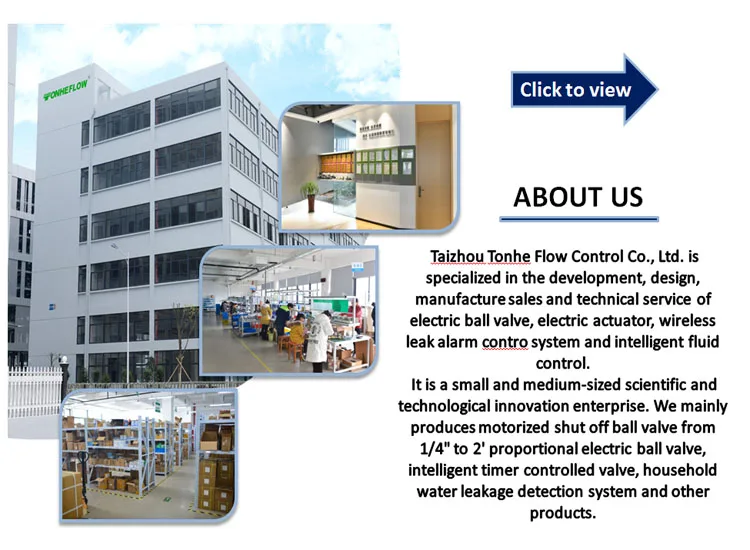

TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
Company Information
When you inquiry our proudct , pls confirm below detail diameter :
1, valve size , materil
2. working voltage
3, wiring control
4 manual override and open or close inciator
5, cable lenght
Then Nadine ( Skype : nadine84081) will give you a reasonable price , thanks .
