Textured Sheet 1.5mm HDPE Geomembrane

Product Overview

Description

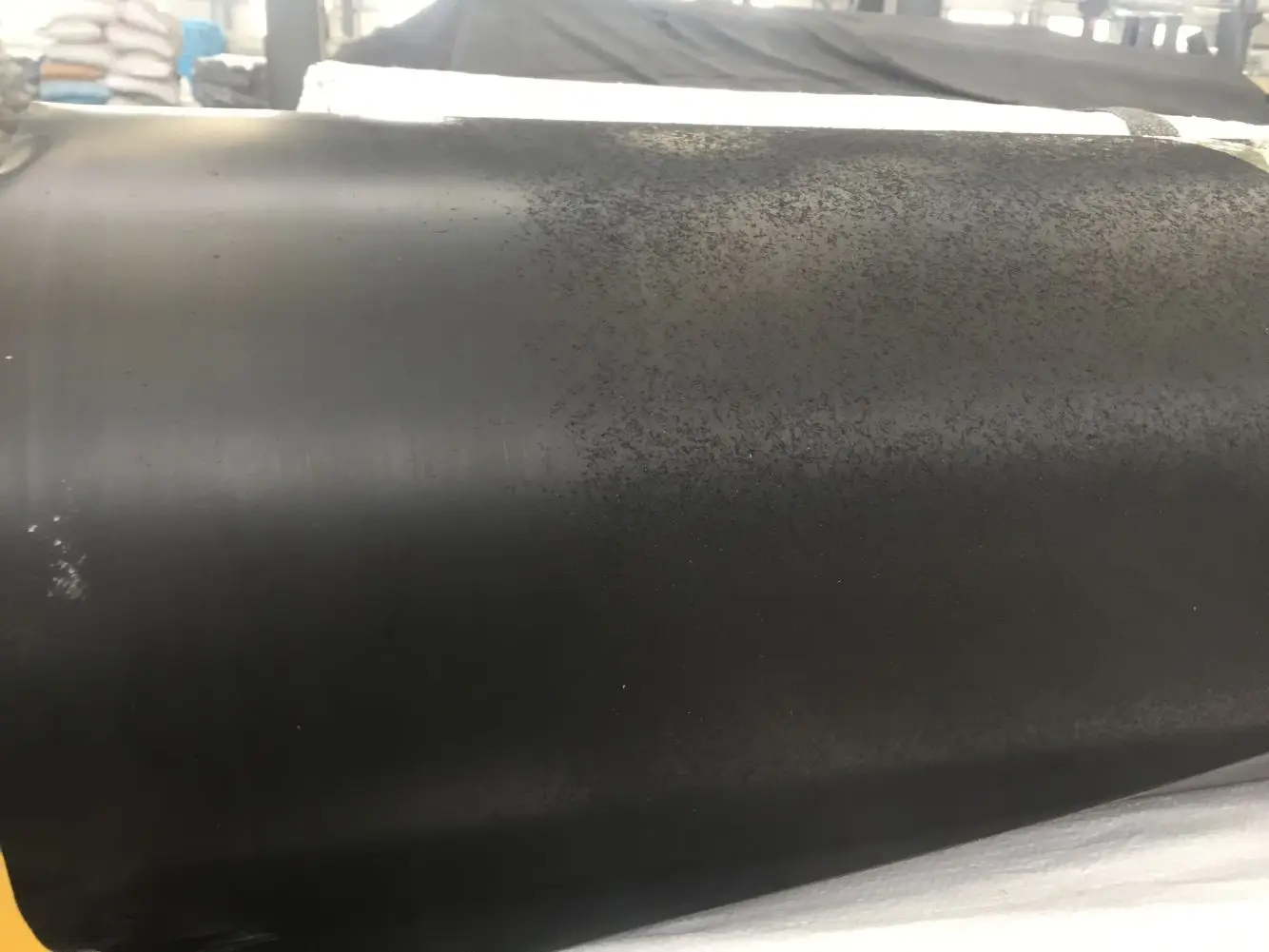

Textured Sheet 1.5mm HDPE Geomembrane

Prodsuct description:

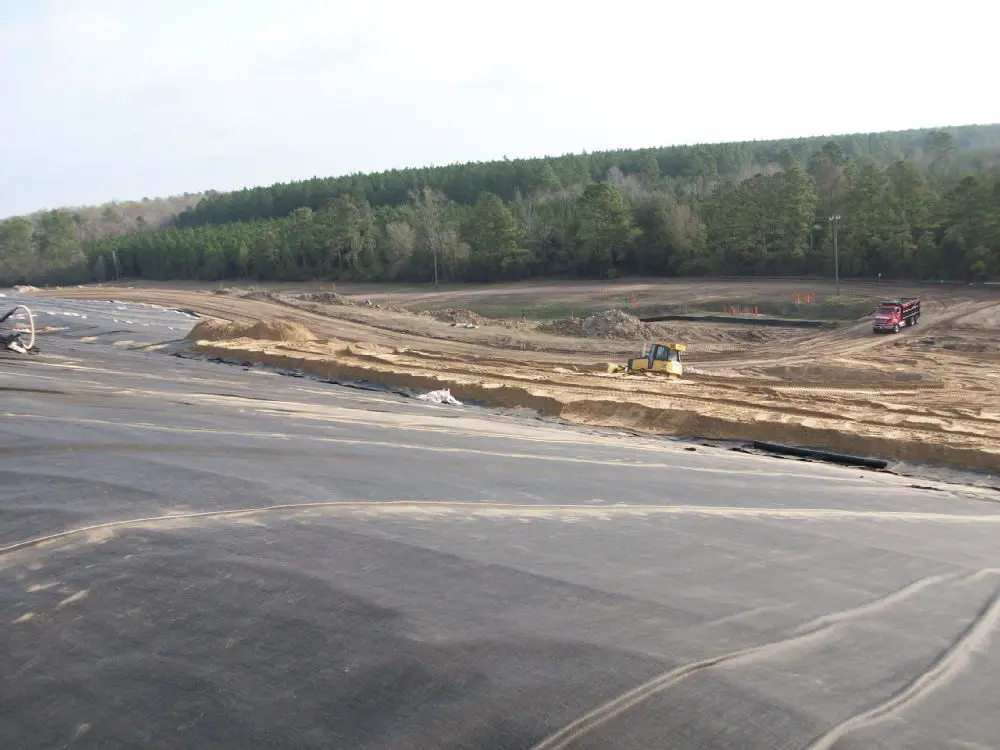

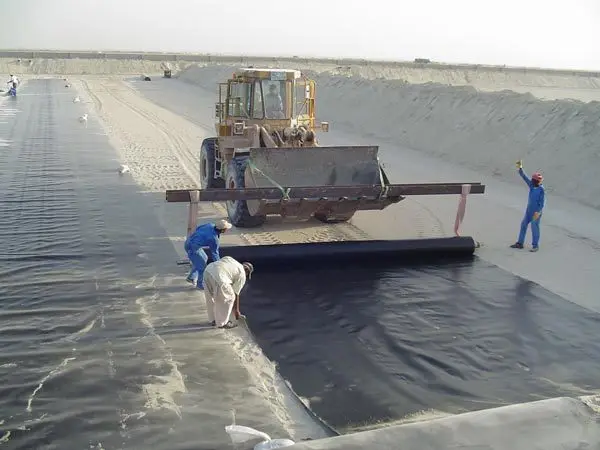

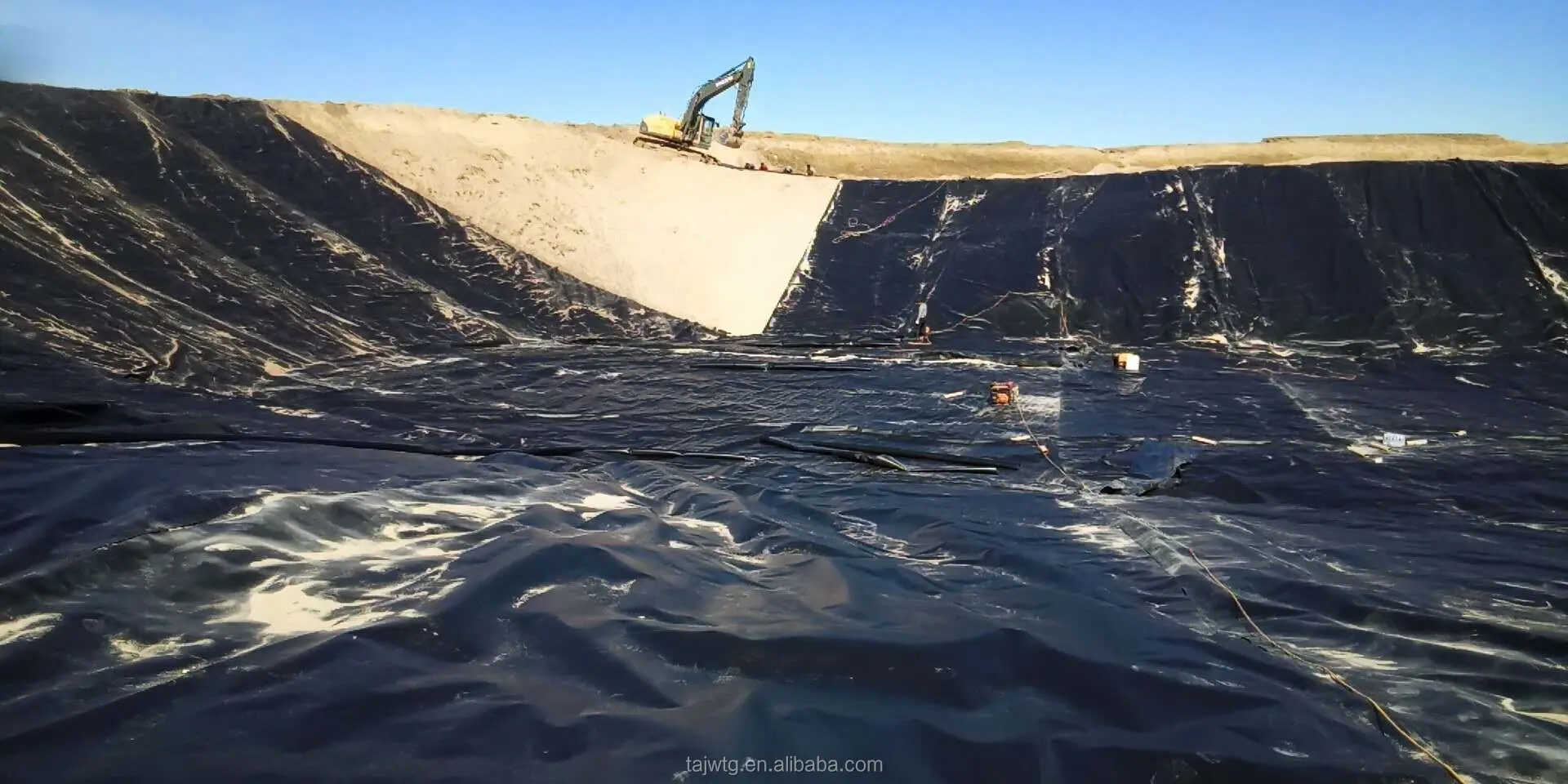

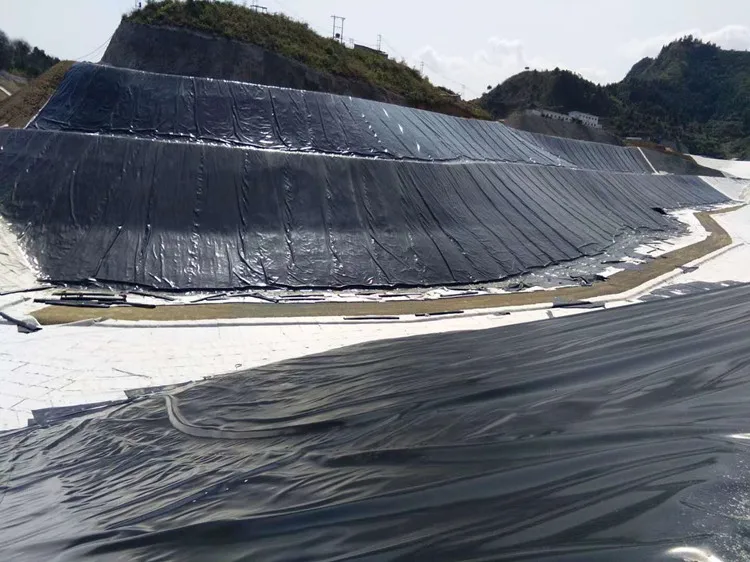

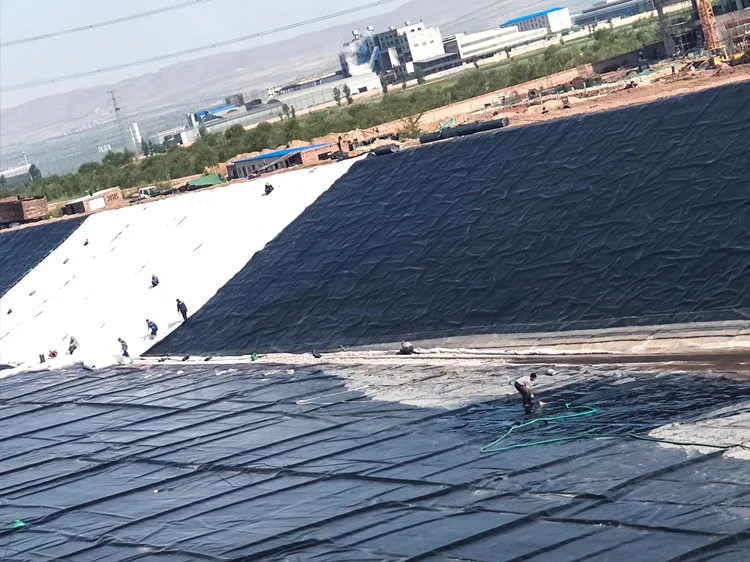

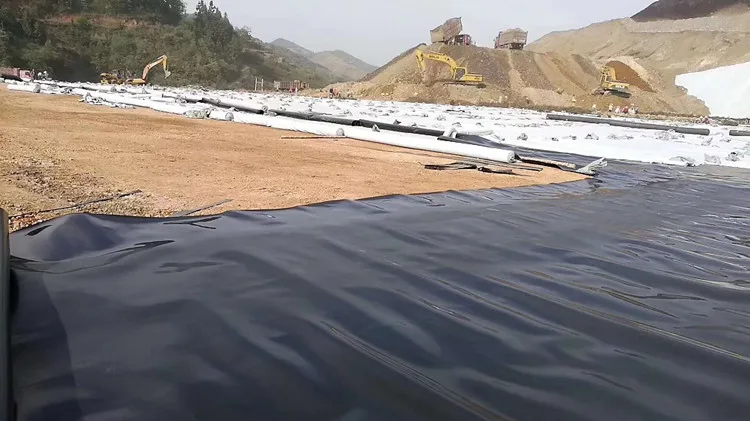

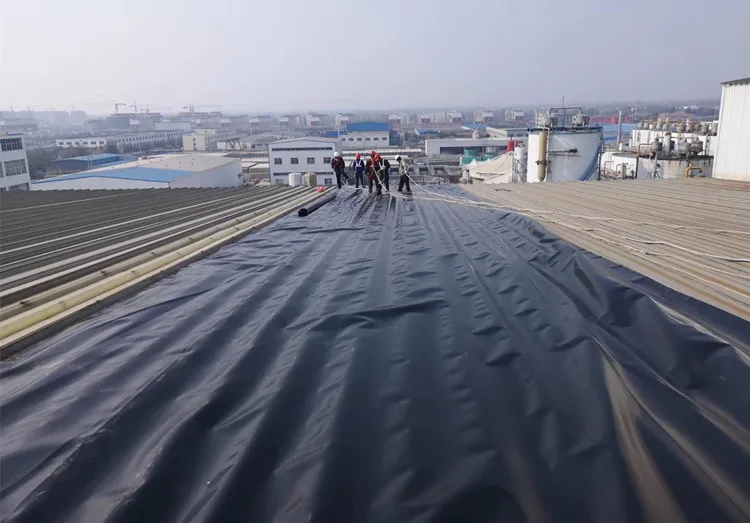

Our hdpe geomembrane begins as raw polyethylene resin which is then processed into flexible hdpe liners. This geomembrane liner is widely used in mines, ponds, dams, solid waste disposal sites and other industries requiring geosynthetics liners because of its low permeability and strong corrosion resistance. Because it won’t wear easily with weather or chemicals, our hdpe geomembrane is often used for outdoor water storage projects. Customized hdpe geomembranes with different colors, including black, white and bicolor composite liners are also available.









Specification of Geomembrane:

Material	Virgin raw material or recycled material
Appearance	smooth surface, without cracks, tears, holes
Thickness	0.2mm-4mm
Width	2m—8m(as your request)
Length	50m,100m( as you demand)
Color	White, black, green, double colored, etc
Packing	woven cloth
Payment terms	T/T ,L/C, western union,paypal







Advantage
1. Chemical and biological erosion resistance

2.A wide using temperature range

3. Long service life

4. High tensile strength

5. Excellent anti-tearing capability

6. Excellent waterproof and anti-seepage capability

7. Low coefficient of thermal expansion, flexibility



Technical Parameter(ASTM-Virgin Material)      icial Lak Liner Hdpe Geomembrane

No.	Item	Test Value
		0.75 mm	1.0 mm	1.25 mm	1.5 mm	2.0 mm	2.5 mm	3.0 mm
1	Minimum Density(g/cm³)	0.94
2	Tensile Properties
	Strength at yield,N/mm	11	15	18	22	29	37	44
	Strength at break ,N/mm	20	27	33	40	53	67	80
	Elongation at yield,%	12
	Elongation at break,%	700
3	Tear Resistance   N	93	125	156	187	249	311	374
4	Puncture Resistance  N	240	320	400	480	640	800	960
5	Stress Crack Resistance, hrs	300
6.	Carbon Black Content, %	2.0-3.0
	Carbon Black Dispersion	1  or  2
7	Standard OTI  Min	100
	High Pressure OTI  Min	400
8.	Impact Cold Crack at -70°C	Pass
9	Water vapor permeability  (g.cm/cm2 .s.Pa)	≤1.0×10-13
10	Dimensional Stability (%)	±2



Our Factory:

-History: Founded in 2004,Jingwei Geosynthetics is the professional      manufacturer of geomembrane.

- Location: Taian City, Shandong Province, China

-Main Products: Geomembrane Liner/Sheet, Geotextile, Geocells,  GCLs,  Geocomposite,etc

-Nearest Port: Qingdao Port

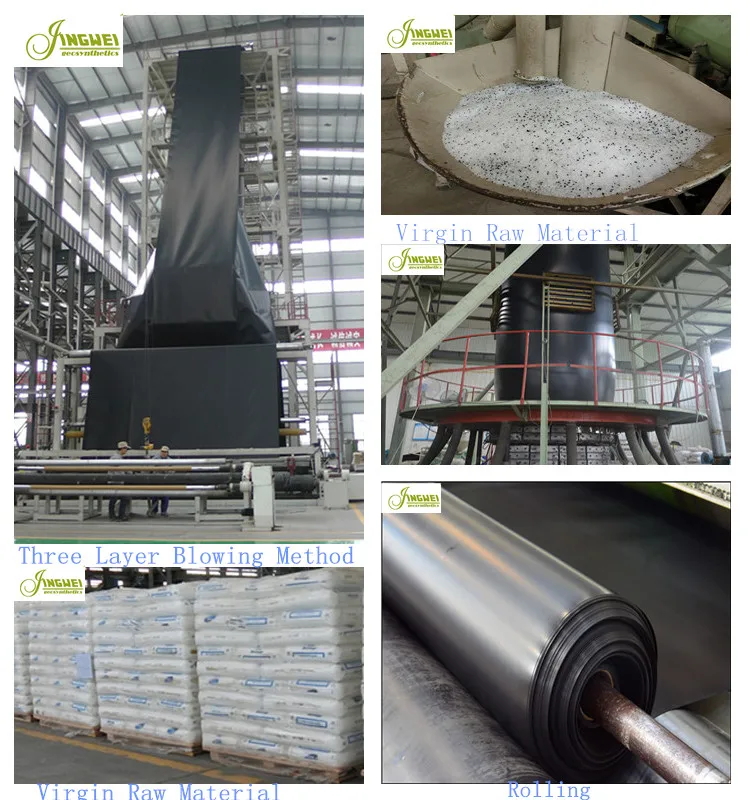

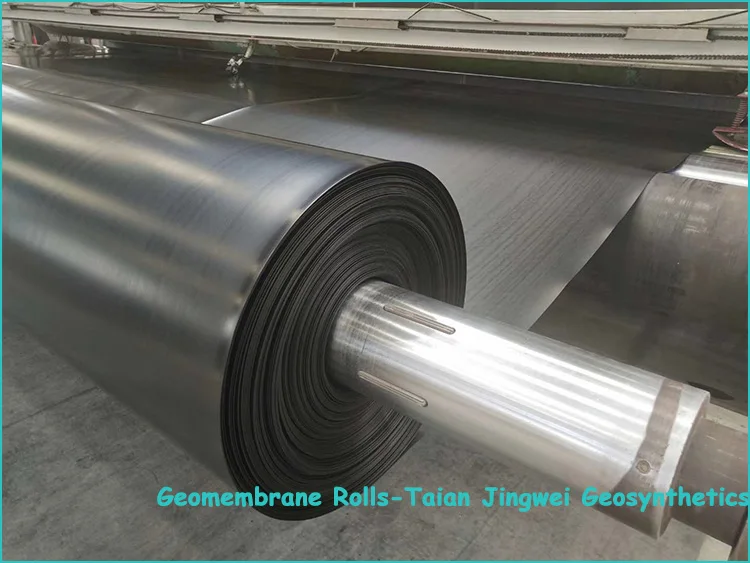

Our Workshop-Production Process:



with more than 20 years’ experience, our production teams are professional and we treated quality as our lives. From receiving the raw materials to customizing geosynthetic materials to packaging the final products, we take great care to reduce the cost and financial risk of our customers and remove the defective products from the line.
