PE400X600 PE 500*750 PE 600*900 Mobile Stone Crushing Jaw Crusher For Primary Granite Crusher Machine Price
- Category: Mining Machinery >>>
- Supplier: Henan,Fuyuan,Machinery,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
PE400X600 PE 500*750 PE 600*900 Stone Crushing Jaw Crusher For Primary Granite Crusher Machine Price
Jaw Crusher
Jaw crusher is combined with the secondary crushing equipment in the whole stone crushing line,like cone crusher and impact crusher. Due to their smaller physical size, jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications.
Now it is widely applied in mining, metallurgy,quarry, building waste, smelting,electricity, building material, highway, railway, water conservancy, transportation, chemical industries and other fields.
Model | Opening size(mm) | Max feeding size(mm) | Output adjustment range(mm) | Production capacit(t/h) |
PE250*400 | 250*400 | 200 | 20-50 | 5-20 |
PE400*600 | 400*600 | 350 | 40-100 | 15-60 |
PE500*700 | 500*700 | 425 | 50-100 | 40-110 |
PE600*900 | 600*900 | 480 | 65-160 | 90-180 |
PE750*1060 | 750*1060 | 630 | 80-140 | 110-320 |
PE900*1200 | 900*1200 | 750 | 95-165 | 220-450 |
PE1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 |
Stone Crushing Line
Stone Crushing Line
The Stone Crushing Line mainly consists of Vibrating Feeder, Jaw Crusher/Cone Crusher/ Impact Crusher, add vibrating Screen, Belt Conveyor and Control System, etc.It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, suitable for construction and building industry.We can provide optimum and most economical solutions according to your' requirements.

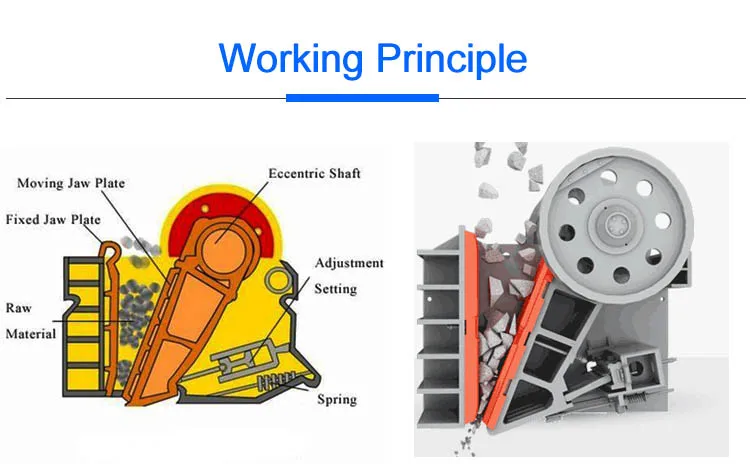

Woking Principle
Working principle of stone jaw crusher motor drives the eccentric axis rotating through the belt pulley, so that the
movable jaw approaches and leaves the fixed jaw cyclical, which makes the materials squeezed, rubbed, multi-roller crusher, etc. so that the materials are crushed into small size, and then decline gradually, at last discharge from the discharging mouth.
Product Display
Henan Fuyuan Machinery Manufacturing Co., Ltd located in High-tech Zone, Zhengzhou City, Henan Province. Our factory was founded in 1984,covering an area of over 38, 000 square meters and a building area of over 26,000 square meters. There are more than 300 employees, including 5 senior engineers, 23 engineers and more than 60 technicians. After decades of development, the company's appearance is changing with each passing day, and the comprehensive quality of employees has been greatly improved.
Our company has begun to take group scale and form four series of products:
1.stone crusher series ( jaw crusher,impact crusher,cone crusher,hammer crusher);
2.mobile crushing plant series;
3.sand making machine series;
4. wood crusher series.
Q1: Are you trading company or manufacturer?
A: We are a professional factory with 37 years' experience.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. Or it is 15-30 days if the goods are
not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% deposit in T/T advance, 70% balance before shipment.
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% deposit in T/T advance, 70% balance before shipment.
Q4: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The warranty period of crusher equipment is one year. And we will supply the spare parts for you at lowest cost.
Q5: If I need the complete crushing plant can you help us to build it?
Q5: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you set up a complete crushing line and give you related professional advice as long as you need. We had already build many mining projects in China & Overseas.
