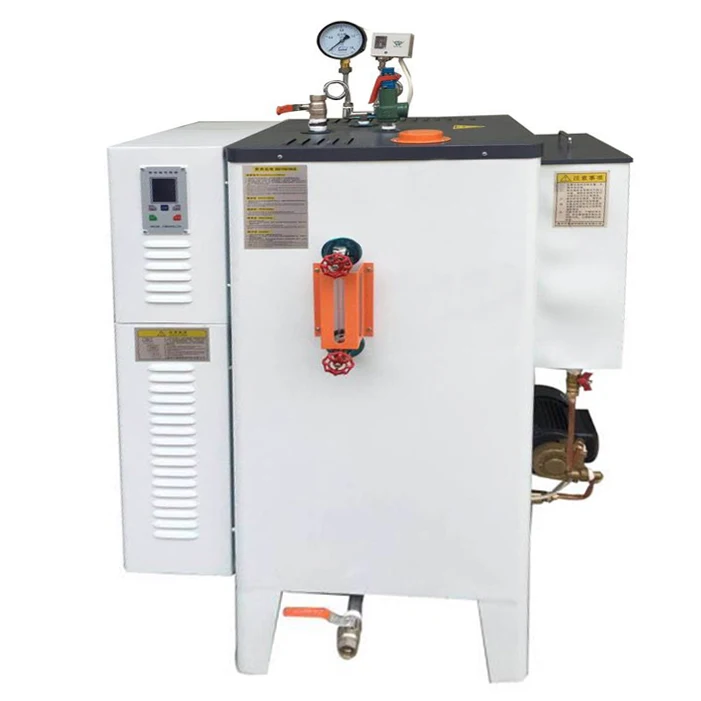

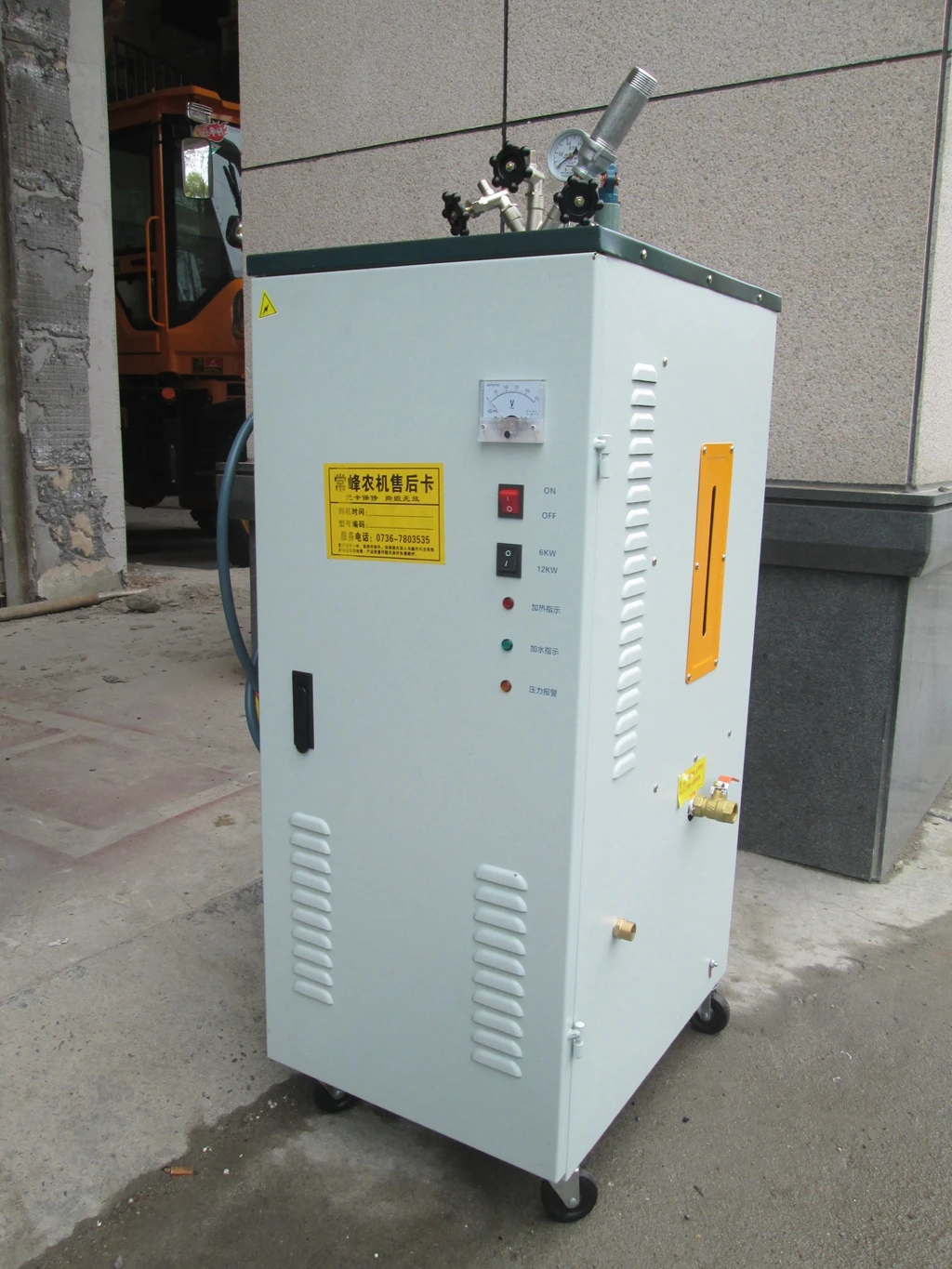

High Quality 24kw Full Automatic Electric Heating Steam Generator Boiler

Share on (1600354487451):


Price:

Quantity:


Product Overview

Description









Product Description

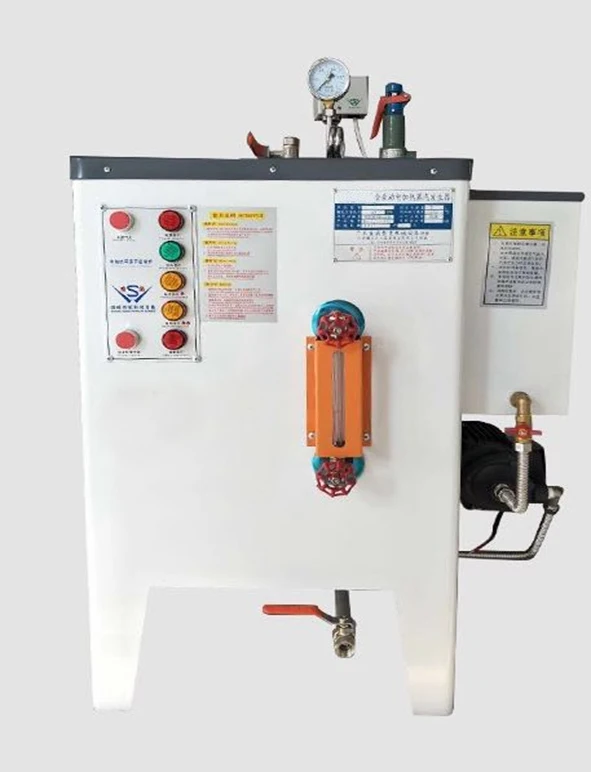

_01_02     The LDR series electric heating steam furnace is a small stove that uses electricity to heat water to generate steam. The water supply system uses a high-pressure vortex pump, which has a short water supply time and durability, and has a thermal efficiency of 98%, which can continuously generate steam below O.7Mp. .


    The working system is divided into fully automatic control and semi-automatic control. After the water source and the power source are turned on, the pressure steam of 0.4Mpa-0.7Mpa can be continuously generated in a short time. At the same time, it has water level alarm, temperature automatic control, over voltage protection and automatic water adding function. Small size, flexible movement, easy installation and easy to use. Adjustable power, energy saving, environmental protection, large amount of steam, fast heating, safety, hygiene, widely used in food, bio-chemical, packaging machinery, hospitals, hotels, washing, garment ironing machinery and other industries to provide the required steam source.





Main parameters of  24kW steam generator


































































Model Type



LDR(K).24-0.7



Electric power



24kW



Rated pressure



0.7Mpa



Rated evaporation



35kg / h



Steam temperature



170 ° C



Thermal efficiency



98%



Water capacity



24L



Number of heating tubes


2

Power conversion



12/12



Source voltage


380V/50HZ

Water inlet caliber


DN15

steam caliber


DN15

Drain outlet caliber



DN20


 product size 860 × 580 × 1080mm
 water supply requirements normal temperature soft water

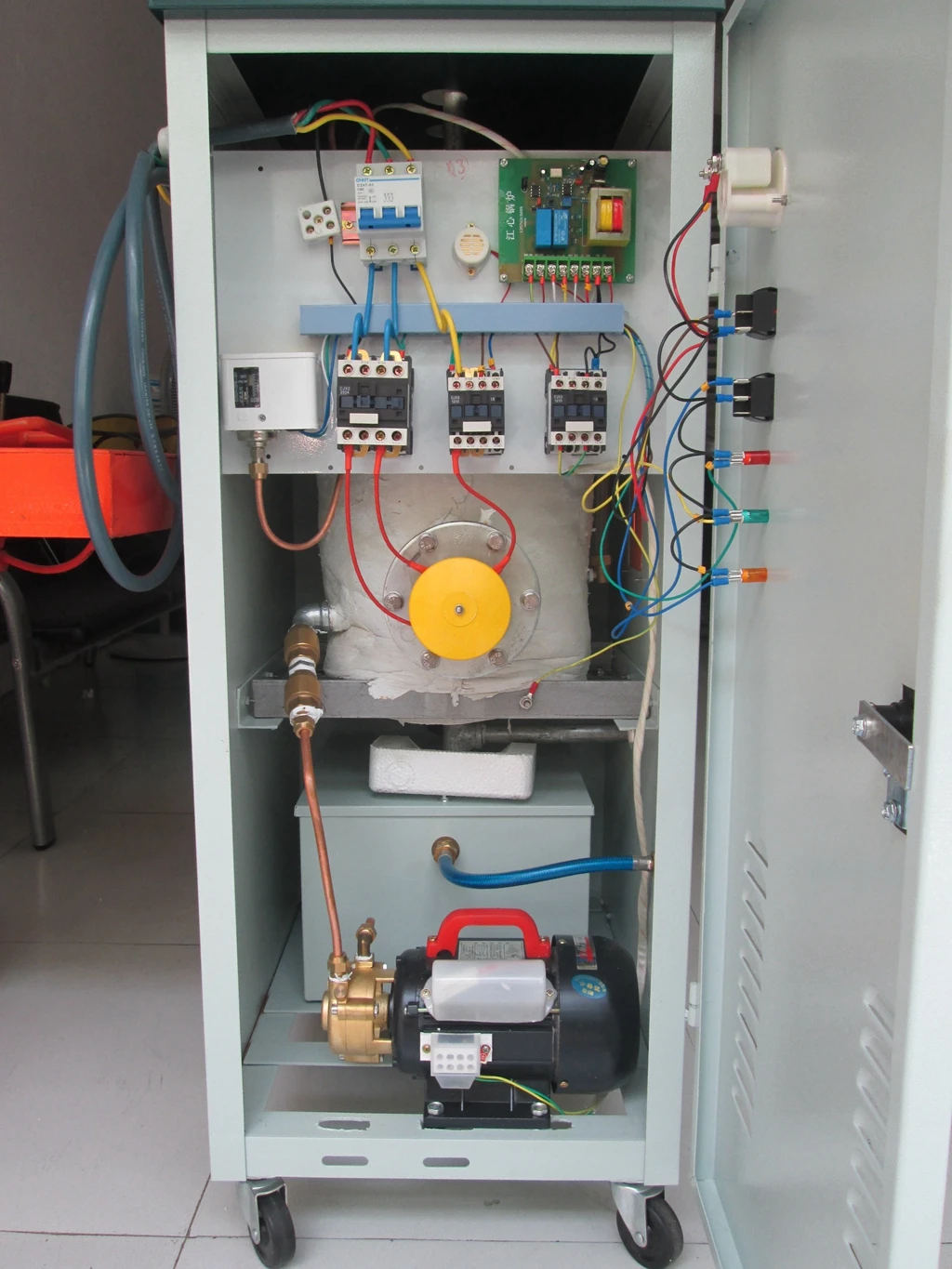

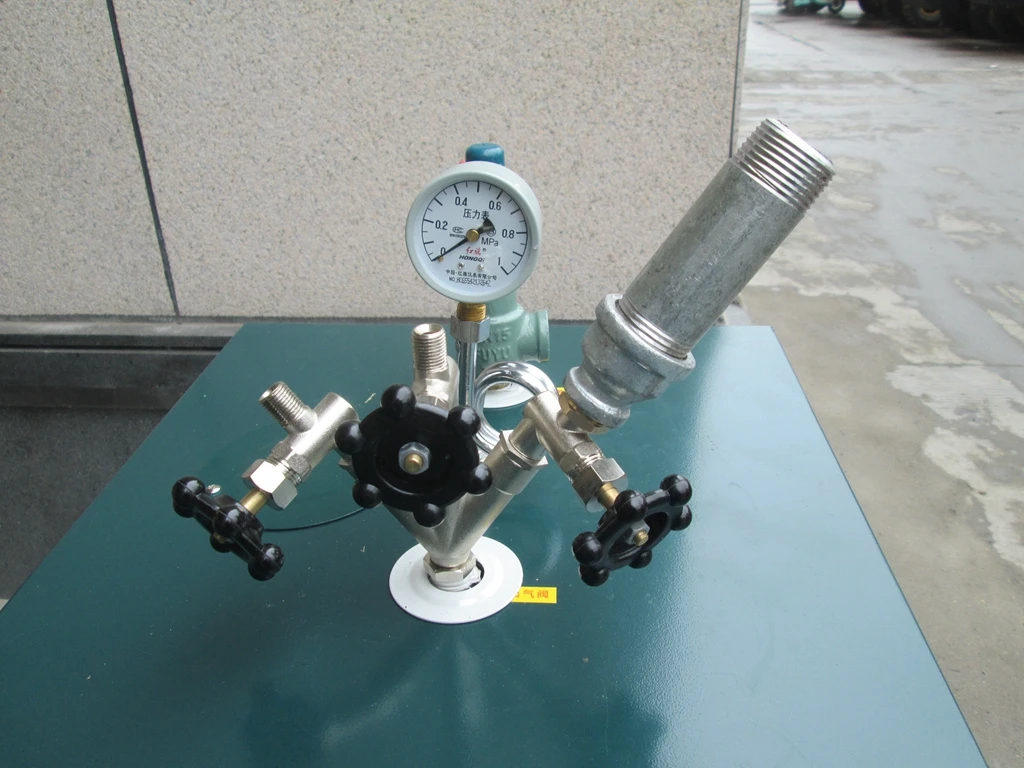

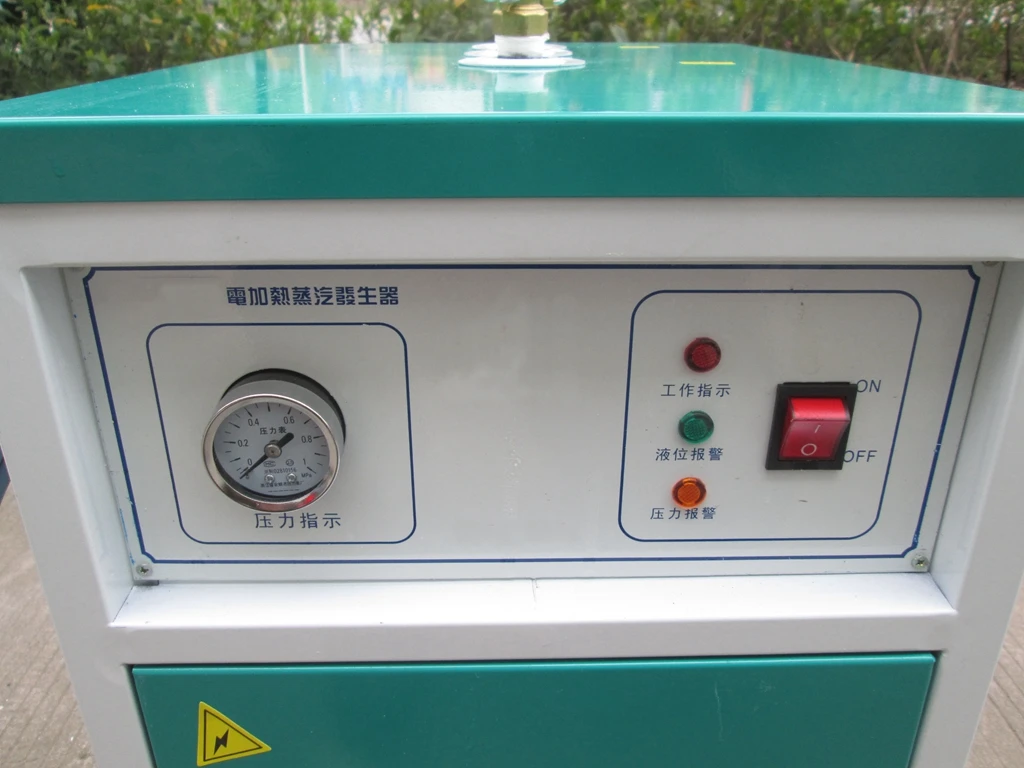

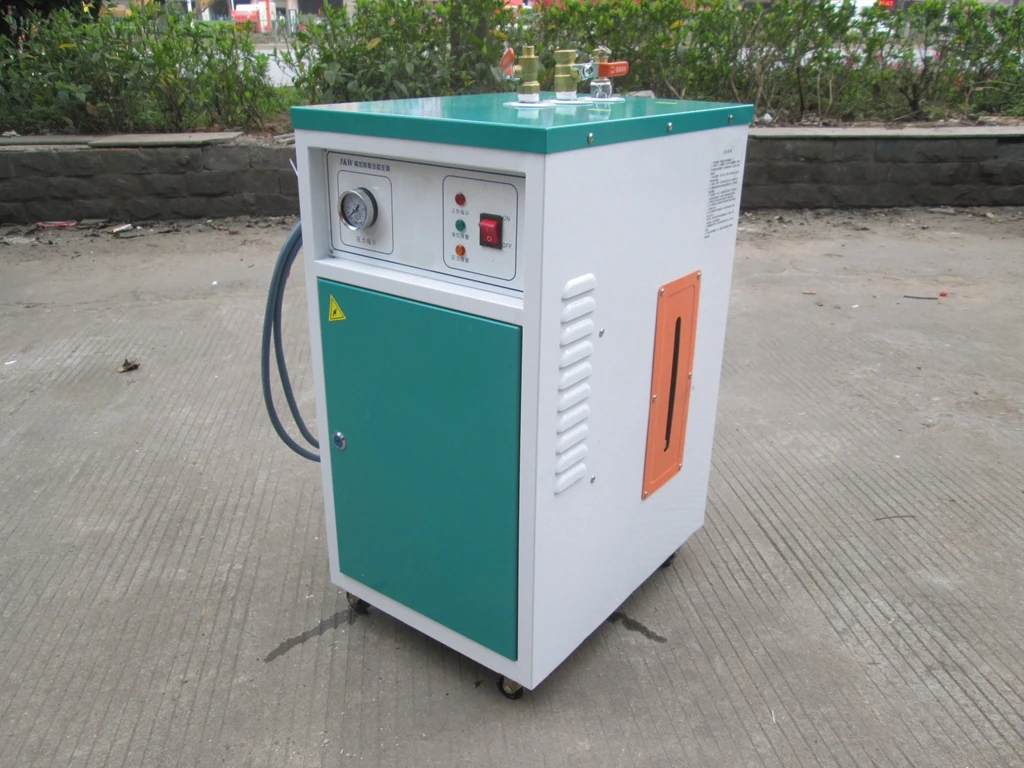

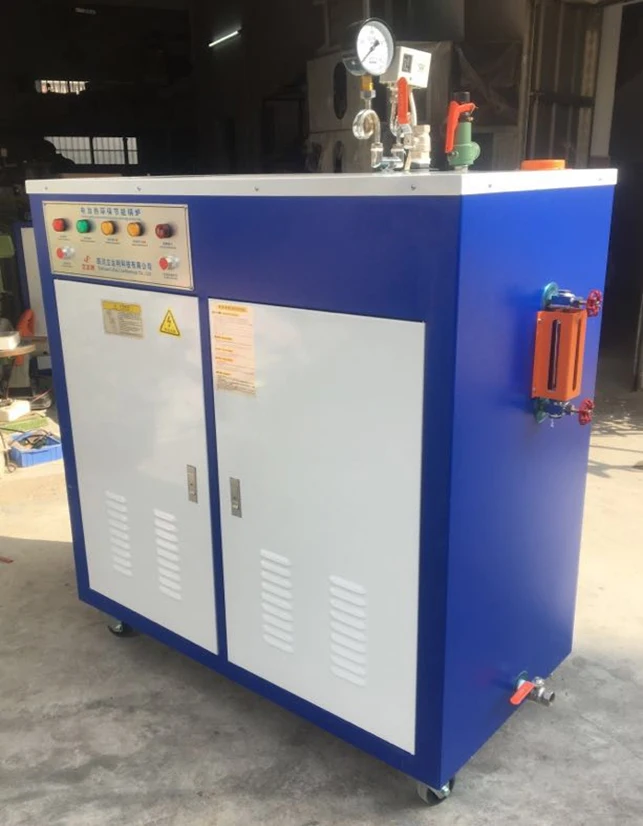

_0421IMG_1516IMG_2030IMG_2029IMG_1356IMG_1353421
