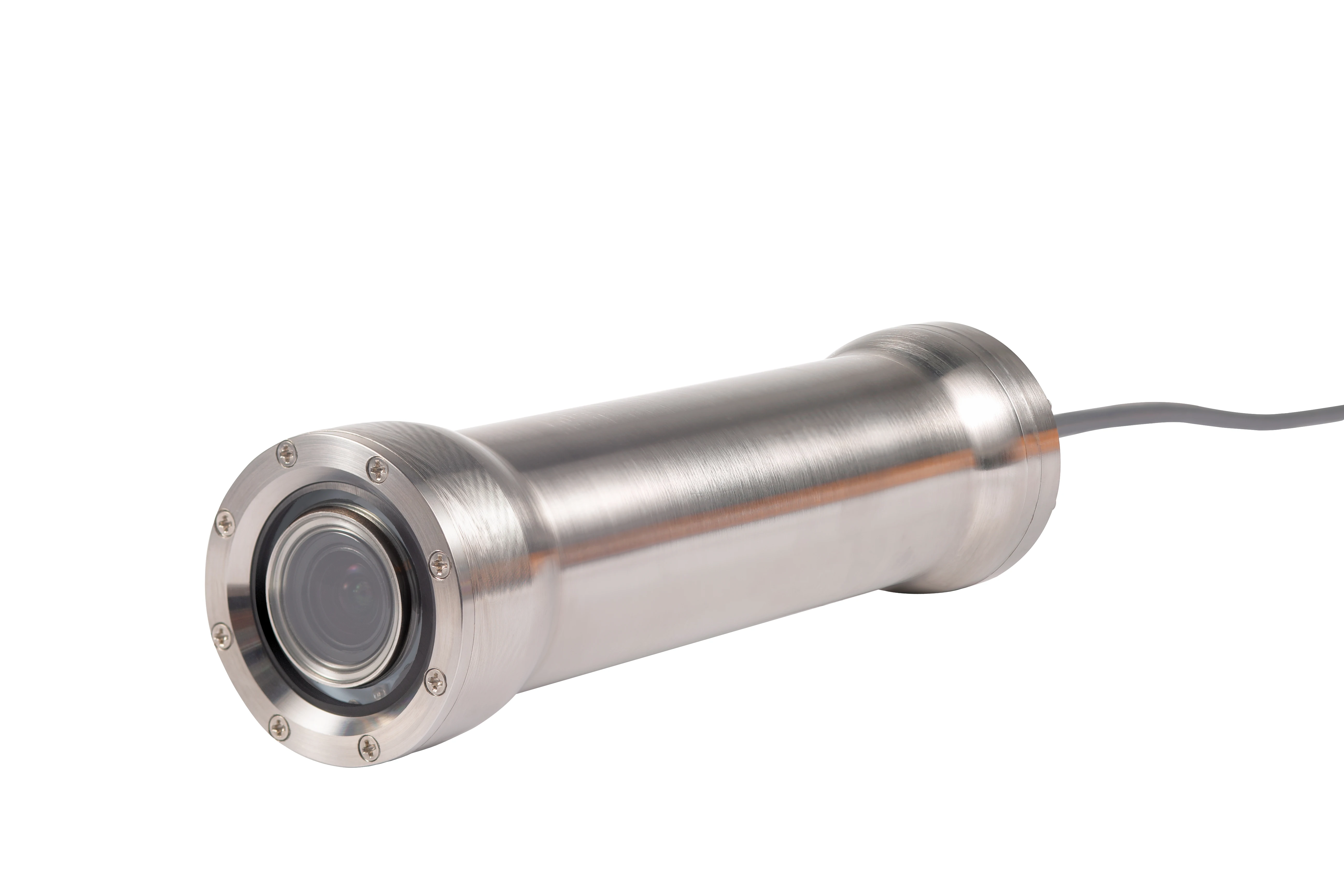

IP68 protective underwater industrial aquaculture camera with stainless steel corrosion resistant electric zoom lens
- Category: >>>
- Supplier: Shenzhen Zhiyong Industrial Co. Ltd.
Share on (1600354519604):
Product Overview
Description
Specification
Product Parameter
Model | GY-H3F-6DHX20 | Lens | 6mm（H62°*V44°） | |
Pixel size | 3.45μm | Sensor size | 1/1.8" CMOS, global shutter | |
Resolution Max. Frame Rate | ||||
SNR | >41 dB | Gain | 0-20dB | |
Exposure time | 50μs-10sec | Image buffer | 128MB | |
Fill light | None | Black/Color | Color | |
Data Interface | Gigabit Ethernet（1000Mbit/s） | SDK | Support | |
Pixel format | Mono 8/10/12 Bayer RG 8/10/10p/12/12p YUV 422 Packed YUV 422_YUYV_Packed RGB 8 | Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
Ingress protection | IP68 | Glass cleaning function | (Support customization) | |
Material | Stainless steel | Water depth | Maximum 500Kpa (Maximum water depth 50M) | |

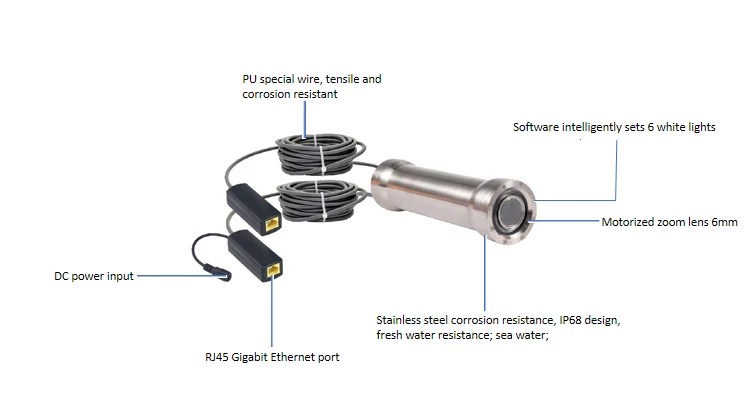

The default length is 20 meters, PU material, diameter 8MM. Anti-60KG tension, anti-aging, anti-friction, anti-corrosion of sea water, special underwater wire. | Land/vehicle/ship/surface/underwater (fresh water, sea water) | |||
Temperature | 0%-100% | Humidity | -20°~55° | |
Input voltage | DC24V | Camera size | ⌀46*80mm | |
Weight | 0.7KG | Package | 1* camera 1*U disk (software and manual) |
Product use:
widely used in aquaculture cameras (fish farming, sea cucumber farming, etc.), fish tank farming cameras, factory production cameras, ice fishing cameras; laboratory observation cameras, shipboard cameras, ship cabin engine monitoring cameras, vehicle cameras, underwater Wedding photography, underwater marine biological research camera, imaging camera in the hole of water conservancy pipe pile, underground TV camera, underwater survey camera, underwater operation camera (such as inspection of cage holes), diving expedition camera, underwater engineering acceptance camera, underground observation Check cameras (such as well digging and workover), fishing cameras
Agricultural planting and breeding
Chemical monitoring
aquaculture
Expedition salvage
Underwater viewing
Production and processing

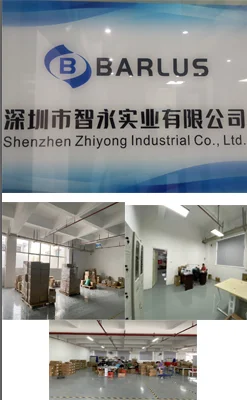

Company Profile
Shenzhen Zhiyong Industrial Co., Ltd.was established in 2015 and is located in Shenzhen,China.It is a factory integrating R&D,production and sales.Mainly develop network high-definition underwater cameras,network underwater industrial cameras.Selling well in many cities and provinces across China, our products are also exported to these countries or regions as United States, Canada, United Kingdom, Germany, France, Romania, Slovakia, Czech Republic, Northern European countries, Australia, New Zealand, Japan, Middle East, South Asian countries, etc.
We help customers design their products and their products are quite popular in overseas markets. Adhering to the business principle of mutual benefits, we have a good reputation among our customers by virtue of our perfect service, decent quality and competitive price.Welcome OEM and ODM orders.We warmly welcome customers, home and abroad, to cooperate and build great business together!
Our Service.
1. OEM ODM Manufacturing is welcome.
2. Sample order is accepted.
3. We will reply you for your inquiry within 24 hours.
4. After shipping, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with
us, we will offer the solution for you .
6. The warranty of our products is 1 year.
2. Sample order is accepted.
3. We will reply you for your inquiry within 24 hours.
4. After shipping, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with
us, we will offer the solution for you .
6. The warranty of our products is 1 year.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(30.00%),North America(14.00%),Western Europe(13.00%),South America(12.00%),Eastern Europe(12.00%),Southern Europe(8.00%),Northern Europe(6.00%),Central America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Underwater camera,Pipeline camera,ROV underwater camera,fishing camera,fish finder
4. why should you buy from us not from other suppliers?
Zhiyong Industry Co., Ltd. is a professional
manufacturer of underwater camera. We have 7 years of experience in security camera and have a good reputation in this field.Our products have won praisefrom customers worldwide.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2015,sell to Domestic Market(30.00%),North America(14.00%),Western Europe(13.00%),South America(12.00%),Eastern Europe(12.00%),Southern Europe(8.00%),Northern Europe(6.00%),Central America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Underwater camera,Pipeline camera,ROV underwater camera,fishing camera,fish finder
4. why should you buy from us not from other suppliers?
Zhiyong Industry Co., Ltd. is a professional
manufacturer of underwater camera. We have 7 years of experience in security camera and have a good reputation in this field.Our products have won praisefrom customers worldwide.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
