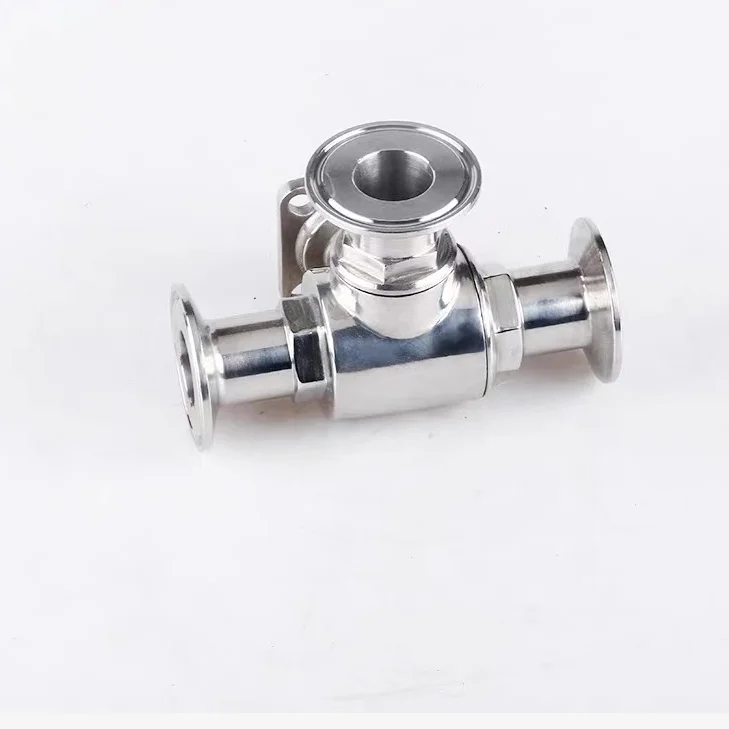

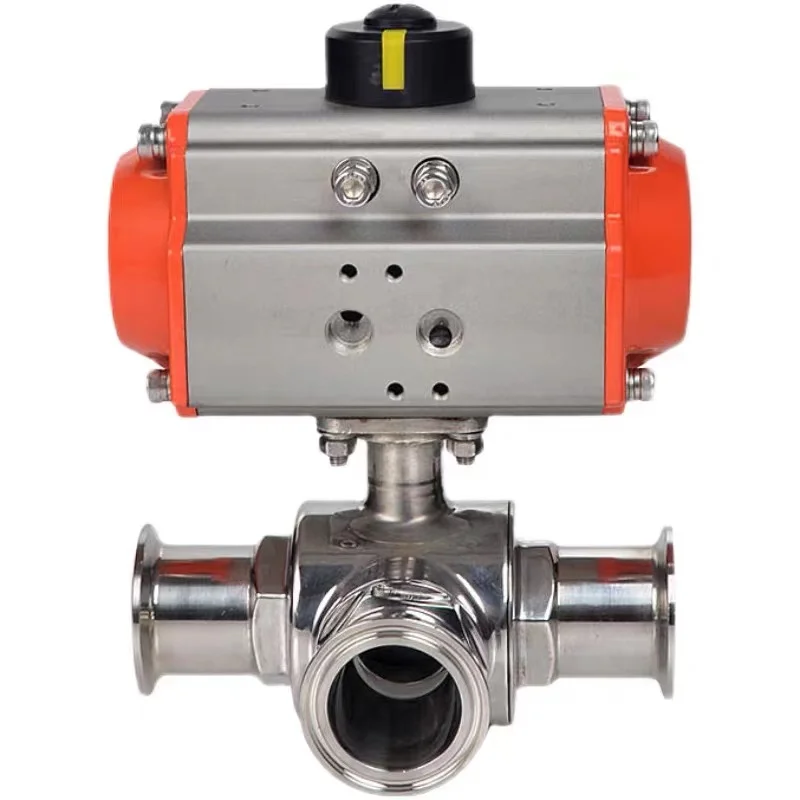

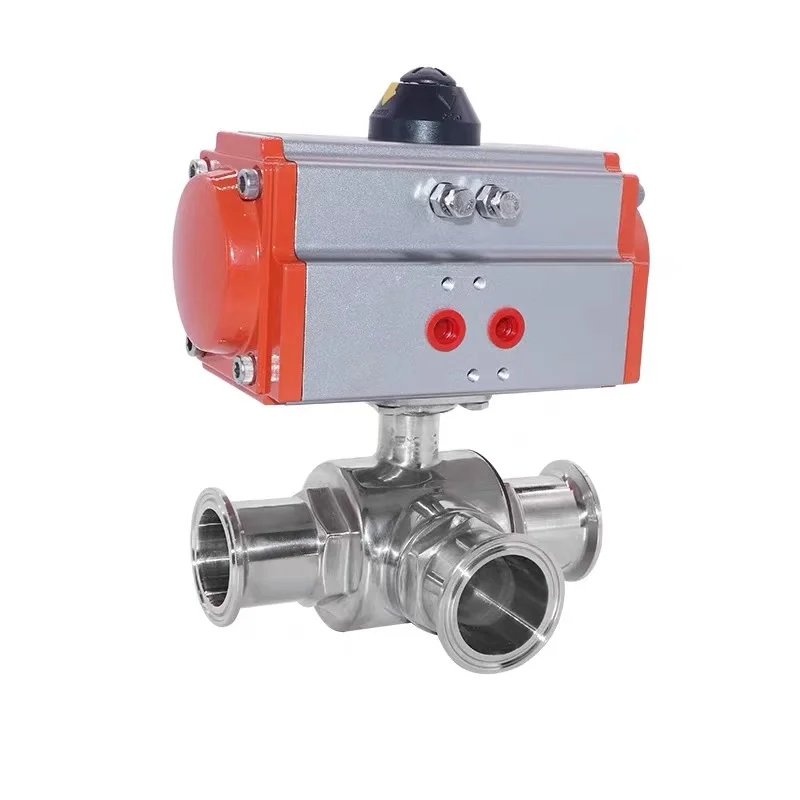

Automatic valve high efficiency ss 304 stainless steel 3 way ferrule clamp sanitary pneumatic ball valve
- Category: >>>
- Supplier: Guangdong OGV Valve Co. Ltd
Share on (1600354537109):
Product Overview
Description
Product Overview
Details Images
Manufacturing Technique
Pneumatic actuator analysis diagram and composition material
Part number | Quantity | Part name | Standard material | Material selectiOn |
1 | 1 | Left end cap | Die-cast aluminum alloy | Stainless steel |
2 | 1 | Right end cap | Die-cast aluminum alloy | Stainless steel |
3 | 1 | Cylinder | Extruded aluminum alloy | Stainless steel |
4 | 2 | piston | Die-cast aluminum alloy | — |
5 | 1 | Output shaft | Carbon steel | Stainless steel |
6 | 1 | Adjusting cam | Stainless steel | — |
07* | 2 | O-ring (end cover) | Nitrile rubber | Fluorine or silicone rubber |
08* | 2 | O-ring (piston) | Butadiene rubber | Fluorine or silicone rubber |
09* | 1 | O-ring (bottom of output shaft) | Nitrile rubber | Fluorine or silicone rubber |
10* | 1 | O-ring (top of output shaft) | Nitrile rubber | Fluorine or silicone rubber |
11* | 2 | O-ring (adjusting bolt) | Nitrile rubber | Fluorine or silicone rubber |
12* | 2 | Plug (cylinder body) | Nitrile rubber | Fluorine or silicone rubber |
13* | 2 | Bearing (piston) | Fluorocarbon composite | — |
14* | 1 | Bearing (top of output shaft) | Nylon 66 | — |
15* | 1 | Bearing (bottom of output shaft) | Nylon 66 | — |
16* | 1 | Guide bearing (back of piston) | Nylon 66 | — |
17* | 2 | Thrust bearing (output shaft) | Nylon 66 | — |
18 | 2 | Gasket (output shaft) | Stainless steel | — |
19 | 1 | Elastic ring | Stainless steel | — |
20 | 8/12/16 | End cap bolts | Stainless steel | — |
21 | 8/12/16 | End cap gasket | Stainless steel | — |
22 | 2 | Gasket | Stainless steel | — |
23 | 2 | Nut | Stainless steel | — |
24 | 2 | Adjusting bolt | Stainless steel | — |
25 | 2 | Guide block | Nylon 66+30%FG | — |
26 | 5-12 | Spring assembly | Alloy bullet steel | — |
27 | 1 | Position indicator | Polypropylene PP+30%GF | — |
28 | 1 | Screw | Stainless steel | — |

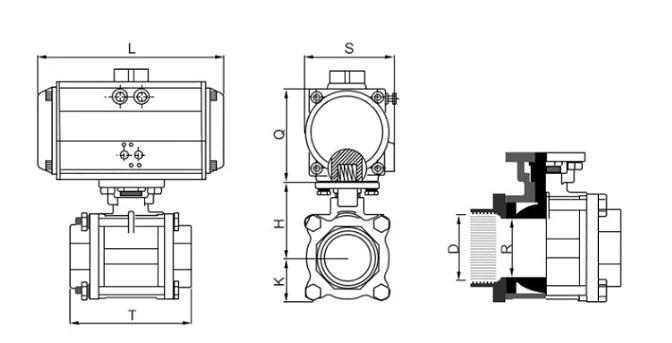

Stainless steel ball valve structure drawing
Size | L | T | H | S | K | Q | R | D |
DN15 | 146 | 69 | 47 | 71.5 | 23 | 98 | 15 | G1/2" |
DN20 | 146 | 80 | 54 | 71.5 | 26.5 | 98 | 20 | G3/4" |
DN25 | 146 | 88 | 64 | 71.5 | 28 | 98 | 25 | G1" |
DN32 | 170 | 100 | 68 | 83.5 | 36 | 116 | 32 | G1 1/4" |
DN40 | 184 | 110.5 | 73 | 96 | 38.5 | 128 | 40 | G1 1/2" |
DN50 | 211 | 136 | 84 | 104 | 44 | 136 | 50 | G2" |
DN65 | 265 | 168 | 95 | 109 | 61 | 146 | 65 | G2 1/2" |
DN80 | 275 | 194 | 100 | 125 | 70 | 153 | 75 | G3" |
DN100 | 305 | 240 | 112 | 147 | 82 | 190 | 100 | G4" |
Recommend Products
Company Profile
Guangdong OGV Valve Co., ltd is a cooperative enterprise which owns R &D division, production line and sales channel, and with 16 years of industry experience, dedicated to provide customers one-stop procurement services and solutions; specifically committed to the R&D of valve, electric actuators and pneumatic automatic control equipment system. Manufactured products have passed ISO9001 international quality management system, TS national pressure pipe components manufacturing license, CE certificate, FM, UL and American 3A health certification standards. Mentioned products have been widely used in various fields, such as paper making, pharmaceuticals, food, chemical, petroleum, air-condition, water supply and industrial automation and so on.
Our factory ,professional manufacturer with modern production machinery,also can do custom made.
Our warehouse has a large amount of inventory and short delivery time,we can send goods within 3-5 days.
Professional container loading, wonderful packaging,customer satisfaction is very high!

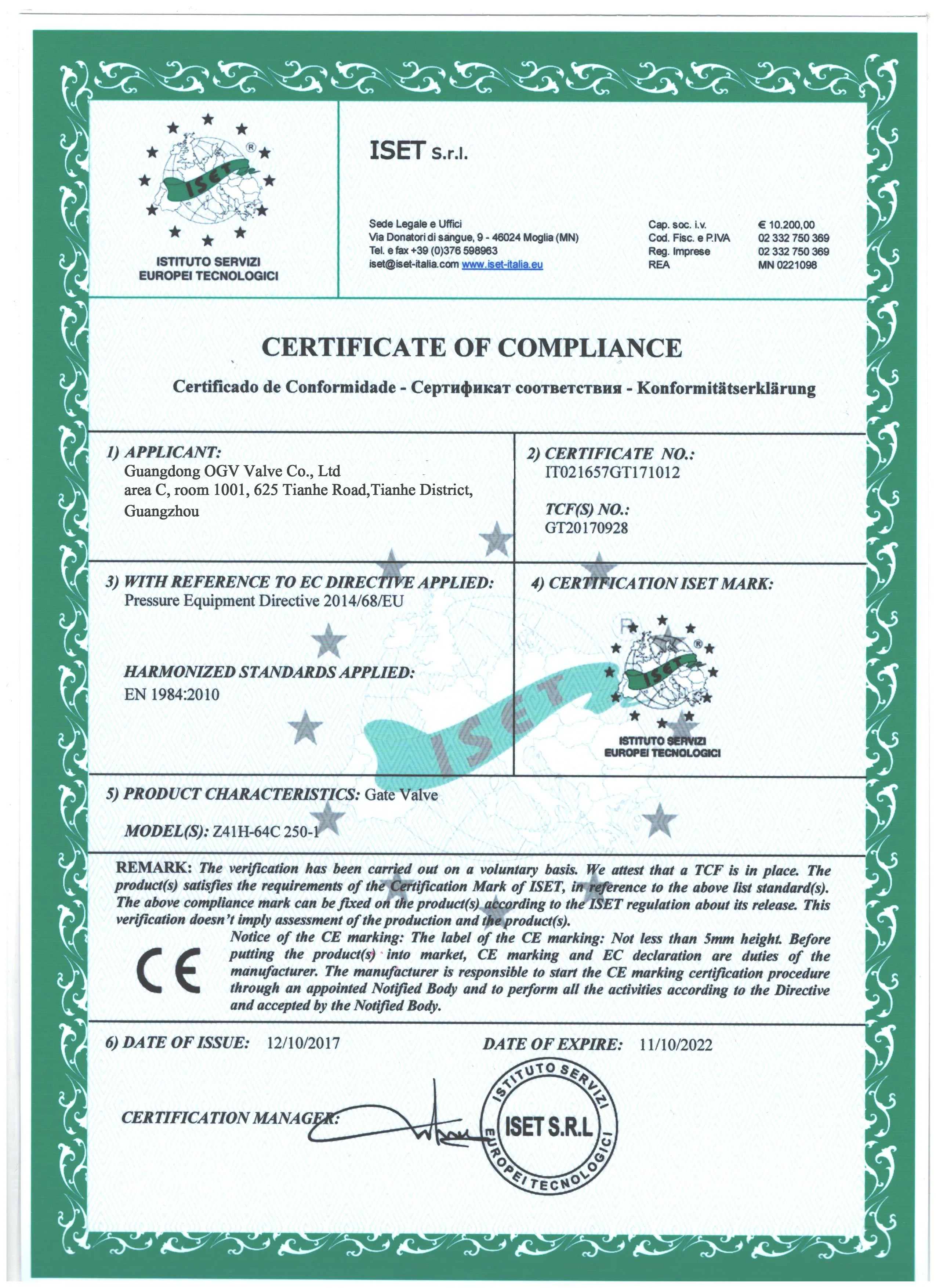

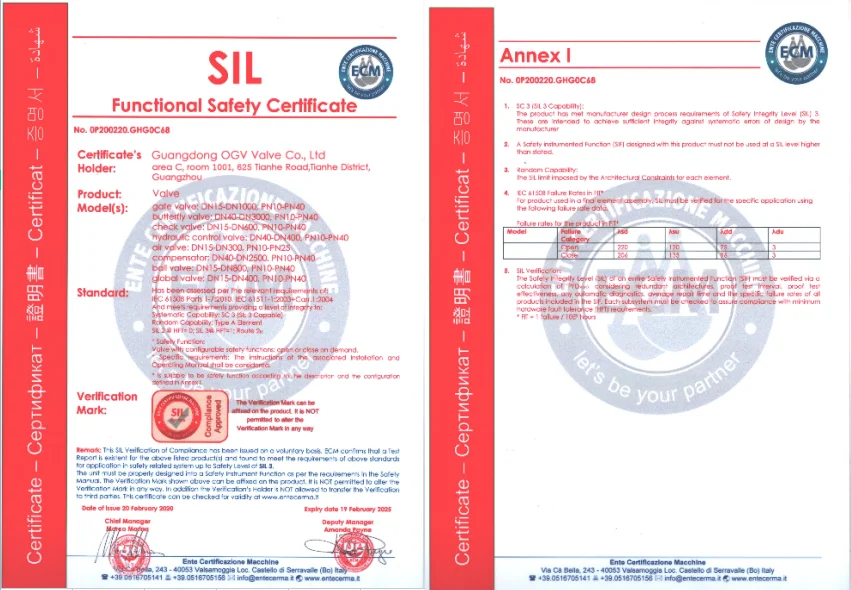

Certifications
