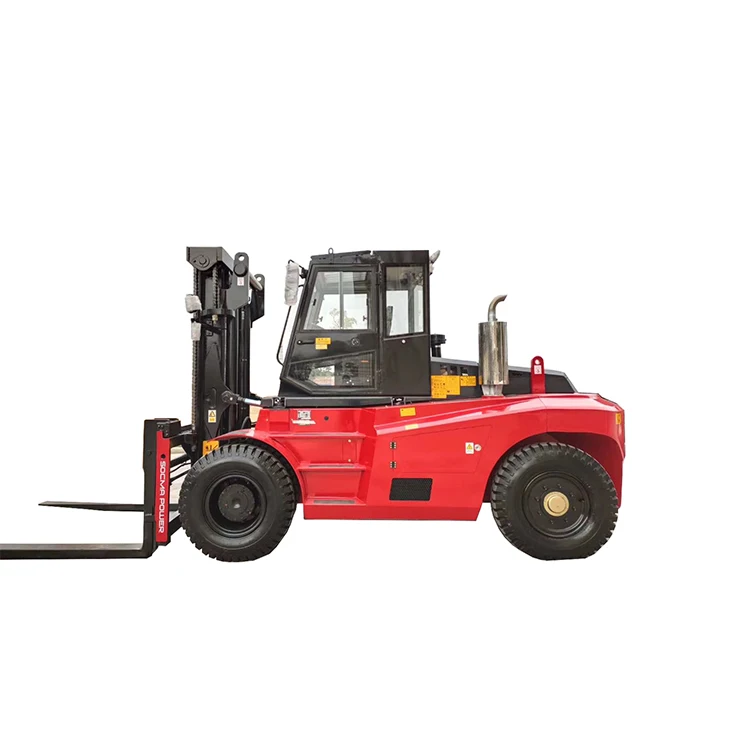

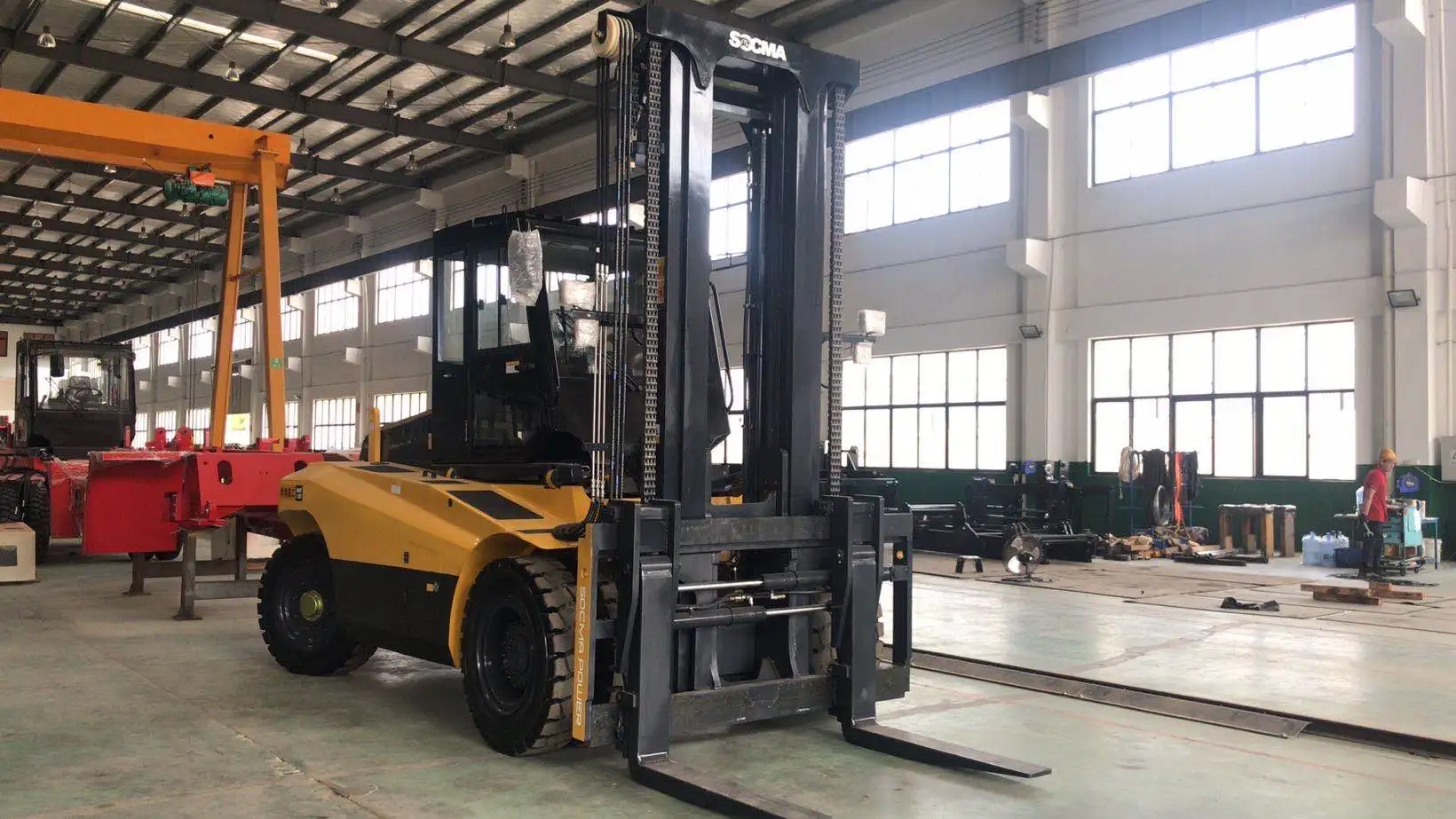

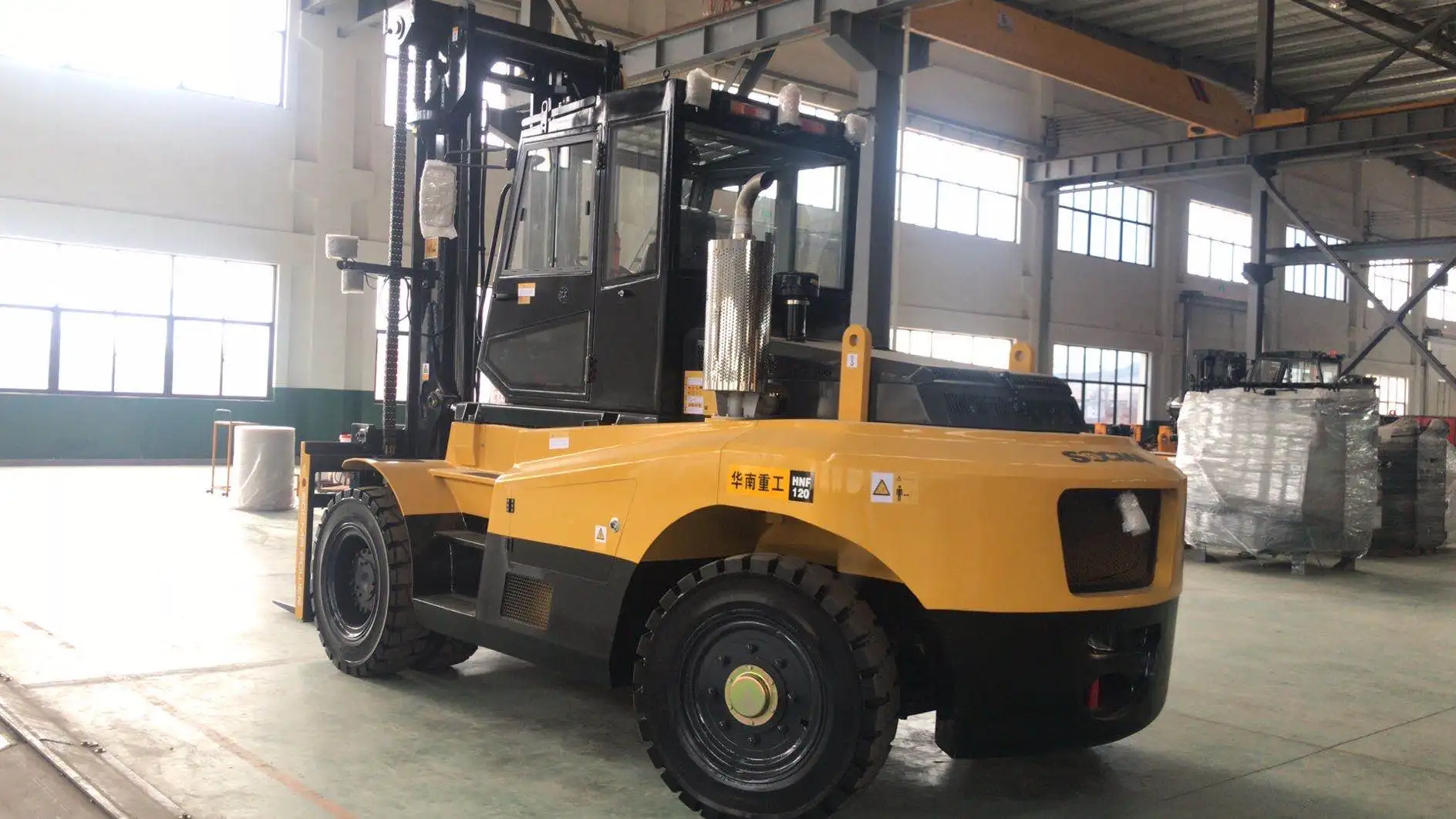

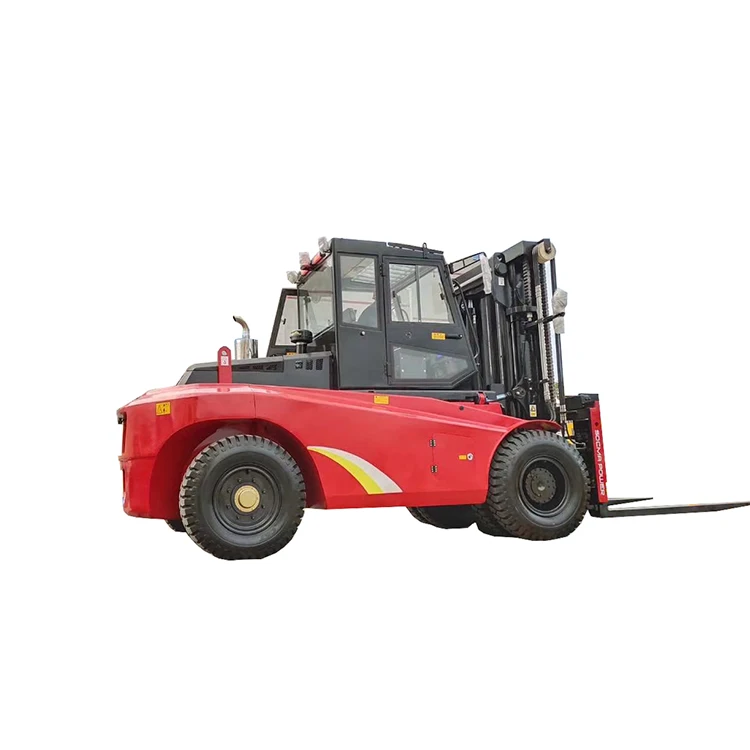

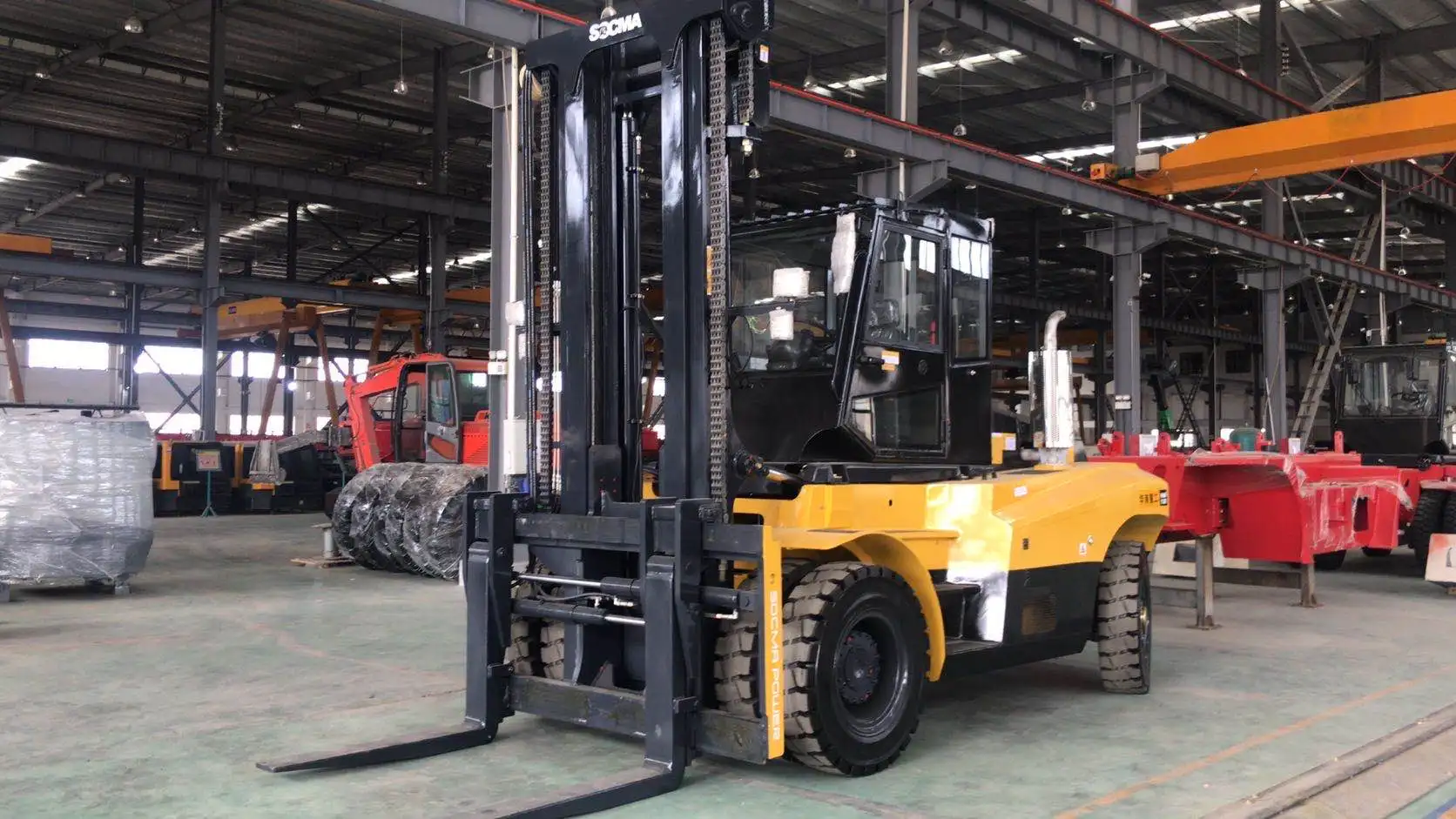

China Made Heavy Forklift Diesel Forklift 12 tons
- Category: >>>
- Supplier: Fujian Southchina Heavy Machinery Manufacture Co. Ltd.
Share on (1600355871979):
Product Overview
Description
Poster
| Item | Item details | Unit | |
| HNF-120 | |||
| Features | Rated Load | Q(t) | 13.5 |
| Load center | c(mm) | 600 | |
| Wheelbase | y(mm) | 3000 | |
| Weight | Weight | kg | 18500 |
| Chassis | Tyre Specs.:Front | 10.00-20-18PR | |
| Tyre Specs.:Rear | 10.00-20-18PRR | ||
| Tyres Qty,front/rear (X-drive wheels) | 4\\2 | ||
| Wheel tread:Front | b10(mm) | 1677 | |
| Wheel tread:Rear | b11(mm) | 2013 | |
| Dimension | Mast/carriage tilt angle(front/rear) | Degree(°) | 6\\12 |
| Mast height(fork lowering) | h1(mm) | 3100 | |
| Mast lifting height | h3(mm) | 3000 | |
| Max.lifting height | h4(mm) | 4600 | |
| Height to head guard (height to cab) | h6(mm) | 3000 | |
| Overall height(with forks) | l1(mm) | 6055 | |
| Fork front vertical surface to the rear end of the vehicle | l2(mm) | 4855 | |
| Overall width | b1/b2(mm) | 2250 | |
| Fork dimension | s/e(mm) | 1200X180X100 | |
| Fork carriage width | b3(mm) | 2200 | |
| Mast min ground clearance (with load) | m1(mm) | 225 | |
| Wheelbase center min ground clearance(with load) | m2(mm) | 350 | |
| Min.Turning radius | Wa(mm) | 4450 | |
| Travel speed (with load/without load) | km/h | 26/30 | |
| Performance | Max.lifting speed (with load/without load) | mm/s | 220/270 |
| Max.Lowering speed (with load/without load) | mm/s | 450/300 | |
| Traction | N | 90000 | |
| Gradeablity (with load/without load) | % | 20/22 | |
| Driving brake | Hydraulic clamp disc | ||
| Engine brand/model | Optional one | Yuchai engine | |
| Engine | YC6J175-T302 6.494L 110KW 2200rpm | ||
| Optional two | Dongfeng Cummins | ||
| QSB6.7-C190 4.5L 97KW 2200rpm | |||
| Cylinder No. | 6 | ||
| Others | Transmission gears(Front/rear) | 2\\2 | |
| Attachments working pressure | bar | 160 | |
| Attachments using oil amount | l/min | 40 |
