Фабричное производство 304 316 расширенный металлический лист декоративная Расширенная металлическая сетка для украшения офиса Расширенная металлическая проволочная сетка

Product Overview

Description

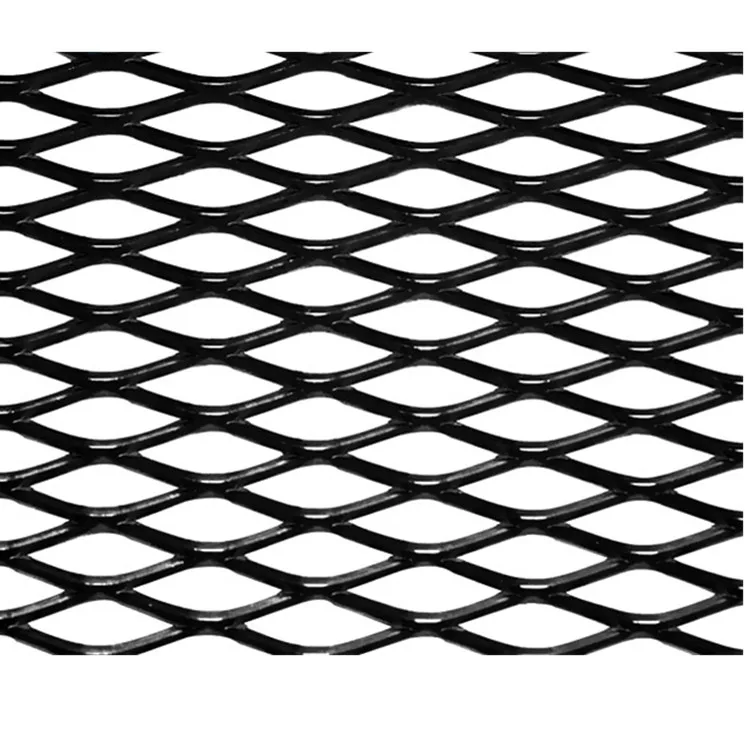

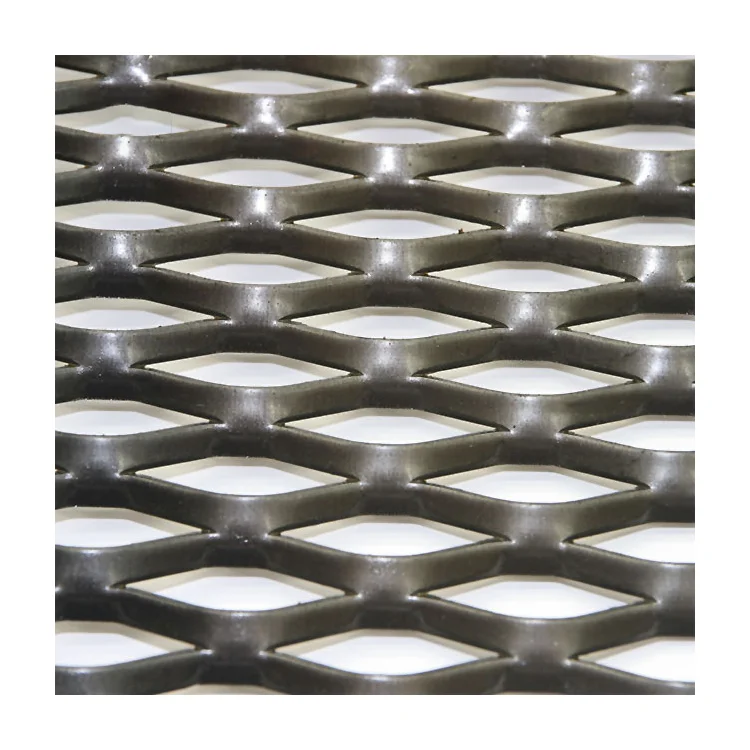

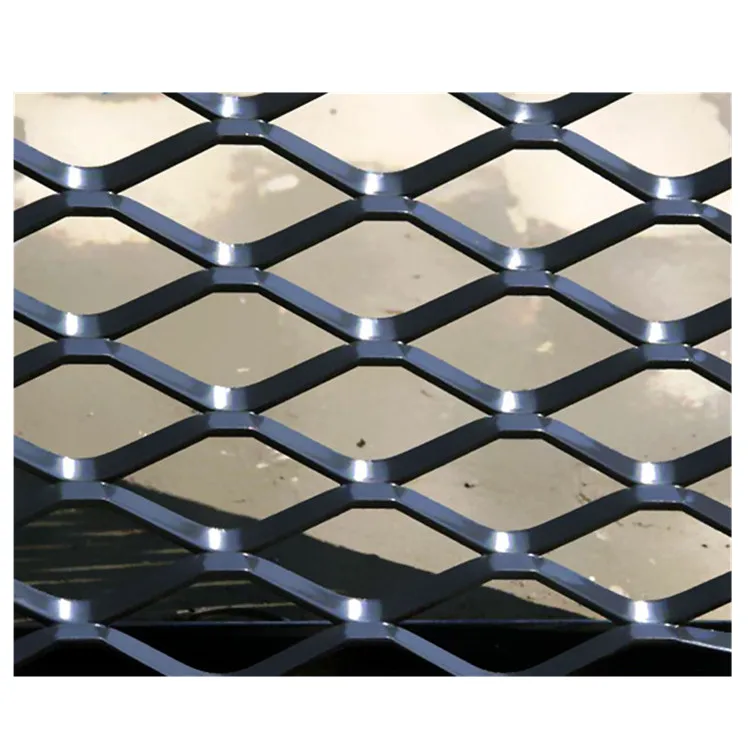

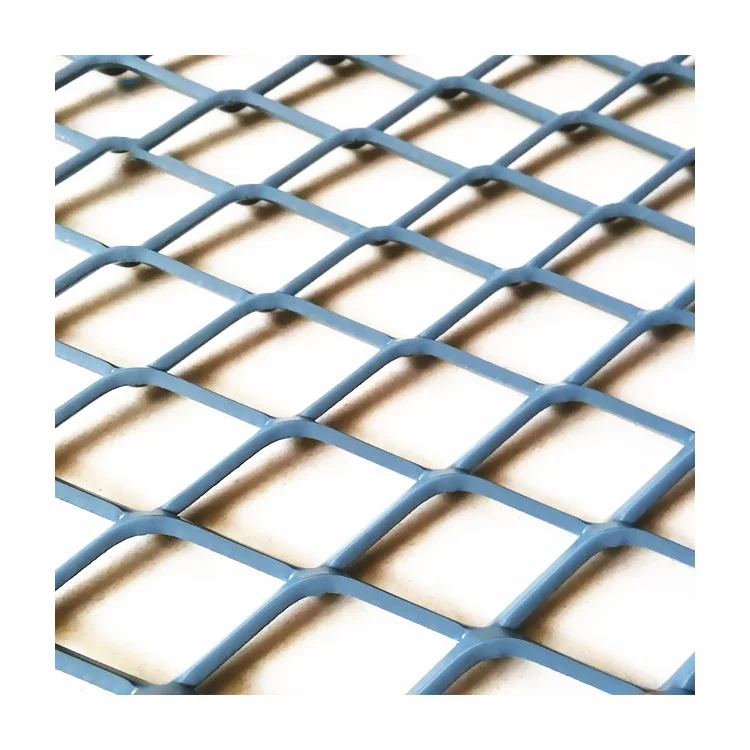

Expanded metal mesh is manufactured from solid sheets/coils of stainless steel, aluminum, carbon steel or other alloys that can be expanded.The sheets/coils are fed into the expanding machine, and the precision die cuts and stretches the metal in a single operation. Then the material is sheared and stretched into a particular pattern with uniform opening sizes.



The metal sheet can be expanded up to ten times its original width, and the final product is lighter per meter and stronger per kilogram than its original sheet. No material is lost in the manufacturing process



Product Name	Expanded Metal Mesh/Expanded Wire Mesh
Material	Aluminum plate, Low Carbon Steel, Stainless Steel (304,304L ,316,316L), as    customized
Thickness	0.3mm to 8.0mm
Strand width	0.4mm to 30mm

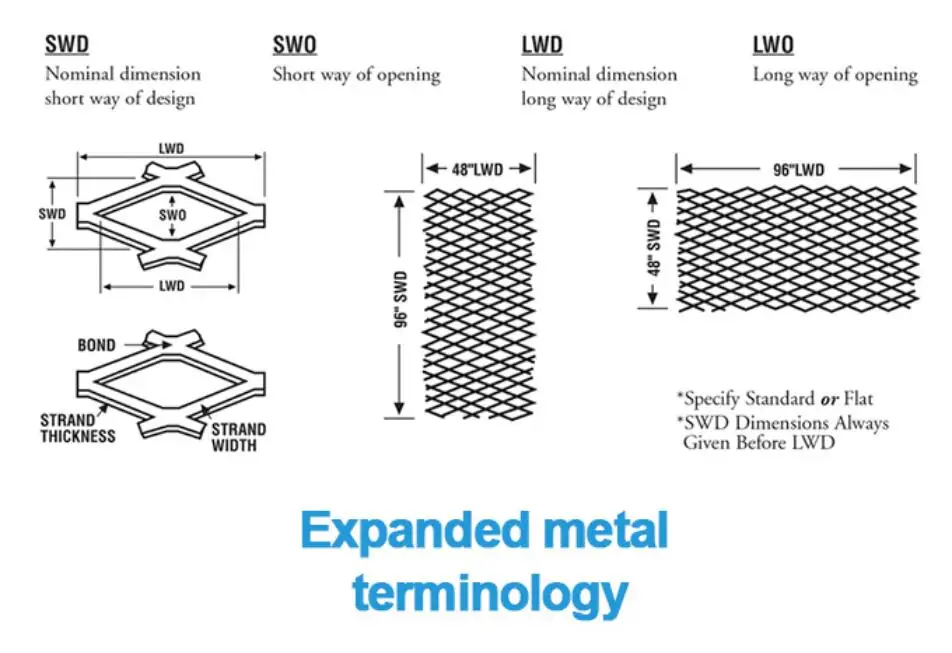

SWD	2mm to 100mm
LWD	3mm to 300mm
Color	Red ,Blue,Yellow,Green,according for customer require
Surface	Untreated / Powder coated / PVDF / Anodizing

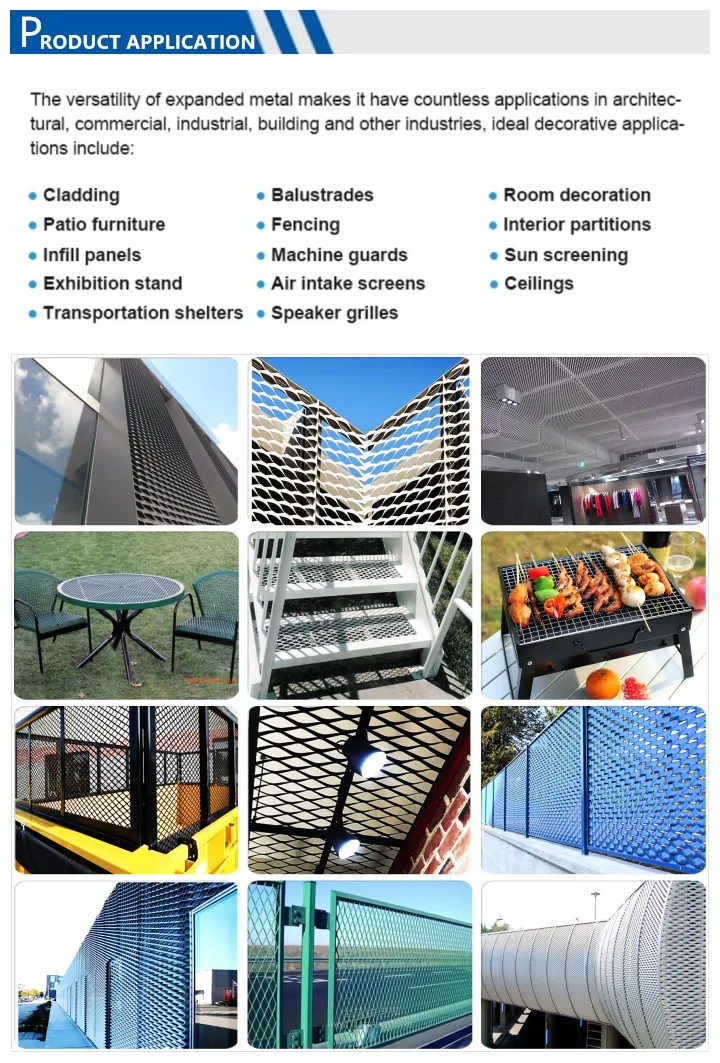

Application	interior and exterior decoration,industrial,security guards,screens,ceiling,curtain   wall,buiding facade,etc.





Feature & Benefits

• Good positioning performance


• High strength Flame resistance


• Anti-corrosion


• Long service life


• Good pervious to light


• Anti-UV Environment-Friendly

 Expanded wire mesh is a one piece construction that won’t unravel and under normal circumstances which  will hold shape for many years. The strands and bonds of the diamond-shaped trusses add strength and rigidity.

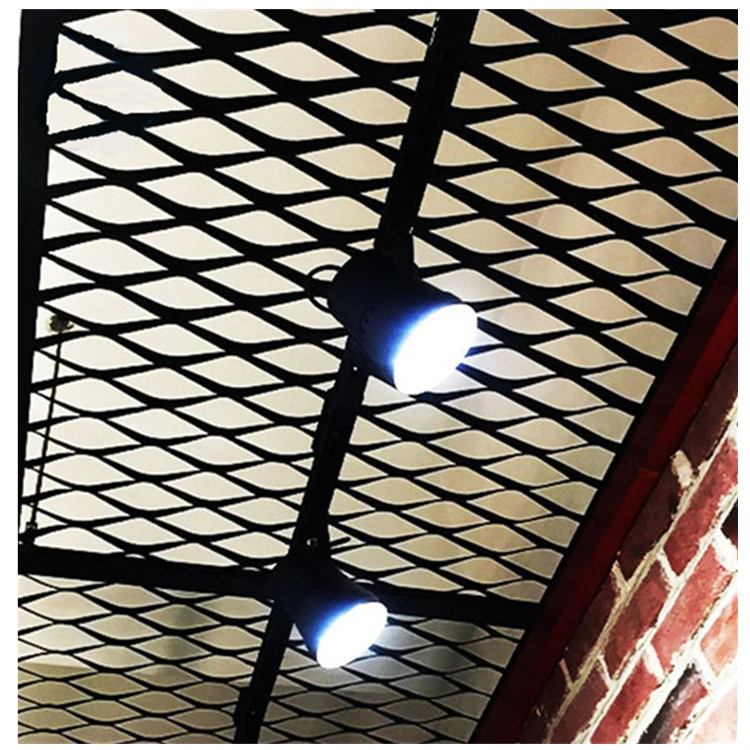

     Nowday,expanded wire mesh is typically used for screening, ventilating or security as a guard. The openings permit passage of light, air, heat and sound, and sheet is lightweight and easy to fabricate and form. Decorative patterns have the same properties and are used aesthetically. Decorative patterns may be found in applications like retail shelving, signage, partitions, ceiling tiles, and more.























Packaging Details

 1.Woven bags of the above and bottom,high quality package
 2.In roll ,water proof paper in side and our side with weave bag carton wooden-case; pallet

 3.Wooden Box for the heavy items
 4.According to customers requirement.







1: Are you a manufacturer?

    Yes, we have been in providing the professional products in wire mesh field.



2: How about the delivery time?

    Usually within 15- 20 days, customized order may need longer time.



3:Can you offer free sample?

    Yes, but usually the customer need to pay the freight, We'll send back the courier charge if you make an order.



4: Can I have your products with my own logo on it?

    Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg. We would send you layout art with your logo on our products to check. The setup cost would be quoted per artwork.



5: Can the surface of the sheet be plastic coated?
No problem.At your request, please feel free to choose.However, such products will increase the cost.



6: What types of materials are made into expanded metal sheet?
There are many types of materials made into expanded metal sheet. For example, aluminum, carbon steel, stainless steel, nickel, silver and copper can all be made into expanded metal sheets.
