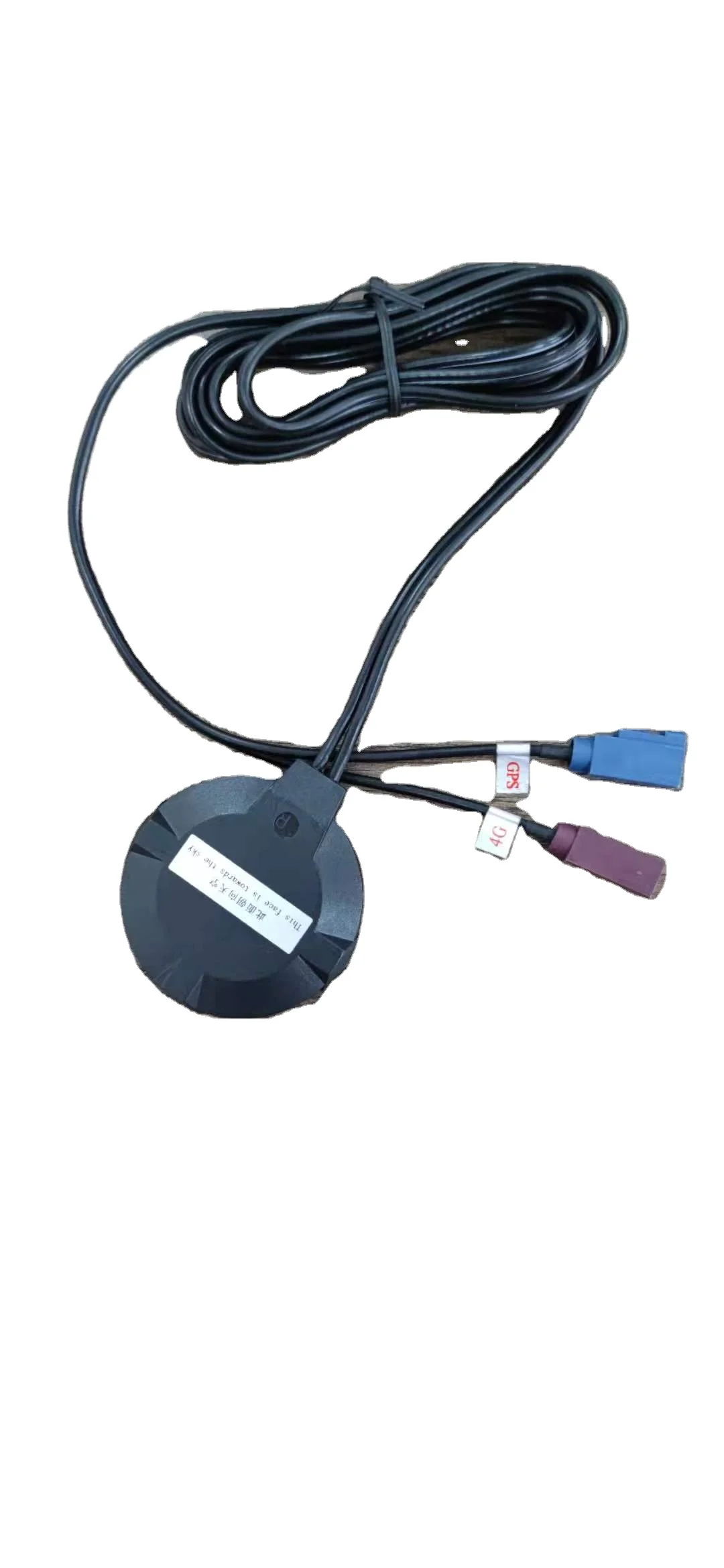

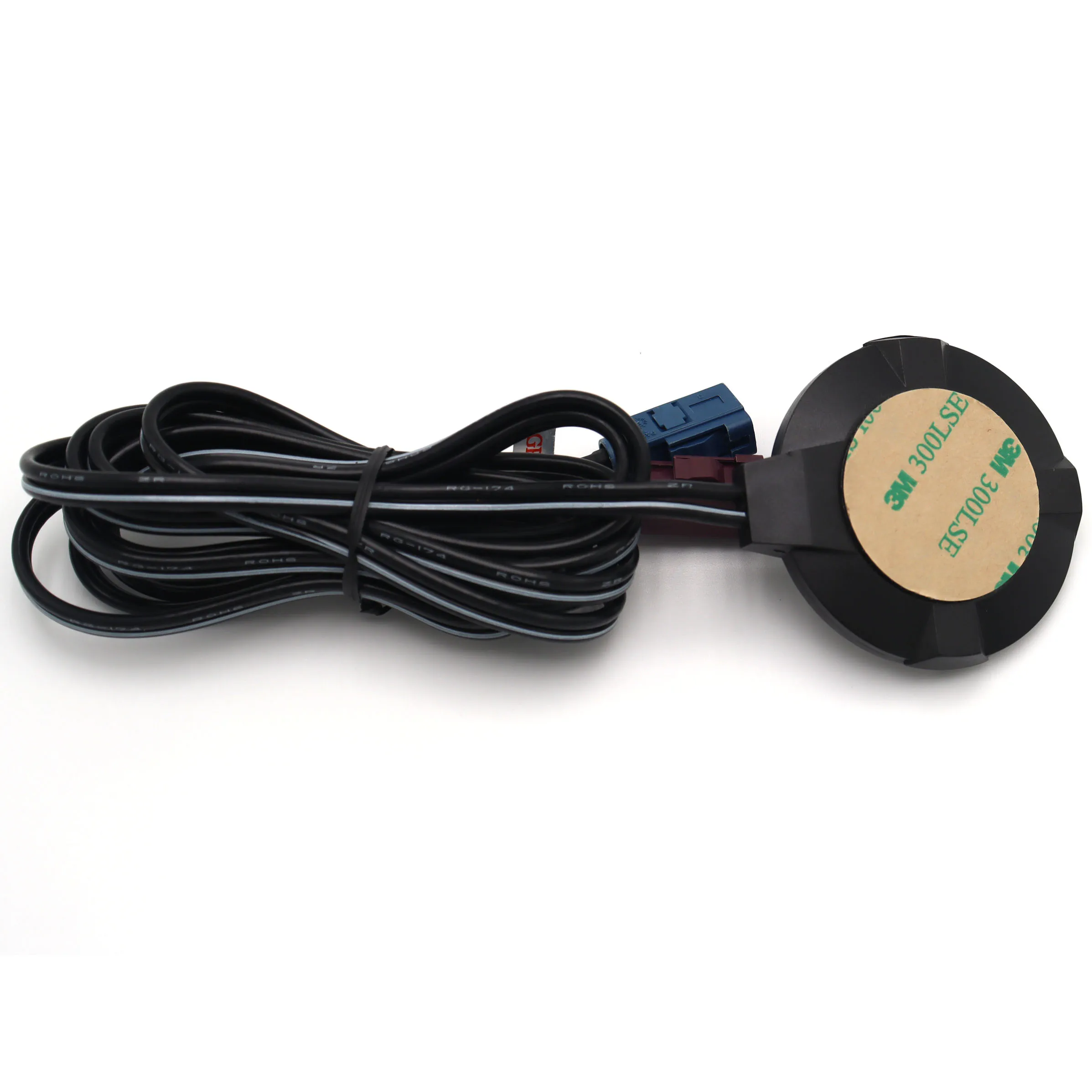

Dual band 4G Car navigation GPS antenna with fakra connector
- Category: >>>
- Supplier: Ningbo Lijie Communication Group Co. Ltd.
Share on (1600356041079):
Product Overview
Description
Product parameter
Basic info | ||
MOQ | 1 | |
unit of measurement | Pieces | |
Packing | Carton | |
Sea port | ningbo | |
GPS Electrical Specification | ||
Center Frequency | 1575.42MHz±1.5MHz | |
Gain | 29dBi±3dBi | |
VSWR | ≤1.8 | |
Bandwidth | 3MHz | |
Input Impendence | 50Ω | |
Consumption Electric | <10mA | |
Polarization Intensity | R.H.C.P | |
Sound Coefficient | ≤1.5dB | |
Axial Ratio | 3dB | |
Connector Type | Fakra or Customized | |
Max Input Power | 50W | |
Mechanical Specifications | ||
Operating Temperature | -40℃~85℃ | |
Storing Temperature | -20℃~85℃ | |
Cable Length | 3000mm or Customized | |
Radome Color | Black | |
Antenna Dimension | Φ80x15mm | |
Weight | 140g | |
GSM 4G Electrical Specifications | ||
Frequency Range | 824~960MHz/ 1710~2700MHz | |
Input Impendence | 50Ω | |
VSWR | ≤1.8 | |
Gain | 3.5dBi | |
Polarization | Vertical | |
Horizontal Half Power Angle | 360° | |
Connector Type | Fakra or Customized | |
Max Input Power | 50W | |
Mechanical Specifications | ||
Operating Temperature | -40℃~85℃ | |
Storing Temperature | -20℃~85℃ | |
Cable Length | 3000mm or Customized | |
Weight | 140g | |
Antenna Dimension | Φ80x15mm | |
Products Show

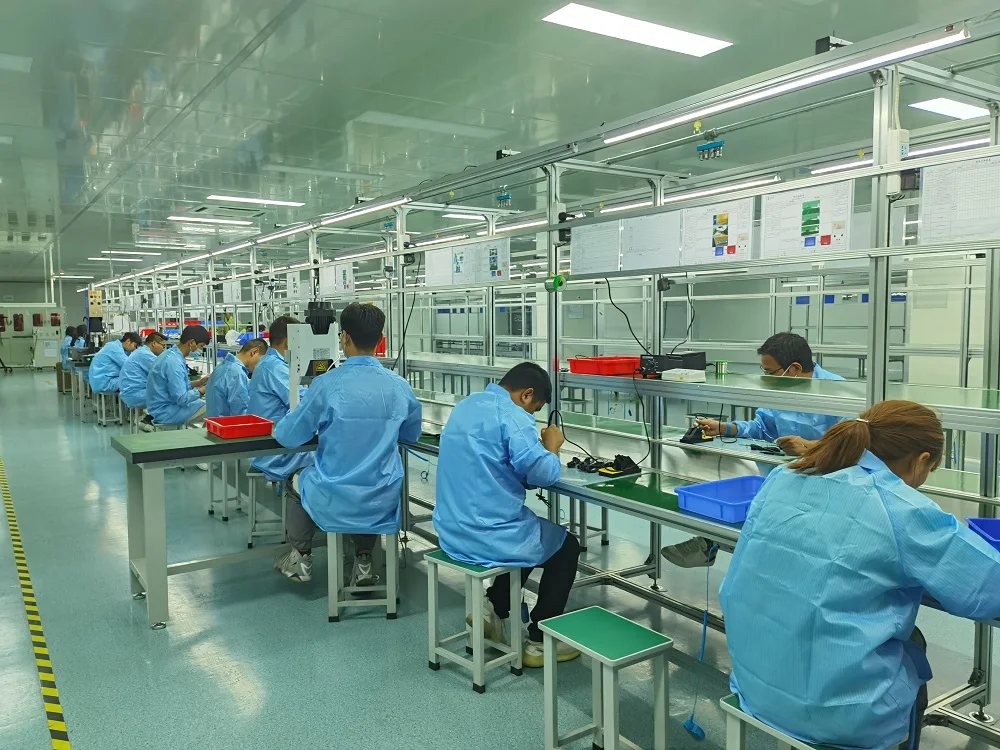

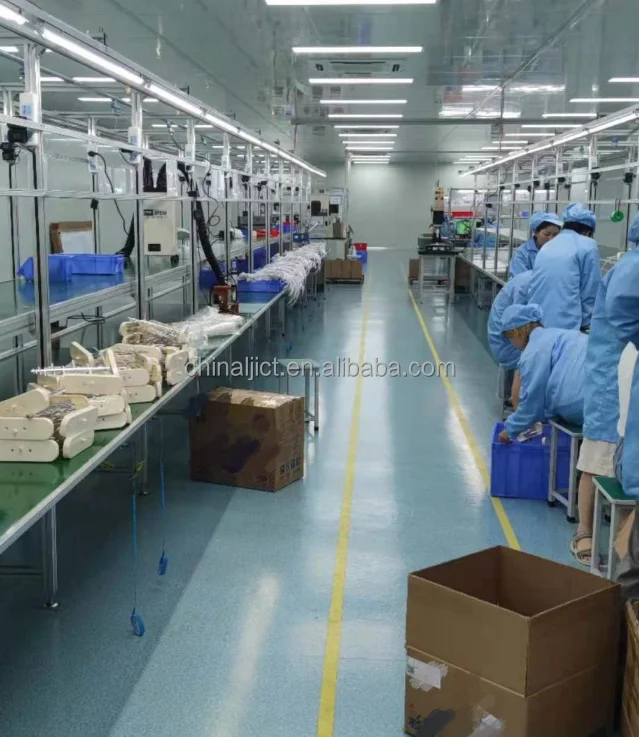

company exhibition
Product production flow chart
Company Profile
