LIGHT GAUGE STEEL HOUSE SYSTEM
BIM DRAWINGS READING
GRAPHIC REAL TIME DISPLAY
ETHERCAT PC CONTROL
PUNCH HOLE FOR SCREWS , SERVICE
DOUBLE-SIDES INJET PRINTER
STEADY 5-TONS MACHINE BENCH
SAFETY COVER
C100 cold formed steel structure building contracting machine offsite manufacturing equipment in Argentina
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Guangzhou,Lms,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
MASS_APP4_2405_BEGIN
MASS_APP4_2405_END
Product Overview

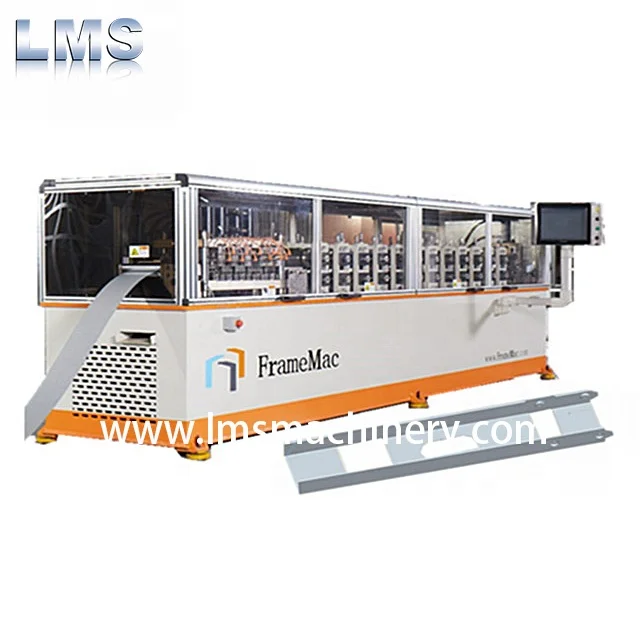

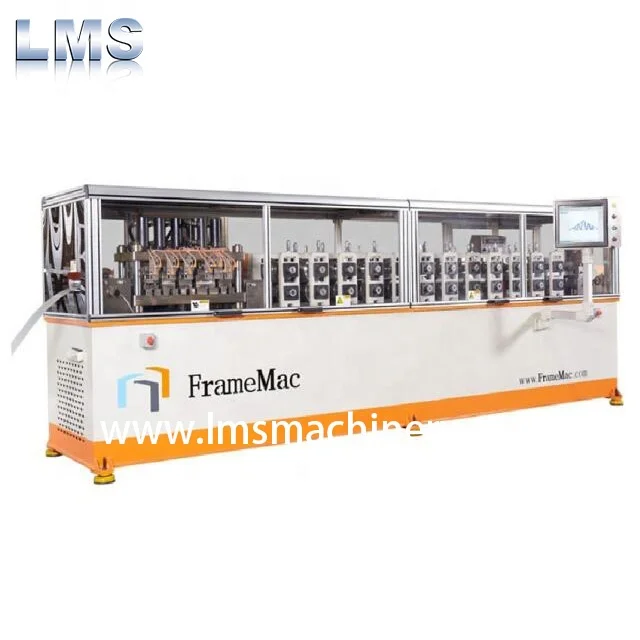

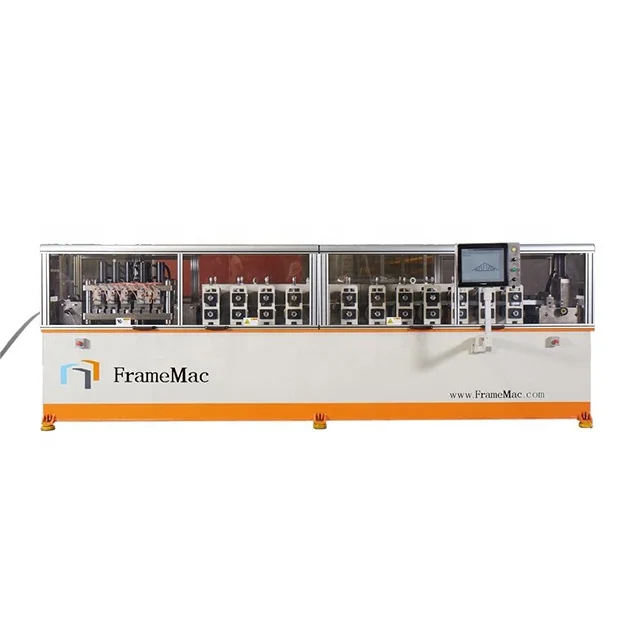

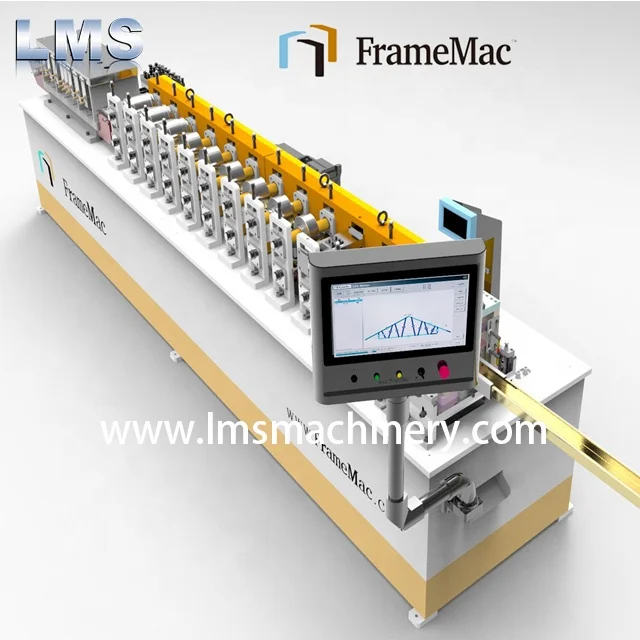

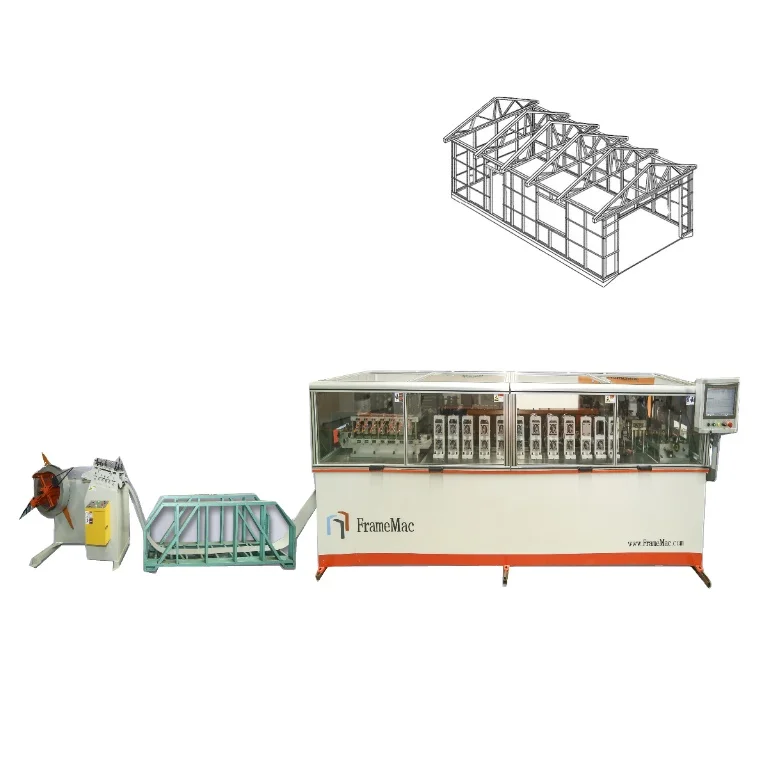

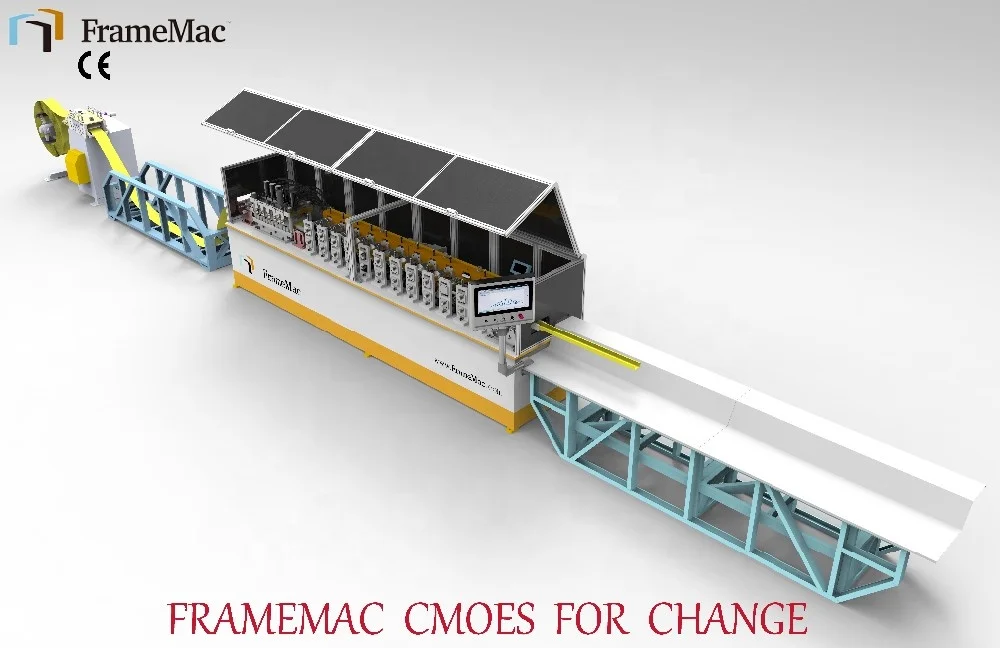

C100 Light steel framing machine
This cold formed machine produces c channel stud and tracks for light gauge steel framing building, by recognizing output files of BIM design software.
FEATURES AT A GLANCE
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Web | 100mm |
2 | Thickness | 0.7-1.2mm |
3 | Production speed | 300-900m/h |
4 | Accuracy | 0.5mm |
5 | Total Power | 16.5kw |
6 | Inkjet printer | 2 sides |
7 | Decoiler | 2 tons |
8 | Machine weight | 4600kg |
PRODUCT CONFIGURATION

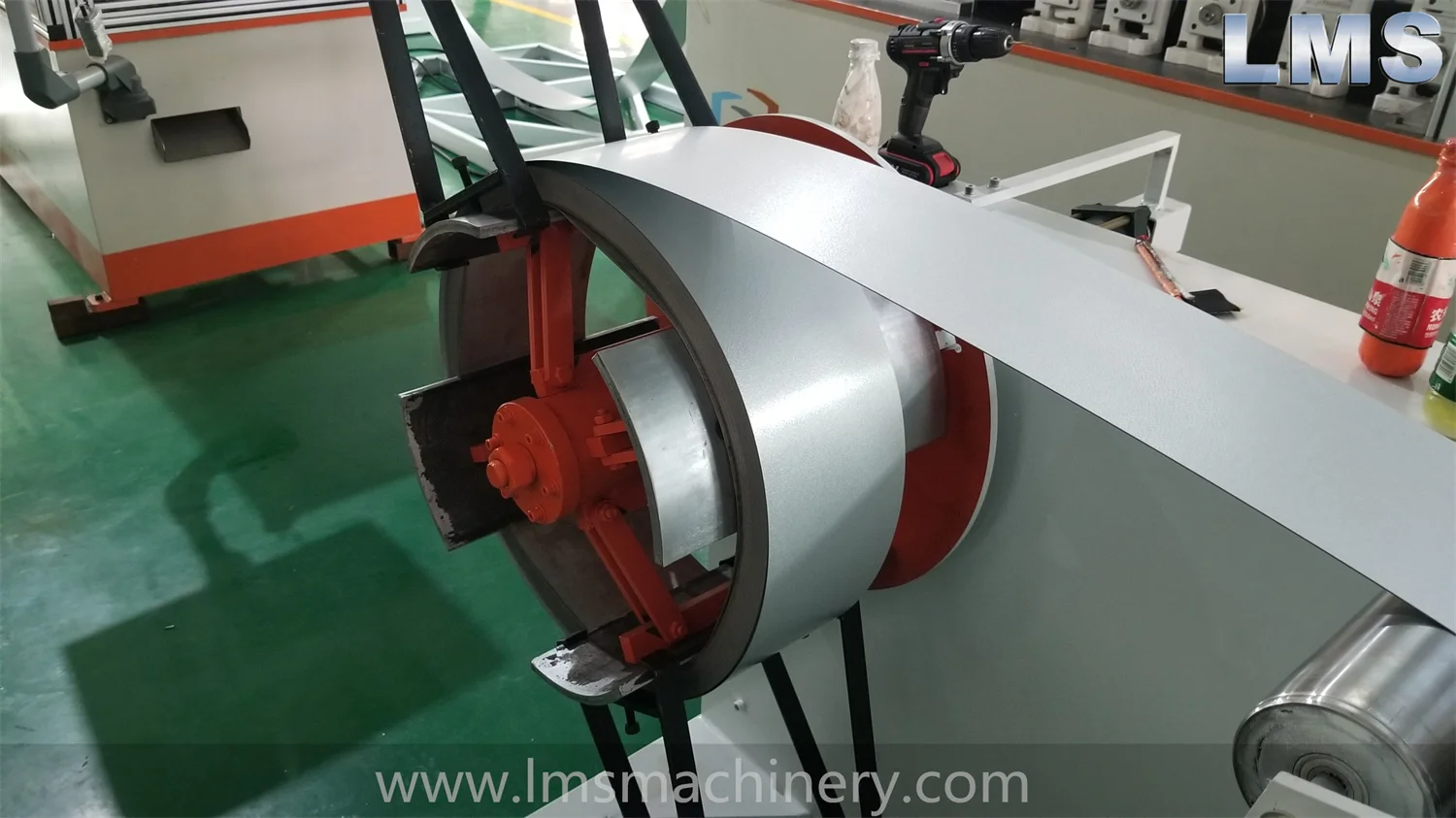

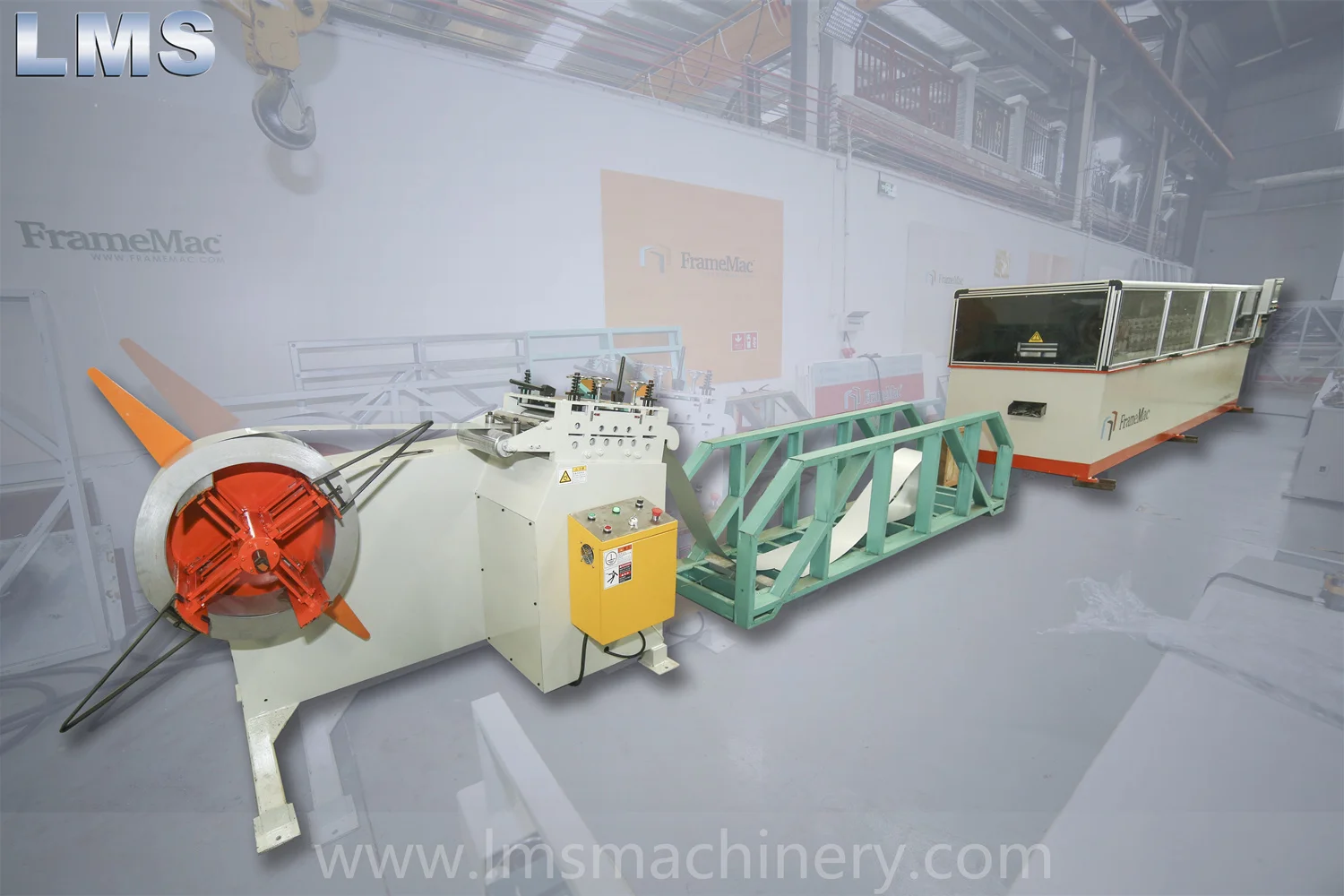

2 in 1 standard uncoiler and straightener:
Decoiler is by hydraulic expansion and tighten, safe and convenient to load and unload steel coils. Leveler , 4 worm gear of which are adjustable for best straightening effect.

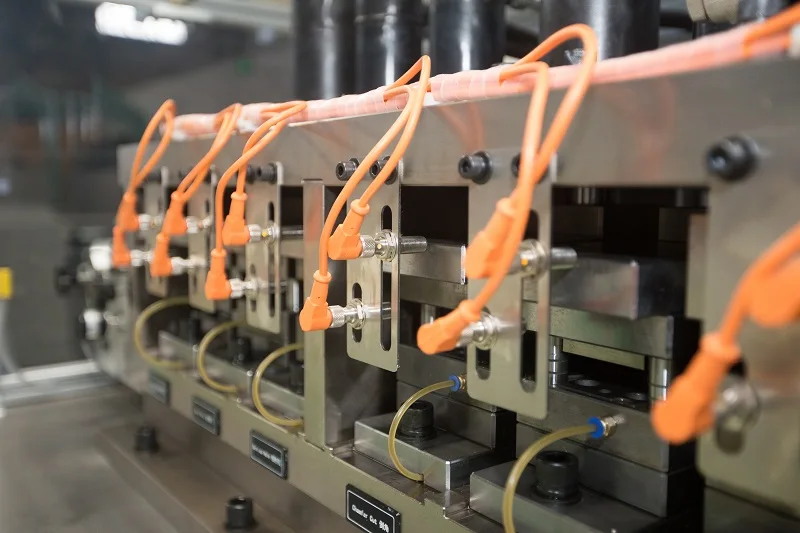

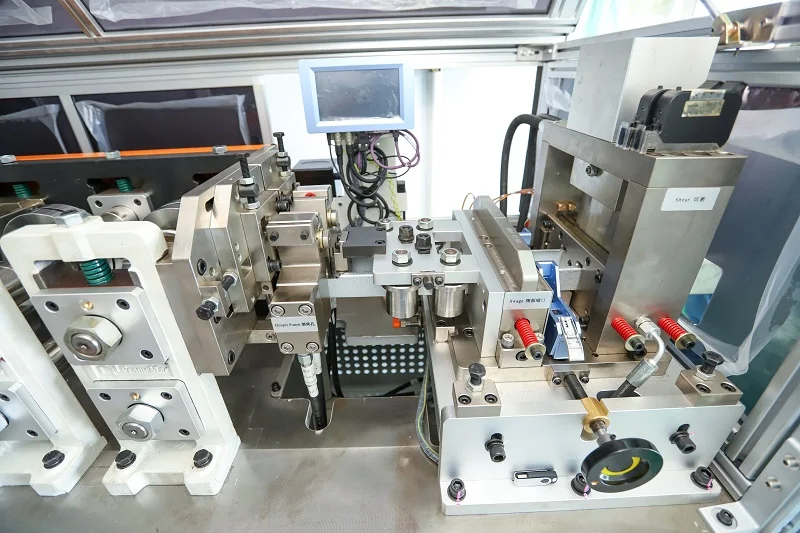

Smart punching
The punch group is composed of highly sensitive sensor, powerful hydraulic press force, strong die cut by slow-speed wire and accompany lubrication route.
Roll forming part
The roller stations gap can be auto adjusted for steel strips in different thickness, precisely aligned on steady bench , safely shell shield.
Inkjet printer
The printer with a smart chip, automatically print the code on both side of steel frame ,same as detailing drawings, which should be referred to installed. This shorten precious time of both production and installation offsite or onsite.

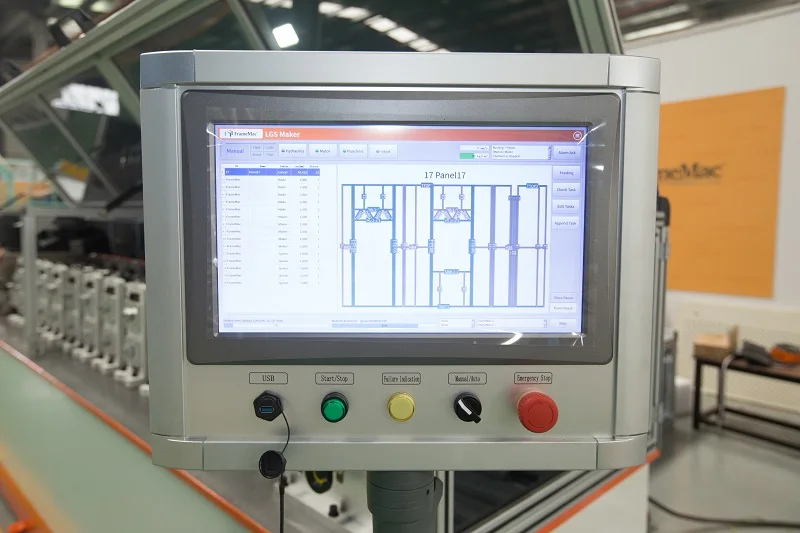

Industrial computer
This industrial computer is installed with Lilux system, which can prevent from Microsoft virus. Its communication type is EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.

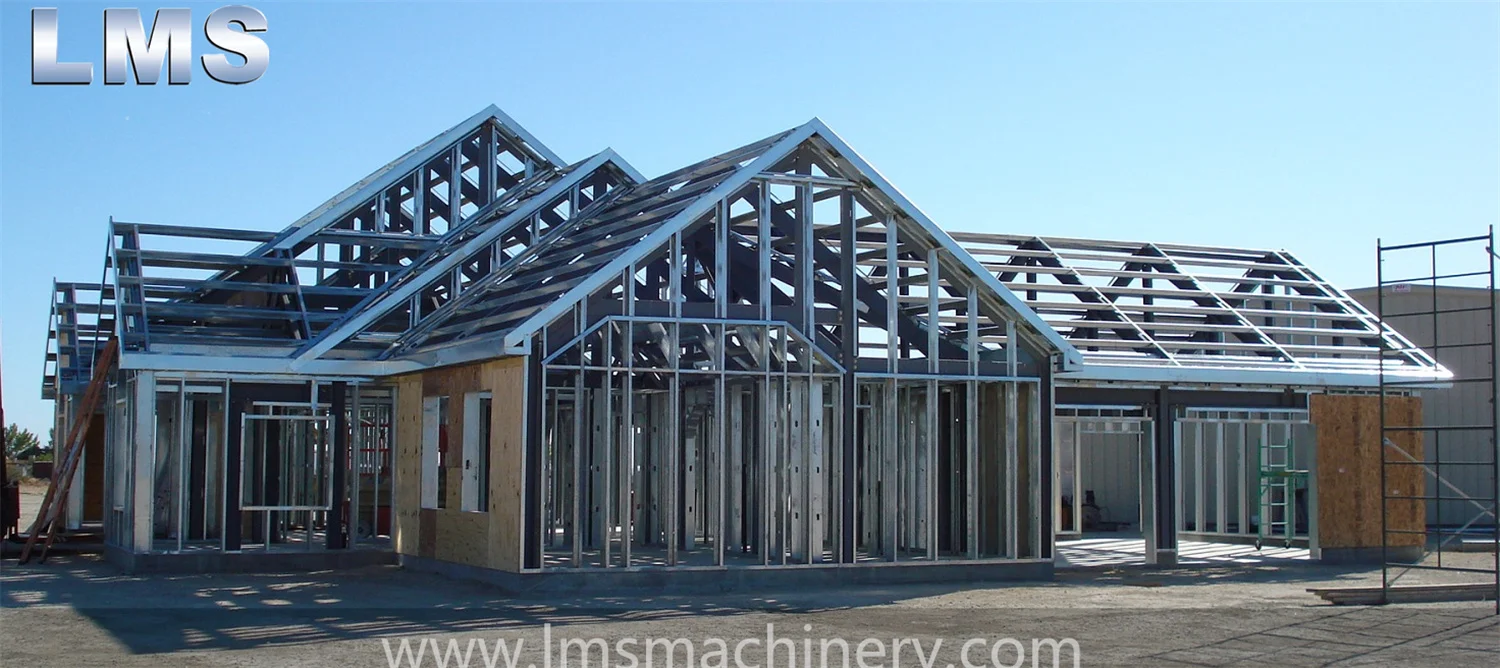

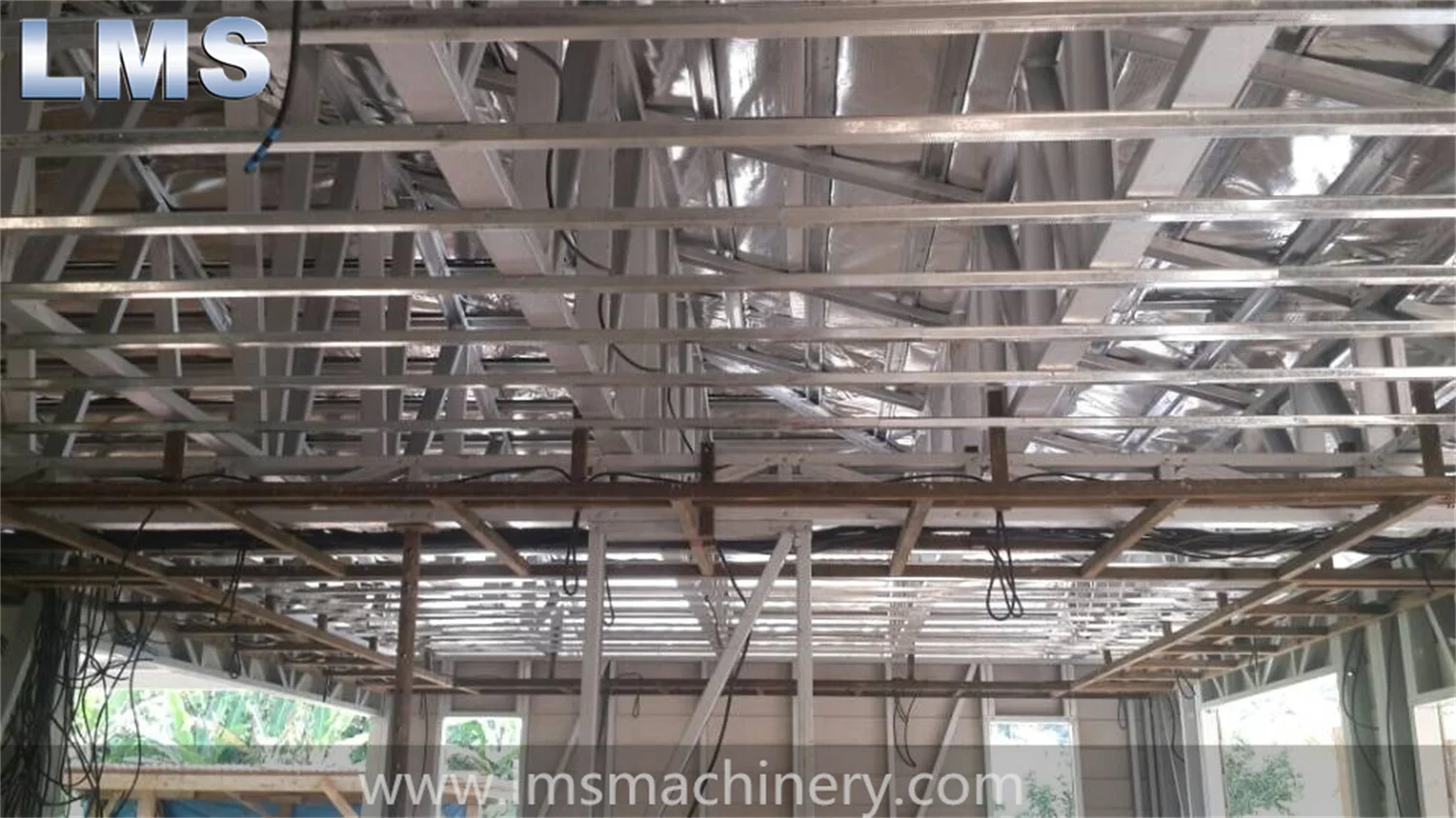

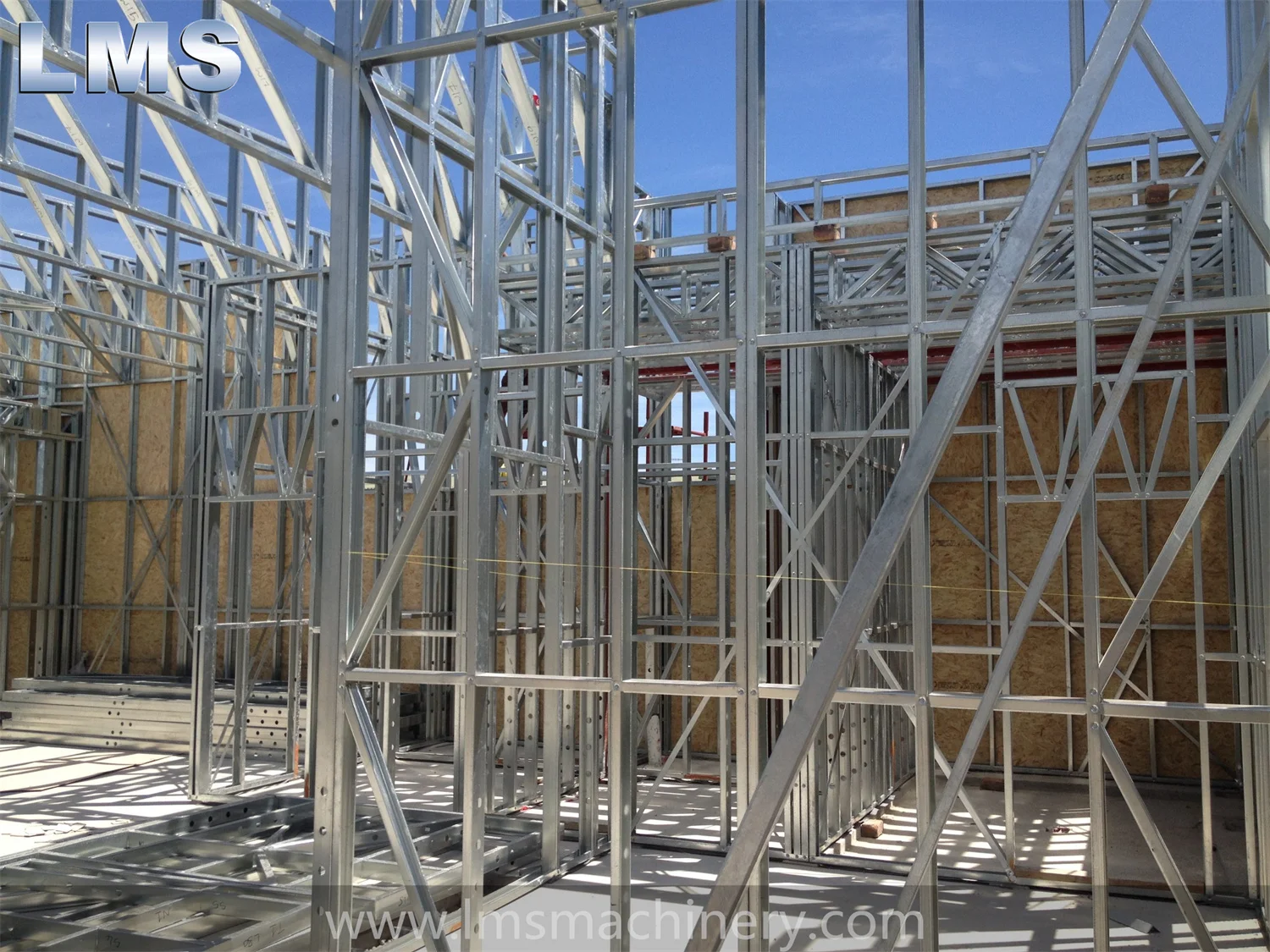

Successful Project

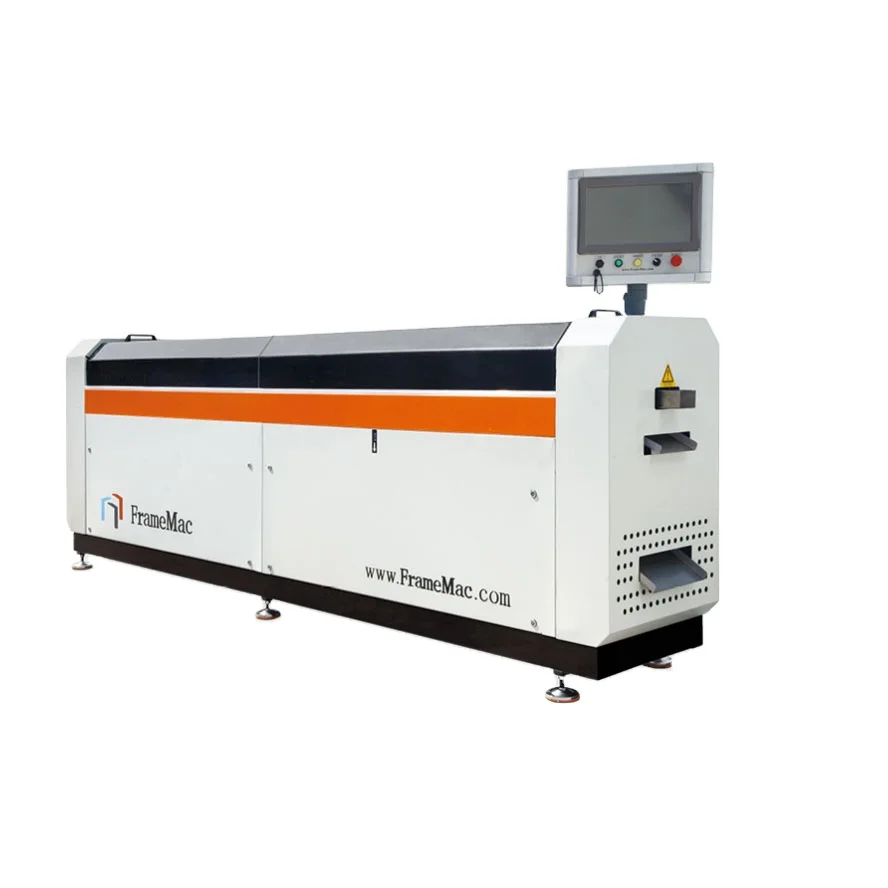

SIMILAR PRODUCTS
Product packaging

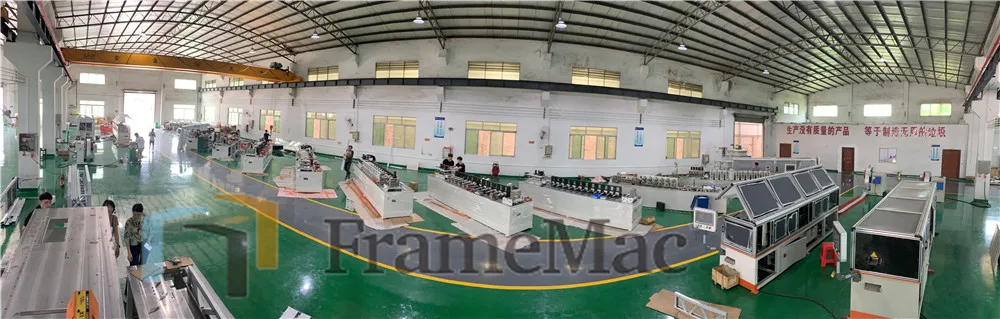

COMPANY PROFILE
About us
FrameMAC is a professional manufacturer of machine combining R&D and sales for light steel framing production equipment and
solutions. Taking "fast,accurate and stable" as our service tenet, insisting on high quality , support the target of providing
long-term running facility to the global.
