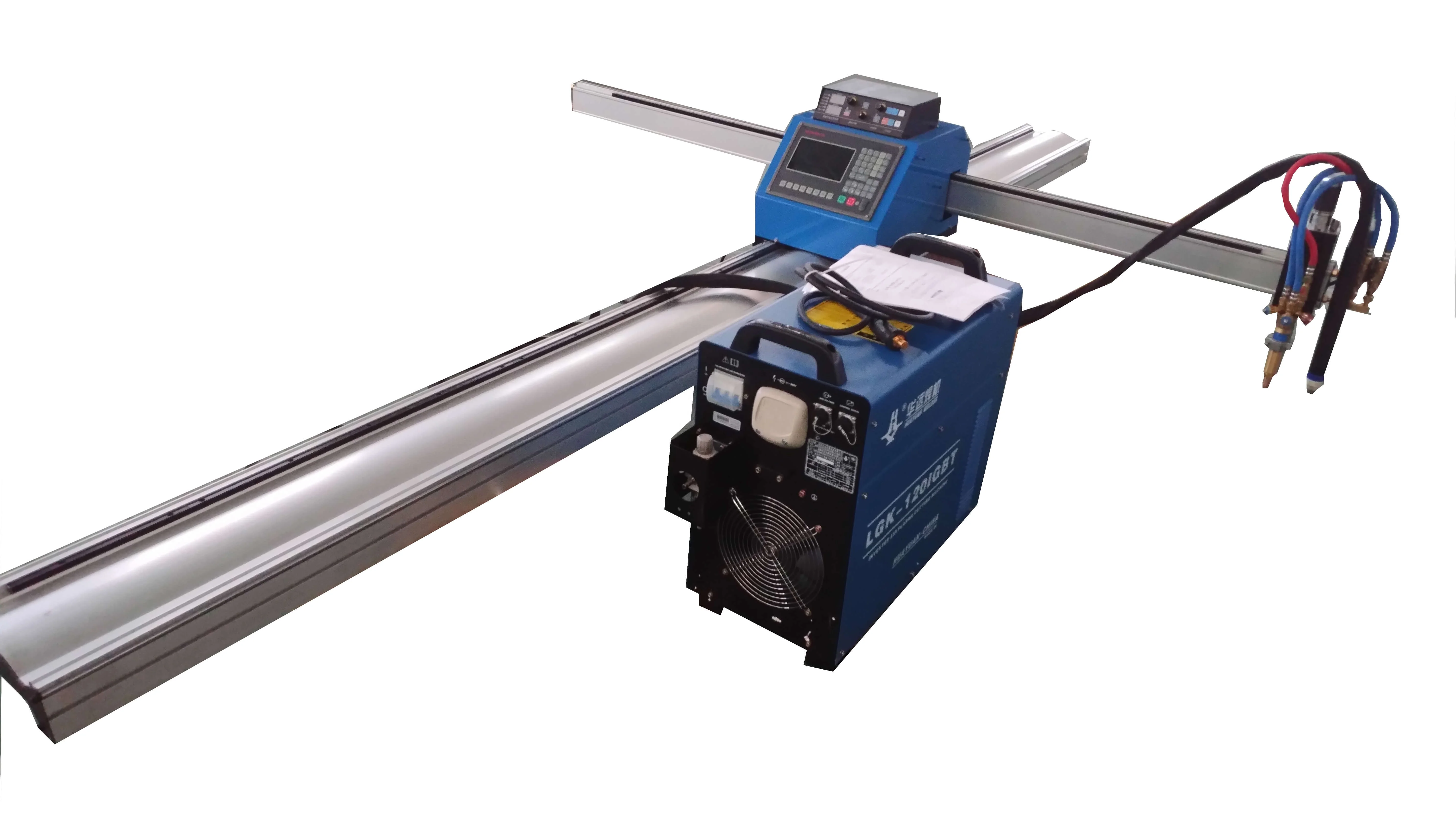

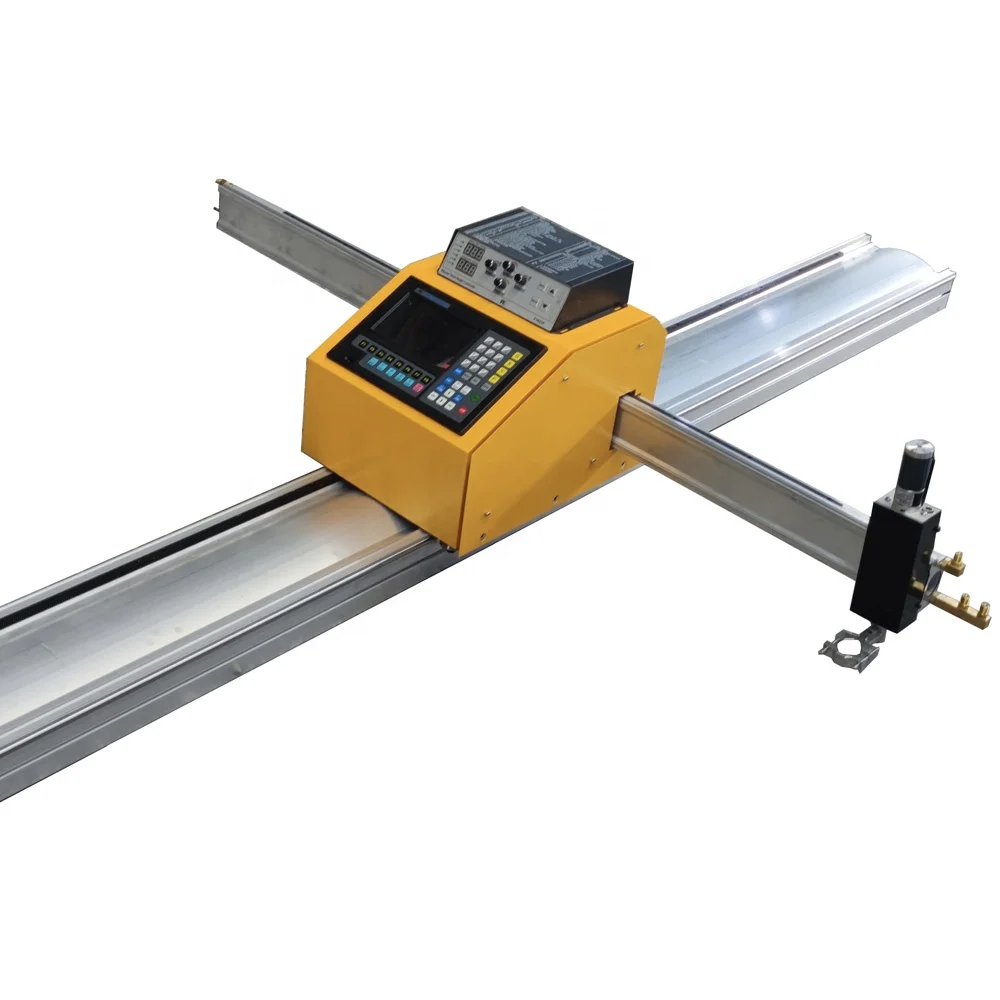

5*10ft 1530 Portable CNC Oxyfuel/Plasma Cutting Machine with THC

Product Overview

Description



Advertising industry, arts and handicrafts cutting,  kinds of metallic materials, such as Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.



Model	U-PC1530P
Working Voltage	AC 220V/380V, 50HZ
Working Size	1500mm*3000mm
Max Cutting Speed	12000mm/min
Cutting Thickness	0-30 mm
Plasma power	LGK 63-200A; Hypertherm 45-200A
Air pressure	0.4Mpa
Packaging size	3600mm *500mm *500mm
Control System	STARFIRE/ FANGLING
Driving System	Stepper motor
Power Supplier	HYPERTHERM/ HUAYUAN
Plasma Torch	HYPERTHERM/ BLACK WOLF
Software	Fastcam or Starcam

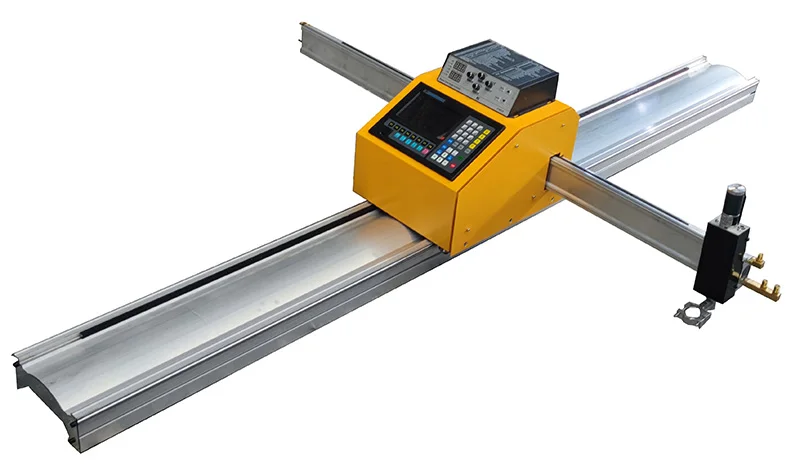

Details of the portable plasma cutting machine:

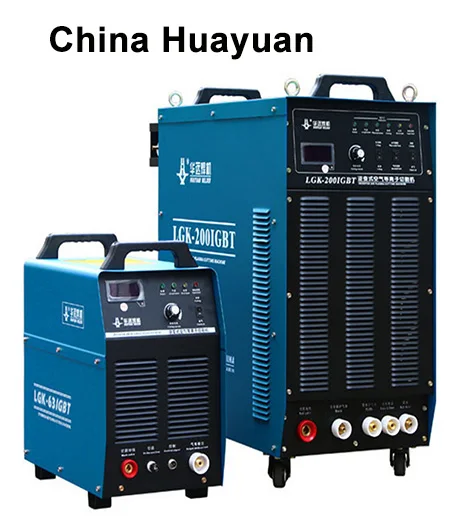

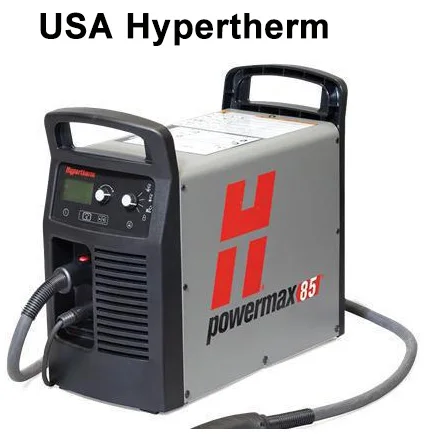

1). Plasma source, China made Huayuan brand or USA Hypertherm brand, below are the cutting thickness of different plasma power supply.



	Plasma power	Cutting thickness
	LGK 63A	8mm
	LGK 100A	15mm
	LGK 120A	20mm
	LGK 160A	25mm
	LGK 200A	30mm
	Powermax 45A	8mm
	Powermax 65A	10mm
	Powermax 85A	15mm
	Powermax 105A	20mm
	Powermax 125A	25mm
	Powermax 200A	30mm

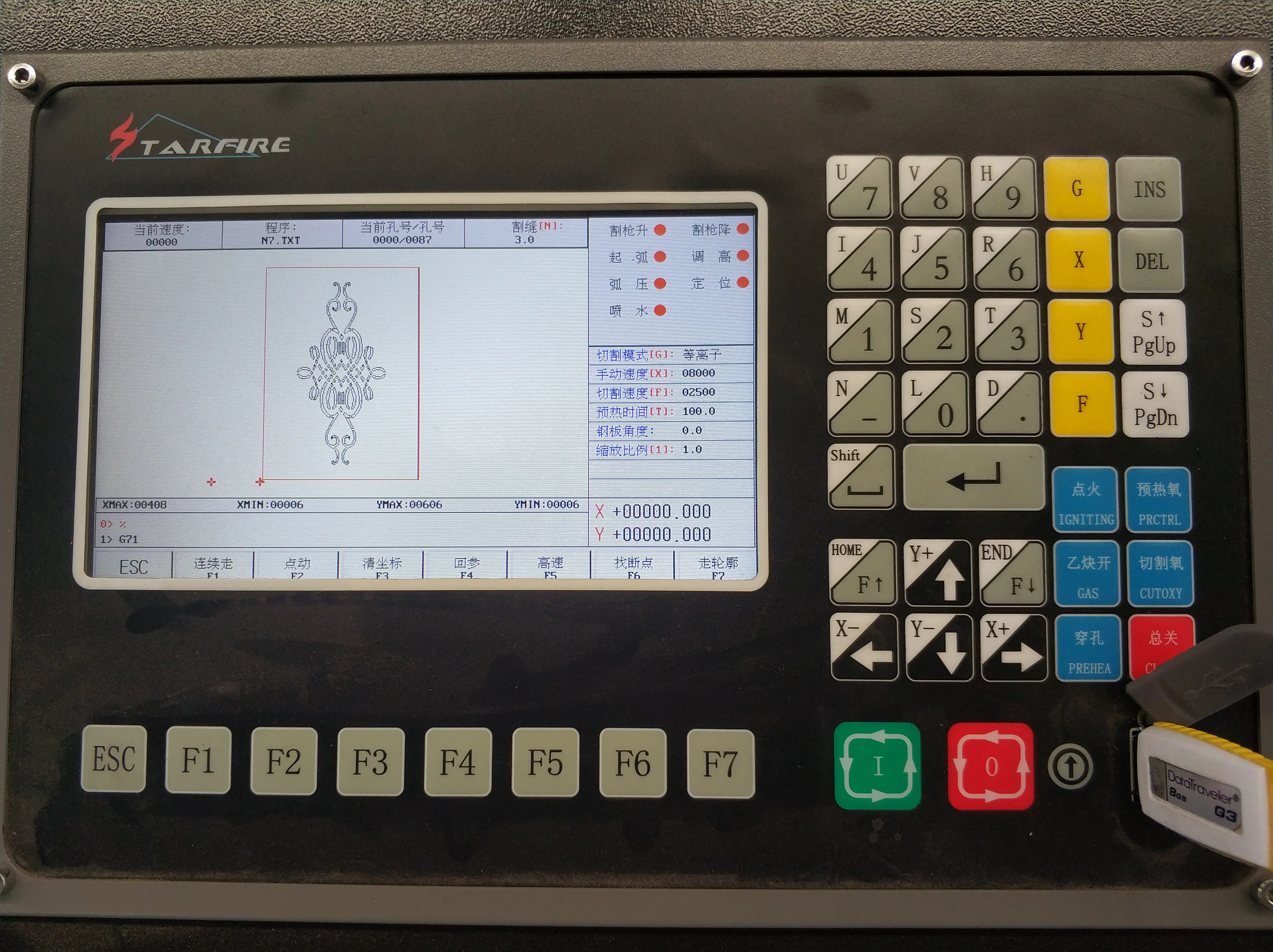

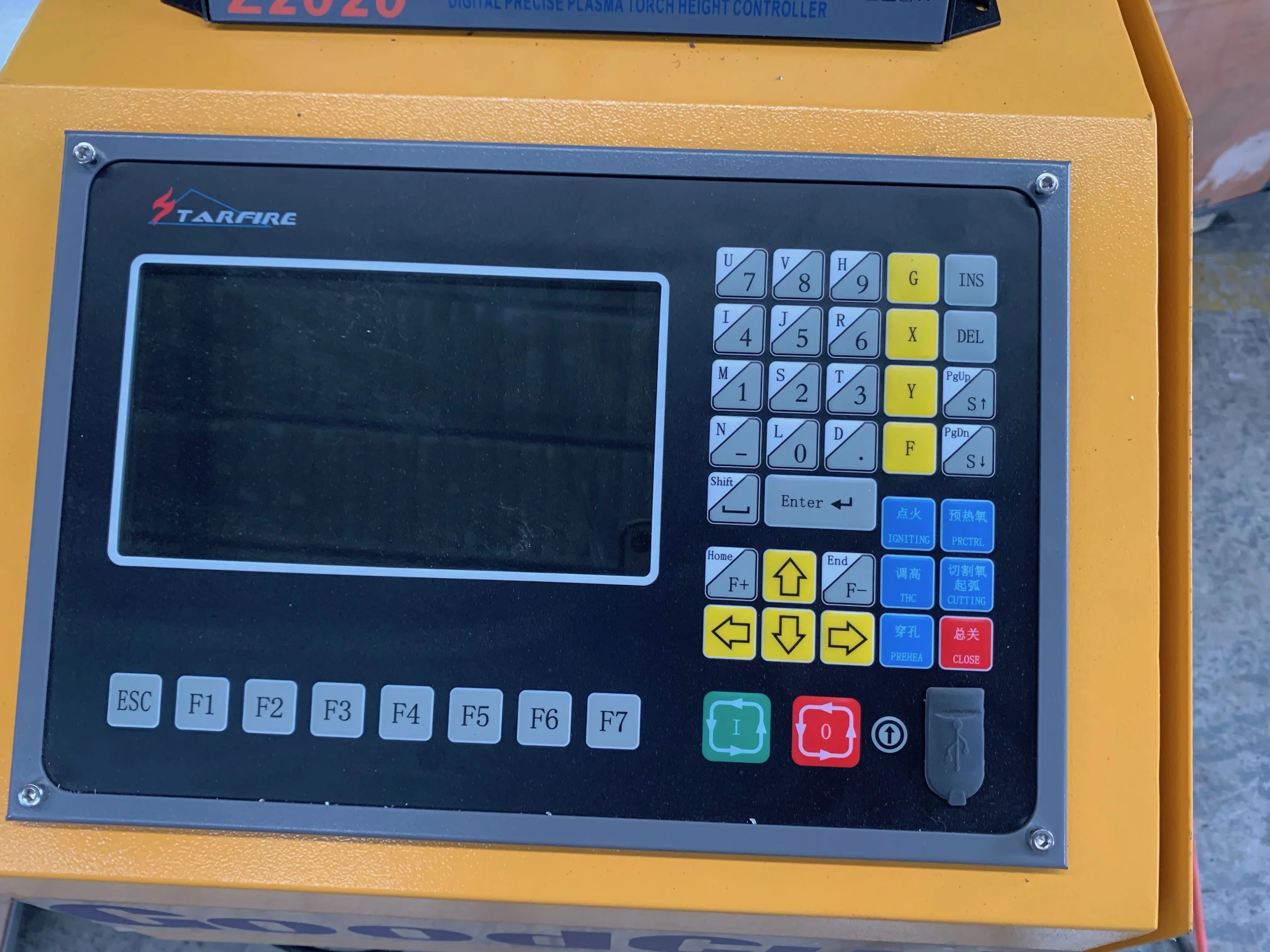

2). Control system

• Highest Speed: 24m/min


• Control Accuracy: 0.001mm


• I/O Control: input (optoelectronic isolation)*13, output (relay output)*8


• Store Space: 32-64M and it supports USB for files uploading


• Programming: G code


• Display: 7" color LCD

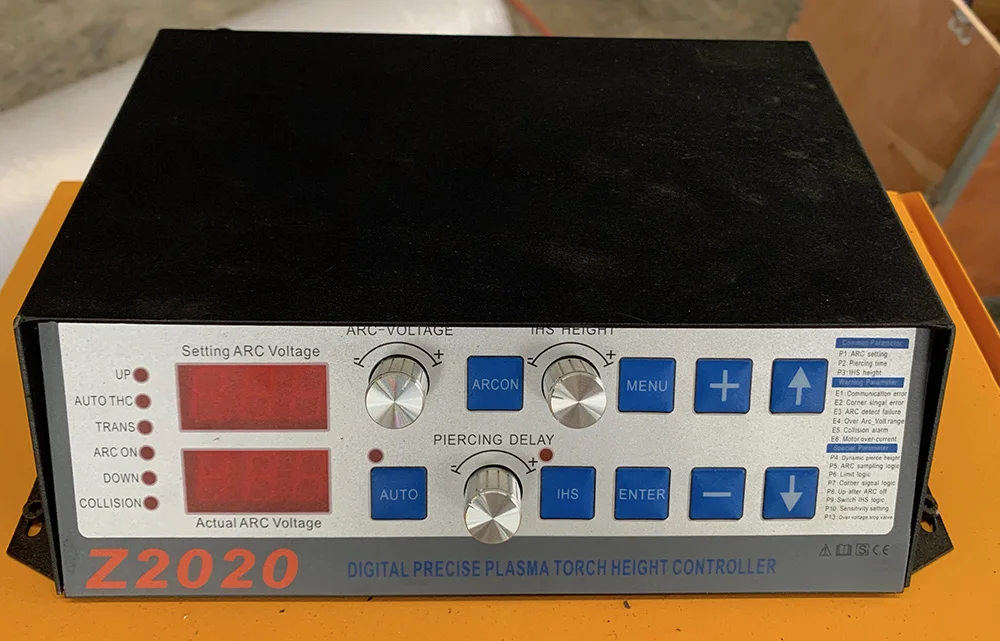

3). THC (Torch height controller), adjust the torch cutting distance automatically with high precision when the bent metal cutting.

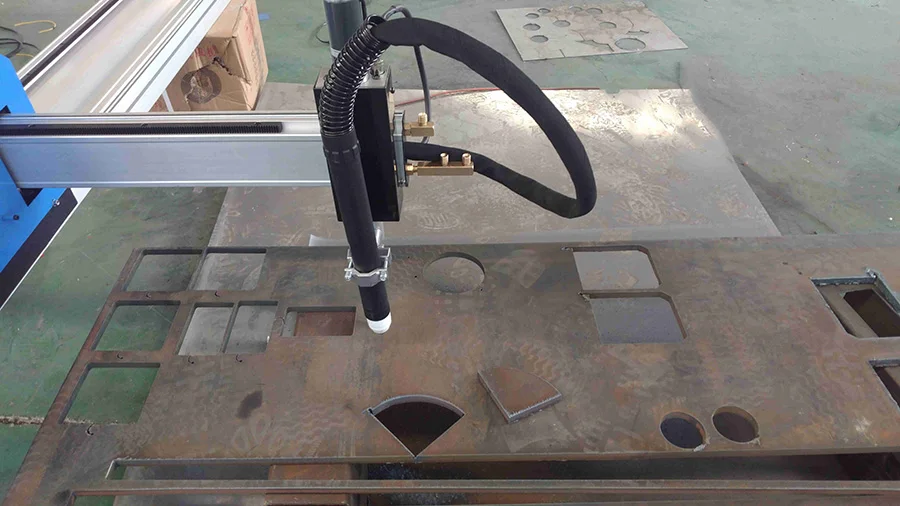

4). Plasma torch,the plasma torch works up and down through 24V motor with fast speed and high accuracy.

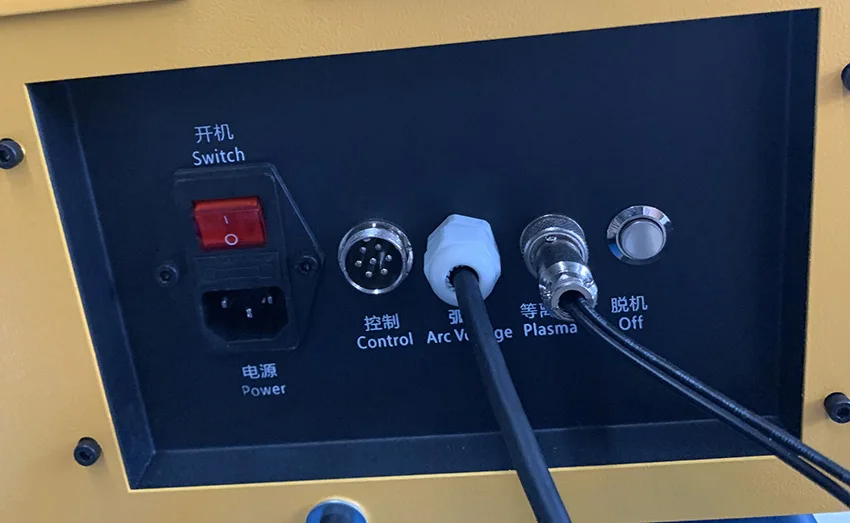

5). Output and input



 6). Package of the portable plasma cutting machine, they will be packed by plywood cases.
