58.8v5a 294w lithium battery charger ac 100-240v to dc 58.8v 5a chargers batteries power supply
- Category: Charger >>>
- Supplier: Dongguan,Intai,Power,Supply,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Description

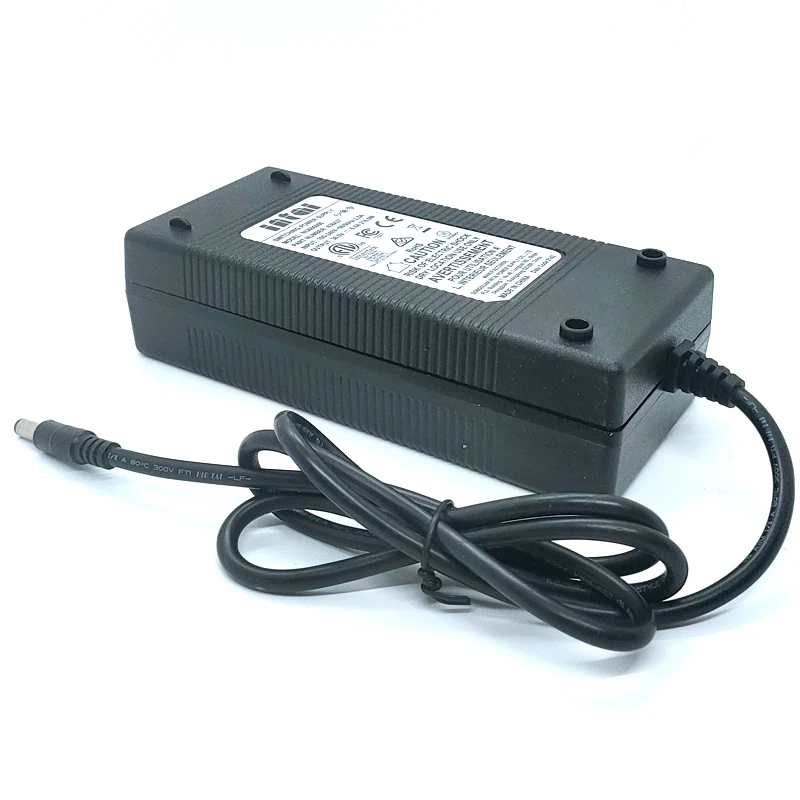

The 58.8v 5a 14s lithium battery charger incorporates a 50/35 transformer and effective thermal management in power electronics to achieve high power density. The 58.8v 5a battery charger is not only powerful, a multi-stage charge profile is implemented to monitor the charging process, maximize battery capacity, optimum battery life and reliability. Safety is a priority. The 58.8v 5a battery charger is designed for safe charging to prevent fire hazard by avoiding overcharging your batteries in any abnormal conditions.
Product Specificatio
| Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.5W | |
Average Efficiency | >85% | |
Power Factor (Typ) | >0.6 | |
Inrush Current | limited to 30A within 10ms at 264VAC ( Cold Start ) | |
| Boost Charge Voltage | 35-58.8V |
Open Circuit Voltage | 58.8V±5% | |
Charge Current | 5A±5% | |
Battery Type | 4S cell 48V Lead acid SLA AGM GEL VRLA battery | |
Battery capacity recommended | 5AH~30AH | |
Line Regulation | ±2% | |
Load Regulation | ±5% | |
Protection | Back feed Protection(BFP) | Protected by internal circuit |
Reverse Polarity Protection | Protected by internal circuit | |
Input Protection | 5A current fuse | |
Short Circuit Protection | Protected by internal circuit | |
Safety Certifications | UL/cUL1012 Battery charger other than Class 2 | Certificate Number: E491234 |
TUV/CE/LVD EN60335-1/2-29 | Certificate Number: 50079152 001 | |
SAA+RCM/AS NZS60335-1/2-29 | Certificate Number: CCS-170225-EA |
Company Information
Certificate
FAQ
Do you have a MOQ requirement? |
| What is the lead time? 3~5 days for testing samples, 2~3 weeks for mass production |
| Can I pay by Paypal for testing samples? Yes |
| What if there are quality problems with the products I bought? We take the following measures to ensure the quality of products |
| 1, Strict management of product design |
| 2, All products on sale are safety certificated |
| 3, Strict production process control |
| 4, Two hours burn-in testing on 100% products |
| 5, Carrying out random finally inspection on each lot |
| There will no defective in large scale. However, as our quality level AQL is: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5, defective is allowed for one or few pieces. We offer 3 year warranty for all items. We provide replacements for all defective products have had at our costs as long as you have picture to prove that these products are broken in the normal use. If you are our regular customer we would include the replacements in the nearest shipment. |
What is the ambient temperature specified for safety test & evaluated by safety testing agencies including UL and TUV? It was 35℃. The data shows on our certifications. |
Our Services
1: Professional service 1) We reply any inquiry in 12 hours Website: www.intaia.com |
2. OEM/ODEM available: 1) Customized products available 2) We can put your ideas into concrete products |
| 3. High quality and reasonable & competitive price |
4. After-Sale Service : We offer 3 years warranty , replacements available |
5. Faster delivery : In term of an urgent order, we apply flexible production management to catch up your delivery date. |
Packaging & Shipping
Each piece in a white box, then 48pcs in an outer carton.
Carton gross weight: 15~22kg, carton size: 53x36.5x21cm
