RS485 LORA LORAWAN GPRS 4G AGRICULTURE SOIL MOISTURE AND EC SENSOR
- Category: >>>
- Supplier: Honde Technology Co. Ltd.
Share on (1600356200565):
Product Overview
Description
Product Description
Product Name | 5 Layers Soil Moisture and Soil salinity(EC) 2 in 1 sensor |
Probe type | Probe electrode |
Measurement parameters | Soil moisture and soil salinity Value |
Moisture Measuring range | 0 ~ 100%(m3/m3) |
Moisture Measuring Resolution | 0.1% |
Moisture Measurement accuracy | ±2% (m3/m3) |
Salinity Measuring range | 0~20000us/cm |
Salinity Measuring Resolution | 10us/cm |
Salinity Measuring accuracy | ±2%(0-10000us/cm);±3%(10000-20000us/cm); |
Measuring area | A cylinder with a diameter of 7 cm and a height of 7 cm centered on thecenter probe |

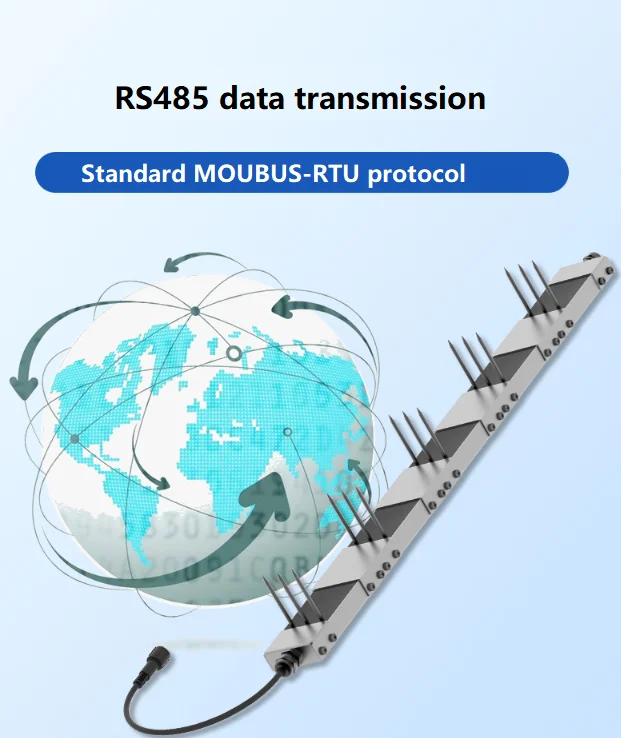

Outputsignal | A:RS485 (standard Modbus-RTU protocol, device default address: 01) |
Output signal with wireless | A:LORA/LORAWAN(EU868MHZ,915MHZ) |
B:GPRS | |
C:WIFI | |
D:NB-IOT | |
Supply voltage | 5 ~ 30V DC |
Maximum power consumption | 1.1W |
Working temperature range | -40 ° C ~ 80 ° C |
Stabilization time | <1 second |
Response time | <1 second |
Sealing material | ABS engineering plastic, epoxy resin |
Shell material | Stainless steel alloy material |

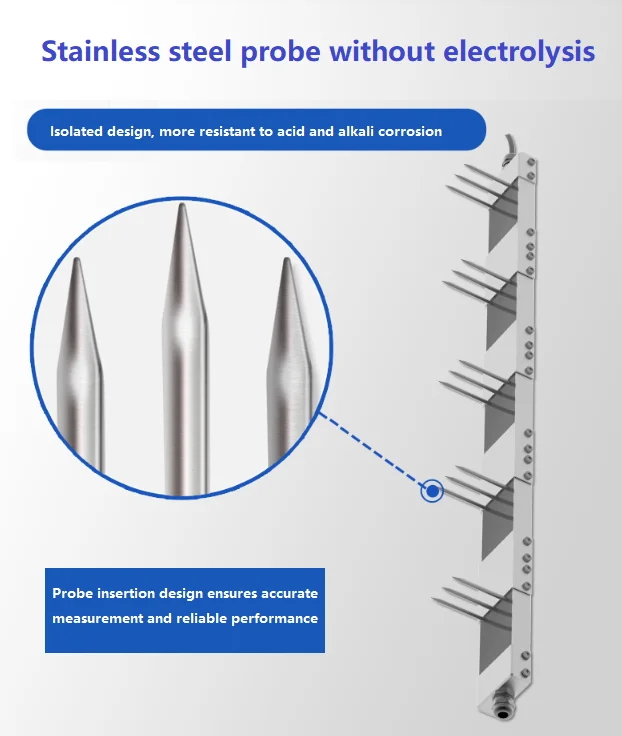

Probe Material | Anti-corrosion special electrode |
Sealing material | Black flame retardant epoxy resin |

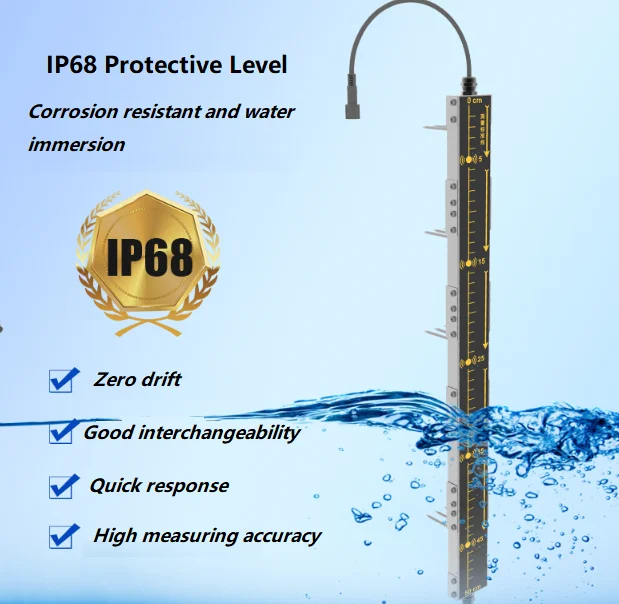

Waterproof grade | IP68 |
Cable specification | Standard 1 meter (can be customized for other cable lengths, upto 1200 meters) |
Details Images
Product Usage
Related Products
Packing&Shipping
Company Introduction
Honde Technology CO.,LTD founded in the year of 2011, adheres to the business philosophy of technology making our life better. Our company is an IOT company dedicated to the R&D, production, sales of smart water equipment, smart agriculture equipment and smart environmental equipment and the related solutions provider.The products sell well in more than 70 countries, serve thousands of customers around the world, and have received unanimous praise.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
We are looking forward to working with you to make our life better due to the blessing of science and technology.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this soil moisture and soil salinity (EC) sensor?
A:It can monitor five layers of soil moisture and soil salinity (EC) two elements at different depths at the same time. It has corrosion resistance, strong rigidity, high accuracy, fast response, and can be completely buried in the soil.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: 5 ~ 30V DC and we have the matched solar power system.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module if you need.
Q: What's the standard cable length?
A: Its standard length is 1m. But it can be customized, MAX can be 1200 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
Q: What is the other application scenario can be applied to in addition to agriculture?
A:Oil pipeline transportation leakage monitoring, natural gas pipeline leakage transportation monitoring, anti-corrosion monitoring
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of this soil moisture and soil salinity (EC) sensor?
A:It can monitor five layers of soil moisture and soil salinity (EC) two elements at different depths at the same time. It has corrosion resistance, strong rigidity, high accuracy, fast response, and can be completely buried in the soil.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What’s the common power supply and signal output?
A: 5 ~ 30V DC and we have the matched solar power system.
Q: How can I collect data?
A: You can use your own data logger or wireless transmission module if you have , we supply the RS485-Mudbus communication protocol.We can also supply the matched LORA/LORANWAN/GPRS/4G wireless trnasmission module if you need.
Q: What's the standard cable length?
A: Its standard length is 1m. But it can be customized, MAX can be 1200 meters.
Q: What's the lifetime of this Sensor?
A: At least 3 years or more.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What's the delivery time?
A: Usually, the goods will be deliveried in 1-3 working days after receiving your payment. But it depends on your quantity.
Q: What is the other application scenario can be applied to in addition to agriculture?
A:Oil pipeline transportation leakage monitoring, natural gas pipeline leakage transportation monitoring, anti-corrosion monitoring
