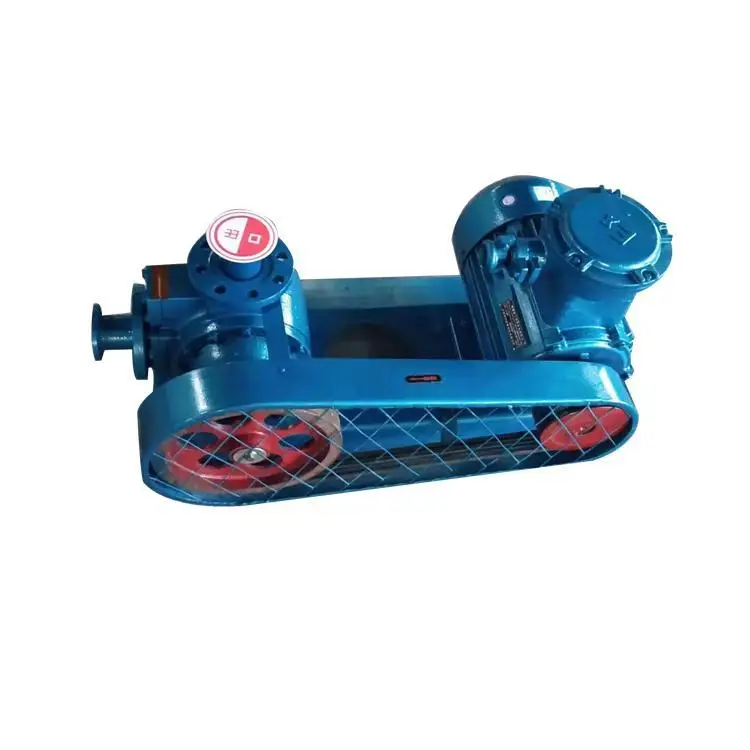

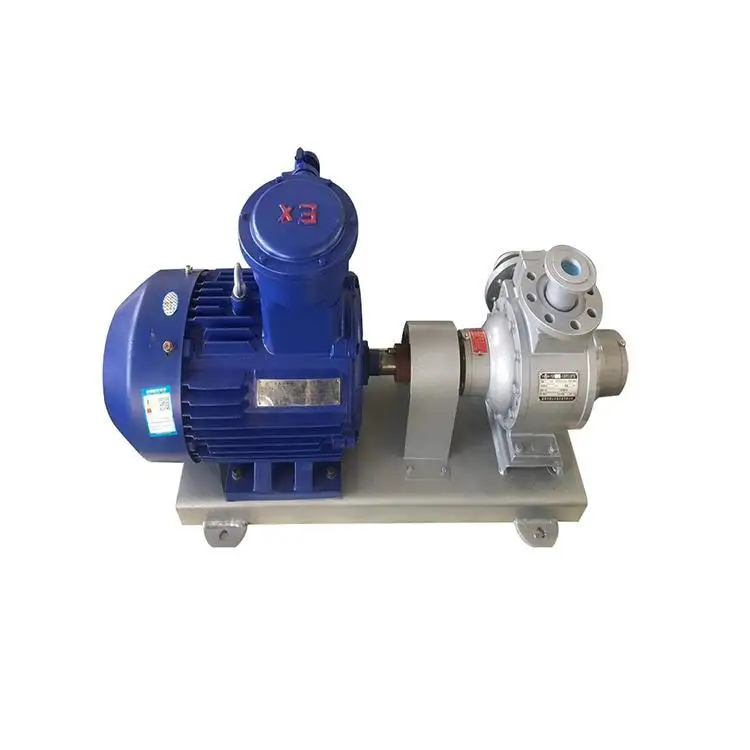

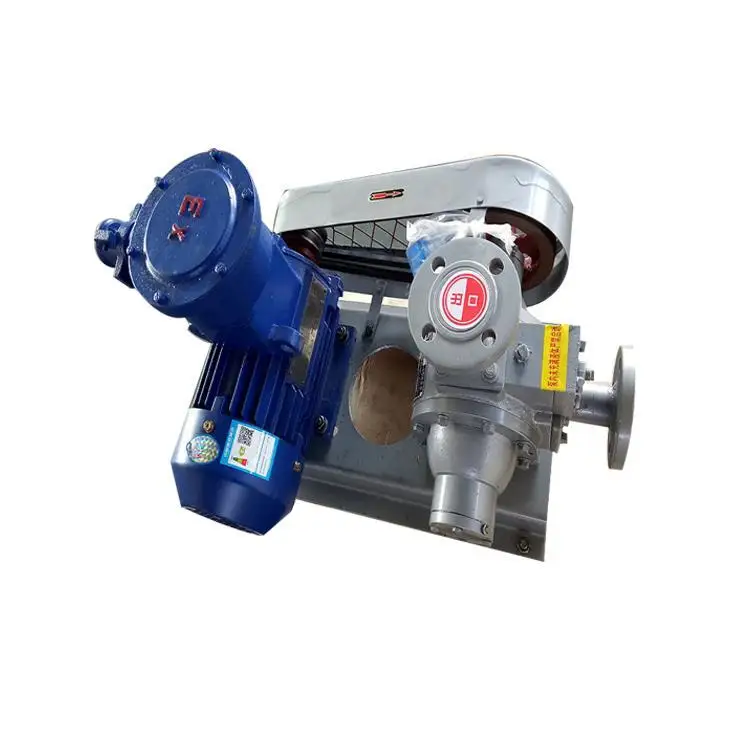

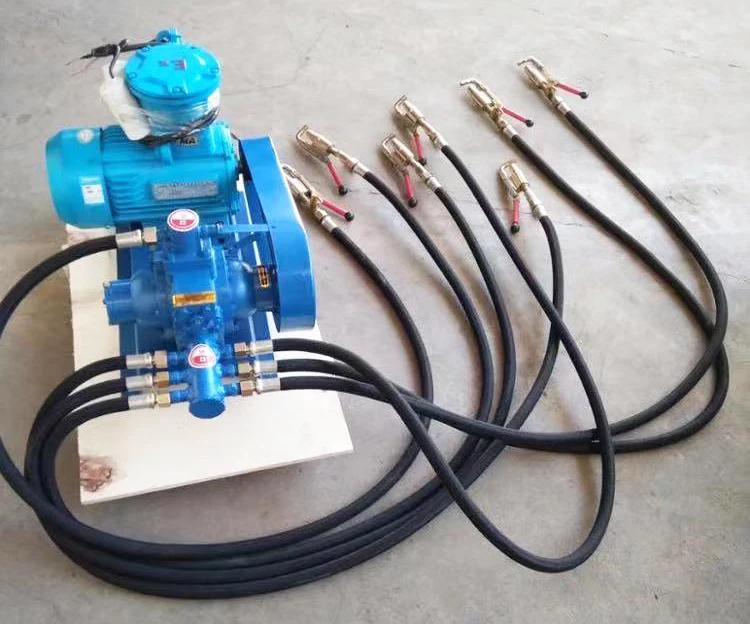

YQB 25 5 35 5 50 5 60 5 80 5 LPG Cylinder filling pump with air gun for cylinder gas liquid transferring
- Category: >>>
- Supplier: Henan Wadley Cnc Machinery Co. Ltd.
Share on (1600356401318):
Product Overview
Description
Product Description
Product Introduction:
LPG multistage pump, centrifugal and side channel, is designed with 6 stages, having a horizontal configuration, shaft sealing by mechanical seal without cooling, for handling LPG (liquid gas ), the liquids involving high-differential pressure, low NPSH conditions and aerated liquids up to 50% gas, such as pumping from underground tanks. The use of a pre-compression turbine at thesuction end makes it possible to obtain a very small required NPSH, so that this pump can be used under very difficult suction conditions
Product Features:
•LPG cylinder filling
•Pumping LPG from underground storage
•Bulk filling operations
•Loading/unloading of bulk trucks and transport trailers
•Vaporizer feed pumps.
•Pumping LPG from underground storage
•Bulk filling operations
•Loading/unloading of bulk trucks and transport trailers
•Vaporizer feed pumps.
Specification
Model | Rev (r/min) | Q (m3/h) | ΔP (Mpa) | Pressure (Mpa) | Motor Model | Power (kw) | Inlet (inch) | Outlet (inch) | Temperature (℃) |
YQB2-5 | 600r.P.m | 2 m3/h | 0.5MPa | 1.6MPa | YB90M-4 | 1.5KW | 1 | 1 | +40 -40 |
YQB5-5 | 780r.P.m | 5 m3/h | YB112M-4 | 2.2KW | 1.2 | 1.2 | |||
YQB20-5 | 780r.P.m | 20m3/h | 0.5MPa | 1.6MPa | YB132S-4 | 5.5KW | 2 | 2 | +40 -40 |
YQB15-5 | 780r.P.m | 15m3/h | YB132S-4 | 5.5KW | 2 | 2 | |||
YQB25-5 | 600r.P.m | 25m3/h | 0.5MPa | 1.6MPa | YB160M-4 | 11KW | 3 | 3 | +40 -40 |
YQB35-5 | 780r.P.m | 35m3/h | YB160M-4 | 11KW | |||||
YQB50-5 | 600r.P.m | 50 m3/h | 0.5MPa | 1.6MPa | YB160L-4 | 15KW | 4 | 4 | +40 -40 |
YQB15-5A | 780r.P.m | 15m3/h | 0.5MPa | 1.6MPa | YB112M-4 | 4KW | 2 | 2 | +40 -40 |
YQB10-5A | 600r.P.m | 10m3/h | |||||||
YQB60-5 | 780r.P.m | 60 m3/h | 0.5MPa | 1.6MPa | YB160L-4 | 15KW | 4 | 4 | +40 -40 |
YQB80-5 | 780r.P.m | 80 m3/h | 0.5MPa | 1.6MPa | YB180L-4 | 18.5KW | 4 | 4 | +40 -40 |

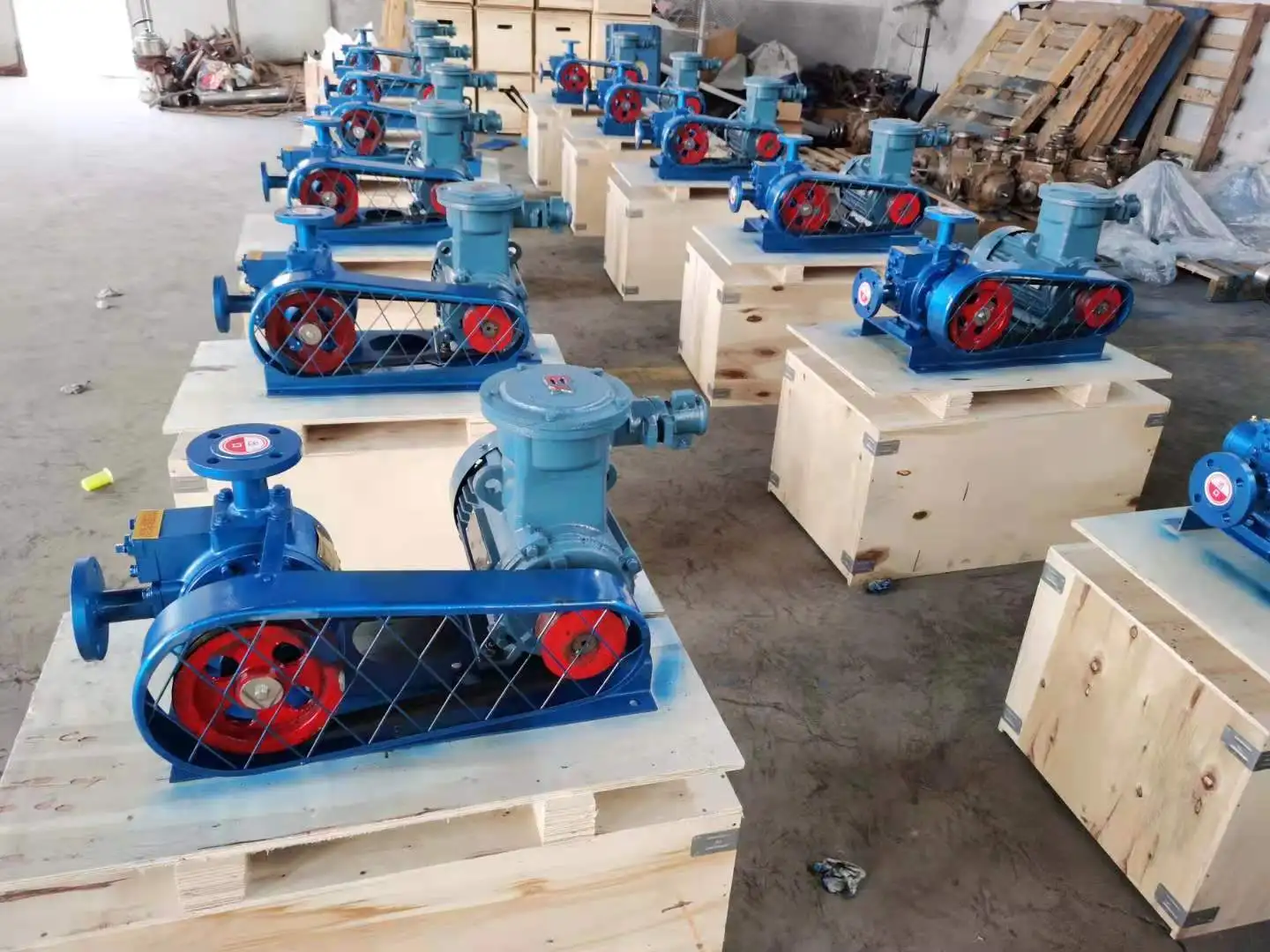

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided with wooden box
