Маркировочная машина KONTUR 90HP для холодных пластиковых стеклянных бусин
- Category: Road Marking Machines >>>
- Supplier: OOO,STIM
Share on:
Product Overview
Description
PRODUCT DESCRIPTION
Kontur 90HP is designed for horizontal road marking with innovative one-component cold plastics and retroreflective glass beads.
It can apply the following types of lines: smooth lines, structured aggregates, and structured dots. The machine is self-propelled and controlled by an operator who walks behind it.
The marking unit is equipped with quick-release applicators for structured lines. Smooth base lines are applied using a screed-box system. Cold plastic is automatically mixed with hardener by a dynamic agitator immediately before application onto the road surface. Component batching is done automatically.
Plastic consumption depends on the marking type and structured line pattern and ranges from 1.5 to 6 kg/m2. The marking unit with an applicator and a glass bead gun is mounted on the right side of the machine.
Flushing of the agitator and the applicator is controlled from the operator's panel and requires minimal attention.
Retroreflective glass beads are applied on the line directly during marking using an automatic glass bead gun with an adjustable diffuser.
It can apply the following types of lines: smooth lines, structured aggregates, and structured dots. The machine is self-propelled and controlled by an operator who walks behind it.
The marking unit is equipped with quick-release applicators for structured lines. Smooth base lines are applied using a screed-box system. Cold plastic is automatically mixed with hardener by a dynamic agitator immediately before application onto the road surface. Component batching is done automatically.
Plastic consumption depends on the marking type and structured line pattern and ranges from 1.5 to 6 kg/m2. The marking unit with an applicator and a glass bead gun is mounted on the right side of the machine.
Flushing of the agitator and the applicator is controlled from the operator's panel and requires minimal attention.
Retroreflective glass beads are applied on the line directly during marking using an automatic glass bead gun with an adjustable diffuser.
STANDARD CONFIGURATION
- Smooth line marking unit, 1 pc. (screed box size to be specified when ordering);
- Structured line marking unit, 1 pc. (applicator size to be specified when ordering);
- Automatic glass bead gun;
- M21 marking control panel;
- Machine control panel;

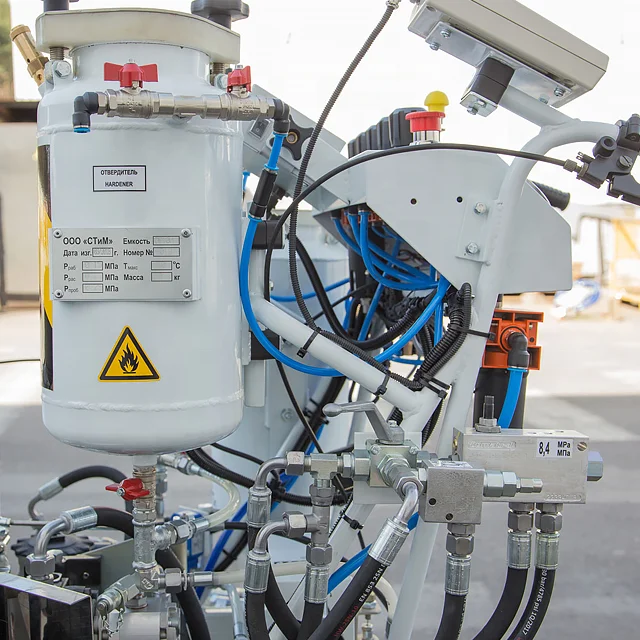

- Main component tank with a manual agitator;
- Hardener (curing agent) tank;
- Flushing liquid tank;
- Pneumatic and electric controls;
- Telescopic aiming device.
- Structured line marking unit, 1 pc. (applicator size to be specified when ordering);
- Automatic glass bead gun;
- M21 marking control panel;
- Machine control panel;
- Main component tank with a manual agitator;
- Hardener (curing agent) tank;
- Flushing liquid tank;
- Pneumatic and electric controls;
- Telescopic aiming device.
OPTIONS
- Marking unit spotlight;
- Flashing light on the retractable rod;
- Screed boxes for smooth lines and applicators for structured lines 10 to 25 cm.
- Flashing light on the retractable rod;
- Screed boxes for smooth lines and applicators for structured lines 10 to 25 cm.
PRODUCT SPECIFICATIONS
Parameter | KONTUR 90 HP |
Engine type | Gasoline |
Engine power, kW | 11.5 |
Engine power, hp | 16 |
Engine manufacturer | Briggs&Stratton |
Cylinders | 2 |
Engine capacity, cm3 | 479 |
Maximum engine speed, rpm | 3600 |
Generator, A | 20 |
Compressor | Piston |
Compressor capacity (inlet), L/min | 556 |
Maximum operating road gradient, % | 20 |
Maximum gradeability, % | 30 |
Driving speed, km/h | 5 |
Glass bead tank, L | 17 |
Glass bead tank, kg | 28 |
Control panel | M21 |
Display type | Two-line |
Preset programs | Up to 7 |
Quick program selection buttons | 6 |
Control panel modes (automatic/semi-automatic/manual) | Available |
Marking material (main/optional) | Cold plastic |
Maximum marking speed, km/h (with main/optional material) | 5 |
Maximum marking material amount, kg | 150 |
Maximum hardener volume, L | 10 |
Maximum flushing liquid volume, L | 10 |
Fuel tank capacity, L | 7.5 |
Oil tank capacity, L | 39 |
Main material tank capacity, L | 83 |
Lines applied simultaneously | 1 |
Guns (applicators) | 1 |
Single line width, mm | 100, 120, 150, 200, 240 |
Working position, mm | 3500x1200x1200 |
Transport position, mm | 2000x1200x1200 |
Unladen weight, kg | 530 |
