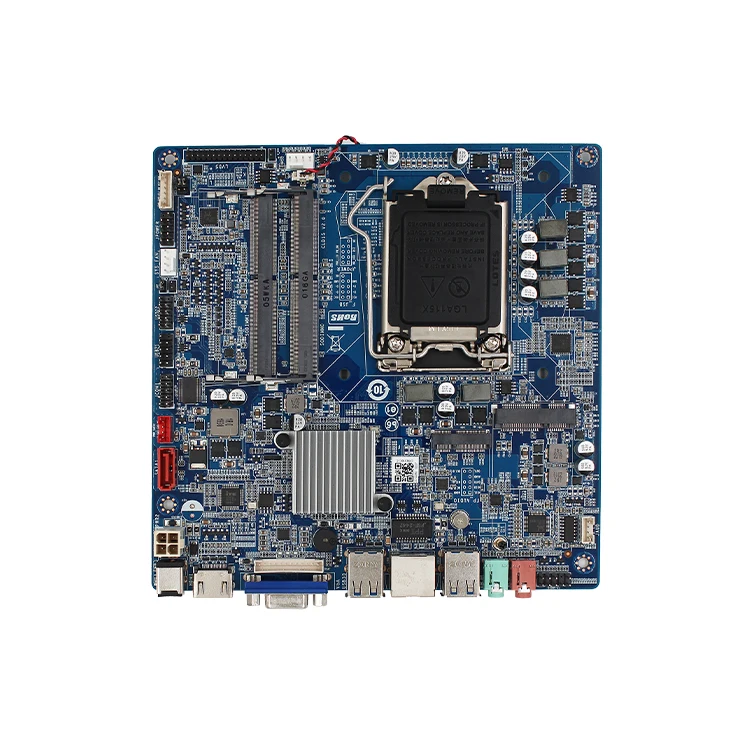

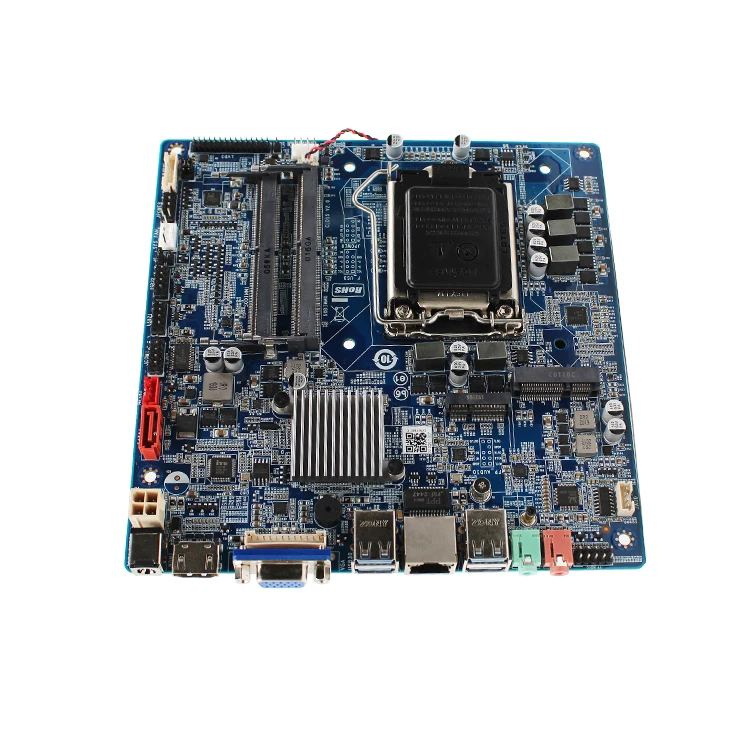

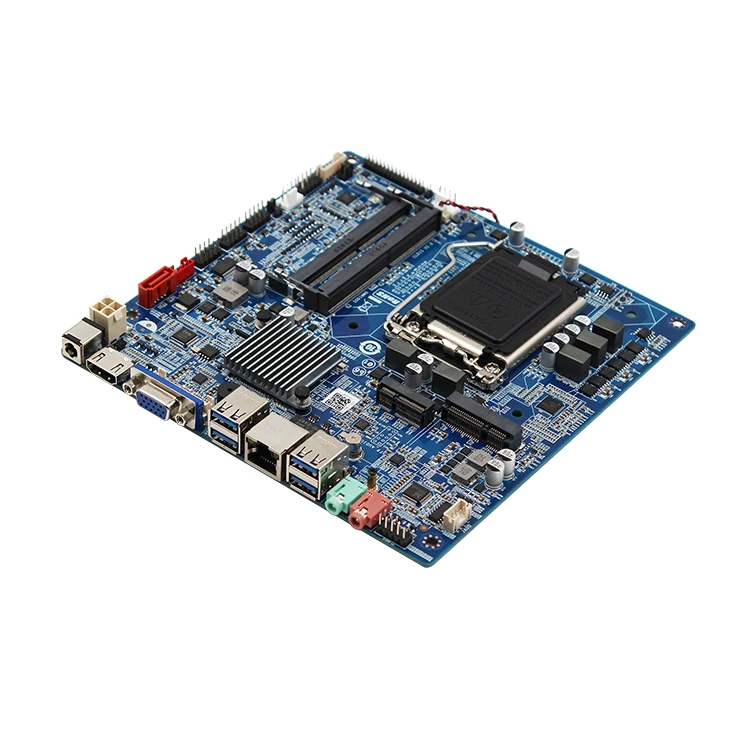

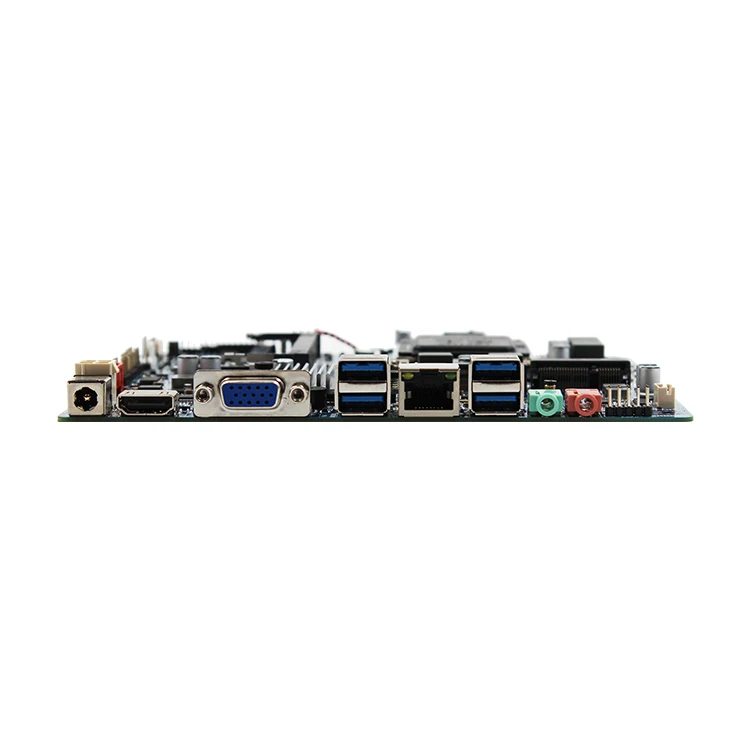

Maxtang Mini ITX H310C Intel 1151 Dual Channel SO DIMM DDR4 up to 64GB 19V DC input mini motherboard
- Category: Laptop Motherboards >>>
- Supplier: Shenzhen Maxtang Computer Company Limited
Share on (1600356521789):
Product Overview
Description
Product Description
Processor | cpu | Intel 6th, 7th. 8th, 9th processors(FCLGA1151) | |
chipset | H310C | ||
Memory | Type | 2 X SO-DIMM DDR4-2400/2666 MHz | |
Display | GPU | integrated graphics | |
Ethernet | Speed | 10/100/1000Mbps | |
Controller | RTLB111H | ||
Interface | 1X RJ45 | ||
Audio | Audio codec | Realtek HD ALC662 | |
Interface | Line-out. mic-in，audio header，amplifer header | ||
Hardware | Cpu temperature system temperature. on-board voltage, watchdog | ||
Storage | MSATA | 1x MSATA | |
SATA | 1X SATA3.0 | ||
Expansion | M.2 | 1x M.2_E, supoorting WI-FI module | |
I/O | USB | 4 x US83.2 Gen1 | |
LAN | 1 | ||
HDMI | 1 | ||
VGA | 1 | ||
Audio | 1x line-out +1x mic-in | ||
Internal/o | COM | 1x RS232 | |
USB | 4x USB20 | ||
LVDS | LVDS | ||
Dimension | Size | 170mm x 170mm | |
Board type | Mini ITX | ||
Power | Standard port | 19V Dc-in | |
Temperature | Operating Temp. | -20C to 60C | |
Storage Temp. | -20C to 60C | ||
Cooling method | Passive | ||
Operating System | Windows 10 64bit Linux 64bit | ||
Key Features

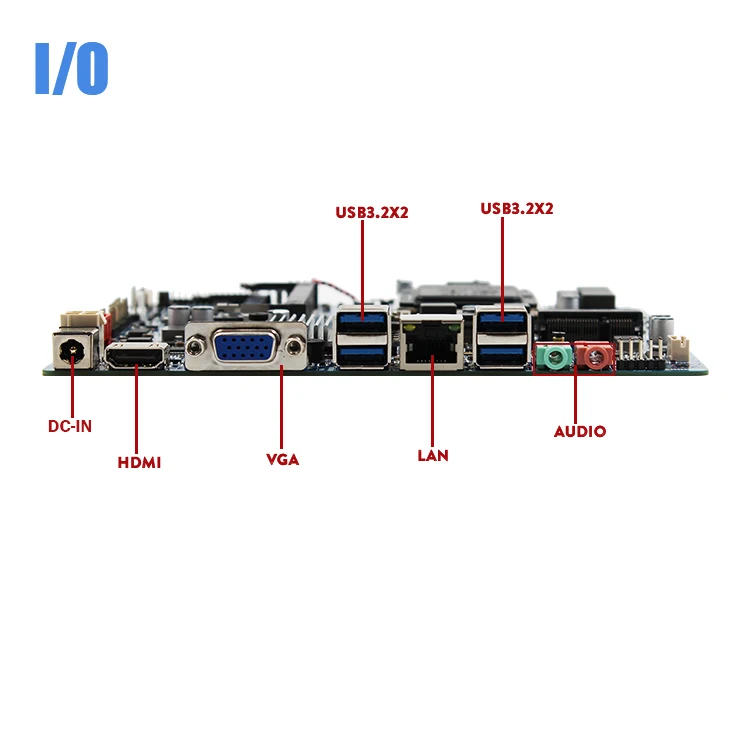

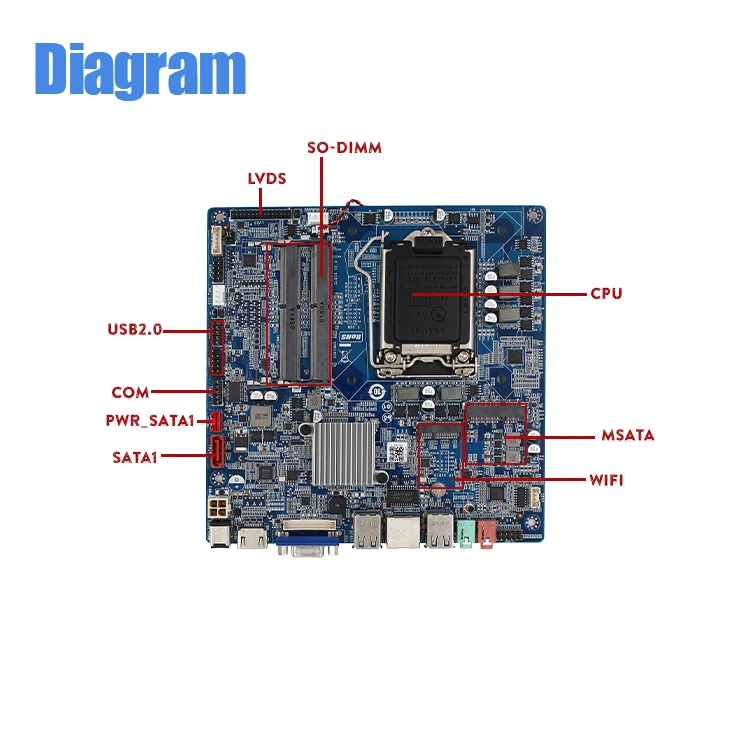

I/O Interface
Application
