Ce Certificate 2 8 Components High Precision Full Automatic Gravimetric Batch Blender

Product Overview

Description

                                             4 components 3600 kg per hour  plastic materials  dosing   mixing Batch Blender mixer
                                                -----Online material mixing solution----

Company introduce



Aiming at the requirements of online and offline automatic blending, we develop batch type and continuous type metering blending devices in standard model

and special application model to meet different demands of customers, and our products are suitable for online and offline metering blending and automatic

mixing of materials at different states such as particle, powder and liquid.

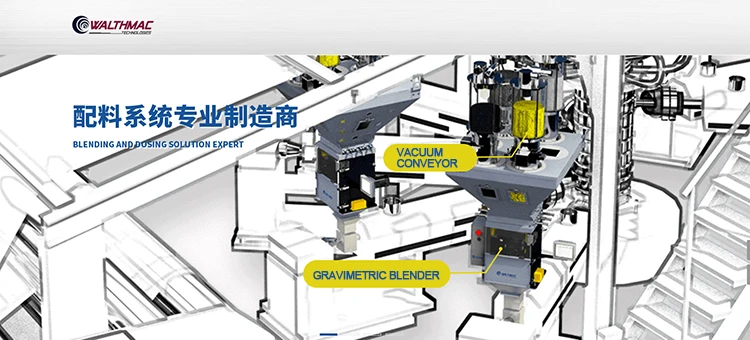

WBB Series-Batch Gravimetric Blender



Application Field: plastic films/ cables/ pipes/ production of raw materials/ plastics modification and other industries such as Chemicals.

Scope of Application: be suitable to be used in plastic industry production process in which many granular components need metering according to different ratios and precise mixing.





System function features:

1. The standard model machine can realize online automatic blending up to 8 components, which reduces human error and labour cost;

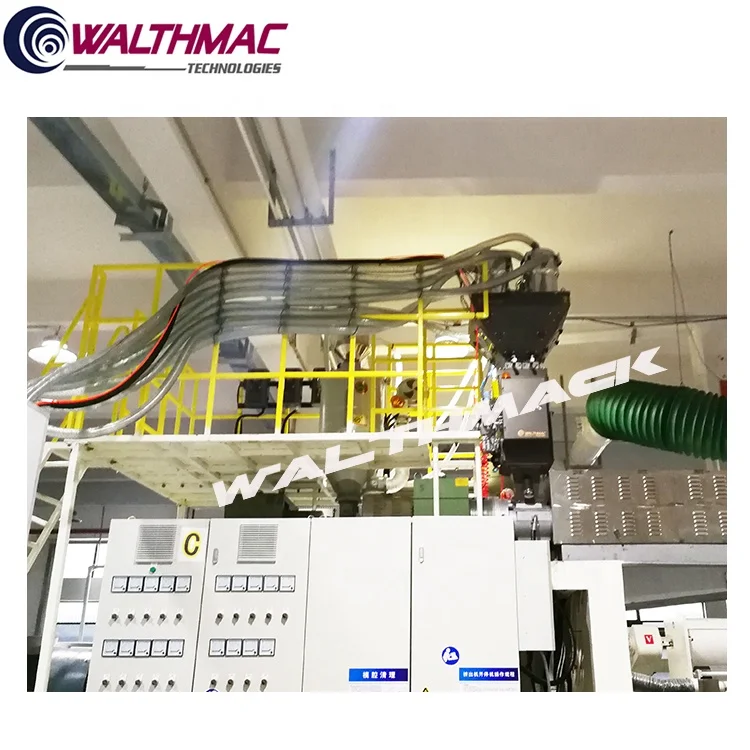

2. The blender is directly installed on the feed opening of an extruder, and material directly enter into the extruder, so that the demixing phenomenon of materials after being mixed in the secondary conveying process is avoided;

 3. By the anti-interference filtering algorithm, the blender can still achieve a high metering precision even it is installed on the equipment with high mechanical vibration amplitude and frequency;

4. It still can be used in places where the electrostatic adhesion of materials is quite strong;

5. Self-adapting proportioning control: automatically correct the material charging error and the precision error is less than 0.1%;

6. Underlying hardware and software control, with more reliable operation.





  Note: the practical output is relevant with the precision setting and the number of components.













component

Ingredients      component

Model

Max. output (kg/hr)

Max. batch (kg)

Compressed air Kgf/cm3

Mixing motor power (W)

Material storage tank

Main Material mixing range (%)

additives mixing range(%)

Base Dimension (mm

2 component

1KG

WBB-S-01/02

135-245

1KG

4-6

120

60

97

3

650*500*1100

2KG

285-360

2KG

4-6

220

70

97

3

650*500*1200

4 component

1KG

WBB-S-01/04

110-160

1KG

4-6

120

100

97

3

750*700*1100

2KG

WBB-S-02/04

240-300

2KG

4-6

220

130

97

3

750*700*1200

4KG

WBB-S-04/04

410-500

4KG

4-6

370

170

97

3

800*800*1350

8KG

WBB-S-08/04

800-1000

8KG

4-6

550

230

97

3

850*800*1550

12KG

WBB-S-012/04

1200-1400

12KG

4-6

750

300

97

3

950*950*1900

20KG

WBB-S-20/04

2000-2400

20KG

4-6

750

400

97

3

1050*1050*2100

30KG

WBB-S-30/04

3000-3600

30KG

4-6

1100

600

97

3

1150*1150*2200

40KG

WBB-S-40/04

4000-4800

40KG

4-6

1100

700

97

3

900*900*1100

6 component

1KG

WBB-S-01/06

85-120

1KG

4-6

120

160

97

3

900*900*1100

2KG

WBB-S-02/06

175-220

2KG

4-6

220

200

97

3

950*900*1200

4KG

WBB-S-04/06

300-400

4KG

4-6

370

260

97

3

950*900*1350

8KG

WBB-S-08/06

530-650

8KG

4-6

550

350

97

3

950*900*1550

12KG

WBB-S-012/06

800-960

12KG

4-6

750

450

97

3

1200*1100*1700

20KG

WBB-S-20/06

1330-1600

20KG

4-6

750

600

97

3

1200*1100*2000

30KG

WBB-S-30/06

2000-2400

30KG

4-6

1100

900

97

3

1300*1200*2200

40KG

WBB-S-40/06

2700-3200

40KG

4-6

1100

1000

97

3

1350*1250*2300
