Original FESTO Plastic tubing PUN H 8X1,25 BL, 50 meter 197385, tube PUN H 8X1.25 BL
- Category: >>>
- Supplier: Yiwu Jianling Import And Export Co. Ltd.
Share on (1600357531345):
Product Overview
Description
Product Description

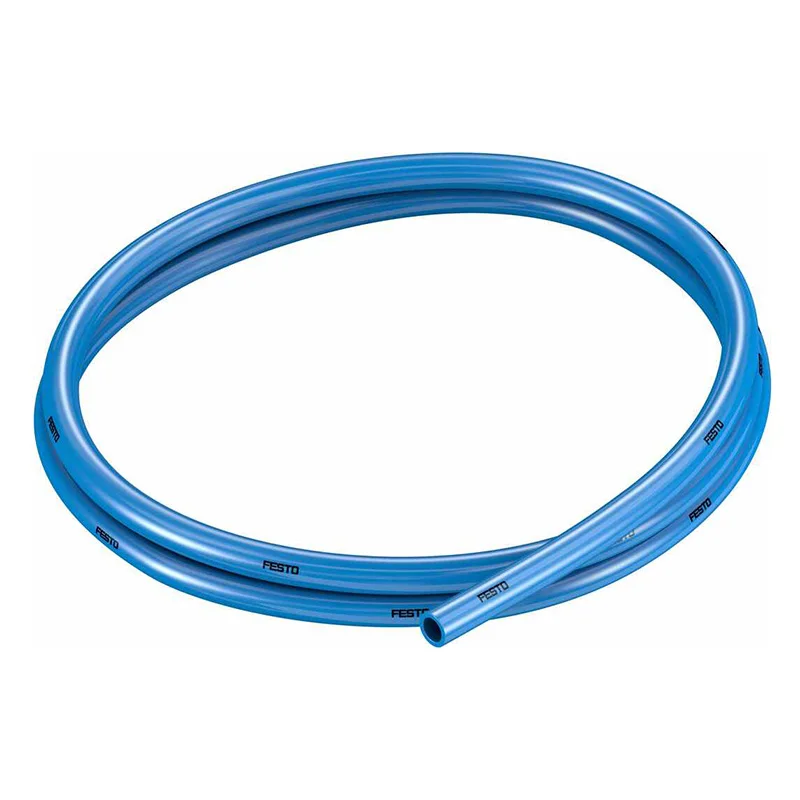

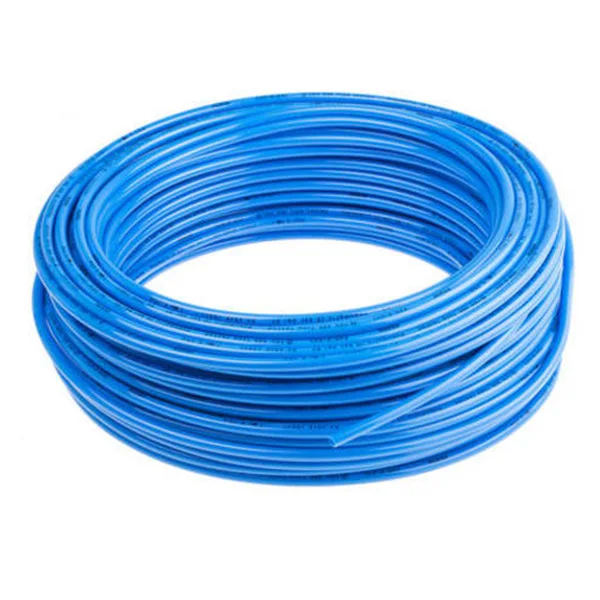

Plastic tubing
PUN-H-8X1,25-BL
197385
PUN-H-8X1,25-BL
197385
Outside diameter：8mm
Bending radius relevant for flow rate：37 mm
Inside diameter：5.7 mm
Min. bending radius：21 mm
Type code：PUN-H
Tubing characteristics：Suitable for energy chains in applications with high cycle rates
Pneumatic tubing test conditions：Suitability for energy chains: >5 million cycles as per FN 942021
Temperature-dependent operating pressure：-0.95 bar ... 10 bar
Ambient temperature：-35 °C ... 60 °C
Product weight by length：0.0287 kg/m
Pneumatic connection：For plug connection outside diameter 4 mm
For barbed fitting, inside diameter 3 mm, with union nut
Color：Blue
Shore hardness：D 52 +/-3
Note on materials：Free of copper and PTFE
RoHS-compliant
Material of pneumatic tubing：TPE-U(PU)
Bending radius relevant for flow rate：37 mm
Inside diameter：5.7 mm
Min. bending radius：21 mm
Type code：PUN-H
Tubing characteristics：Suitable for energy chains in applications with high cycle rates
Pneumatic tubing test conditions：Suitability for energy chains: >5 million cycles as per FN 942021
Temperature-dependent operating pressure：-0.95 bar ... 10 bar
Ambient temperature：-35 °C ... 60 °C
Product weight by length：0.0287 kg/m
Pneumatic connection：For plug connection outside diameter 4 mm
For barbed fitting, inside diameter 3 mm, with union nut
Color：Blue
Shore hardness：D 52 +/-3
Note on materials：Free of copper and PTFE
RoHS-compliant
Material of pneumatic tubing：TPE-U(PU)
Detailed Images
Data Sheet
Outside diameter | 8 mm |
Bending radius relevant for flow rate | 37 mm |
Inside diameter | 5.7 mm |
Min. bending radius | 21 mm |
Type code | PUN-H |
Temperature-dependent operating pressure | -0.95 bar ... 10 bar |
Product weight by length | 0.0287 kg/m |
Material of pneumatic tubing | TPE-U(PU) |
